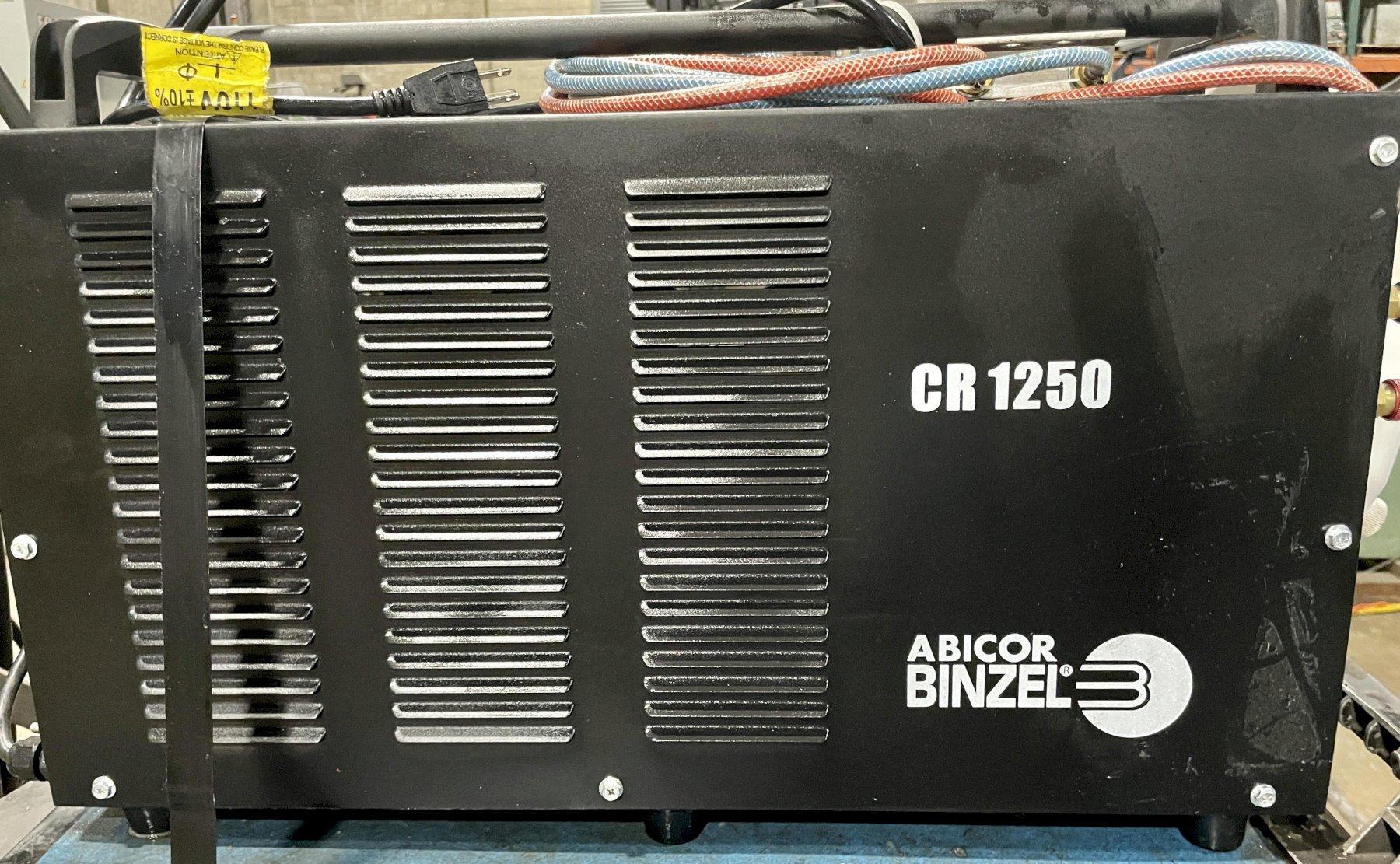

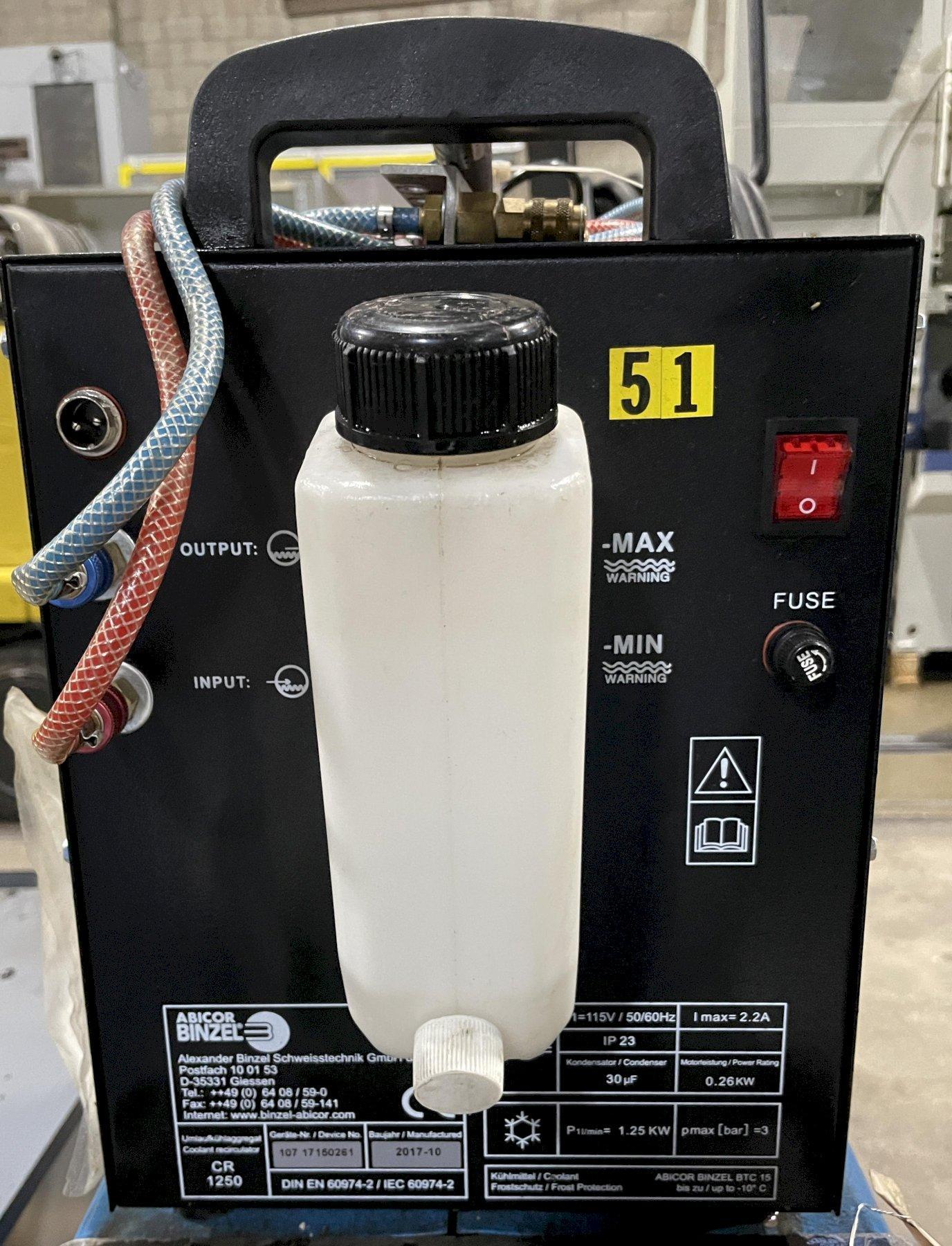

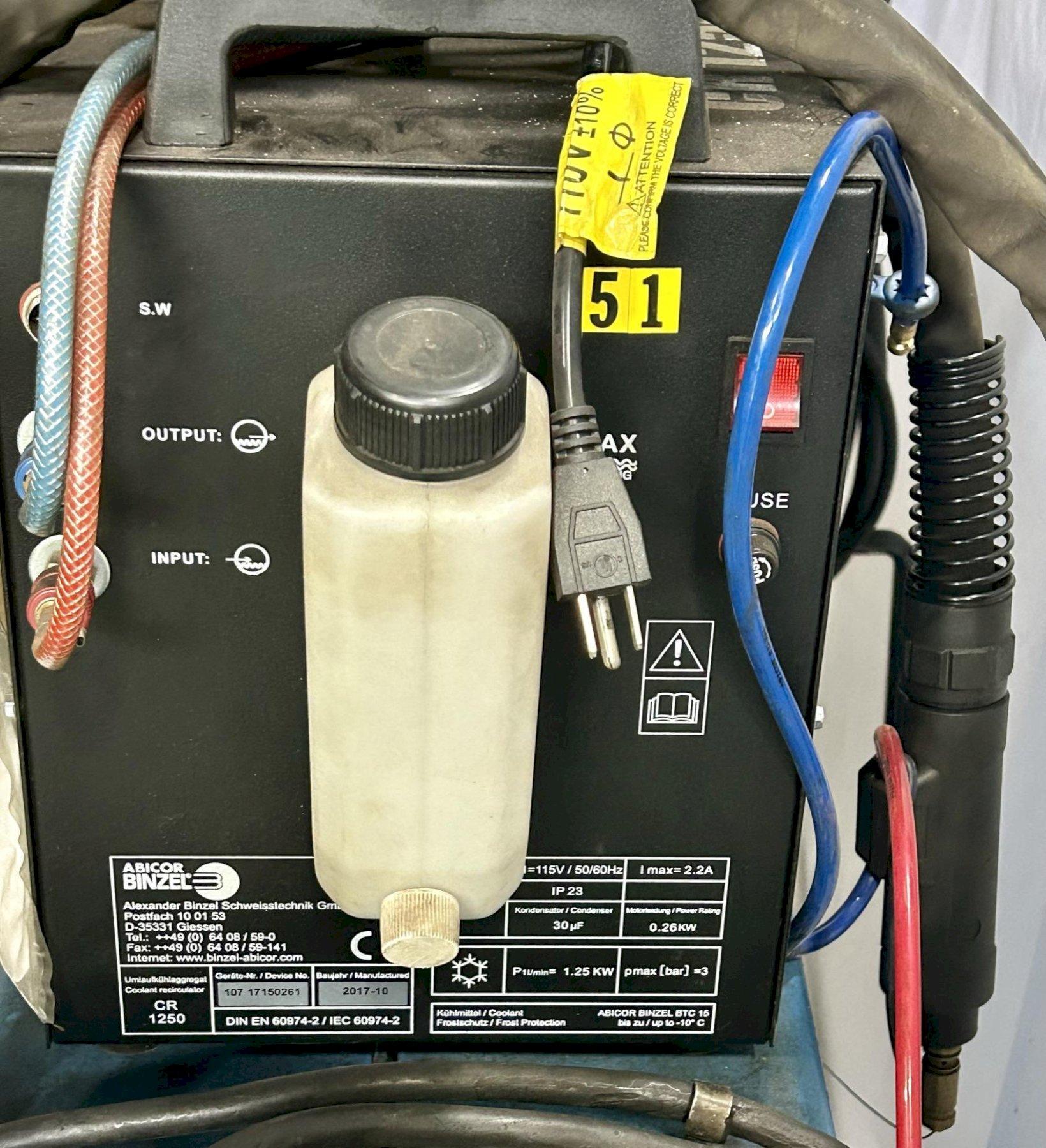

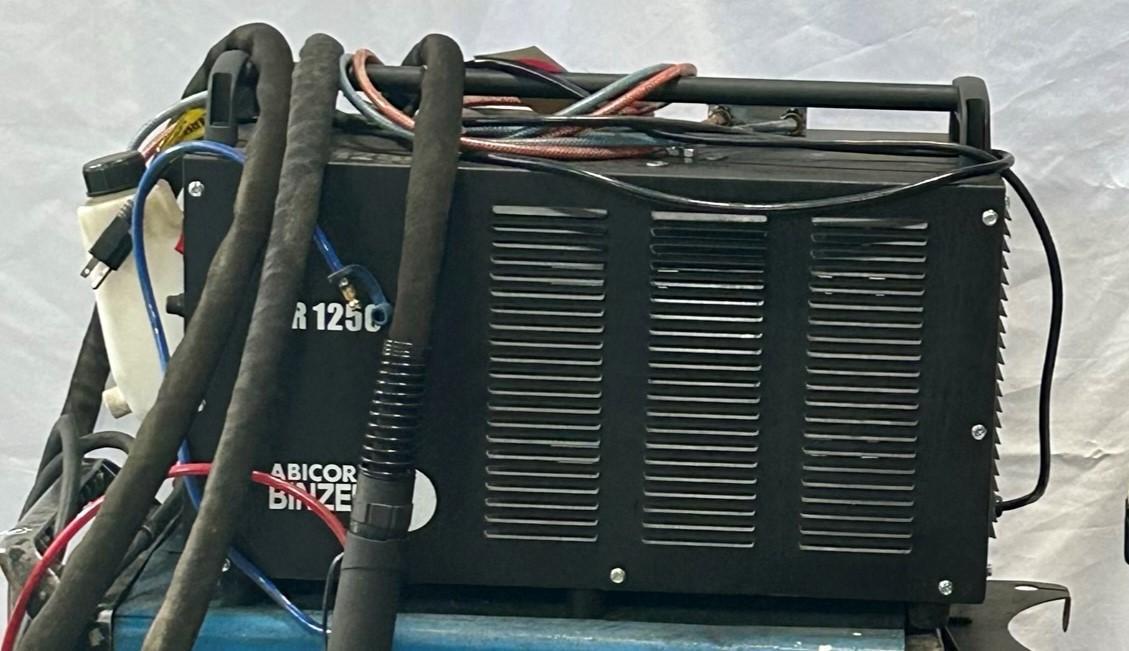

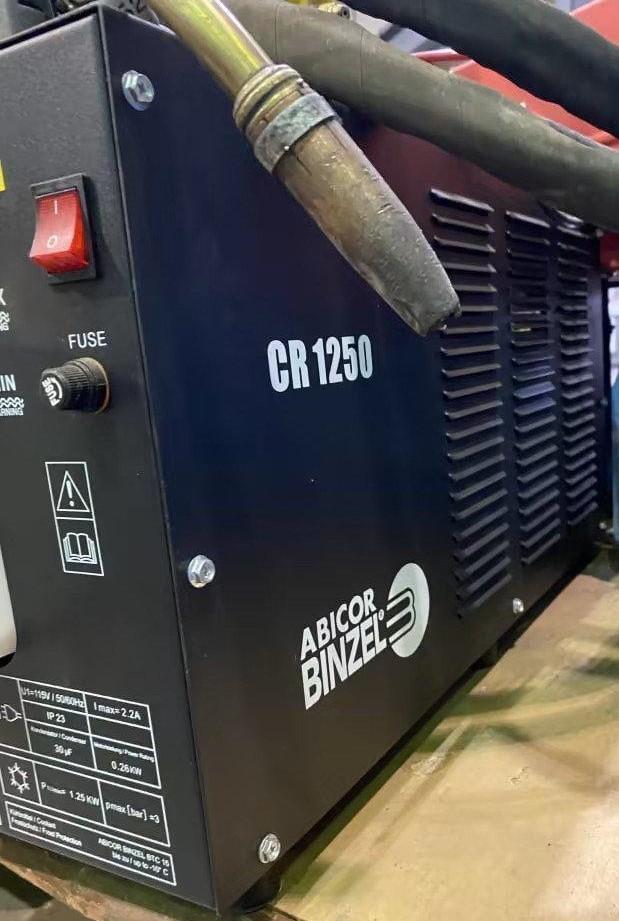

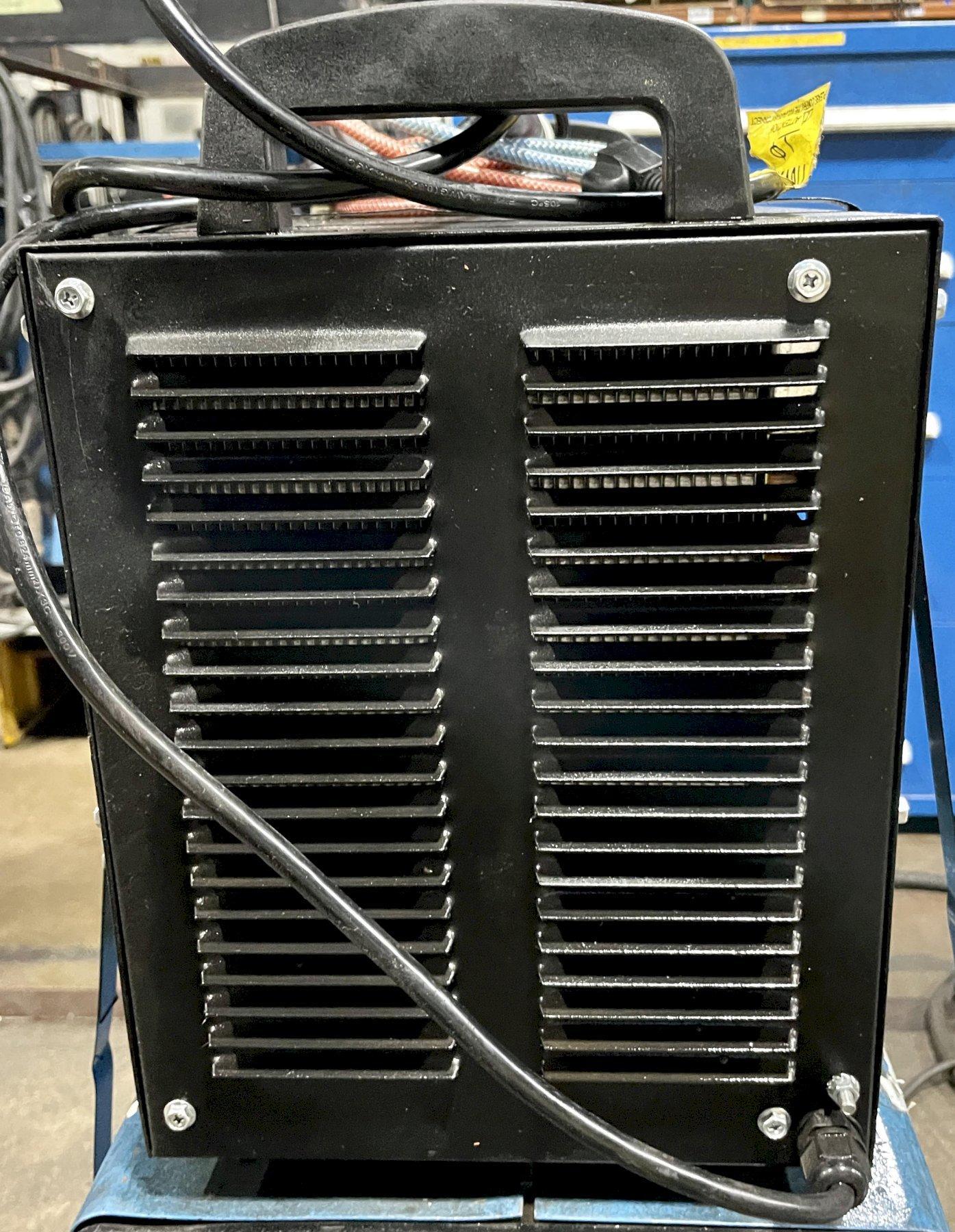

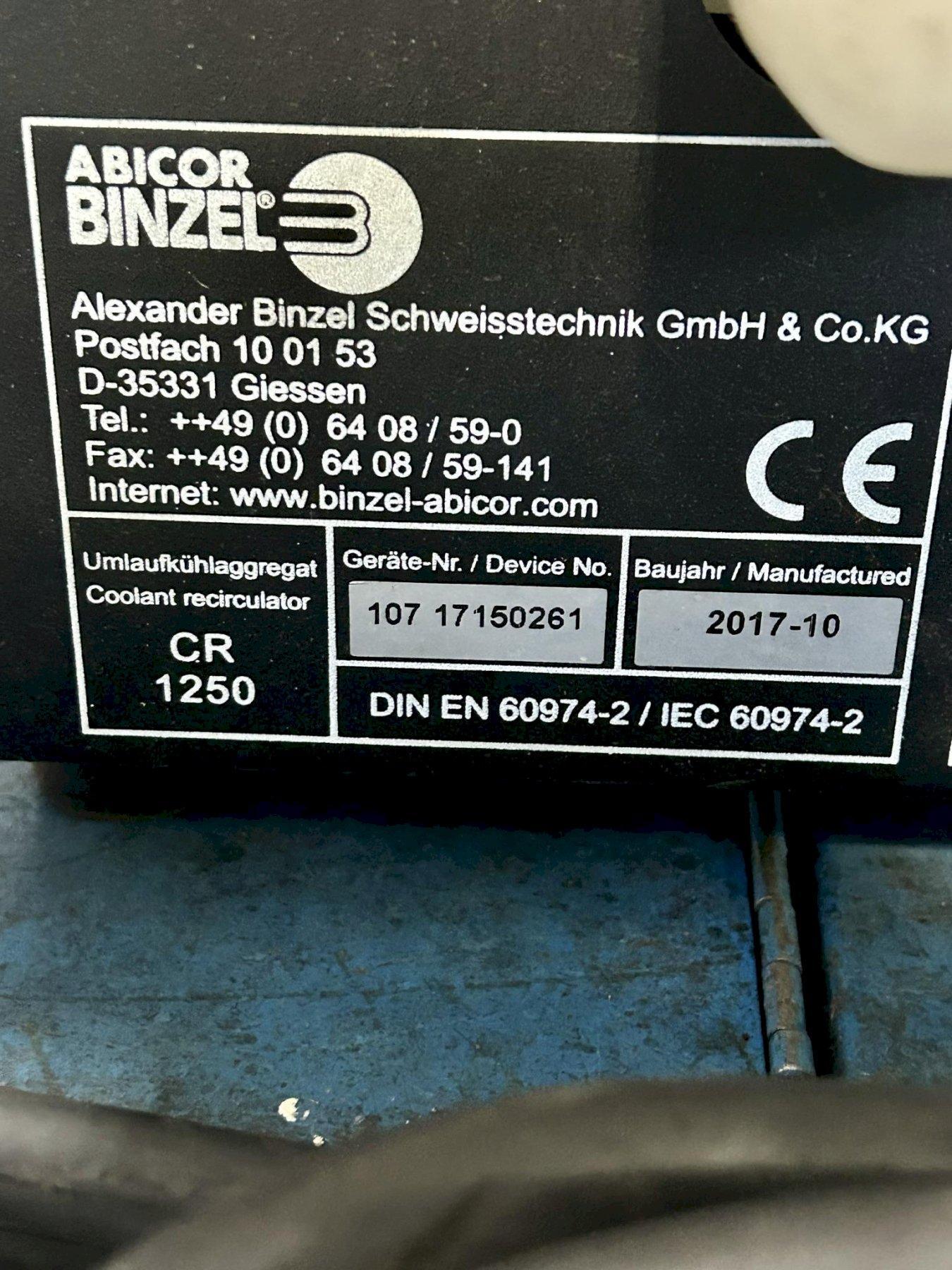

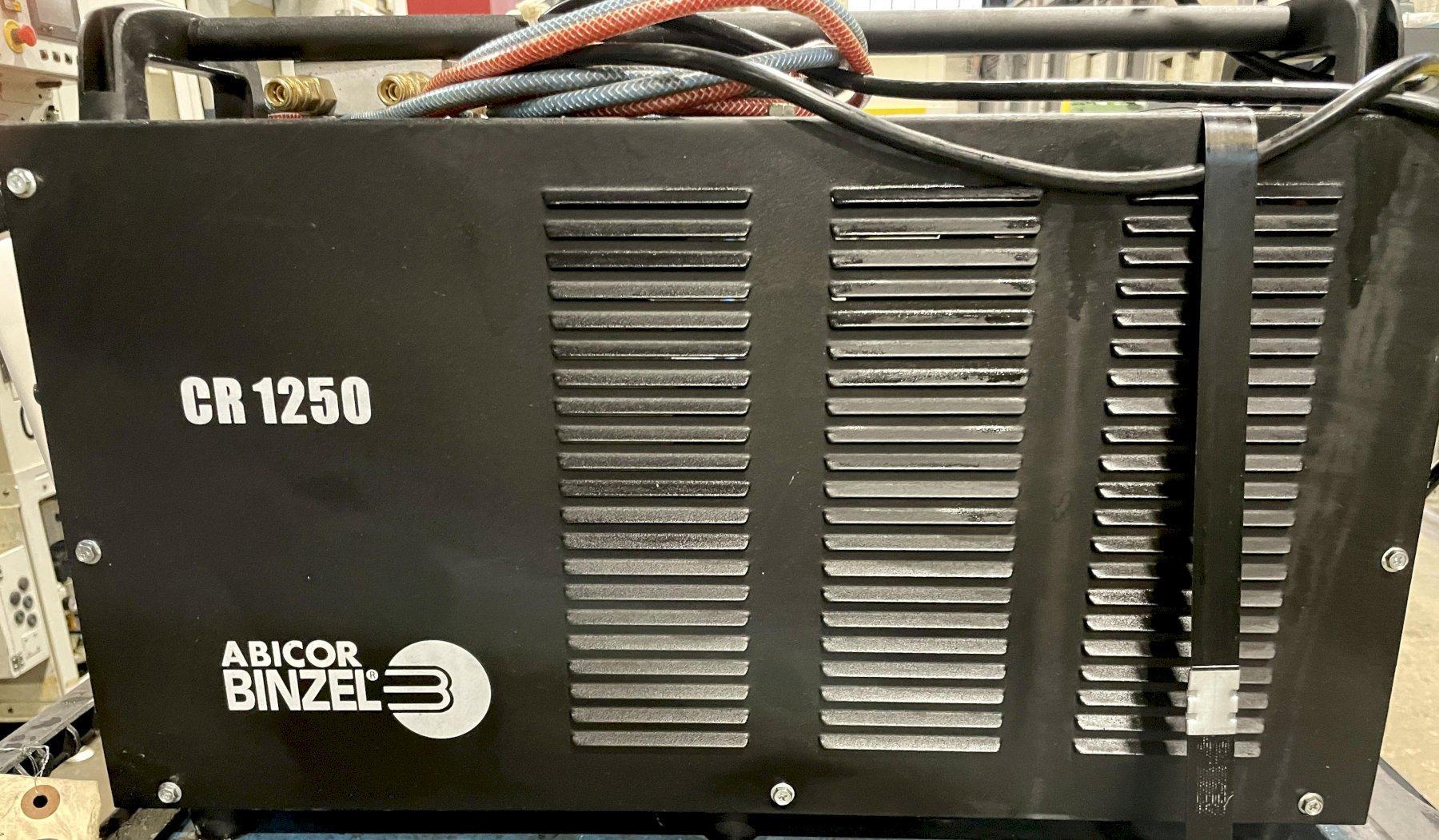

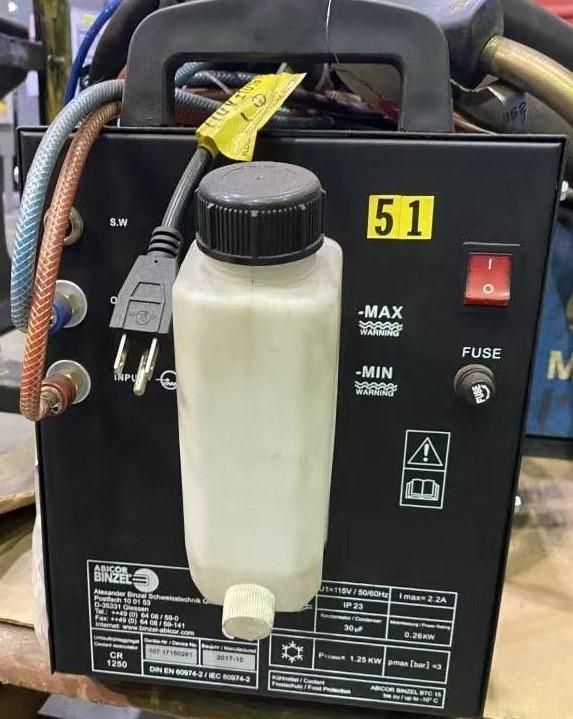

Stock #: Q11397
Brand: ABICOR BINZEL
Model: CR1250
Type: Welding, Accessories
Condition: Excellent
Year: 2017

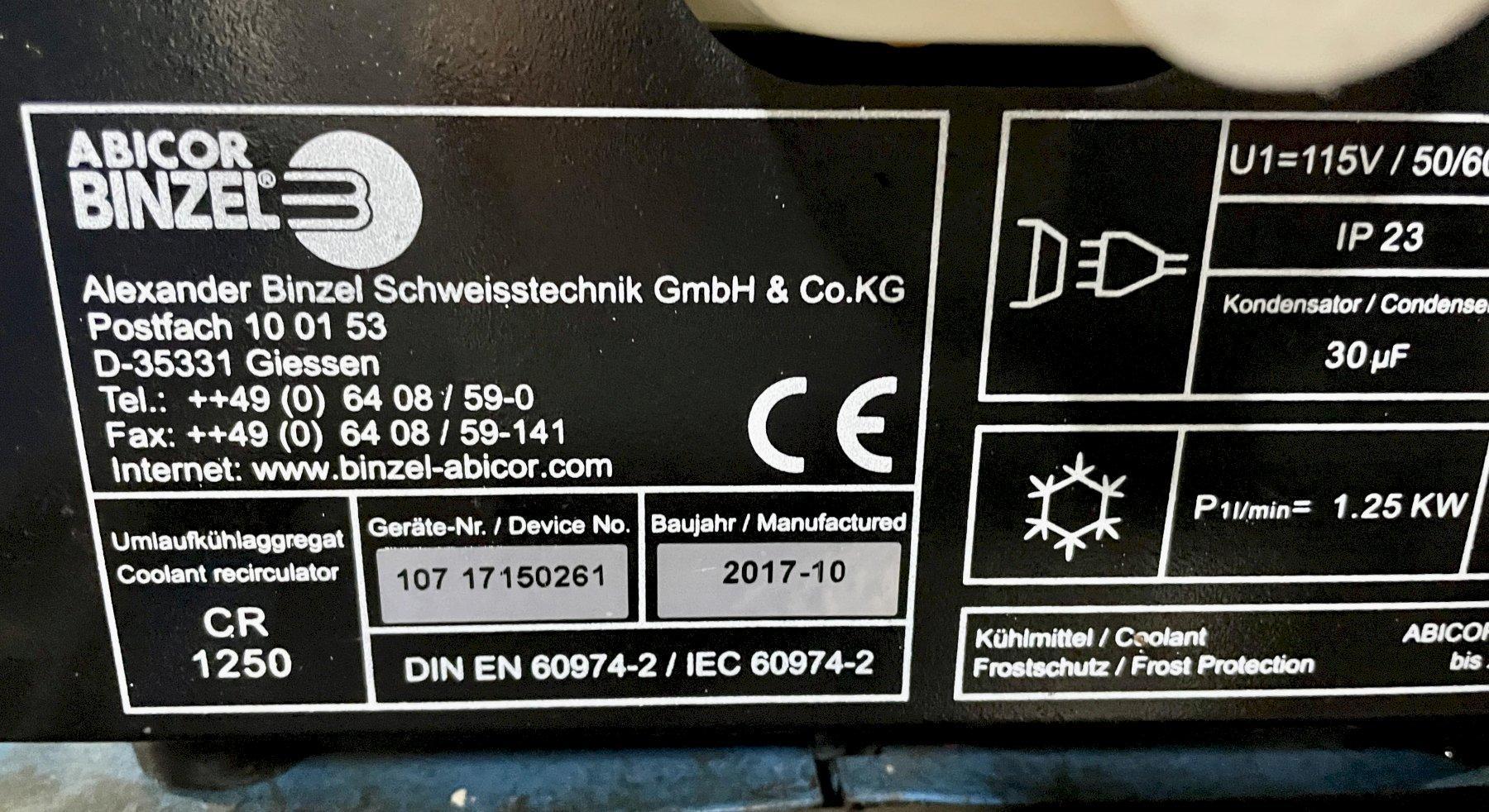

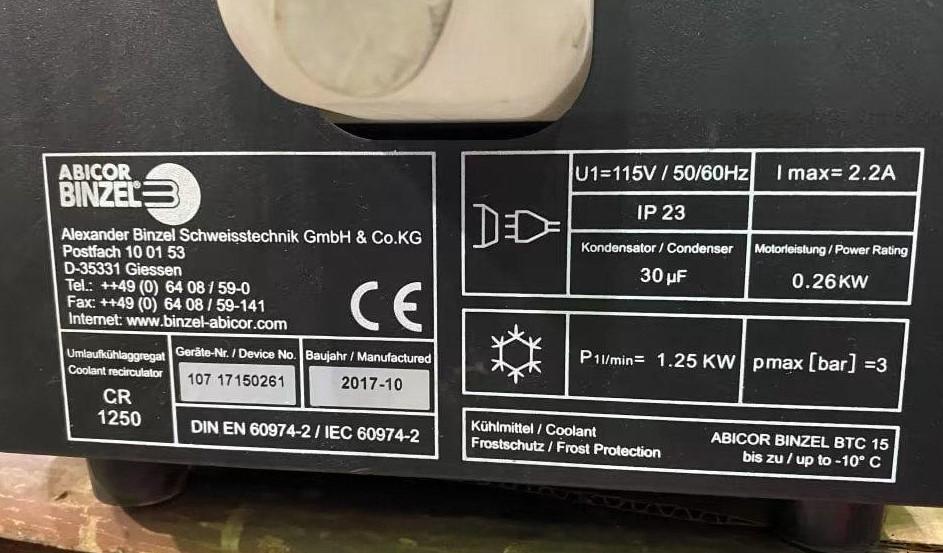

Specifications: |
|
---|---|
Heat Exchanger Type | 3-Row |
Pump Flow Rate | Q(max) 7 l/min |
Pump Delivery Height | H(max) 35 m |
Pump Pressure | 3.5 bar (50.8 PSI) |
Cooling Capacity | 1250 W with H2O / 1050 W with BTC-15* |
Tank Capacity | 6.0 L (1.59 Gal) |
Water Connection | NW 5 (quick connector) |
Condenser Capacitance | 30 μF |
Enclosure Rating | IP 23 |
Noise Level (at 1 m distance) | 67 dB (A) |
Electrics | 230 VAC / 50 Hz |
Approximate Dimensions | 690mm x 250mm (27.2" x 9.8") |
Approximate Height | 340mm (13.4") |
Approximate Weight | 16.7 KG (36.8 LBS) |
*The coolant BTC of ABICOR BINZEL protects liquid cooled welding and cutting torches as well as cooling devices by their very low conductance of < 4 μS against electrolytic corrosion and premature wear.
