DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER

Stock #: Q11382

Brand: DAEWOO
Model: DMV-4020S
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2002

Equipped With:



Fanuc 18iM CNC Control, 10,000 RPM Spindle, 30 Automatic High Speed Tool Changer, Spindle Chiller Unit, Coolant System.

Specifications:
CNC Control yes
Type of CNC Control Fanuc 18iM CNC Control
# Axis 3
Table Size 47.2" x 19.7"
X-Axis (Longitudinal Travel) 40.2"
Y-Axis (Cross Travel) 20"
Z-Axis (Vertical Travel) 20.2"
Table Load Capacity 1,760 LBS
Max/Min Clearance Table Top to Spindle Nose 26" / 5.9"
Feed Rates, All Axes 593 IPM
X-Axis Rapid Traverse Rate 1181 IPM
Y-Axis Rapid Traverse Rate 1181 IPM
Z-Axis Rapid Traverse Rate 787 IPM
Spindle Horsepower 20 HP
Max Spindle Speed 10,000 RPM
Spindle Taper CAT 40
Automatic Tool Changer Capacity (ATC) 30
Automatic Tool Changer Style Side-Mount
Tool Change Time 1.5 Sec
Electrics 220/3/60
Approximate Machine Dimensions 140" x 100"
Approximate Machine Height 110"
Approximate Machine Weight 16,500 LBS
CONDITION: This Machine Appears to be in Excellent Condition !

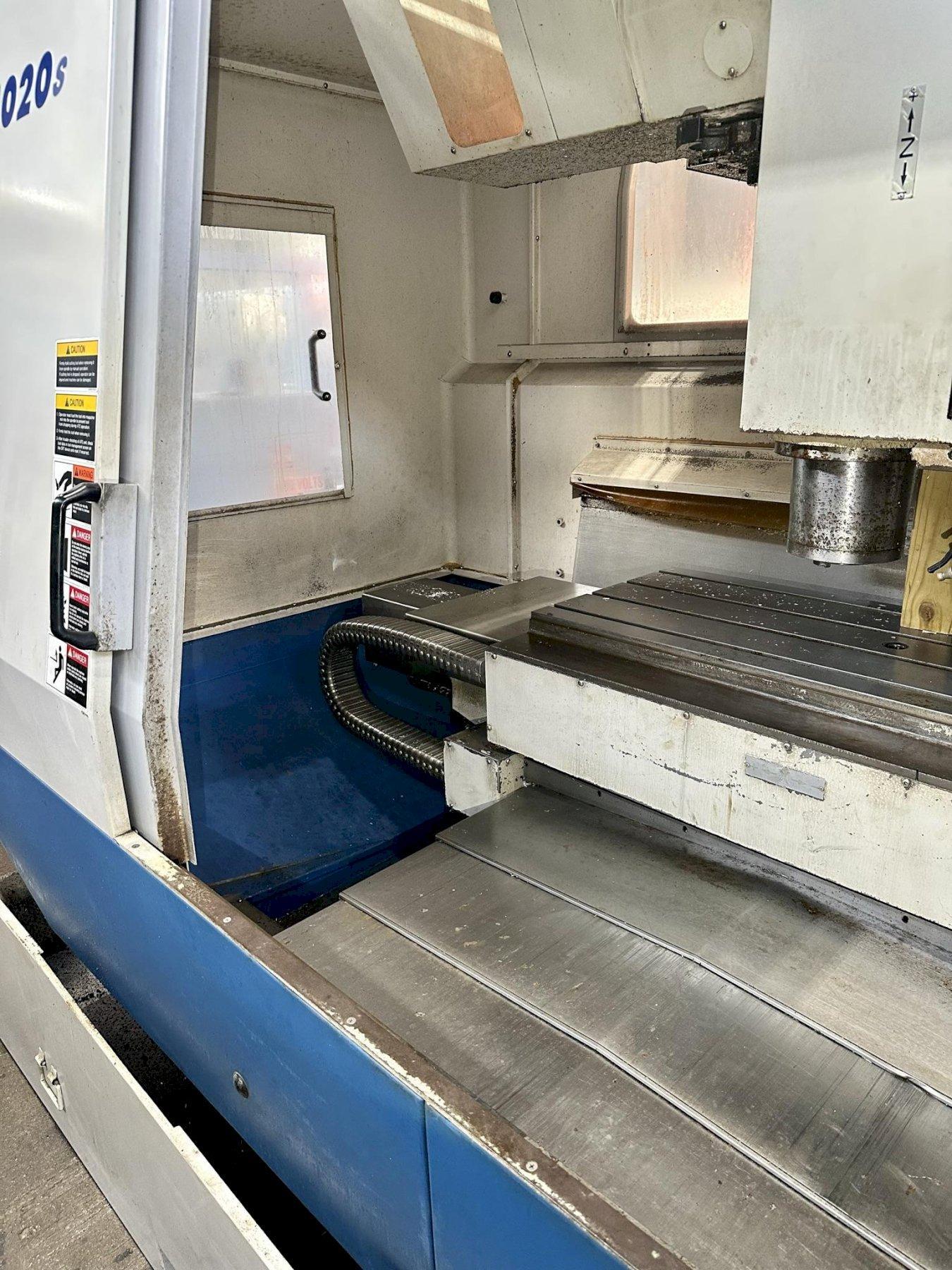

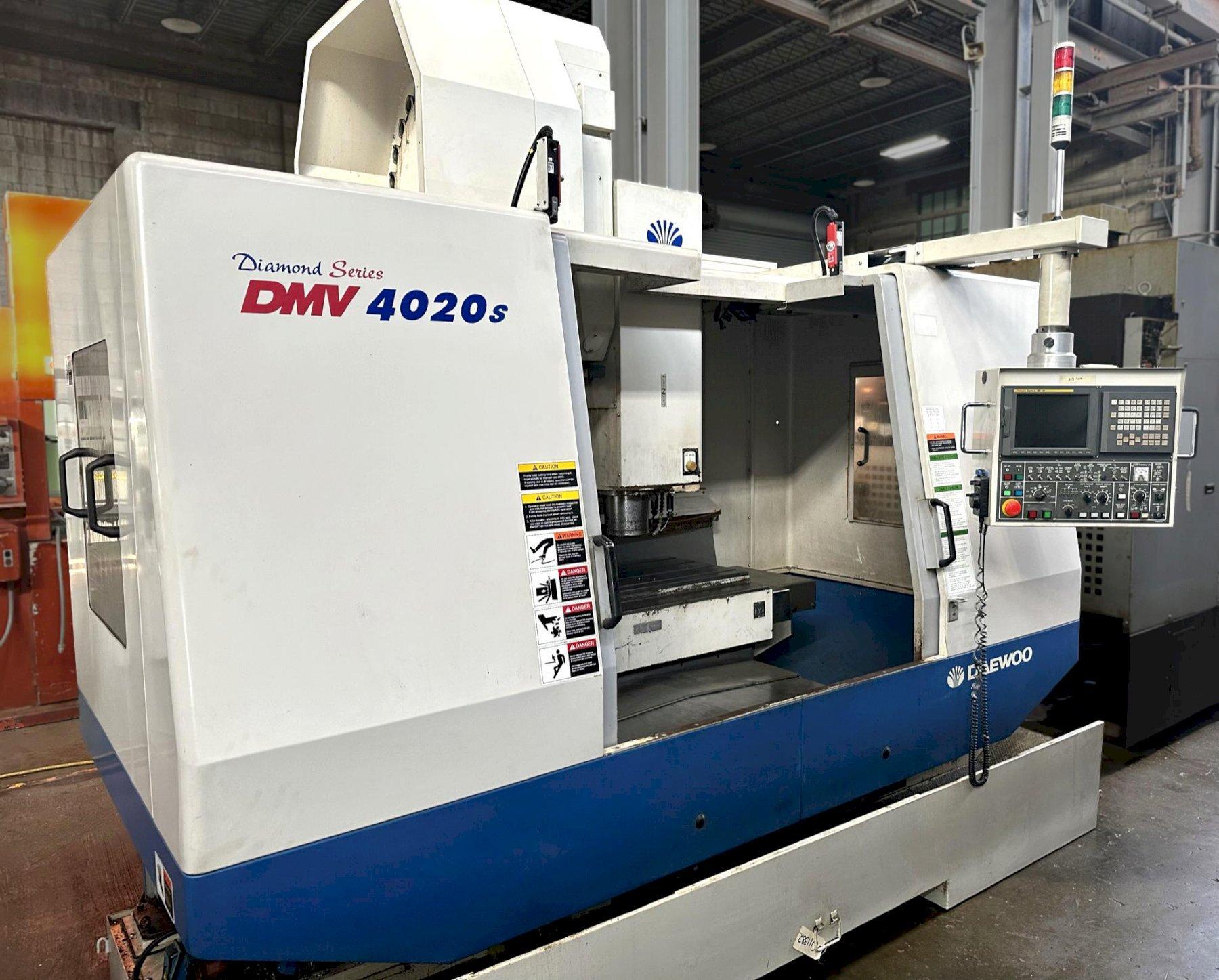

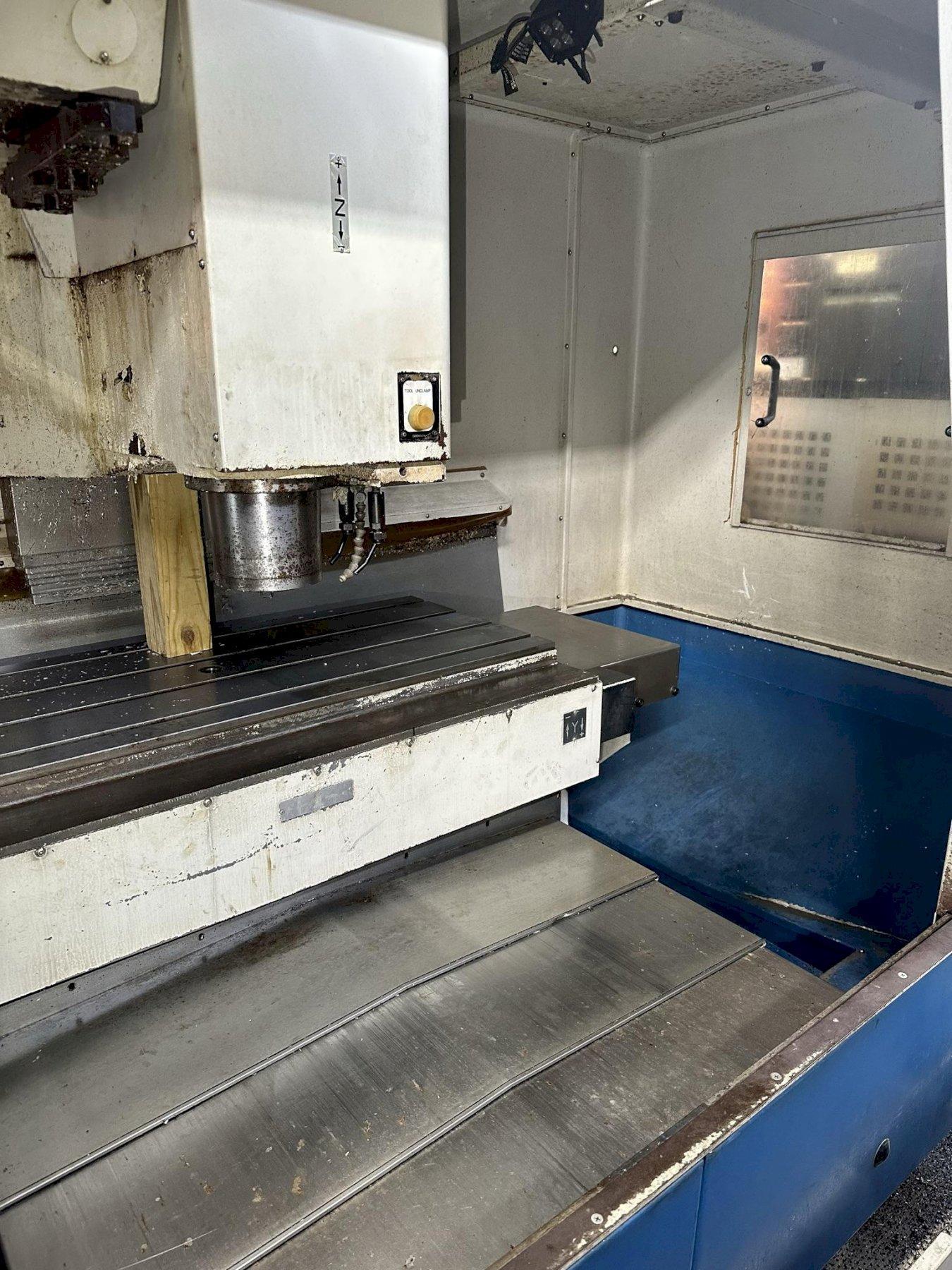

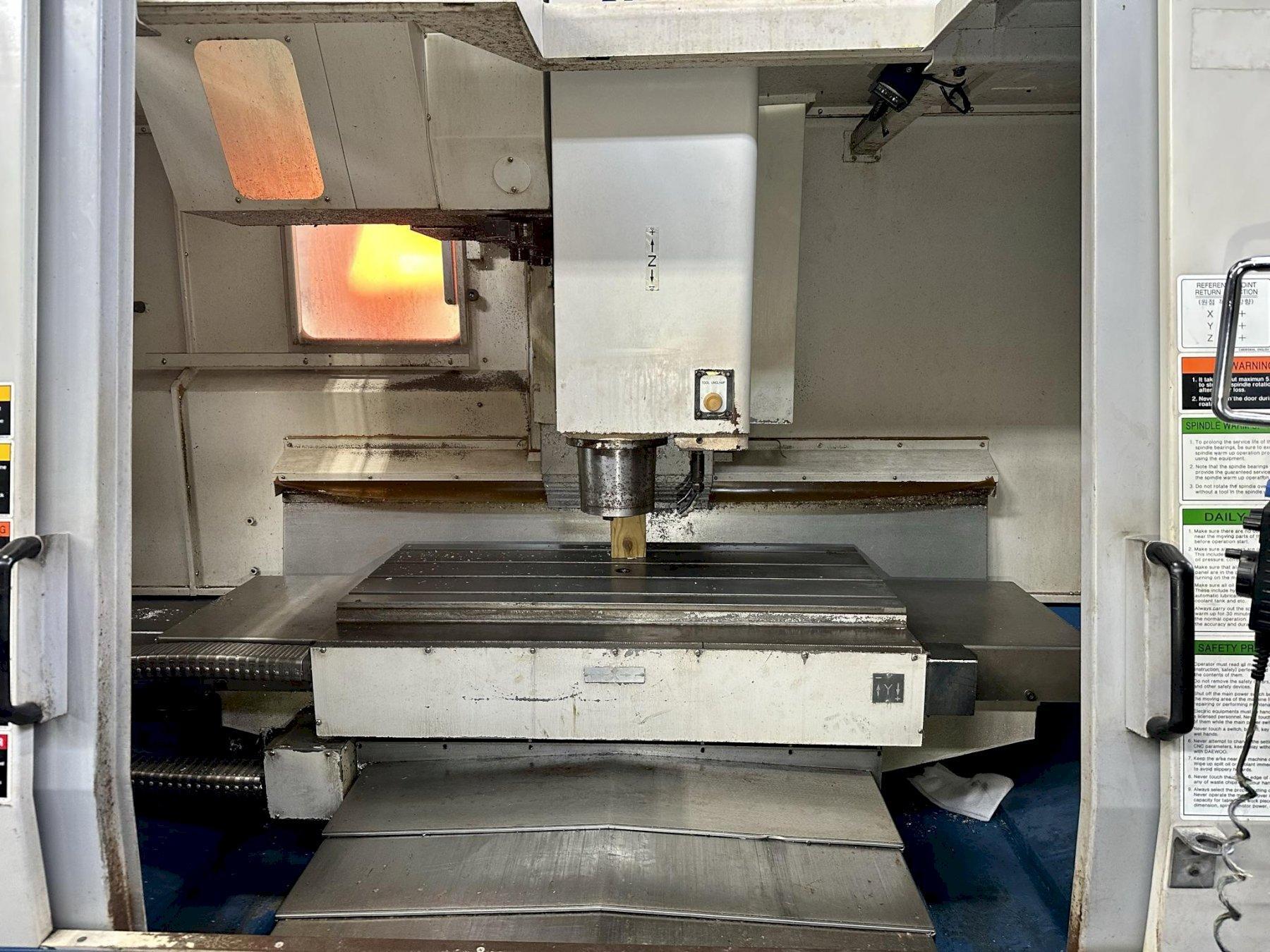

DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER

DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.
  • DAEWOO DMV-4020S CNC VERTICAL MACHINING CENTER, Fanuc 18iM CNC Control, 47" x 20" Table, X=40", Y=20", Z=20", CAT 40 Taper, 10,000 Max Spindle RPM, 30 ATC, Coolant System & Chip Pan, New 2002.

Share:

Print Details

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      DAEWOO

      Model
      DMV-4020S

      Type
      Machining Centers, Vertical

      Stock #
      Q11382

      Condition
      Excellent

      Year
      2002

      Request a Quote Today!

      Get Started

      Equipped With
      Fanuc 18iM CNC Control, 10,000 RPM Spindle, 30 Automatic High Speed Tool Changer, Spindle Chiller Unit, Coolant System.

      Specifications
      CNC Control yes
      Type of CNC Control Fanuc 18iM CNC Control
      # Axis 3
      Table Size 47.2" x 19.7"
      X-Axis (Longitudinal Travel) 40.2"
      Y-Axis (Cross Travel) 20"
      Z-Axis (Vertical Travel) 20.2"
      Table Load Capacity 1,760 LBS
      Max/Min Clearance Table Top to Spindle Nose 26" / 5.9"
      Feed Rates, All Axes 593 IPM
      X-Axis Rapid Traverse Rate 1181 IPM
      Y-Axis Rapid Traverse Rate 1181 IPM
      Z-Axis Rapid Traverse Rate 787 IPM
      Spindle Horsepower 20 HP
      Max Spindle Speed 10,000 RPM
      Spindle Taper CAT 40
      Automatic Tool Changer Capacity (ATC) 30
      Automatic Tool Changer Style Side-Mount
      Tool Change Time 1.5 Sec
      Electrics 220/3/60
      Approximate Machine Dimensions 140" x 100"
      Approximate Machine Height 110"
      Approximate Machine Weight 16,500 LBS
      CONDITION: This Machine Appears to be in Excellent Condition !
