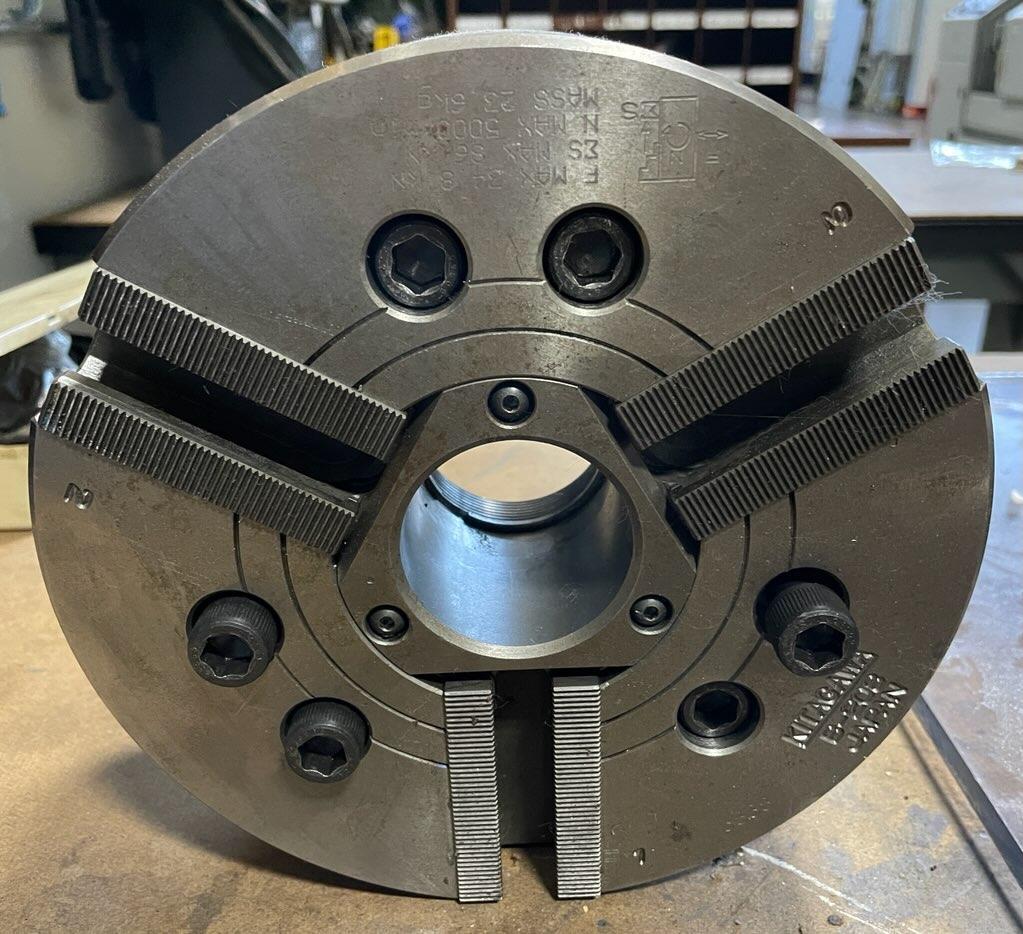

Stock #: Q10809

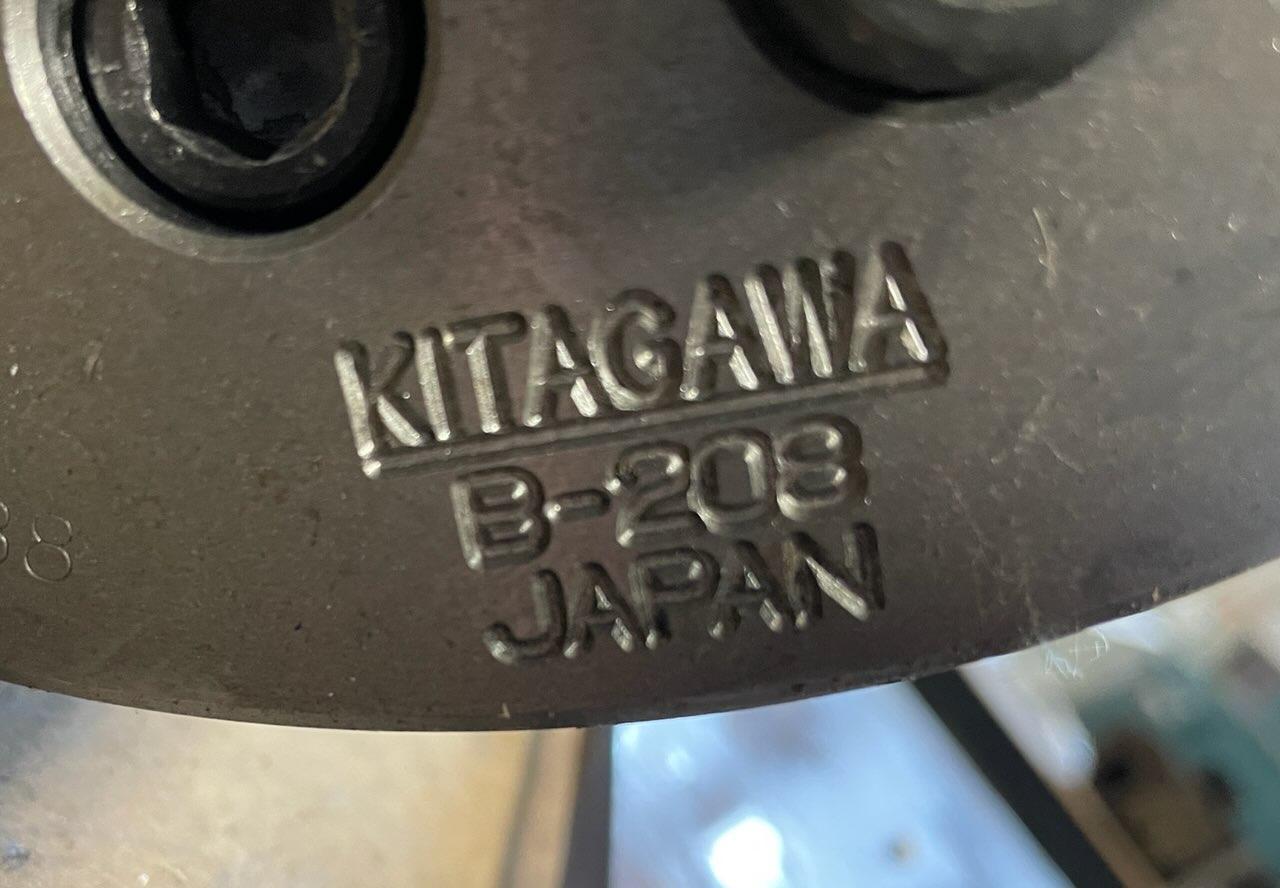

Brand: KITAGAWA
Model: B-208
Type: Chucks
Condition: Excellent
Year: Not Specified

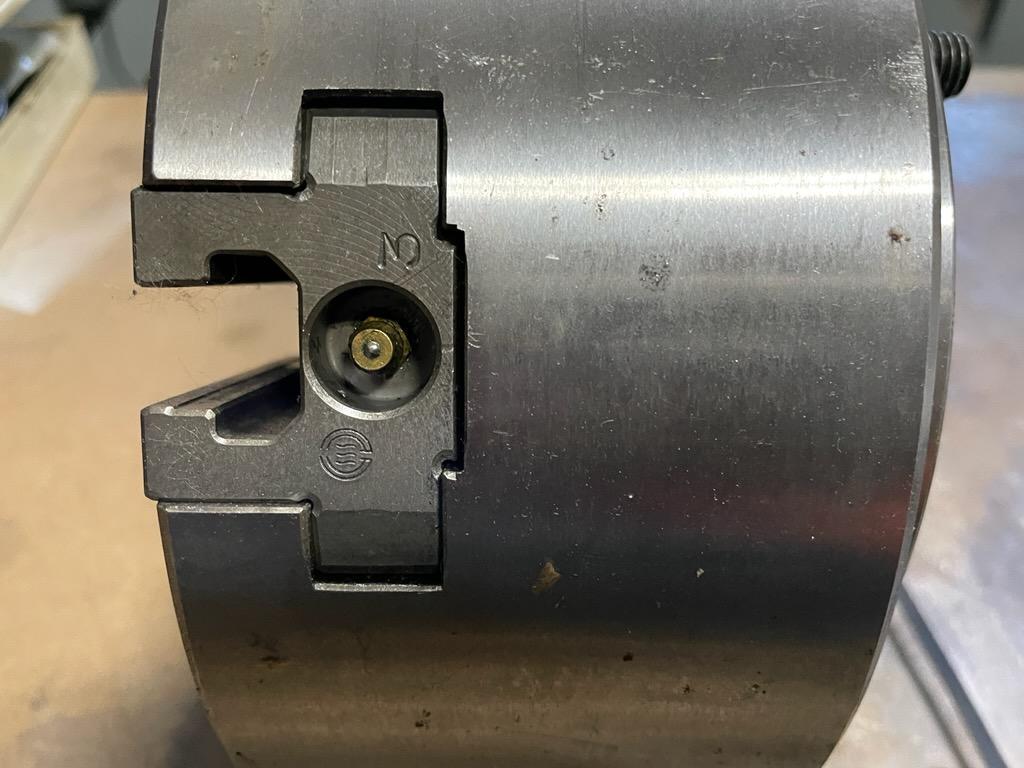

Lubrication Nipple on Each Master Jaw, Master Jaw Serration 1.5mm x 60°.
Specifications: |
|
|---|---|
| Type | Power |
| # Jaws | 3 |
| Type of Actuation | Hydraulic |
| Body Diameter | 210mm ( 8.27" ) |
| Through Hole | yes |
| Through Hole Diameter | 52mm ( 2.1" ) |

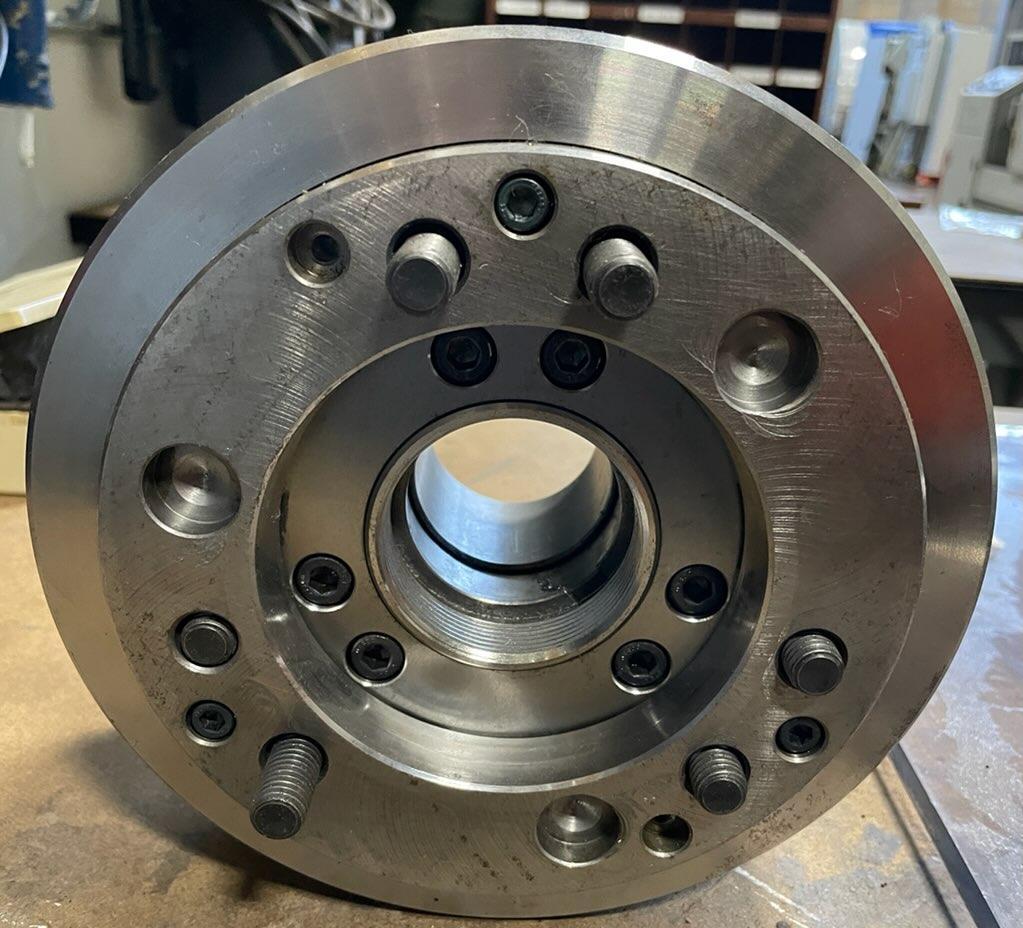

| Spindle Mount Type | A2-6 |
| Jaw Stroke | 7.4mm ( 0.29" ) |
| Max Speed | 5,000 RPM |

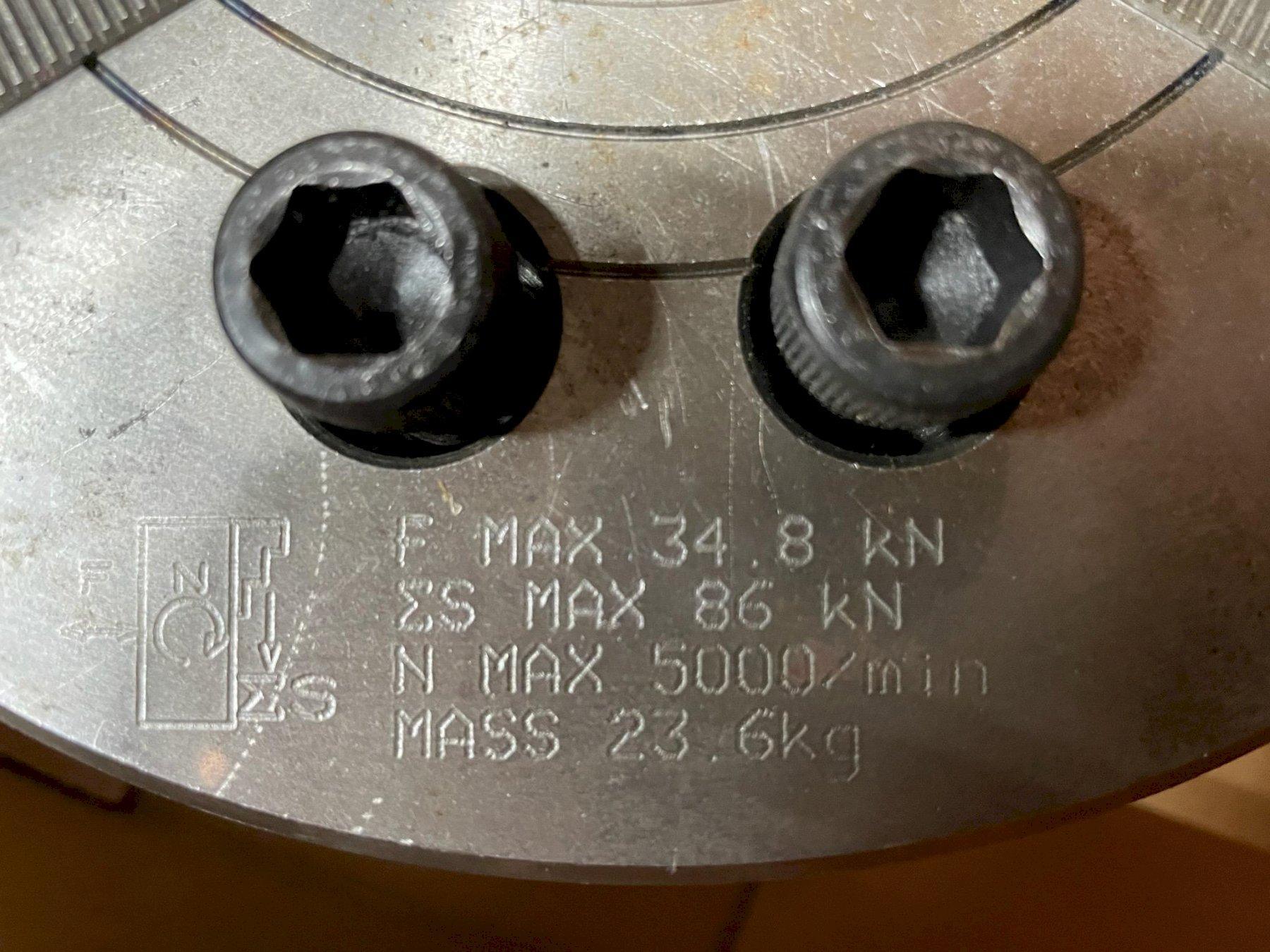

| Max Pull Force | 34.8 kN |
| Max Grip Force | 86 kN |
| Gripping Range | 210mm ( 8.27" ) Max, 13mm ( 0.51" ) Min |
| Max Pressure | 2.65 MPa |
| Approximate Weight | 23.6 KG / 52 LBS |
CONDITION: Chuck Appears to be in Excellent Condition.





Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Lubrication Nipple on Each Master Jaw, Master Jaw Serration 1.5mm x 60°. |
Specifications |
|
|---|---|
| Type | Power |
| # Jaws | 3 |
| Type of Actuation | Hydraulic |
| Body Diameter | 210mm ( 8.27" ) |
| Through Hole | yes |
| Through Hole Diameter | 52mm ( 2.1" ) |
| Spindle Mount Type | A2-6 |
| Jaw Stroke | 7.4mm ( 0.29" ) |
| Max Speed | 5,000 RPM |
| Max Pull Force | 34.8 kN |
| Max Grip Force | 86 kN |
| Gripping Range | 210mm ( 8.27" ) Max, 13mm ( 0.51" ) Min |
| Max Pressure | 2.65 MPa |
| Approximate Weight | 23.6 KG / 52 LBS |
| CONDITION: Chuck Appears to be in Excellent Condition. |
