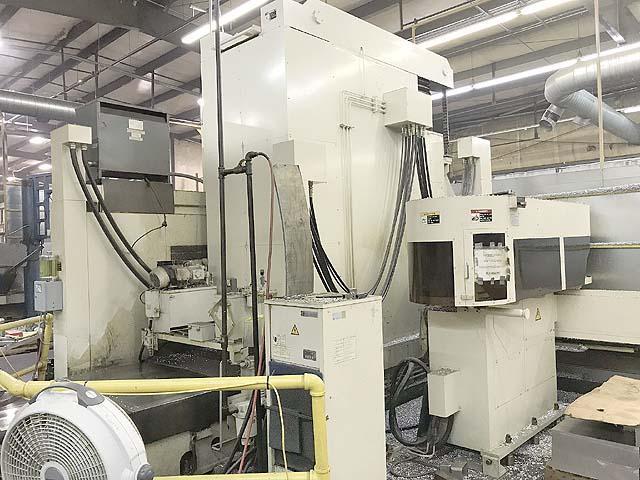

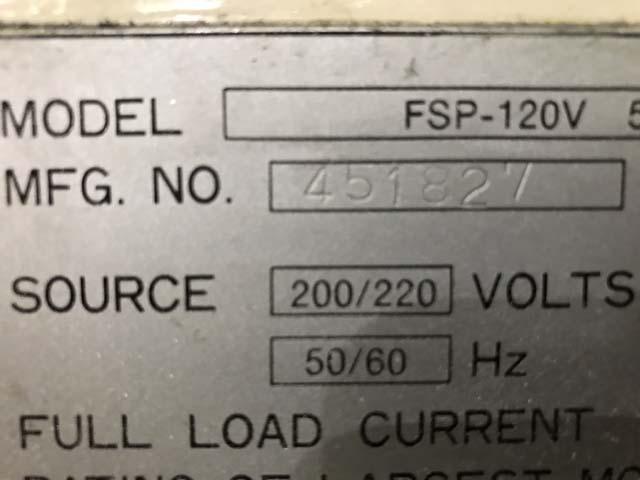

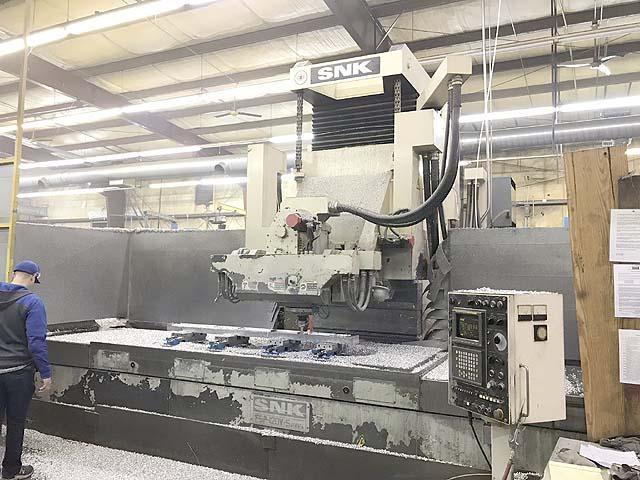

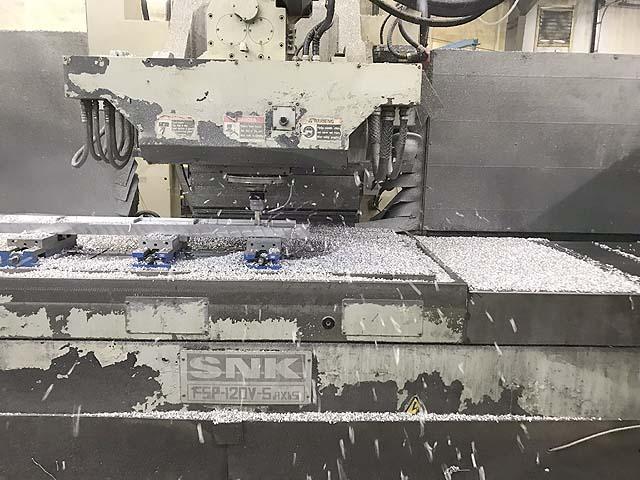

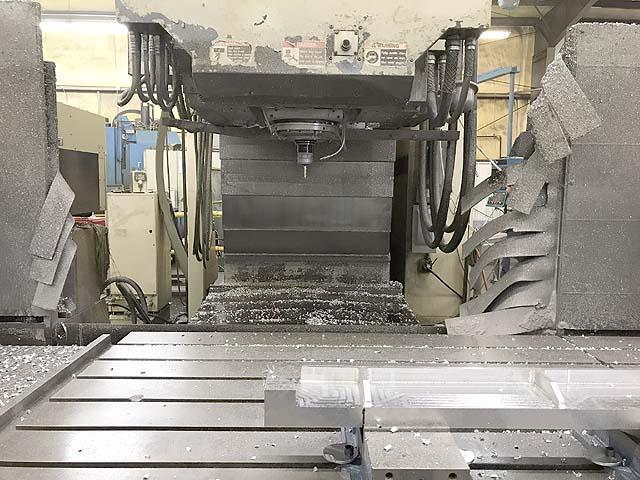

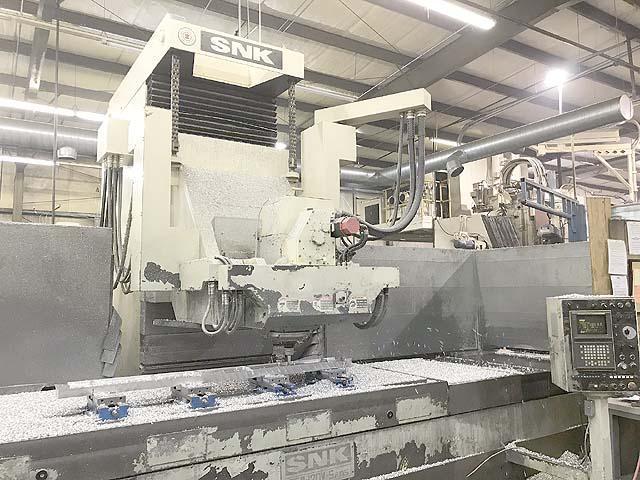

SNK FSP-120V 5-AXIS CNC VERTICAL PROFILER

Stock #: K15235

Brand: SNK
Model: FSP-120V
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 1999

Equipped With:



Fanuc 16M CNC Full 5 Axis Simultaneous Contouring Control, RS-232, Spindle Load Meter, 5-Axis Error Compensation (X, Y, Z, A, B), Axis Limit ACC/DEC, 24 Station Automatic Tool Changer, 5 Axis Cutter Compensation, 25HP 10,000 RPM Spindle, Chip Conveyor and Coolant System.

SPECIFICATIONS:
Table Working Surface, W x L............................ 48" x 125"
Table Load Capacity..................................... 10,000 LBS
X Axis Table Longitudinal Travel........................ 120"
Y Axis Saddle Cross Travel.............................. 50"
Z Axis Spindle Carrier Vertical Travel.................. 24"
A Axis Cross Plane Spindle Carrier (+or- 25 Deg)........ 50 Degrees
B Axis Longitudinal Plane Spindle Carrier (+or- 25 Deg). 50 Degrees
Range, Spindle Nose to Table Top (Min to Max)........... 5" to 29"
Spindle Speeds, Infinite Range.......................... 20 to 10000 RPM
Spindle Motor, Continuous Rating......................... 25 HP
Spindle Taper........................................... CAT #50
Electric................................................ 230-460/3/60
Weight, Approximately................................... 91,000 LBS

NOTE:  Appears to be in Very Good Condition !
