Stock #: K15046
Brand: Cincinnati

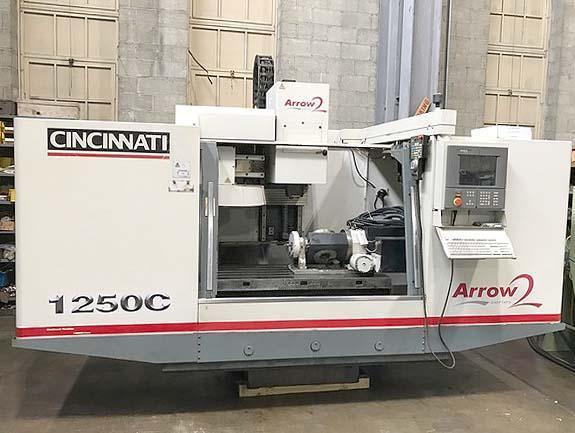

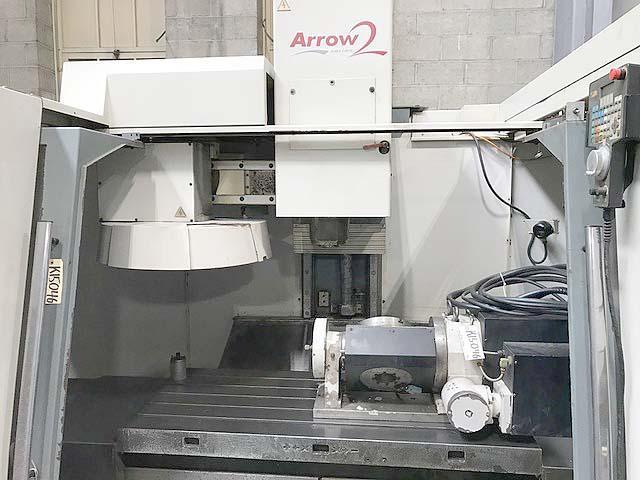

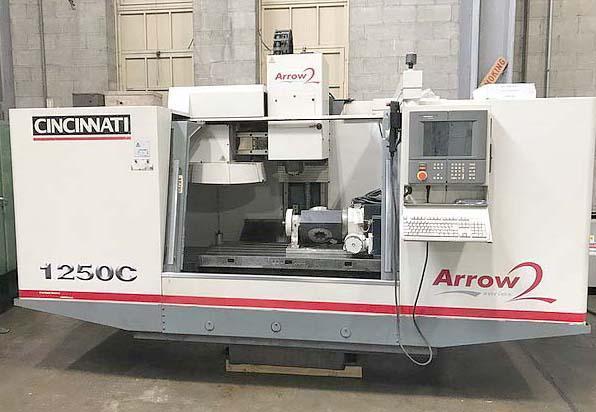

Model: ARROW-2 1250C
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2001

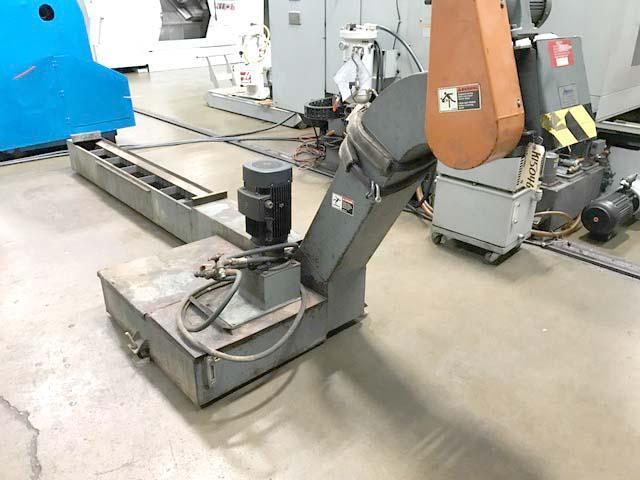

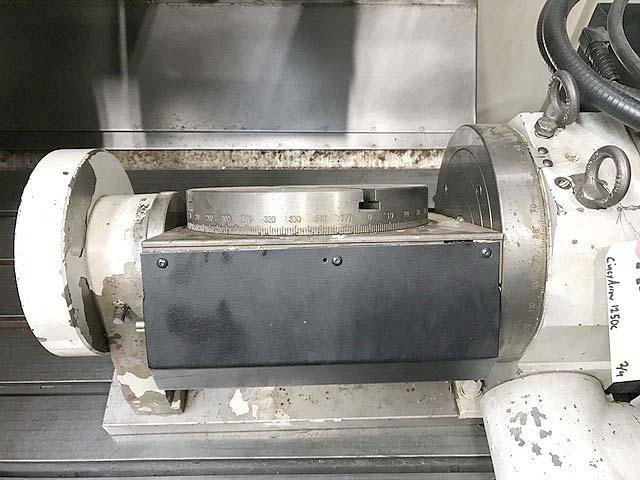

Siemens Acramatic 2100 PC Based CNC Control w/ Color CRT, Touch Screen Conversational Programming, Multiple Part Program Storage, Migrating Tools, Fanuc Program Translation, 3-1/2" Floppy Disk Drive, RS-232 Port, 10" Troyke 4th and 5th Axis Rotary Table and Trunion, Renishaw Spindle Probe, 21 Station Automatic Tool Changer, Thru Spindle Coolant, Full Coolant Enclosure, Jorgenson Drag Out Chip and Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Siemens Acramatic 2100 PC Based CNC Control |
| Table Working Surface | 60" x 30" |
| Table Load Capacity | 4,410 LBS |
| X-Axis (Longitudinal Travel) | 50" |
| Y-Axis (Cross Travel) | 20" |
| Z-Axis (Vertical Travel) | 22" |
| Feed Rates, All Axes | 0.1 to 590 IPM |
| X-Axis Rapid Traverse Rate | 944 IPM |
| Y-Axis Rapid Traverse Rate | 944 IPM |
| Z-Axis Rapid Traverse Rate | 945 IPM |
| Spindle Horsepower | 15 HP |
| Spindle Speed Range | 60 - 8,000 RPM |
| Spindle Taper | CAT 40 |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 21 |
| Approximate Machine Dimensions | 145" x 112" |
| Approximate Machine Height | 142" |
| Approximate Machine Weight | 19,360 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Brand
Cincinnati
Model
ARROW-2 1250C
Type
Machining Centers, Vertical
Stock #
K15046
Condition
Excellent
Year
2001
Equipped With |
|---|
|
Siemens Acramatic 2100 PC Based CNC Control w/ Color CRT, Touch Screen Conversational Programming, Multiple Part Program Storage, Migrating Tools, Fanuc Program Translation, 3-1/2" Floppy Disk Drive, RS-232 Port, 10" Troyke 4th and 5th Axis Rotary Table and Trunion, Renishaw Spindle Probe, 21 Station Automatic Tool Changer, Thru Spindle Coolant, Full Coolant Enclosure, Jorgenson Drag Out Chip and Coolant System. |
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Siemens Acramatic 2100 PC Based CNC Control |
| Table Working Surface | 60" x 30" |
| Table Load Capacity | 4,410 LBS |
| X-Axis (Longitudinal Travel) | 50" |
| Y-Axis (Cross Travel) | 20" |
| Z-Axis (Vertical Travel) | 22" |
| Feed Rates, All Axes | 0.1 to 590 IPM |
| X-Axis Rapid Traverse Rate | 944 IPM |
| Y-Axis Rapid Traverse Rate | 944 IPM |
| Z-Axis Rapid Traverse Rate | 945 IPM |
| Spindle Horsepower | 15 HP |
| Spindle Speed Range | 60 - 8,000 RPM |
| Spindle Taper | CAT 40 |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 21 |
| Approximate Machine Dimensions | 145" x 112" |
| Approximate Machine Height | 142" |
| Approximate Machine Weight | 19,360 LBS |
| CONDITION: This Machine Appears to be in Excellent Condition ! |
