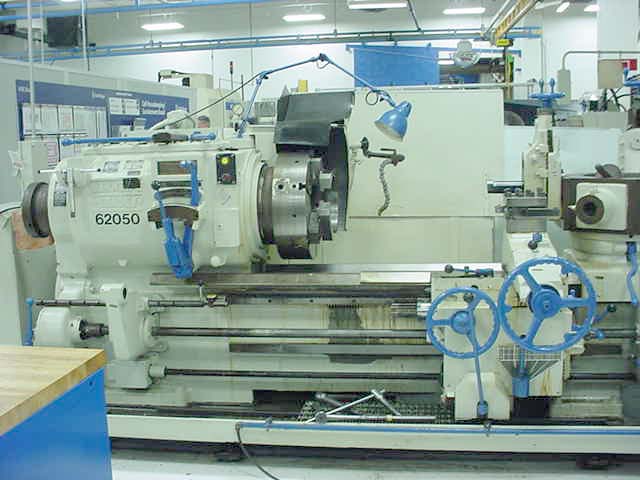

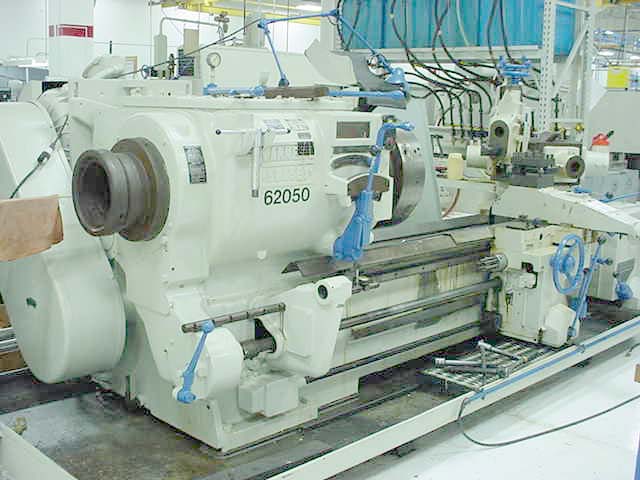

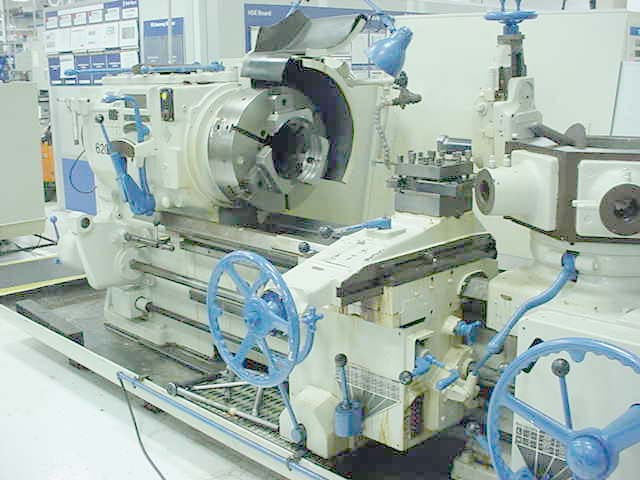

Stock #: K13906
Brand: WARNER & SWASEY
Model: M1500
Type: Lathes, Saddle Type Turret
Condition: Very Good
Year: 1952
24" 3-Jaw Chuck, 9" Thru Hole, 6 Position Stop with Stop Roll Control Knob, Quick Reset for Threading, Centralized Grease Lube, Hardened & Ground Ways, Rapid Traverse on Cross Slide, Rapid Traverse On Turret, Mono Shift Lever on Cross Slide and Turret, Sliding Boring Bar Holder, Work Light, Full Length Coolant Pan, Coolant Pump.
Specifications: |
|
|---|---|
| Max Swing Carriage Guard | 28-1/4" |
| Max Swing Over Cross Slide | 22-7/16" |
| Max Distance Spindle to Turret Face | 68-3/8" |
| Spindle Hole | 9-1/4" |
| Spindle Nose | A-15 |
| Front Tool Slide Cross Travel | 17" |
| Front Tool Slide Longitudinal Travel | 54-7/8" |
| Rear Hex Turret Cross Travel | 12" |
| Rear Hex Turret Longitudinal Travel | 54-7/8" |
| Max Bar Capacity, Round | 9" |
| Max Bar Capacity, Hexagonal | 6-7/8" |
| Max Bar Capacity, Square | 5-5/8" |
| Rear Hex Turret Longitudinal Feed | .005"-.167" IPM |
| Front Tool Slide Longitudinal Feed | .005"-.167" IPM |
| Front Tool Slide Cross Feed | .003"-.103" IPM |
| Spindle Speeds (12) Range | 8-424 RPM |
| Spindle Horsepower | 40 HP |
| Electrics | 440/3/60 |
| Approximate Machine Dimensions | 7' x 20' |
| Approximate Machine Weight | 15,000 LBS |
CONDITION: This Machine Appears To Be In Very Good Condition.
