Stock #: K14266
Brand: CINCINNATI
Model: 10R-LL
Type: Grinders, Cylindrical (Incl Plain & Angle Head)
Condition: Very Good
Year: 1958

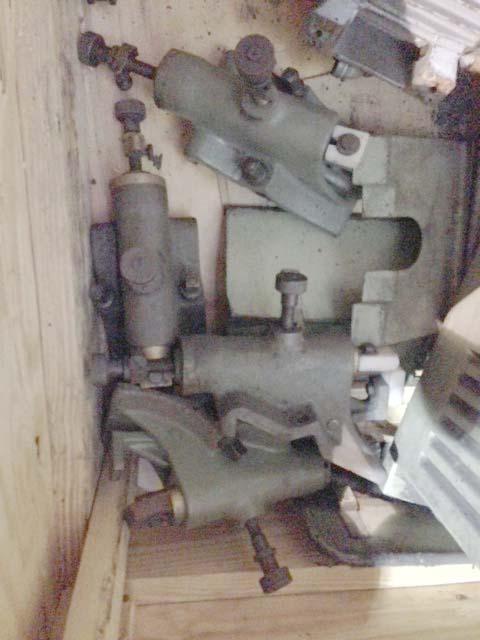

Variable Speed Work Head, Spark Out Timer, Automatic Cycles, Fine and Coarse Feed Cycles and Adjustments, Adjustable Tarry, Automatic Wheel Balancer, Gap Eliminator, Swivel Table. (5) Work Rest, Built-in Coolant.
Specifications: |
|
|---|---|
| Plain or Angle Head | plain |
| Max Swing Over Table | 10-15/16" |
| Max Grinding Diameter | 10" |
| Max Grinding Length | 36" |
| Max Grinding Wheel Diameter | 30" |
| Max Grinding Wheel Width | 3" |
| Grinding Wheel Hole Diameter | 12" |
| Wheelhead Infeed Rate | 0 - .00005" |
| Wheelhead Infeed Rapid Traverse Stroke | .050 IPM |
| Wheelhead Horsepower | 15 HP |
| Wheelhead Speed (Grinding Wheel) | 830 RPM |
| Workhead Horsepower | 1 HP |
| Workhead Speed | 50-170 RPM |
| Table Rapid Traverse Rate | 220 IPM |
| Table Feed Rates (Infinitely Variable) | 3-220 IPM |
| Table Swivel Angle Toward Wheelhead | 8-1/2° |
| Table Swivel Angle Away From Wheelhead | 3° |
| Electrics | 460/3/60 |
| Approximate Machine Dimensions | 74" x 150" |
| Approximate Machine Height | 60" |
| Approximate Machine Weight | 13,000 LBS |
CONDITION: This Machine Appears to be in Very Good Condition.
