Stock #: Q12079
Brand: FANUC
Model: A06B-0078-B003
Type: Servo Motors
Condition: Very Good
Year: Not Specified

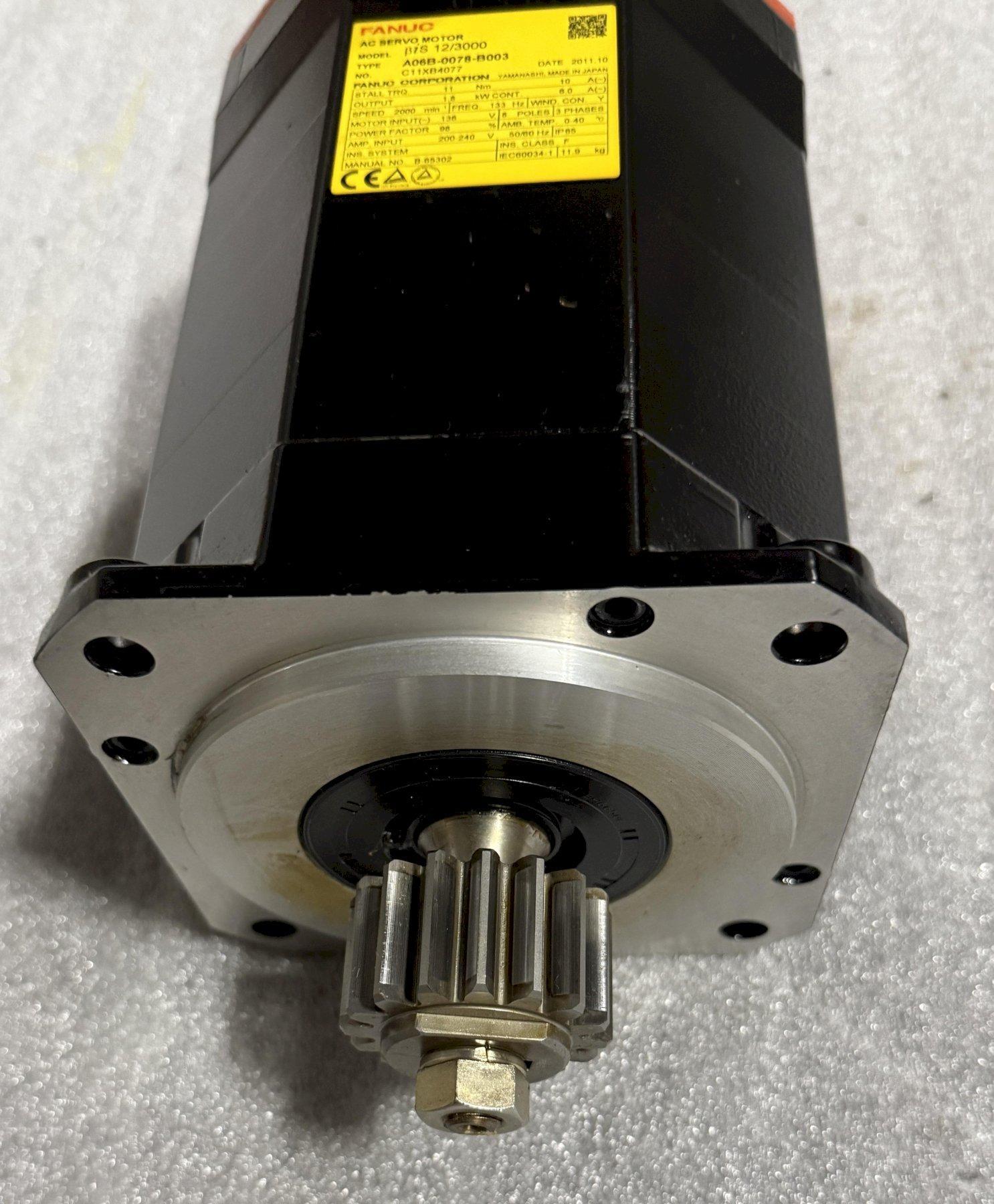

Tapered Shaft, Incremental Encoder, Flange Mount, Straight Configuration, B128iA

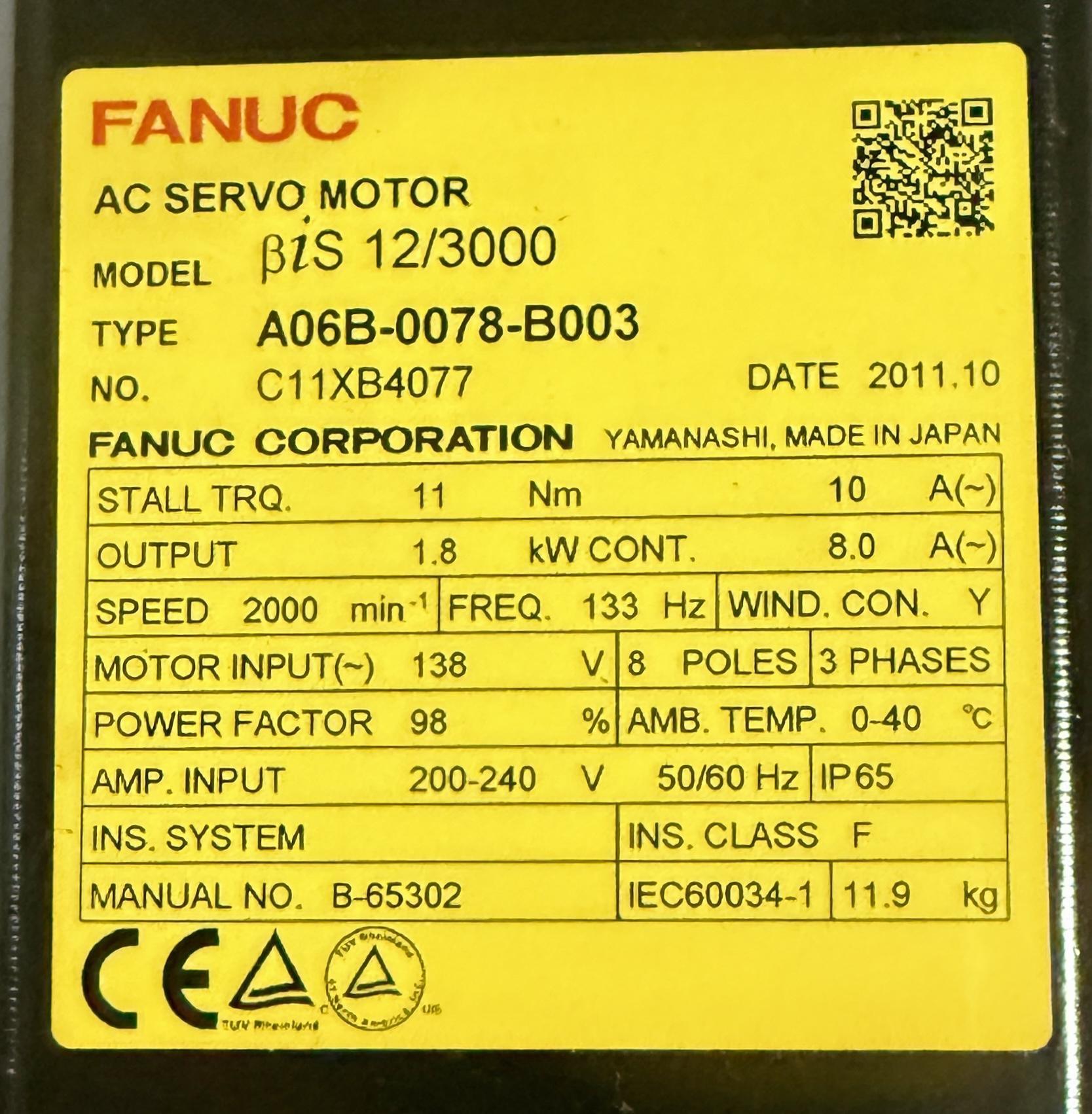

Specifications: |
|
|---|---|
| Current Type | AC |
| Torque (Stall) | 11 Nm |
| Amp (Stall) | 10 A |
| Voltage | 138 V |
| # Poles | 8 |
| Max Speed | 2,000 RPM |
| Ambient | 40° C |
| Power Factor | 98% |
| Frequency | 133 Hz |
| Motor Phase | 3 |
| Insulation Class | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 |

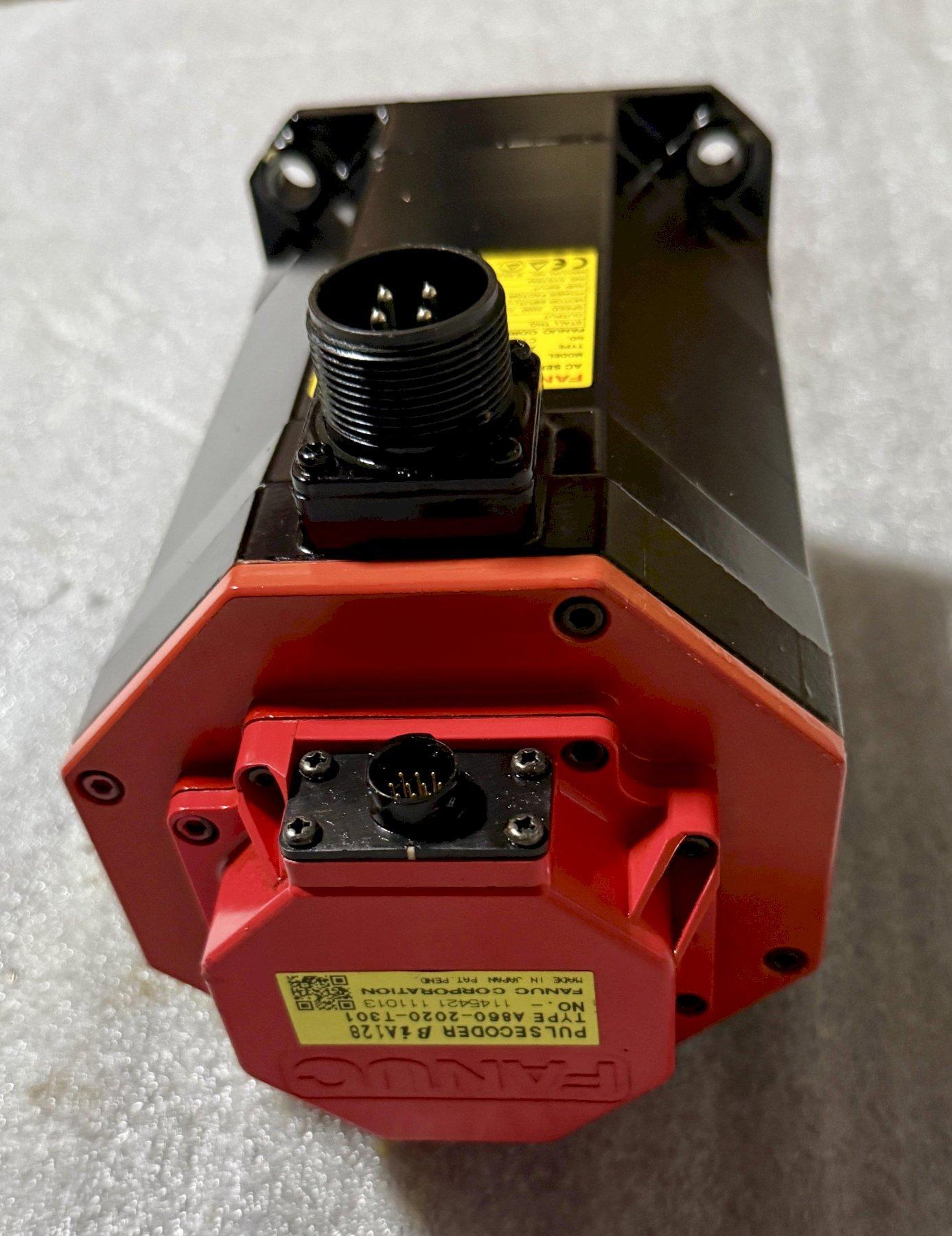

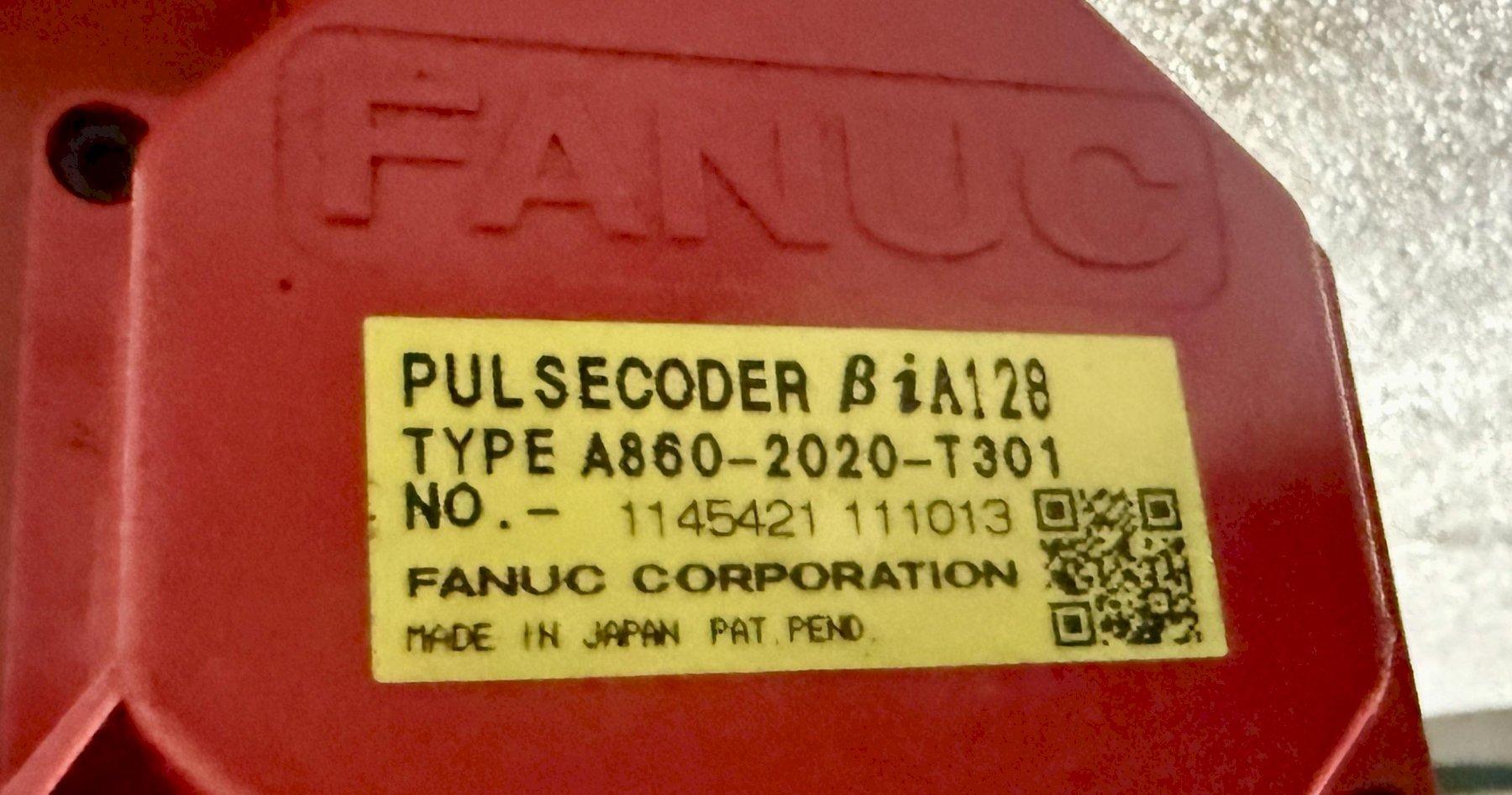

| Encoder | PulseCoder BiA128 A860-2020-T301 |
| Manual No | B-65302 |
| Standards | IEC60034-1 |
| Approximate Dimensions | 15" x 12" x 12" |
| Approximate Weight | 32 LBS |
CONDITION: This Motor Appears to be in Very Good Condition !
