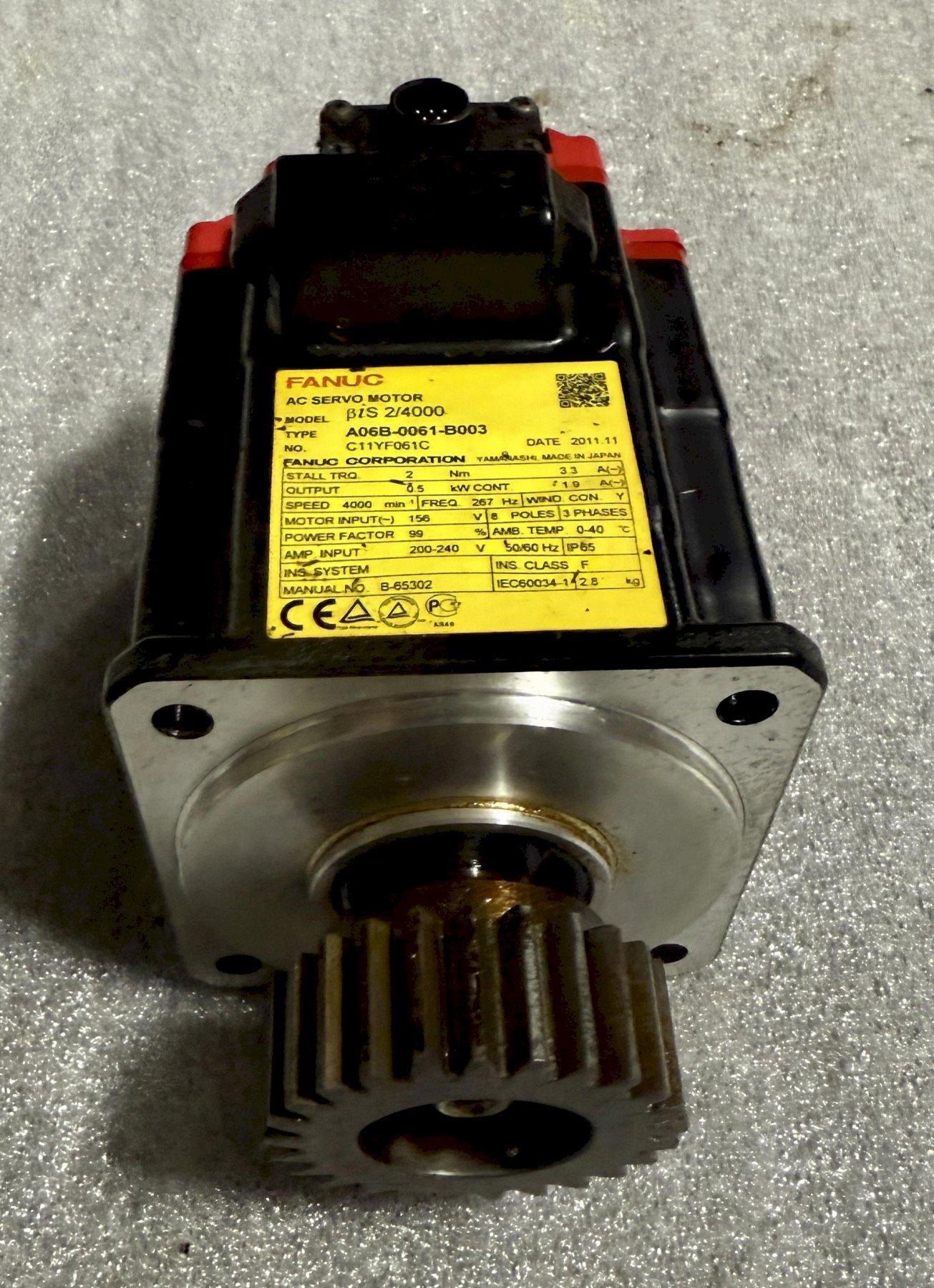

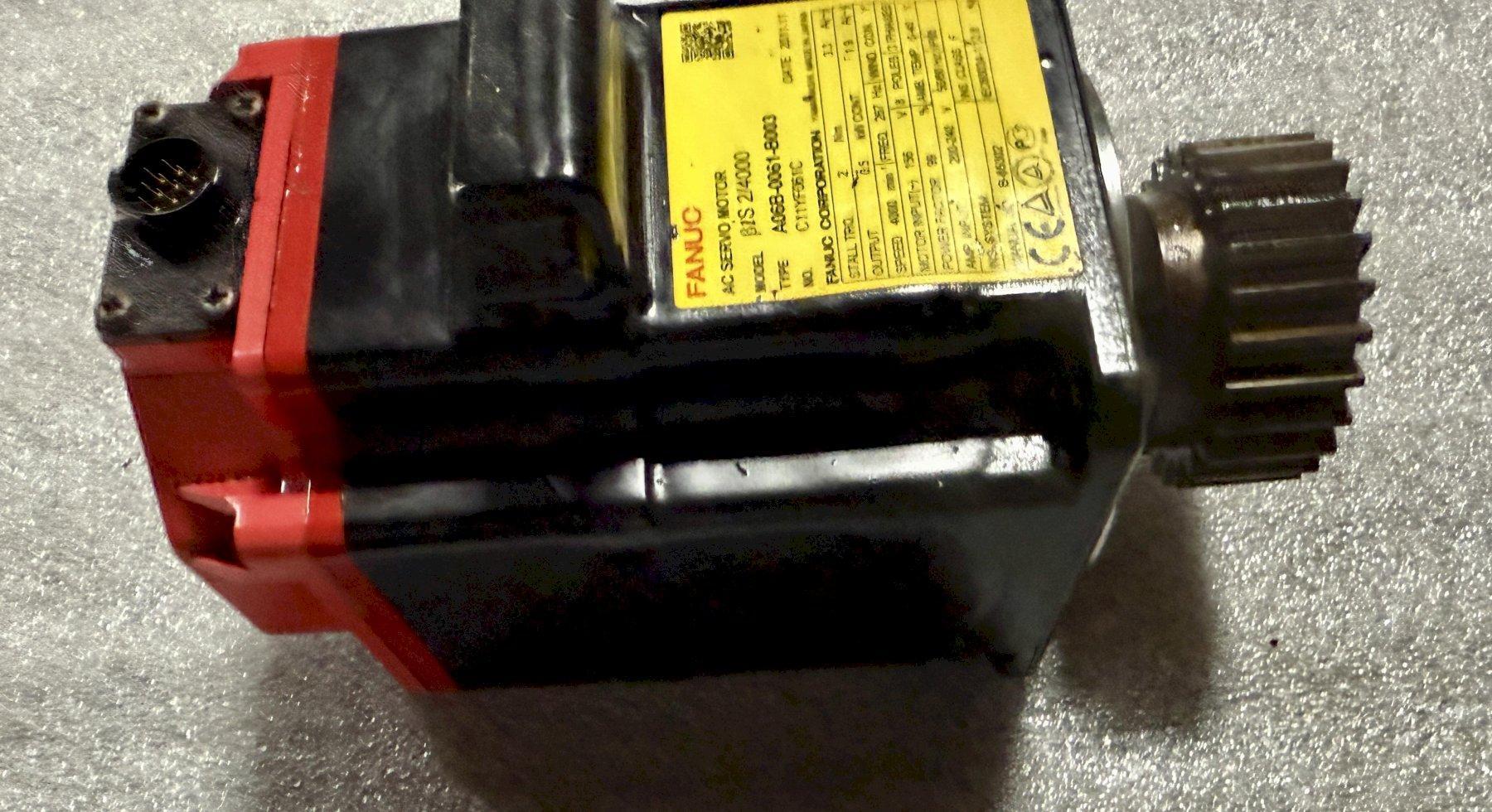

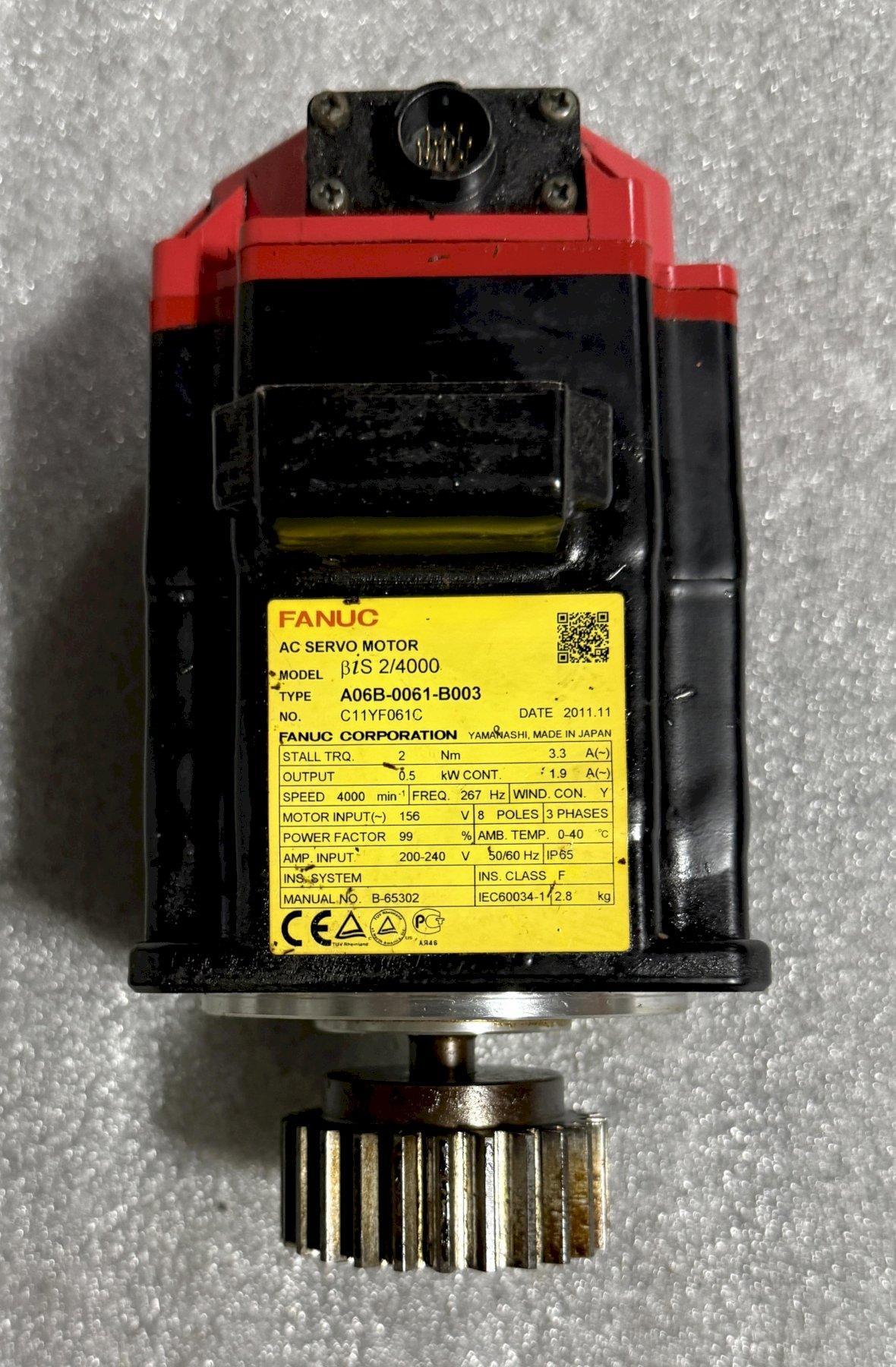

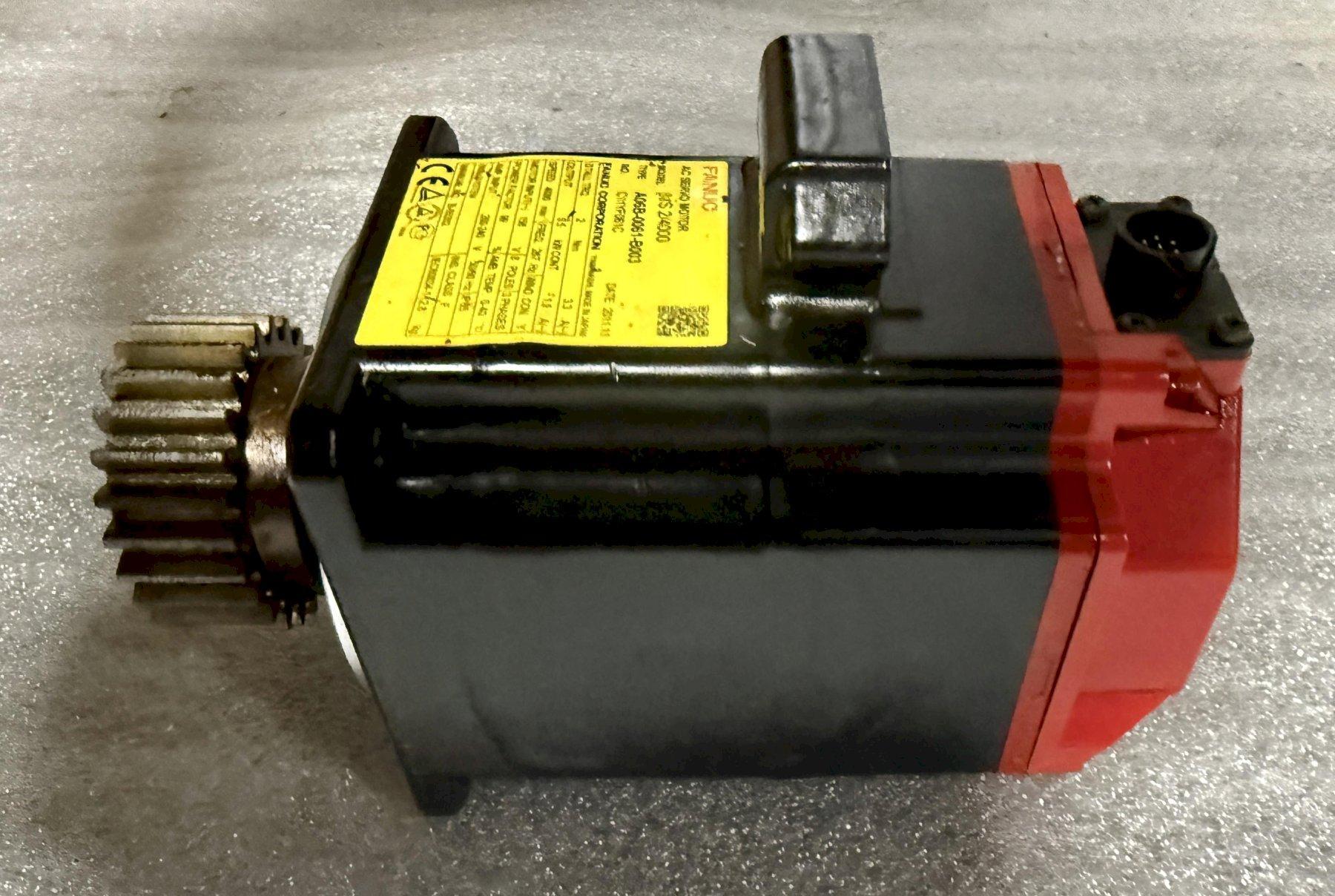

FANUC A06B-0061-B003 AC SERVO MOTOR, MODEL BiS 2/4000

Stock #: Q12081

Brand: FANUC
Model: A06B-0061-B003
Type: Servo Motors
Condition: Very Good
Year: Not Specified

Equipped With:

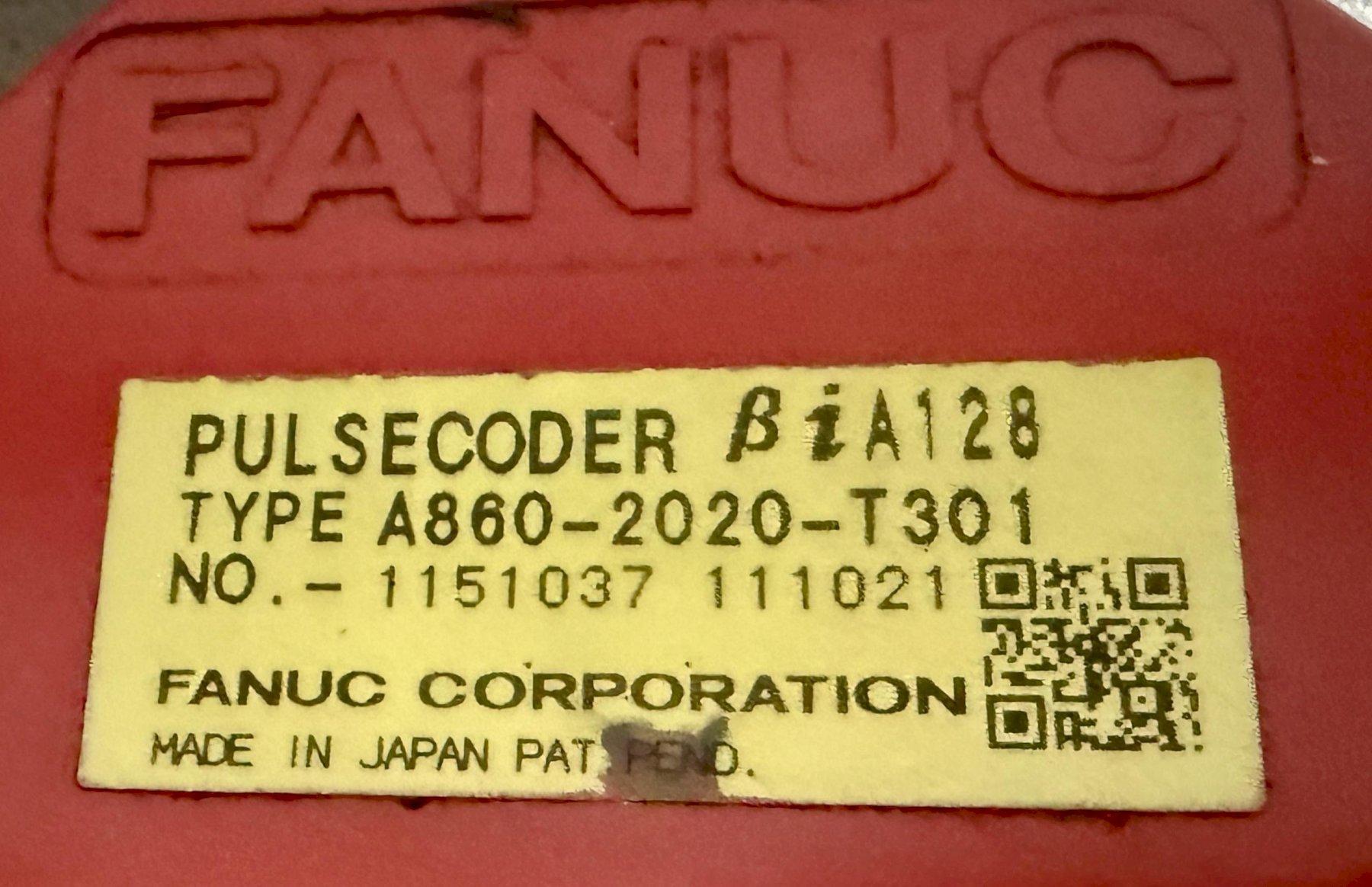

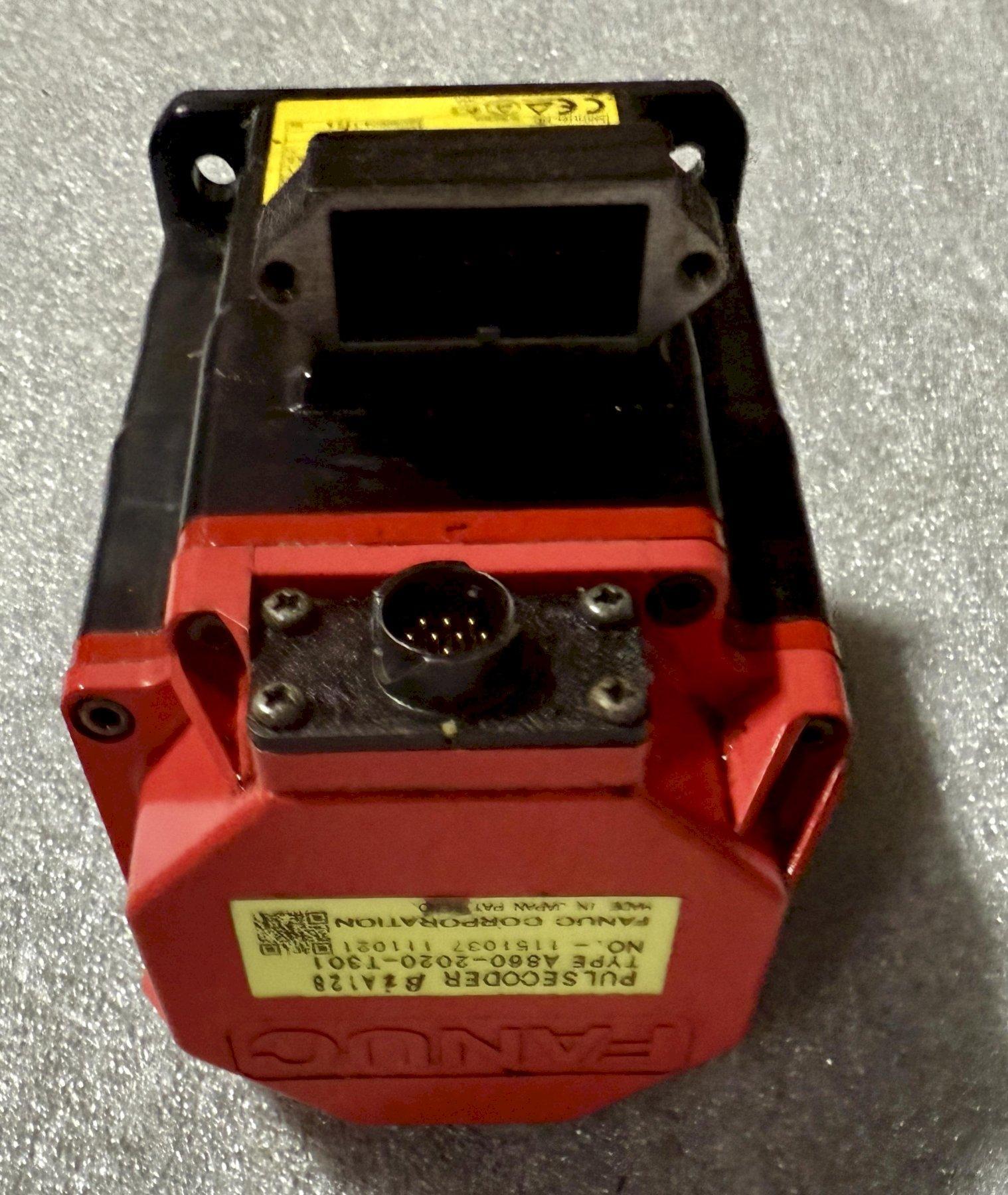

Tapered Shaft, B128IA

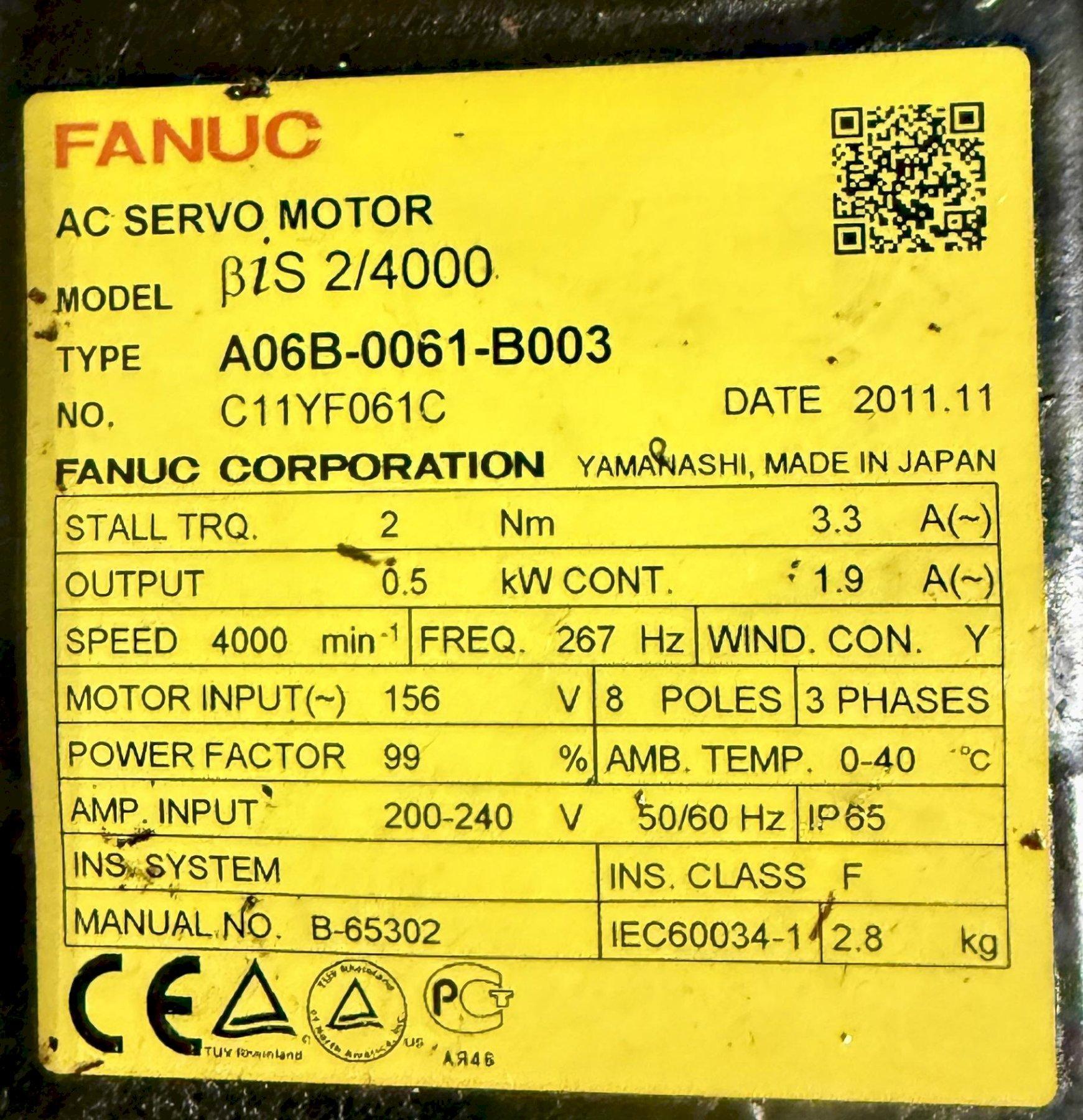

Specifications:

Current Type AC
Torque (Stall) 2 Nm
Amp (Stall) 3.3 A
Voltage 156 V
# Poles 8
Max Speed 4,000 RPM
Ambient 40° C
Power Factor 99%
Frequency 267 Hz
Motor Phase 3-Phase
Insulation Class F (Max 155° C / 311° F)
Enclosure Rating IP 65
Manual No B-65302
Standards IEC60034-1
Approximate Dimensions 12" x 10"
Approximate Height 9"
Approximate Weight 17 LBS
CONDITION: This Servo Motor Appears to be in Very Good Condition !
