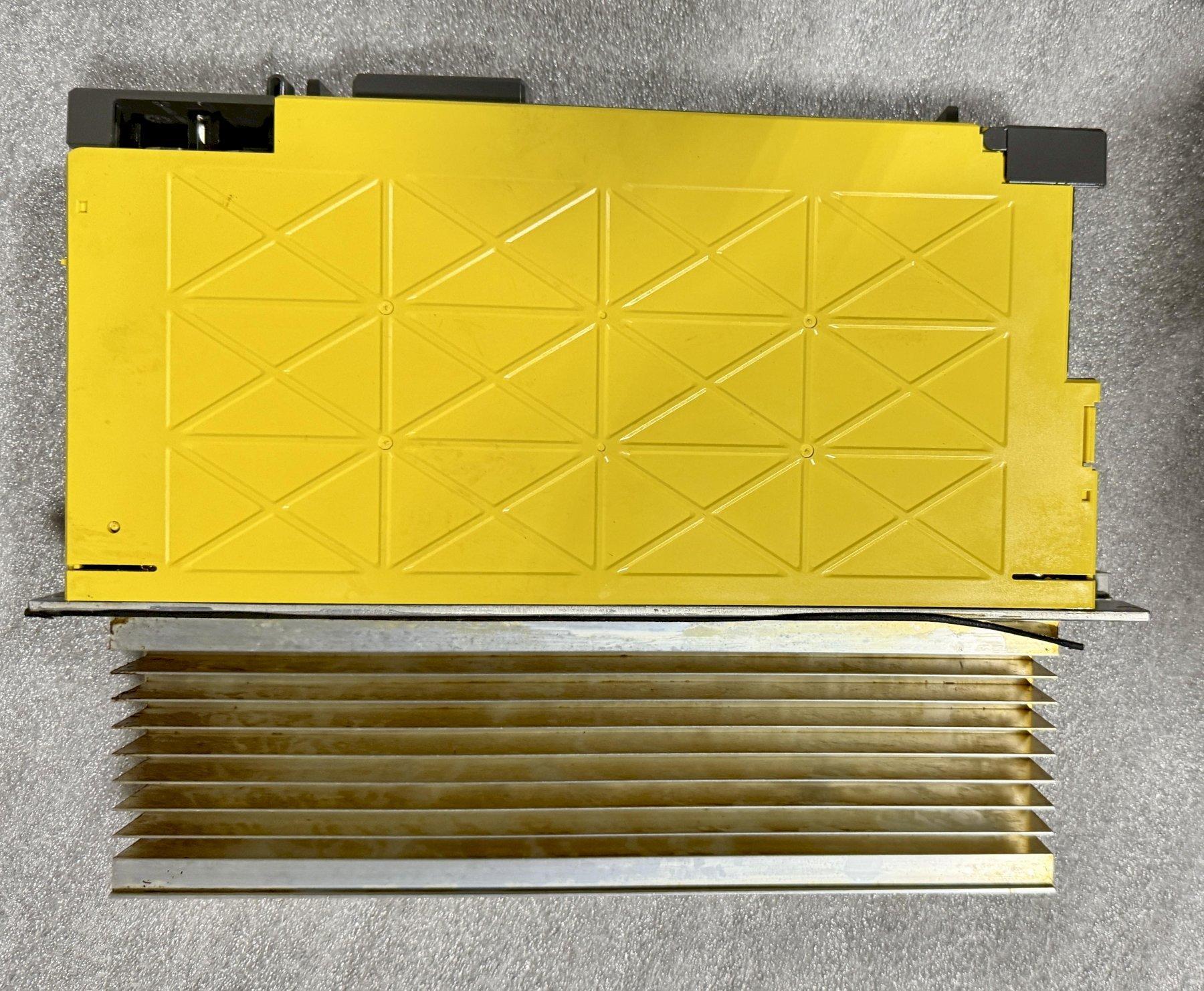

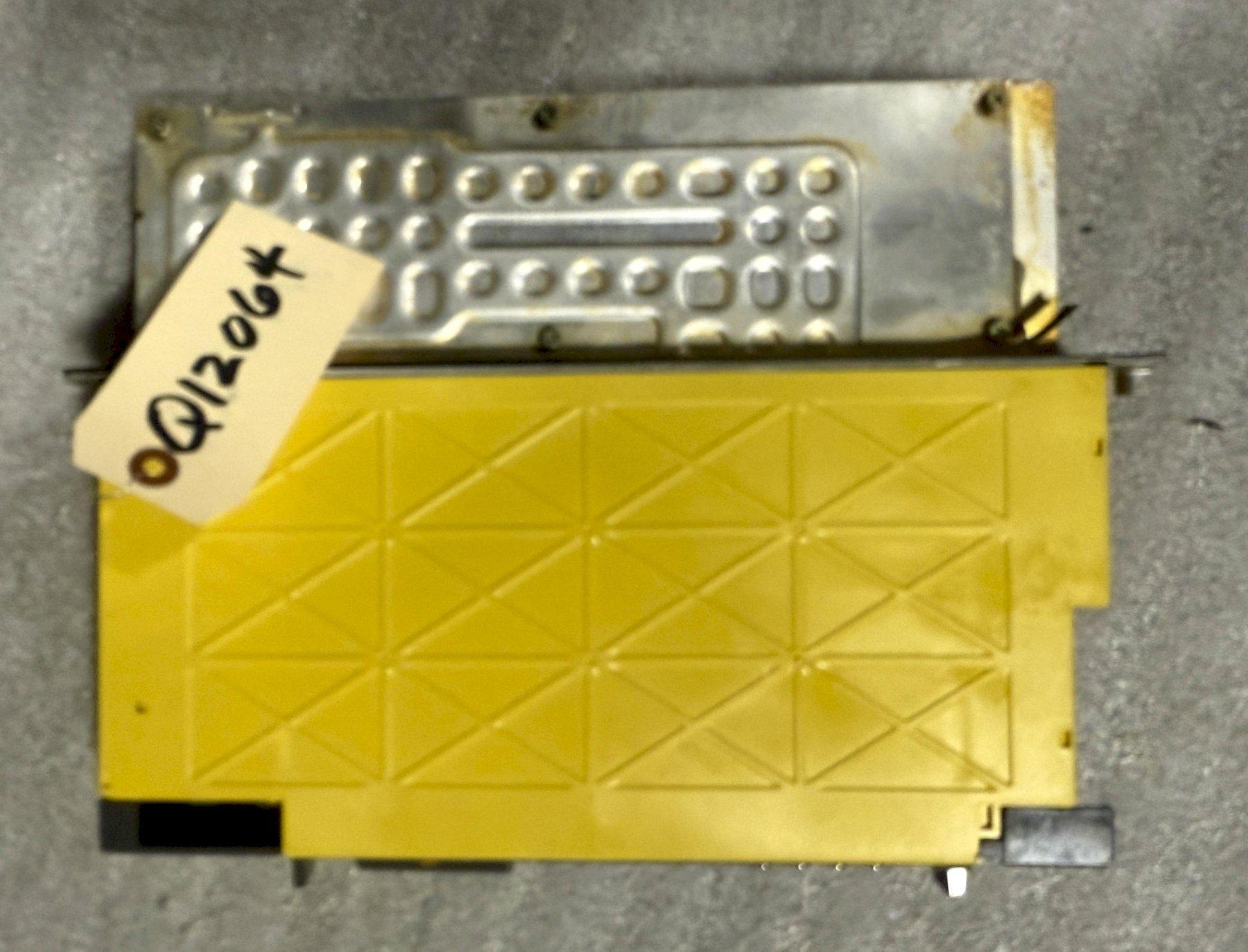

Stock #: Q12064
Brand: FANUC
Model: A06B-6117-H304
Type: Servo Drives
Condition: Excellent
Year: Not Specified
Specifications: |
|
|---|---|
| Type | Servo Module |
| Function | Control |
| # Axis | 3 |
| Rated Input | 283 - 339 VDC (9.5 kW) |
| Max Output Voltage | 240 VAC |
| L-Axis Rated Output Current | 6.5 A |
| M-Axis Rated Output Current | 6.5 A |
| N-Axis Rated Output Current | 13.0 A |
| Manual No | B-65282 |
| Standards | EN50178, UL508C |
| Approximate Dimensions | 19" x 16" |
| Approximate Height | 8" |
| Approximate Weight | 14 LBS |
CONDITION: This Drive Appears to be in Excellent Condition !
