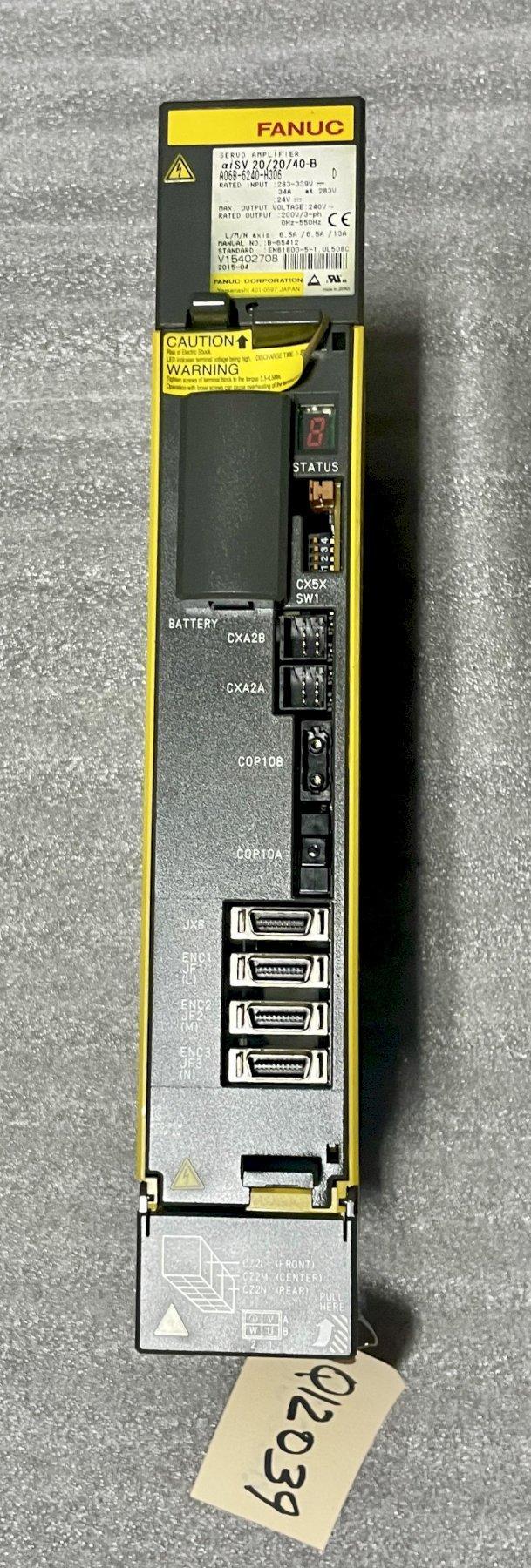

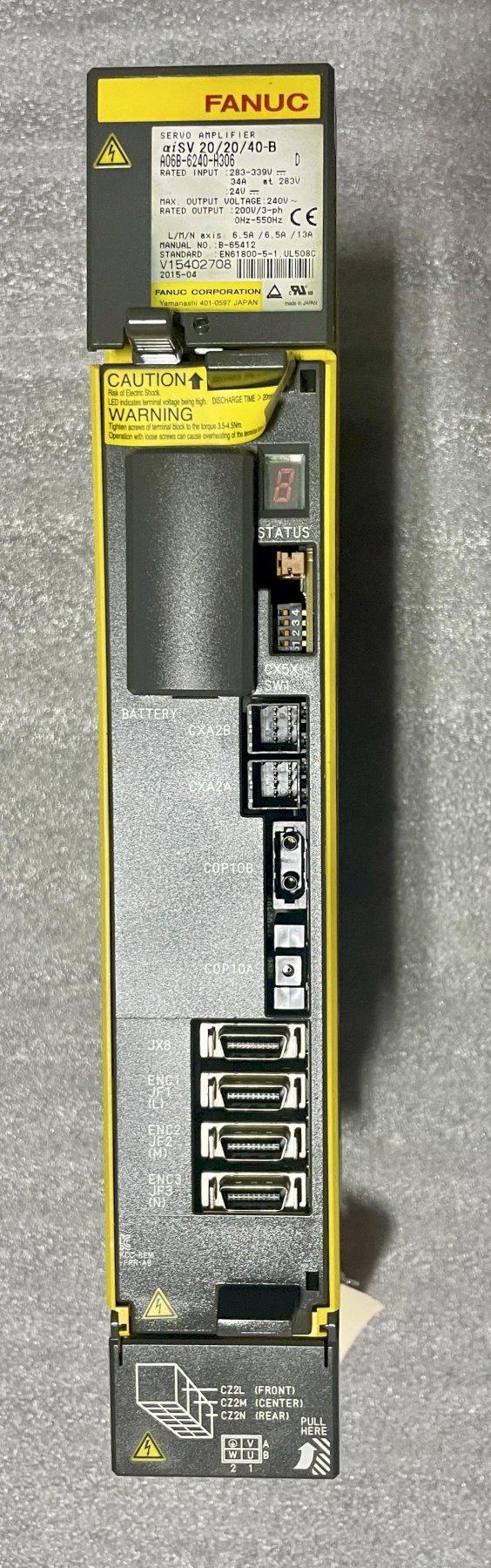

Stock #: Q12039
Brand: FANUC
Model: A06B-6240-H306
Type: Servo Drives
Condition: Excellent
Year: 2015

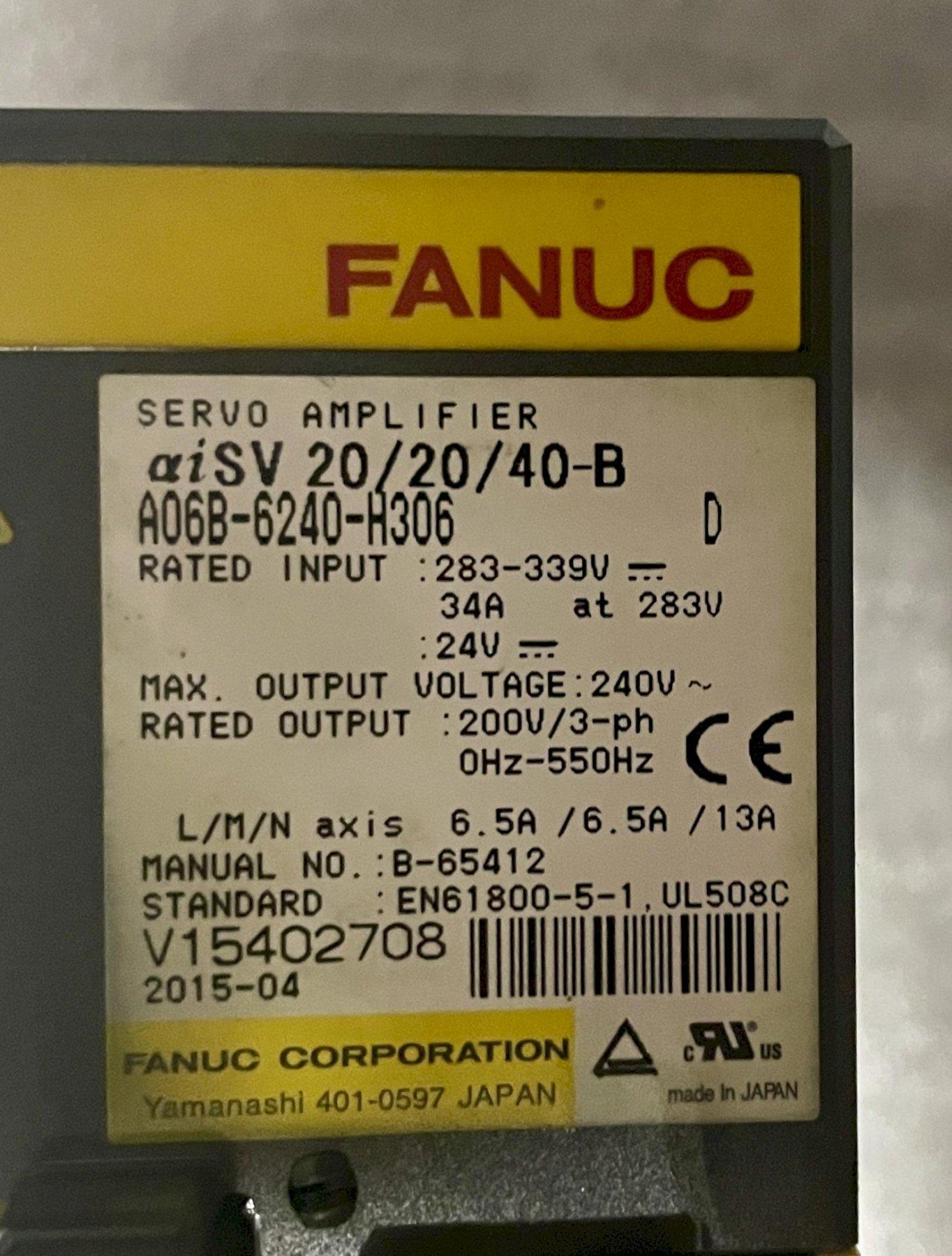

Specifications: |
|
|---|---|
| Type | Servo Amplifier Module |
| Function | Triple Axis Servo Control |
| # Axis | 3 |
| Rated Input | 283-339 VDC |
| Max Output Voltage | 240 VAC |
| L-Axis Rated Output Current | 6.5 A |
| M-Axis Rated Output Current | 6.5 A |
| N-Axis Rated Output Current | 13 A |
| Manual No | B-65412 |
| Standards | EN61800-5-1, UL508C |
| CNC? | yes |
| Approximate Dimensions | 20" x 6" |
| Approximate Height | 18" |
| Approximate Weight | 14 LBS |
CONDITION: This Servo Amplifier Appears to be in Excellent Condition !







Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Specifications |
|
|---|---|
| Type | Servo Amplifier Module |
| Function | Triple Axis Servo Control |
| # Axis | 3 |
| Rated Input | 283-339 VDC |
| Max Output Voltage | 240 VAC |
| L-Axis Rated Output Current | 6.5 A |
| M-Axis Rated Output Current | 6.5 A |
| N-Axis Rated Output Current | 13 A |
| Manual No | B-65412 |
| Standards | EN61800-5-1, UL508C |
| CNC? | yes |
| Approximate Dimensions | 20" x 6" |
| Approximate Height | 18" |
| Approximate Weight | 14 LBS |
| CONDITION: This Servo Amplifier Appears to be in Excellent Condition ! |
