Stock #: Q12025
Brand: NARDINI

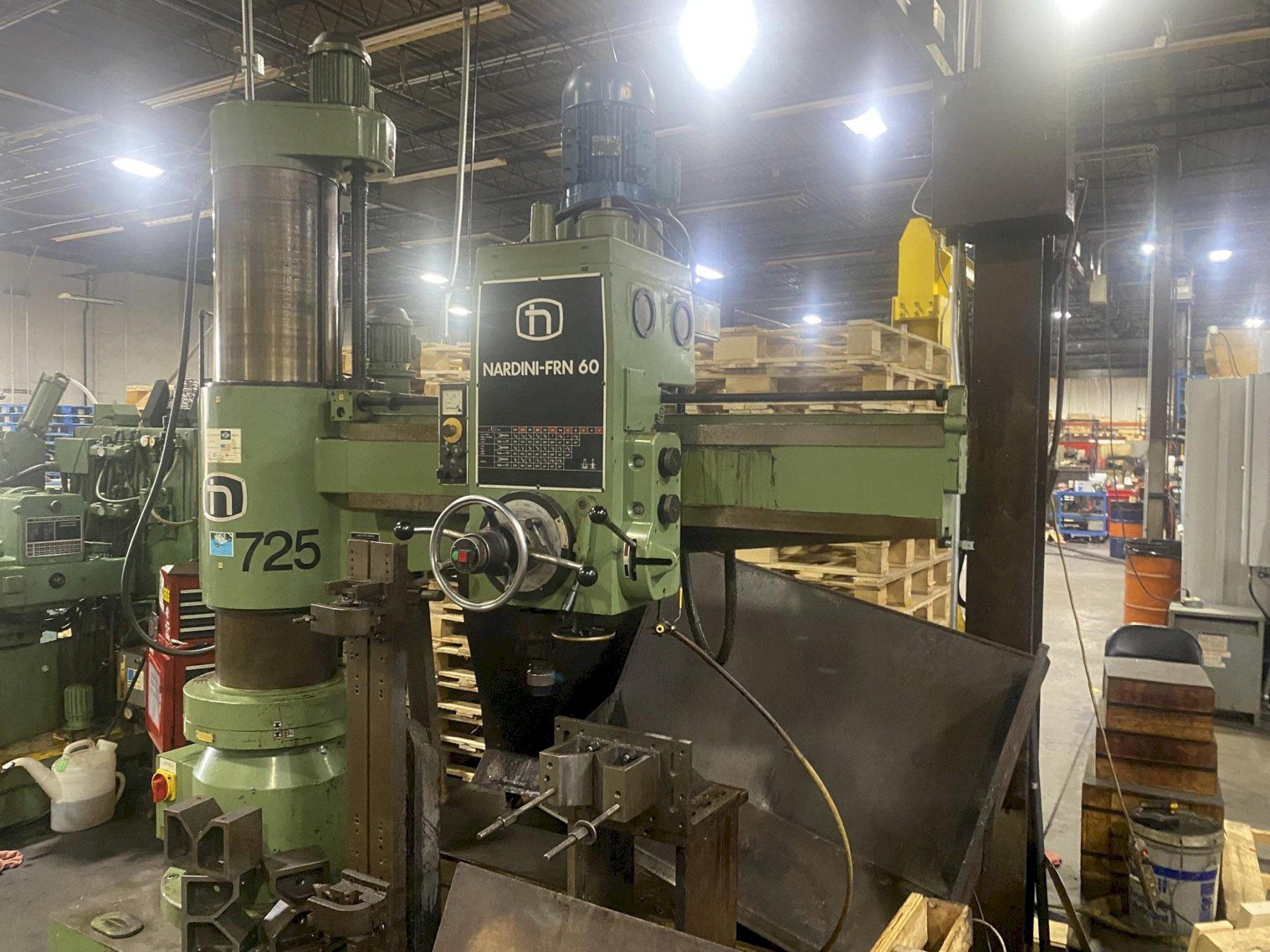

Model: FRN 60-1250
Type: Drills, Radial
Condition: Very Good
Year: 1985
Power Arm Elevation, Power Clamping, Rapid Traverse on Head, Tapping/Threading Capabilities, Plain-Type Base, Hardened Column, Coolant System (Built-In).
Specifications: |
|
|---|---|

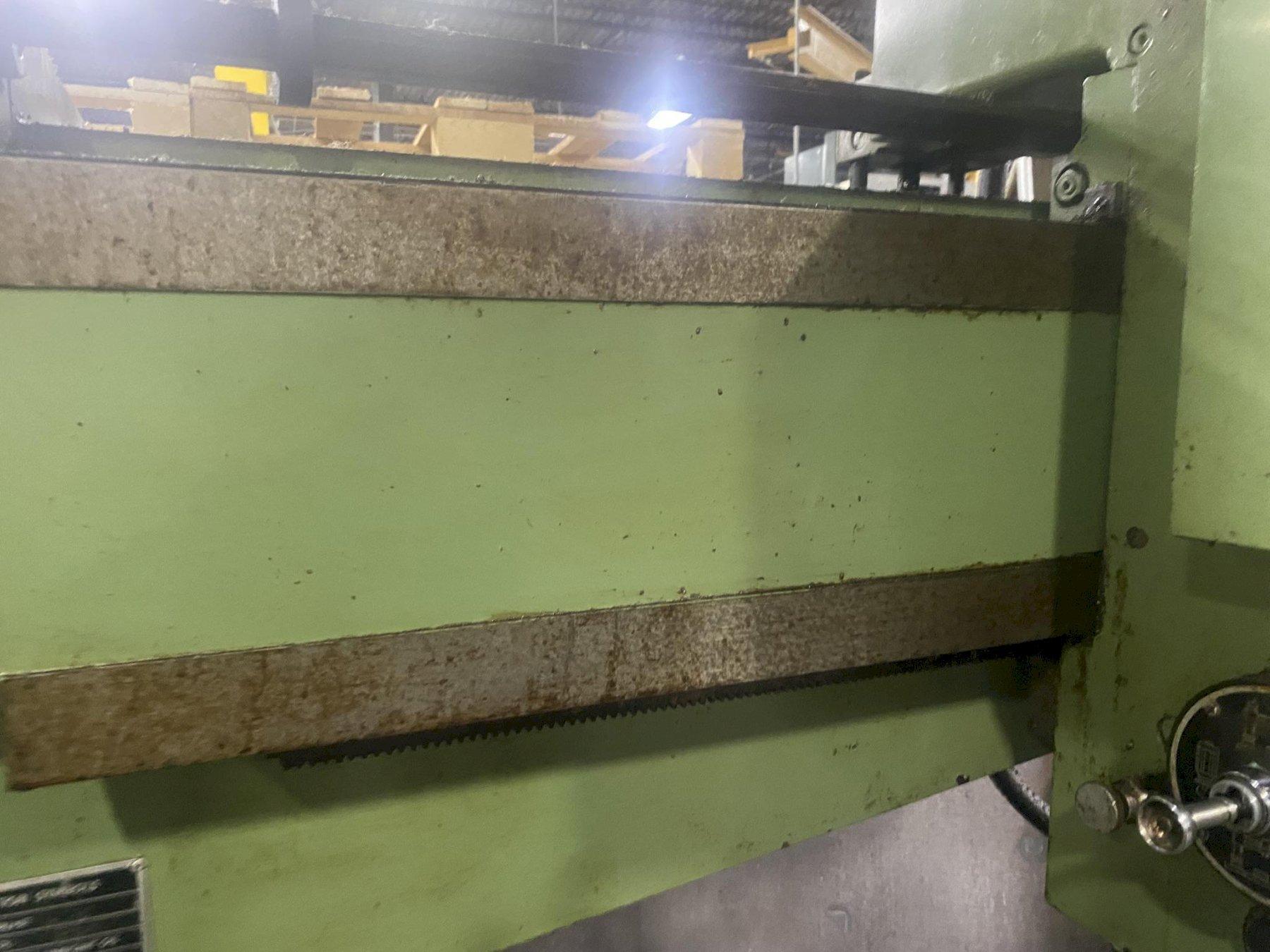

| Arm Length | 5' |

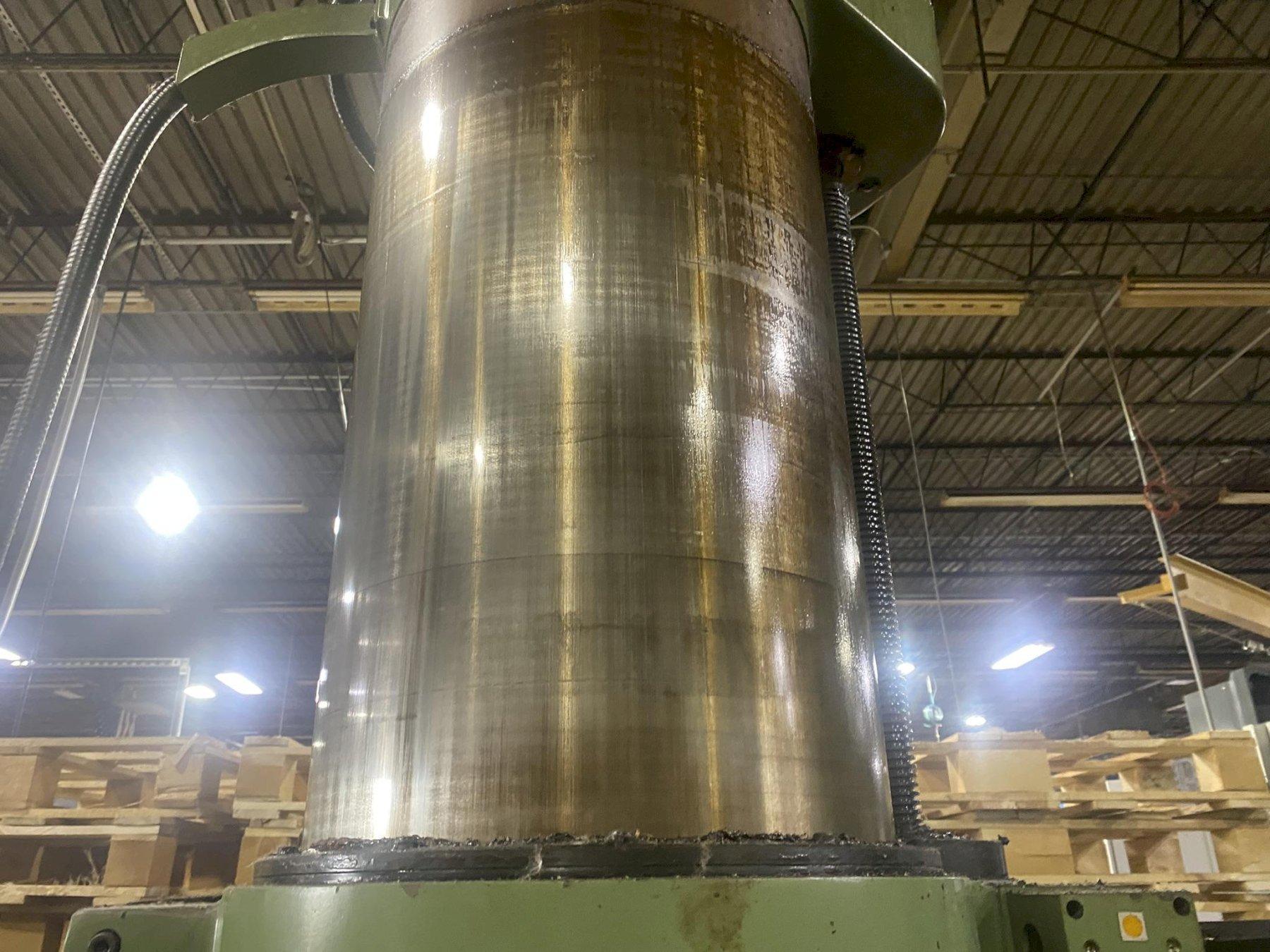

| Column Diameter | 15" |
| Drilling in Solid Steel | 2.36" |
| Drilling in Cast Iron | 3.15" |
| Boring in Steel | 3.94" |
| Boring in Cast Iron | 4.72" |
| Tapping in Steel | 1.97' |
| Tapping in Cast Iron | 2.75" |
| Max Spindle Radius | 63" |
| # Spindle Speeds | 12 |
| Spindle Speed Range | 29 - 1450 RPM |
| Motor Power | 10 HP |
| Arm Elevating Motor Power | 2 HP |

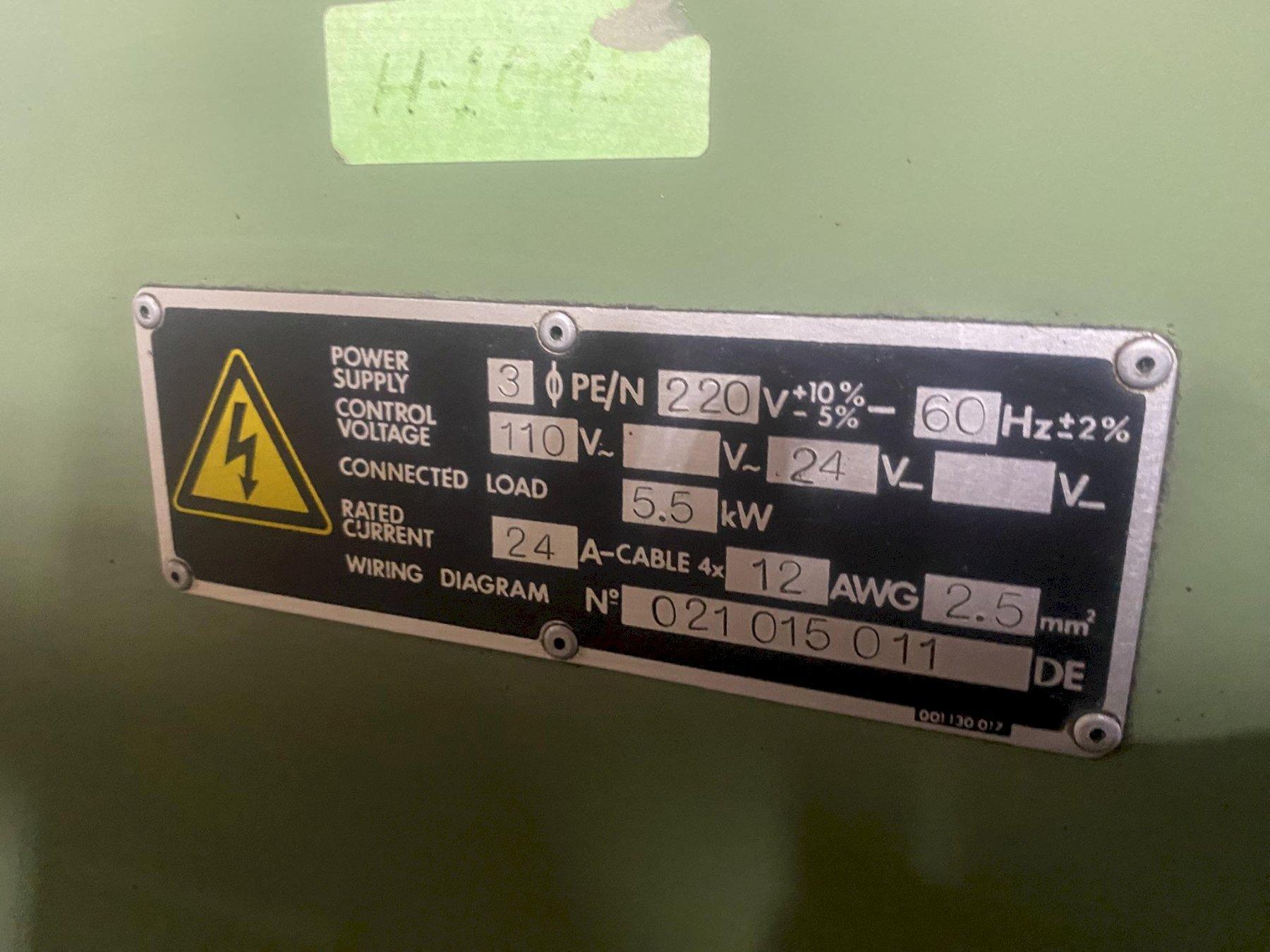

| Electrics | 220/3/60 |
CONDITION: This Machine Appears to be in Very Good Condition.






Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Power Arm Elevation, Power Clamping, Rapid Traverse on Head, Tapping/Threading Capabilities, Plain-Type Base, Hardened Column, Coolant System (Built-In). |
Specifications |
|
|---|---|
| Arm Length | 5' |
| Column Diameter | 15" |
| Drilling in Solid Steel | 2.36" |
| Drilling in Cast Iron | 3.15" |
| Boring in Steel | 3.94" |
| Boring in Cast Iron | 4.72" |
| Tapping in Steel | 1.97' |
| Tapping in Cast Iron | 2.75" |
| Max Spindle Radius | 63" |
| # Spindle Speeds | 12 |
| Spindle Speed Range | 29 - 1450 RPM |
| Motor Power | 10 HP |
| Arm Elevating Motor Power | 2 HP |
| Electrics | 220/3/60 |
| CONDITION: This Machine Appears to be in Very Good Condition. |
