Stock #: Q12030
Brand: YOU JI
Model: YV-1600ATC
Type: Lathes, Vertical, CNC
Condition: Very Good
Year: 1999

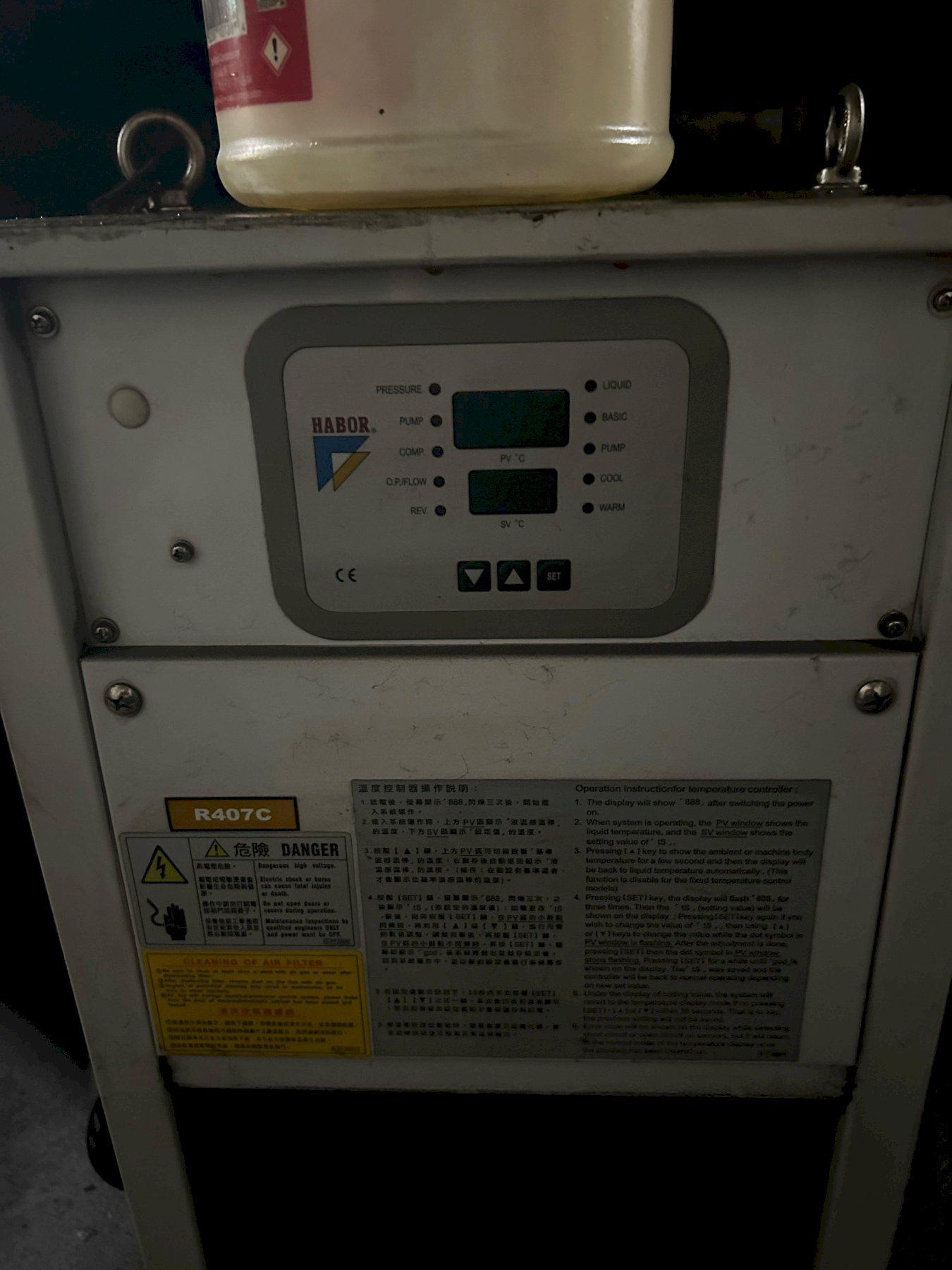

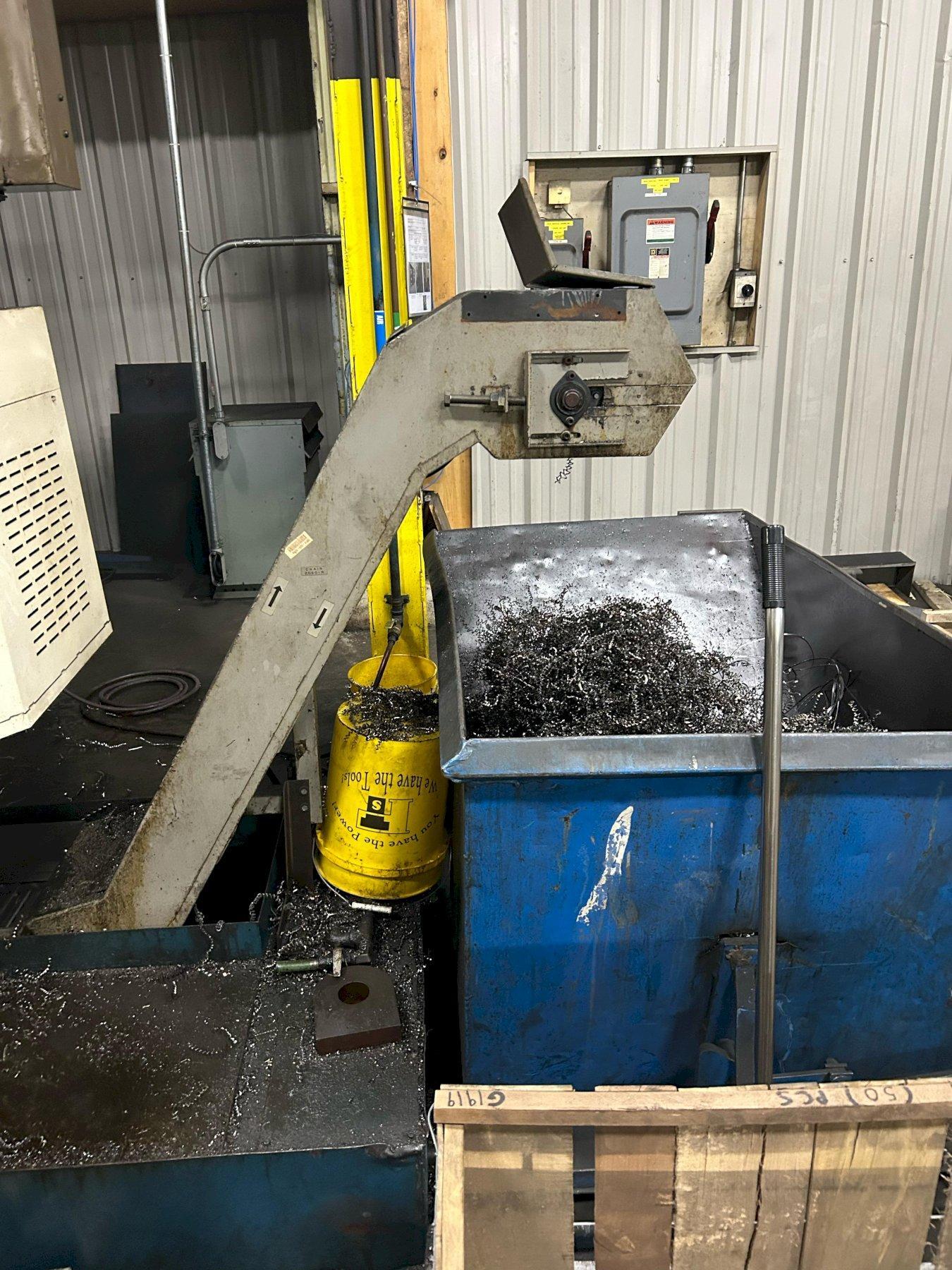

Fanuc 0-T CNC Control, 63" 4-Jaw Chuck, 250 RPM,12 Station Automatic Tool Changer, Cat-50 Spindle Taper, Spindle Chiller, Coolant System, Chip Conveyor.
Specifications: |
|
|---|---|
| CNC Control | yes |

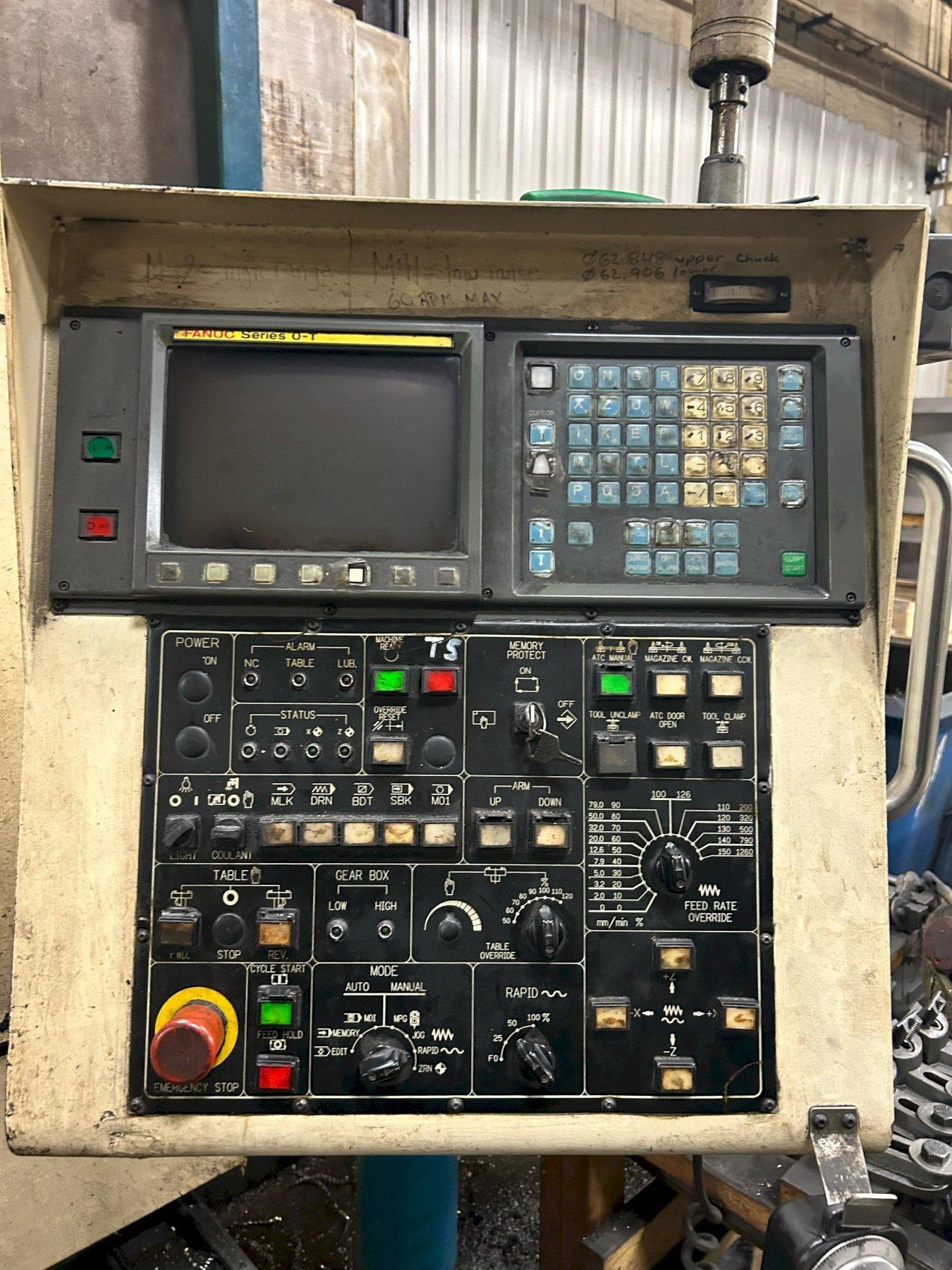

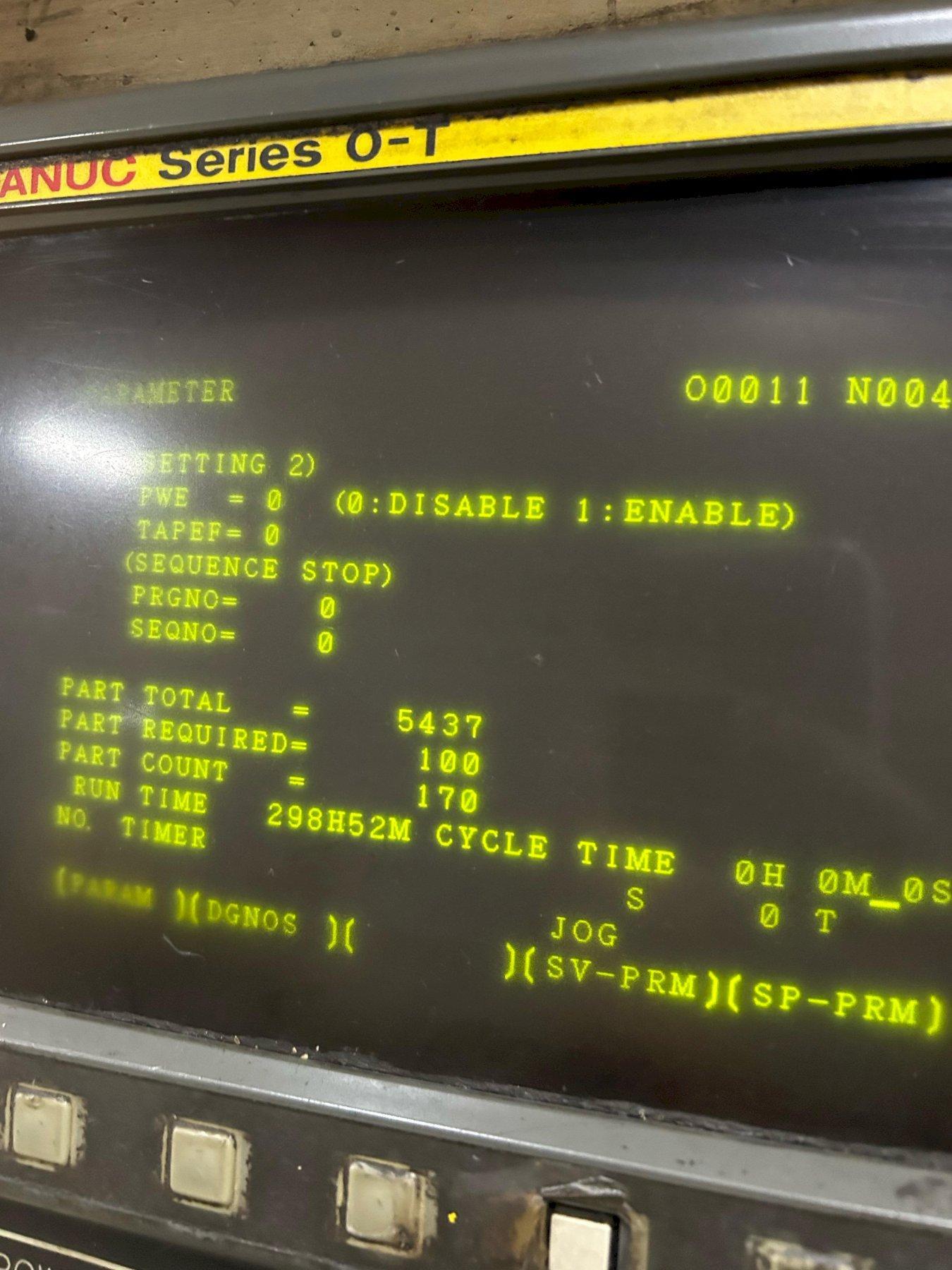

| Type of CNC Control | Fanuc 0-T CNC Control |

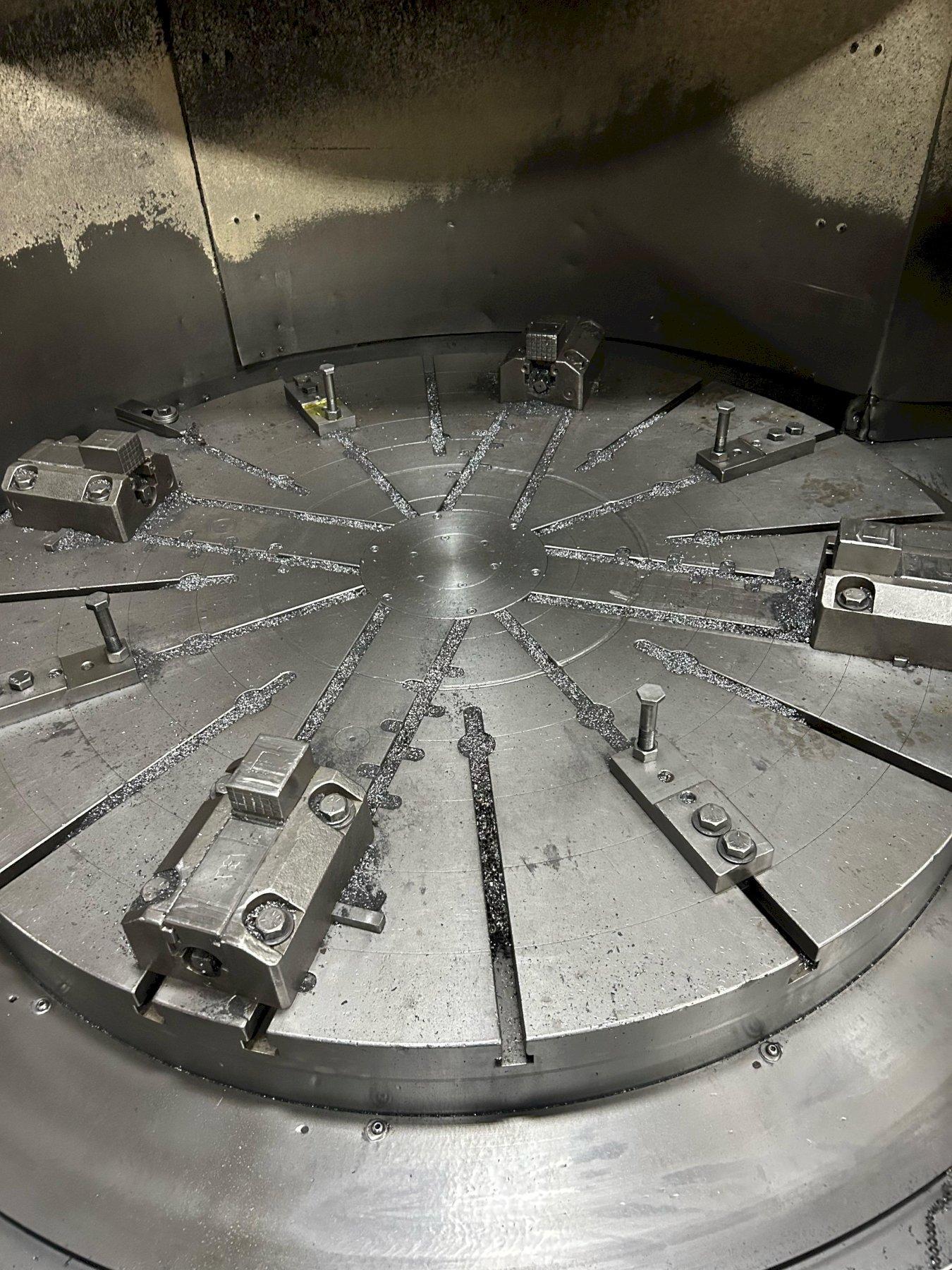

| Table Diameter | 63" |
| Max Swing | 78.74" |
| Max Cutting Diameter | 70.866" |
| Max Cutting Height | 47.244" |
| Max Cutting Force | 5,395.4 lbf |
| Z-Axis (Vertical Ram Head Travel) | 35.433" |
| X-Axis (Horizontal Ram Head Travel) | 62.008" |
| Y-Axis (Vertical Travel of Cross Rail) | 31.496" |
| Automatic Tool Changer Capacity (ATC) | 12 |
| Table Load Capacity | 17,637 LBS |
| Table Power | 49 HP |
| Table Speeds | 2 - 250 RPM |
| Approximate Machine Dimensions | 147" x 194.5" |
| Approximate Machine Weight | 42,990 LBS |
CONDITION: This Machine Appears to be in Very Good Condition !
