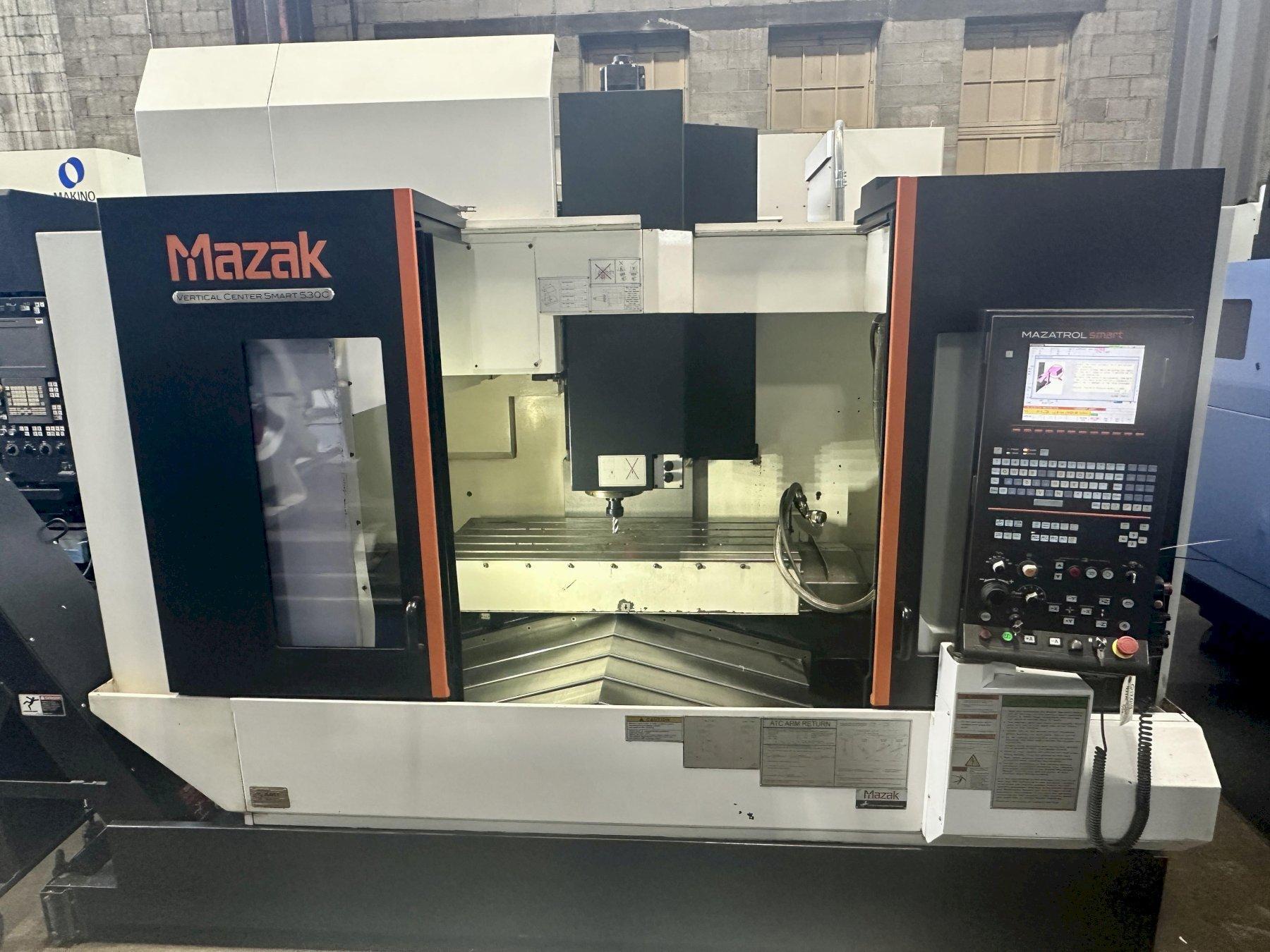

Stock #: Q12019
Brand: MAZAK
Model: VCS 530C
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2012

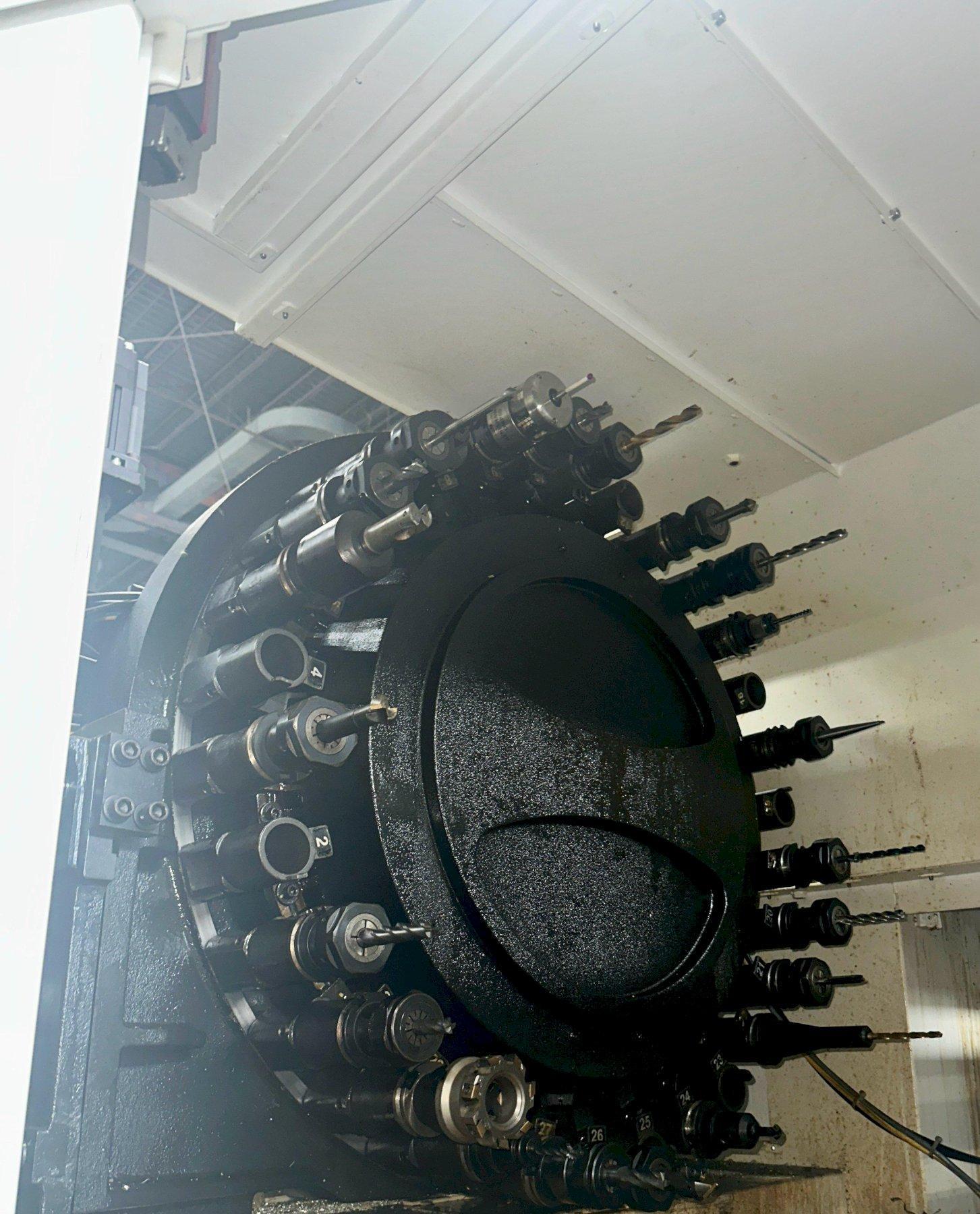

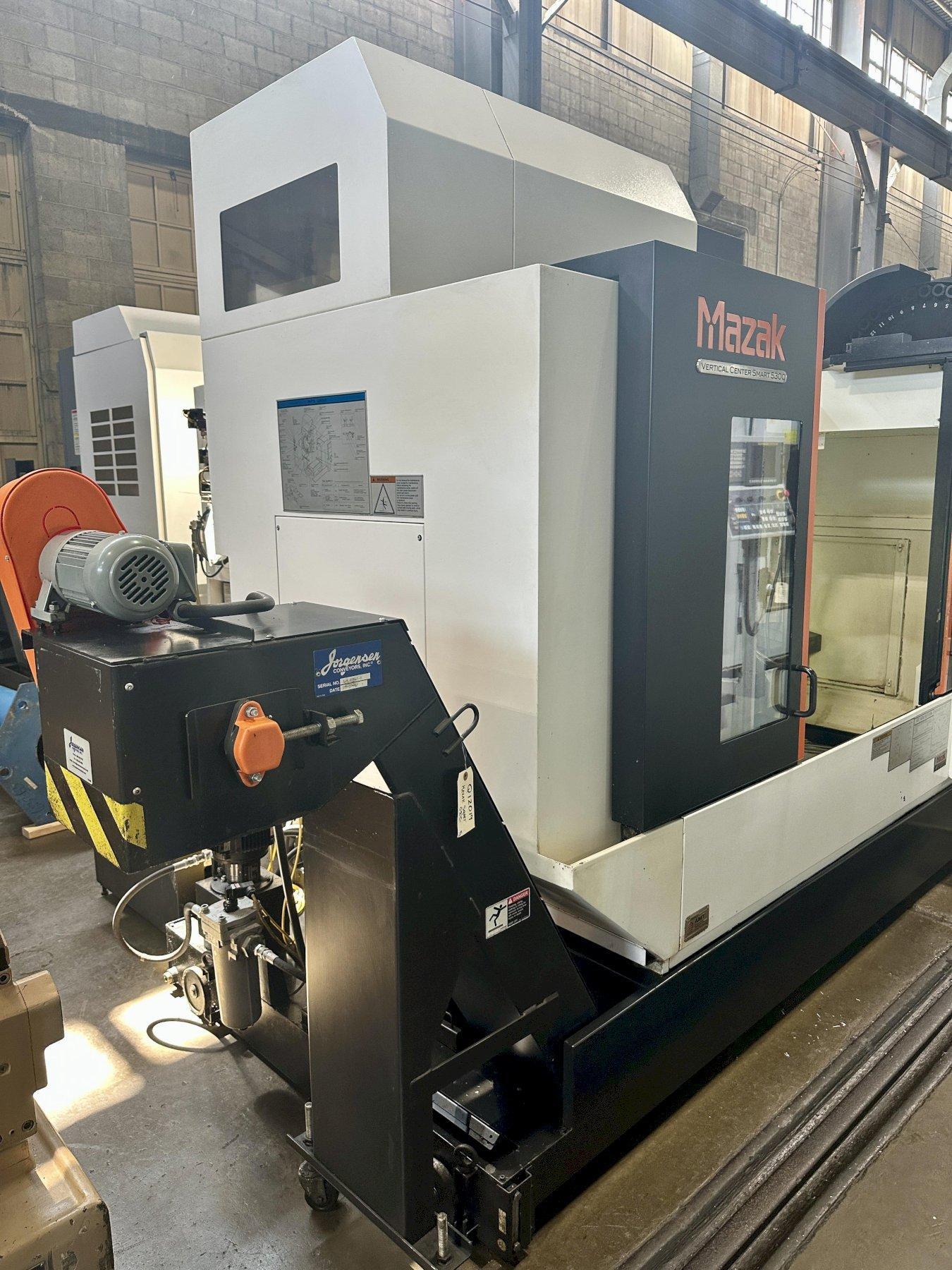

Mazak Mazatrol Smart CNC Control, 4th-Axis Prewire with Drive, 51.18" x 21.65" Table, 12000 RPM Spindle, 30 Station Tool Changer (20 Tool Holders Included), Renishaw Probe, Through Spindle Coolant, Chip Conveyor & Coolant System.
Specifications: |
|
---|---|

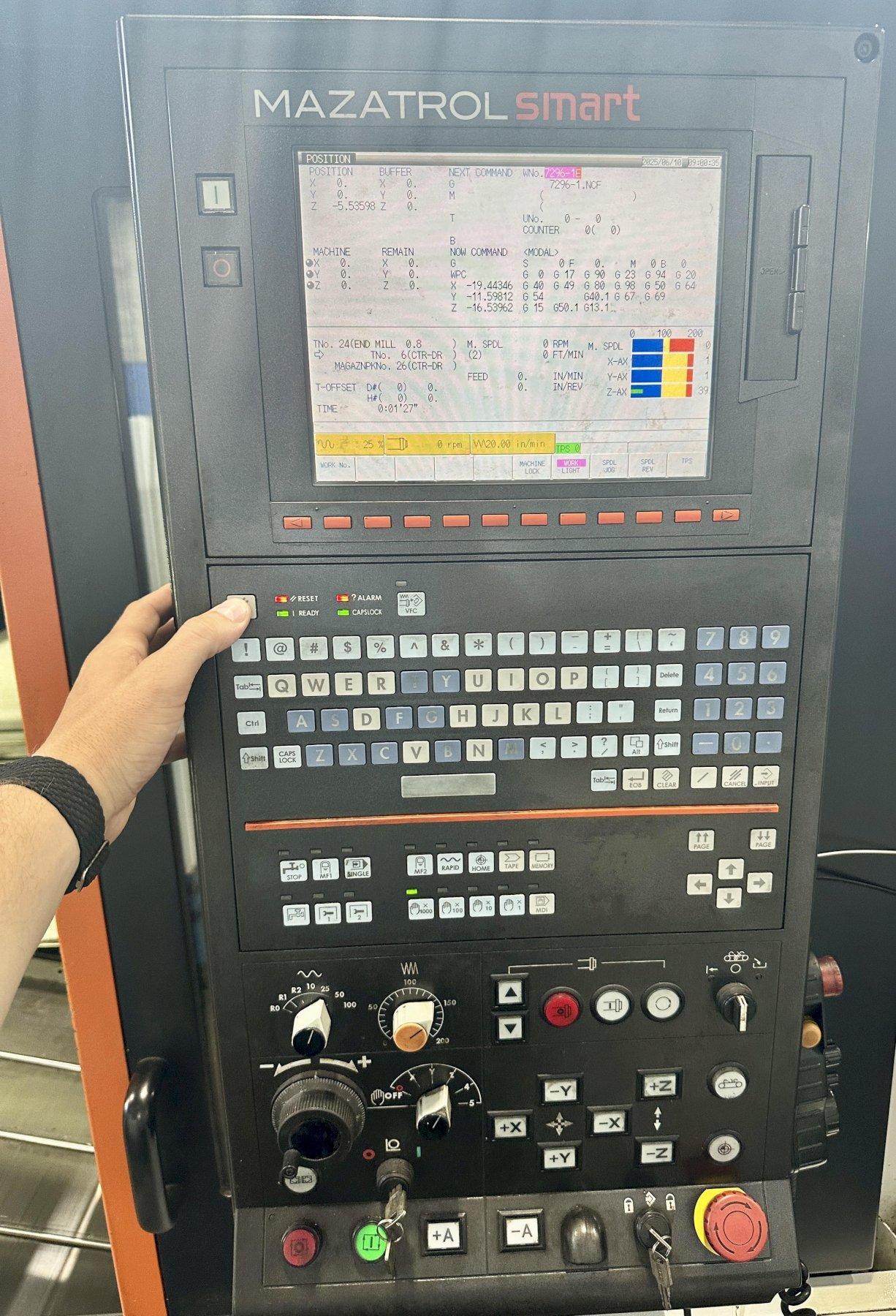

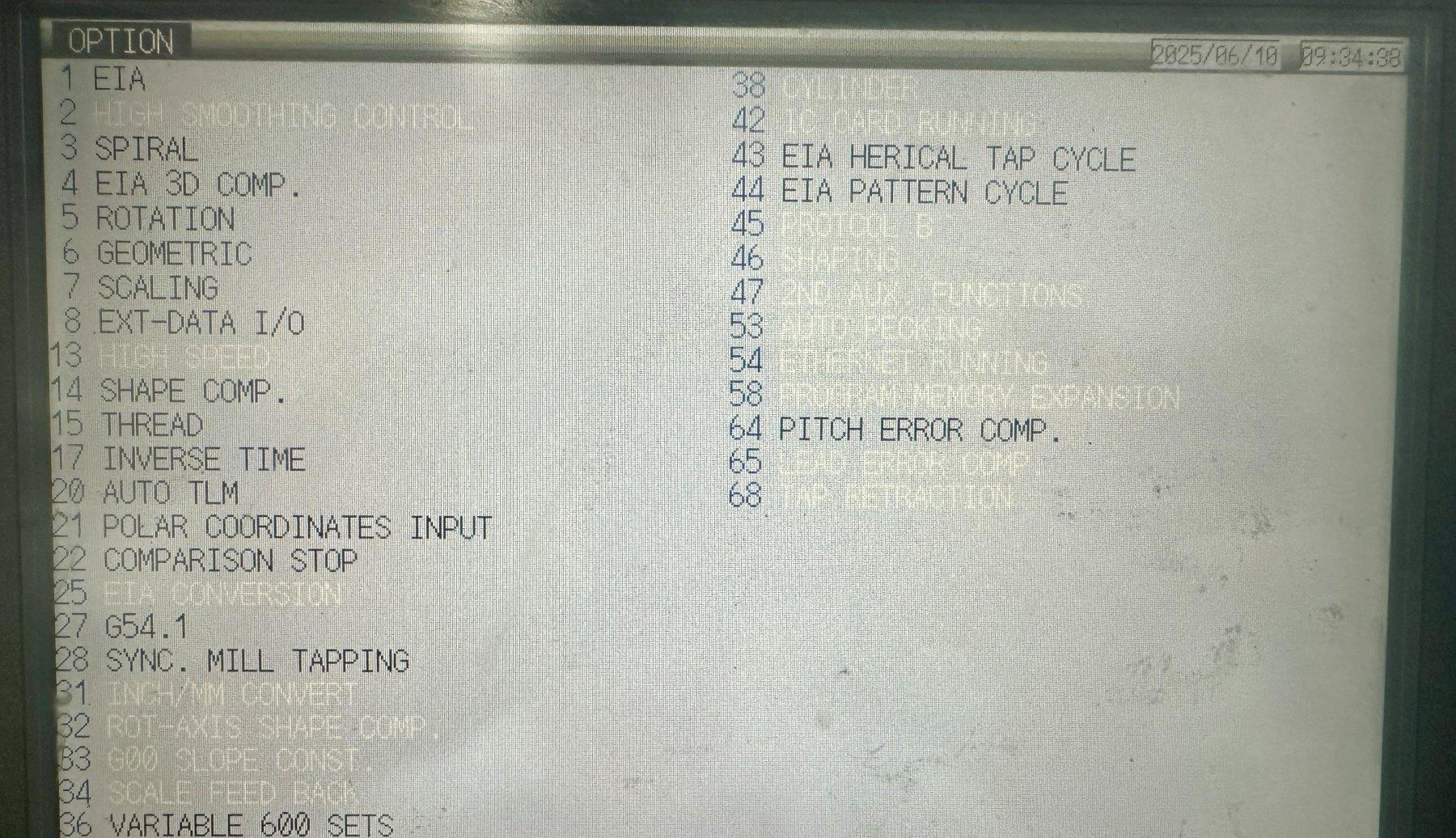

Type of CNC Control | Mazak Mazatrol Smart CNC Control |
# Axis | 3 |
Table-L | 51.18" |
Table-W | 21.65" |
Table Load Capacity | 2,646 LBS |
X-Axis (Longitudinal Travel) | 41.34" |
Y-Axis (Cross Travel) | 20.87" |
Z-Axis (Vertical Travel) | 20.08" |
Max Clearance Tabletop to Spindle Nose | 25.98" |
Min Clearance Tabletop to Spindle Nose | 5.9" |
Rapid Traverse Rate, All Axes | 1654 IPM |
Spindle Power | 25 HP |
Max Spindle Speed | 12,000 RPM |
Spindle Taper | CAT 40 |
Coolant Through Spindle | yes |
Automatic Tool Changer Capacity (ATC) | 30 |
Automatic Tool Changer Style | Side-Mount |
Electrics | 220/3/60 |
Approximate Machine Dimensions | 113.4" x 115.3" |
Approximate Machine Height | 113.4" |
Approximate Machine Weight | 15,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
