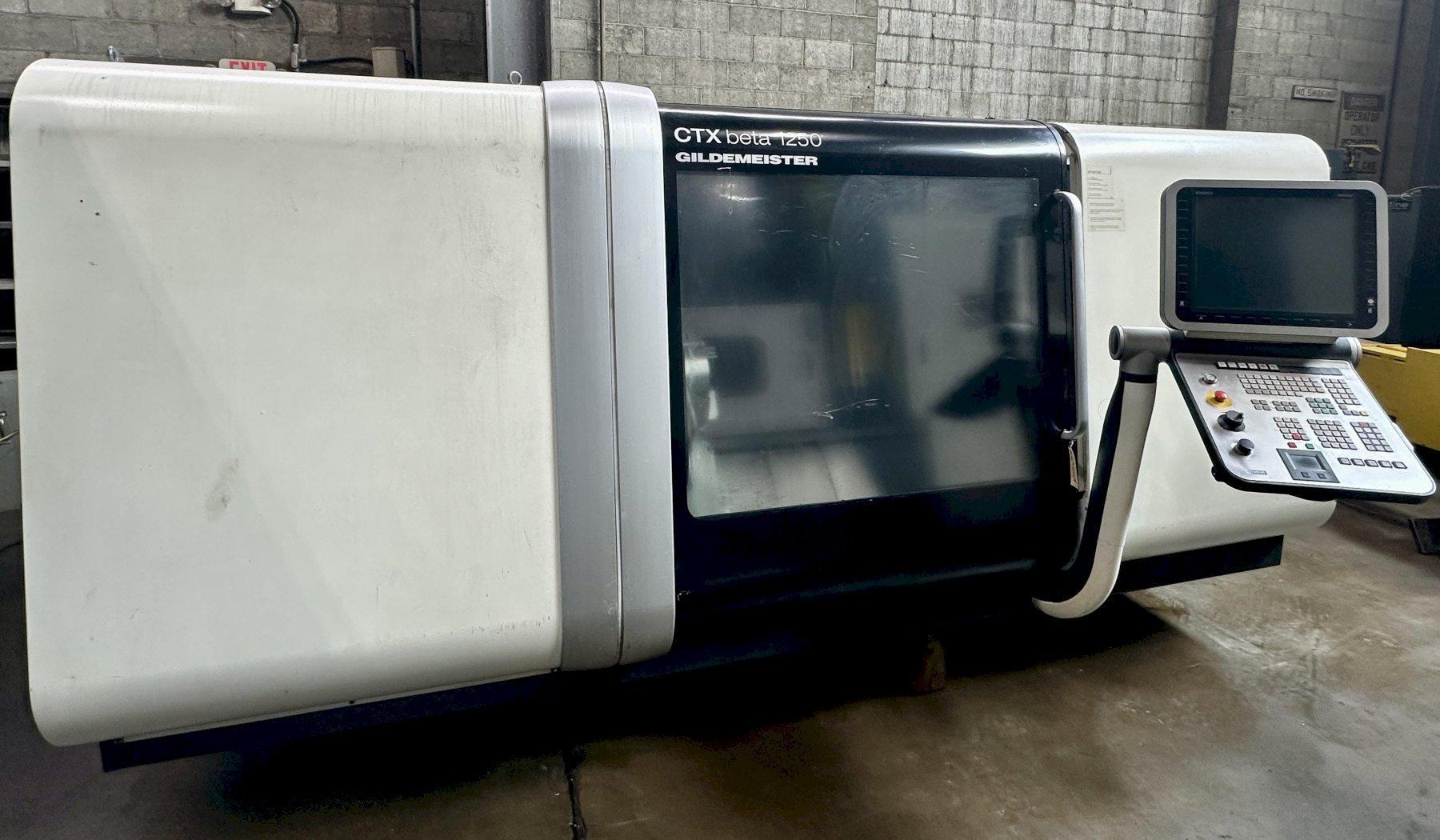

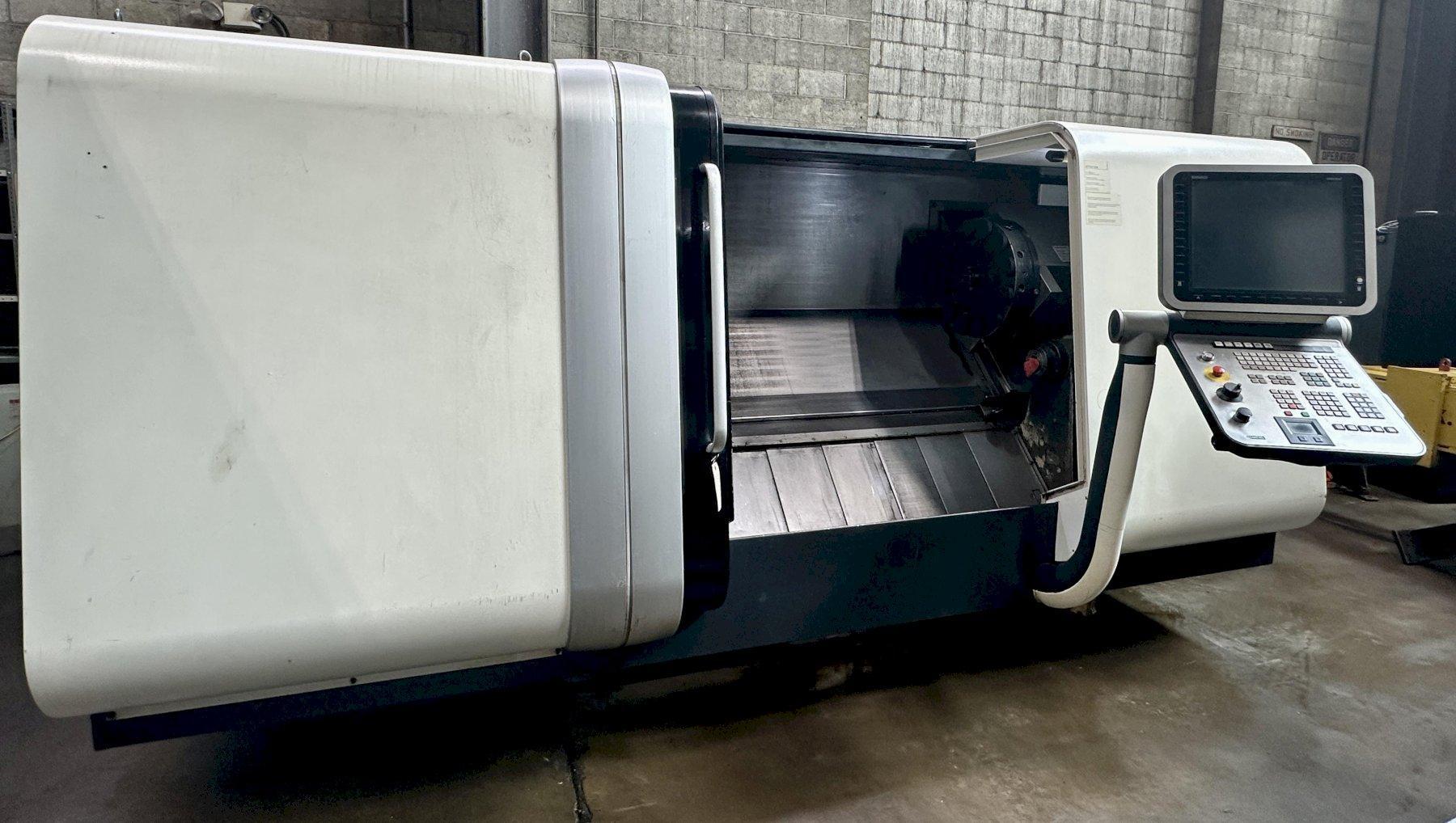

Stock #: Q12018
Brand: DMG GILDEMEISTER
Model: CTX Beta 1250
Type: Lathes, CNC
Condition: Excellent
Year: 2010

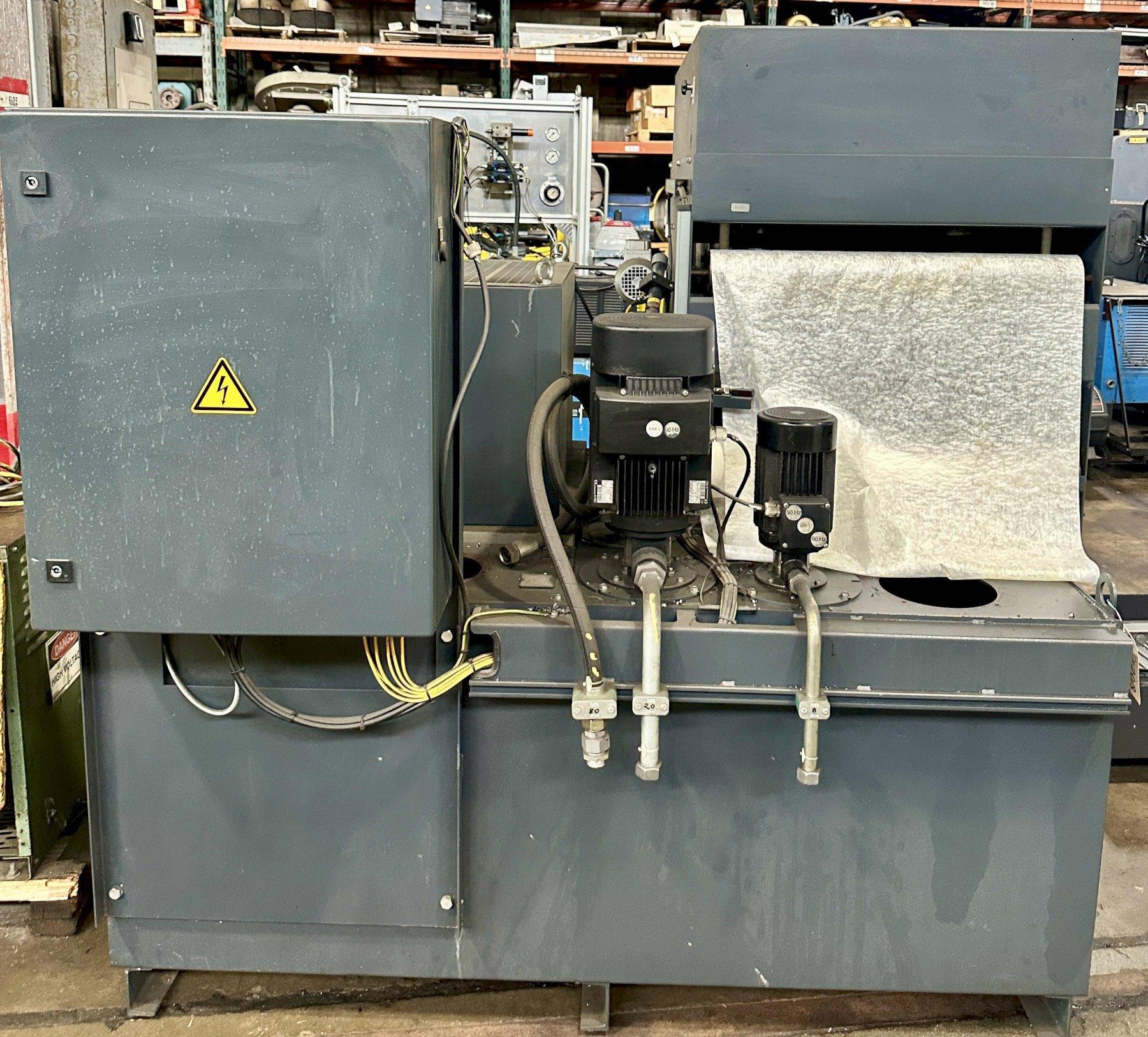

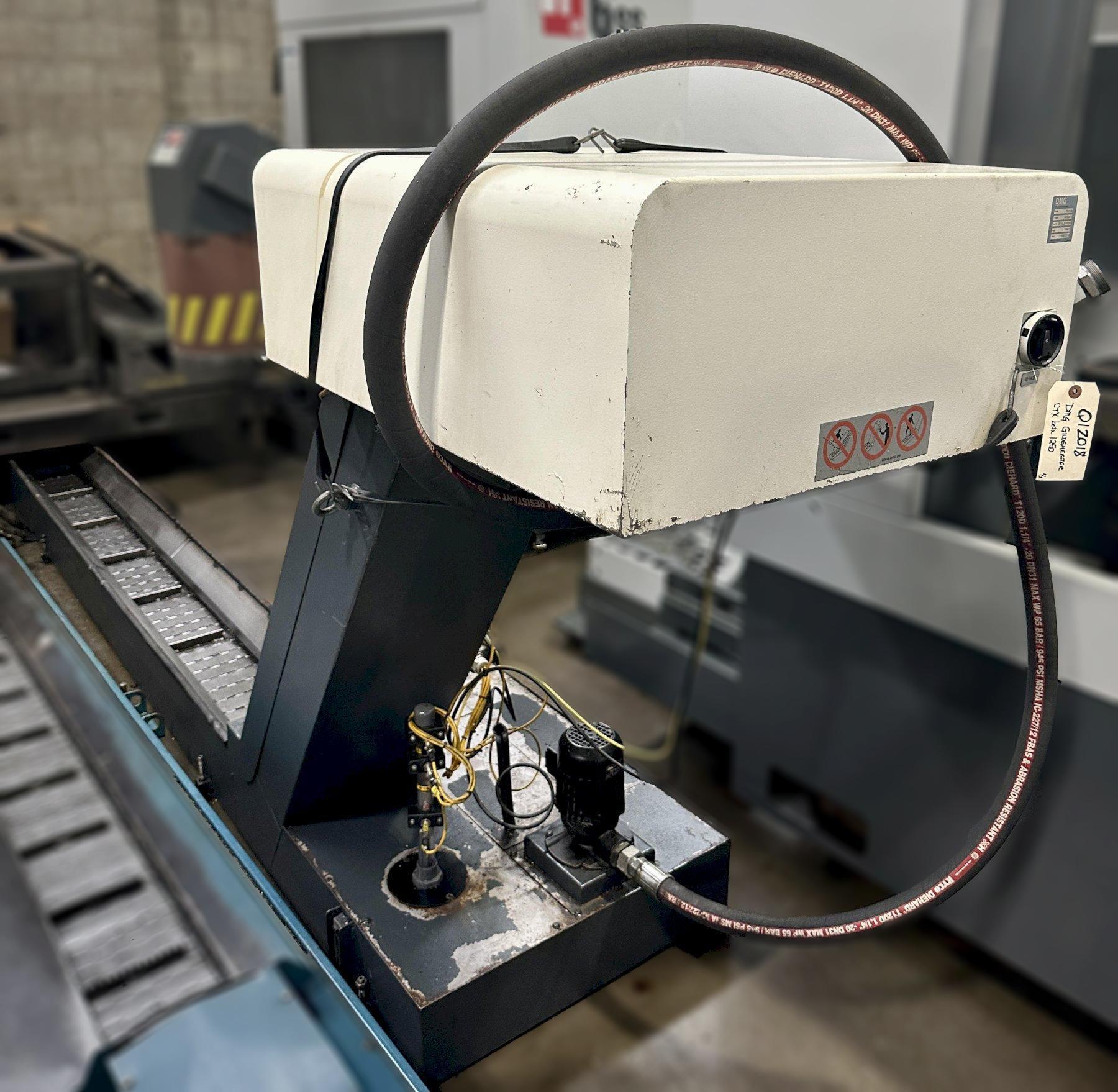

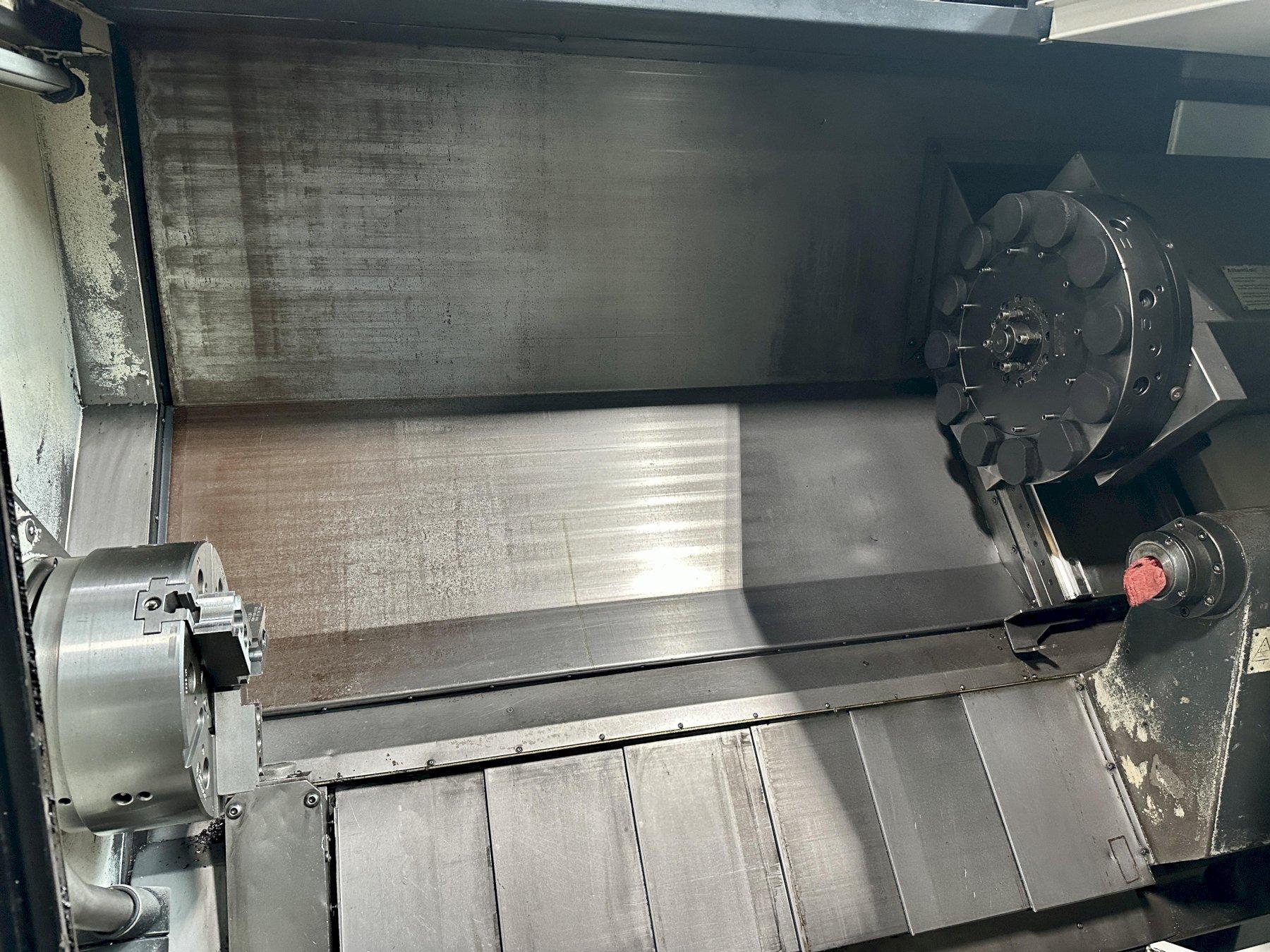

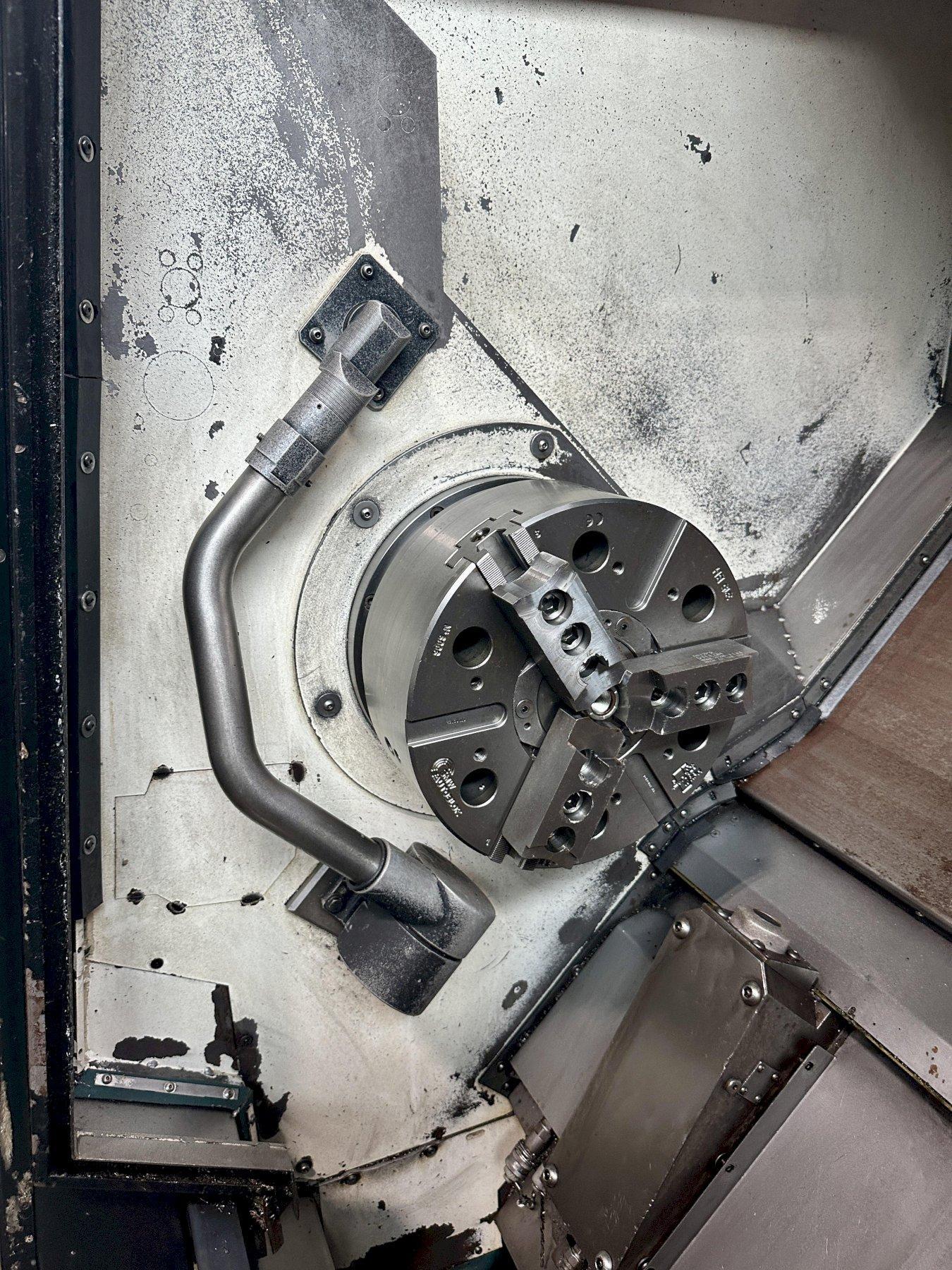

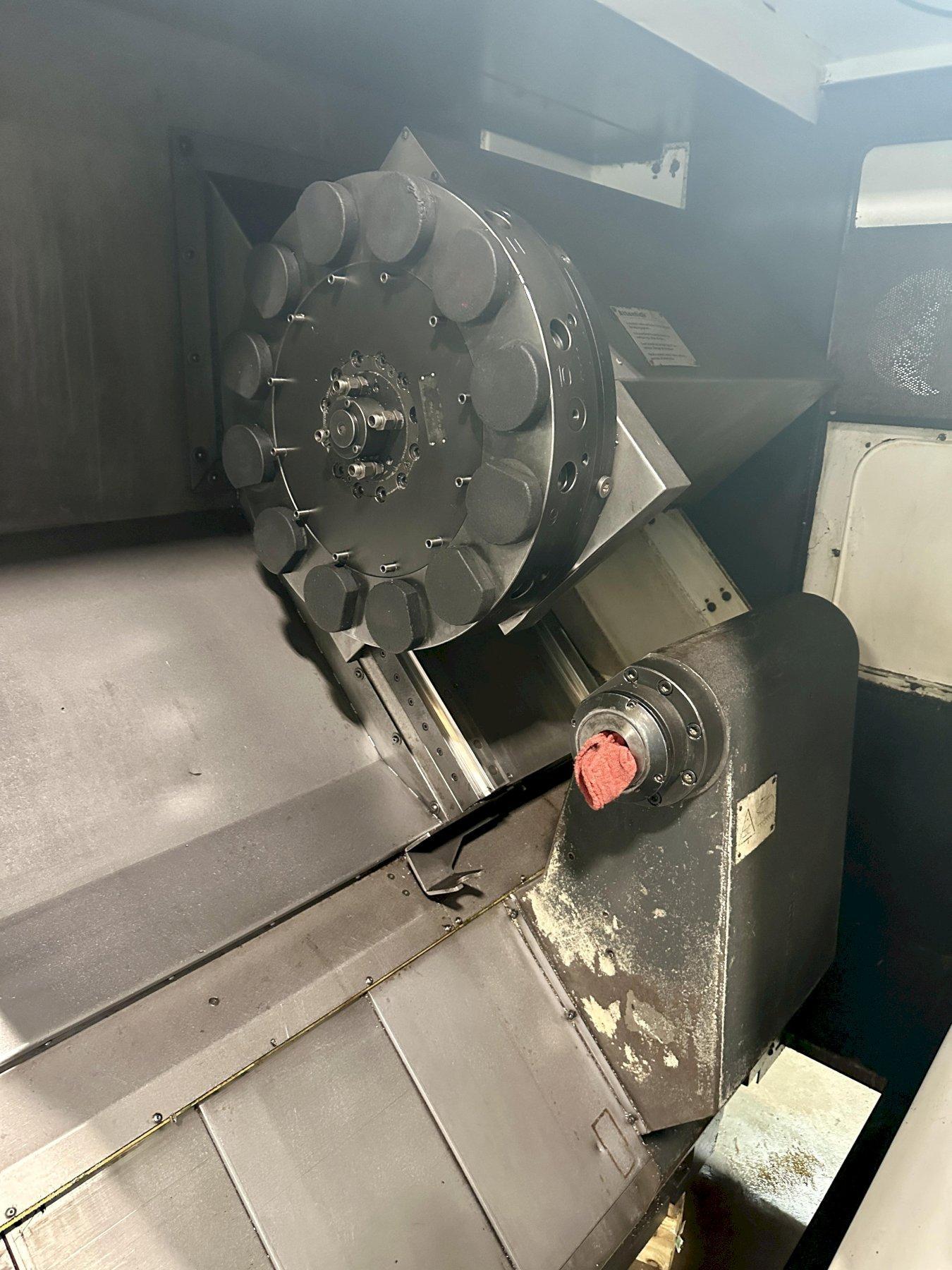

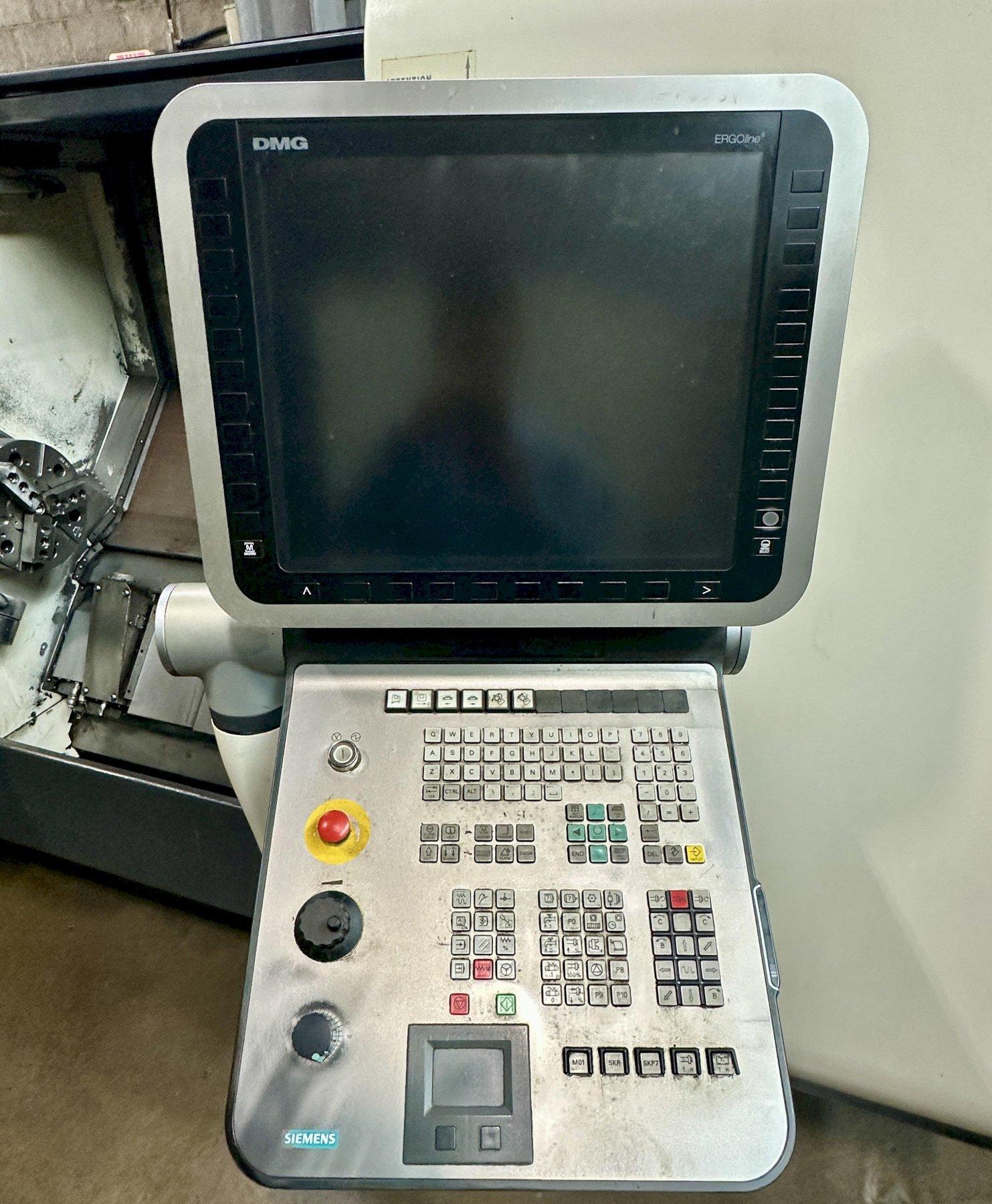

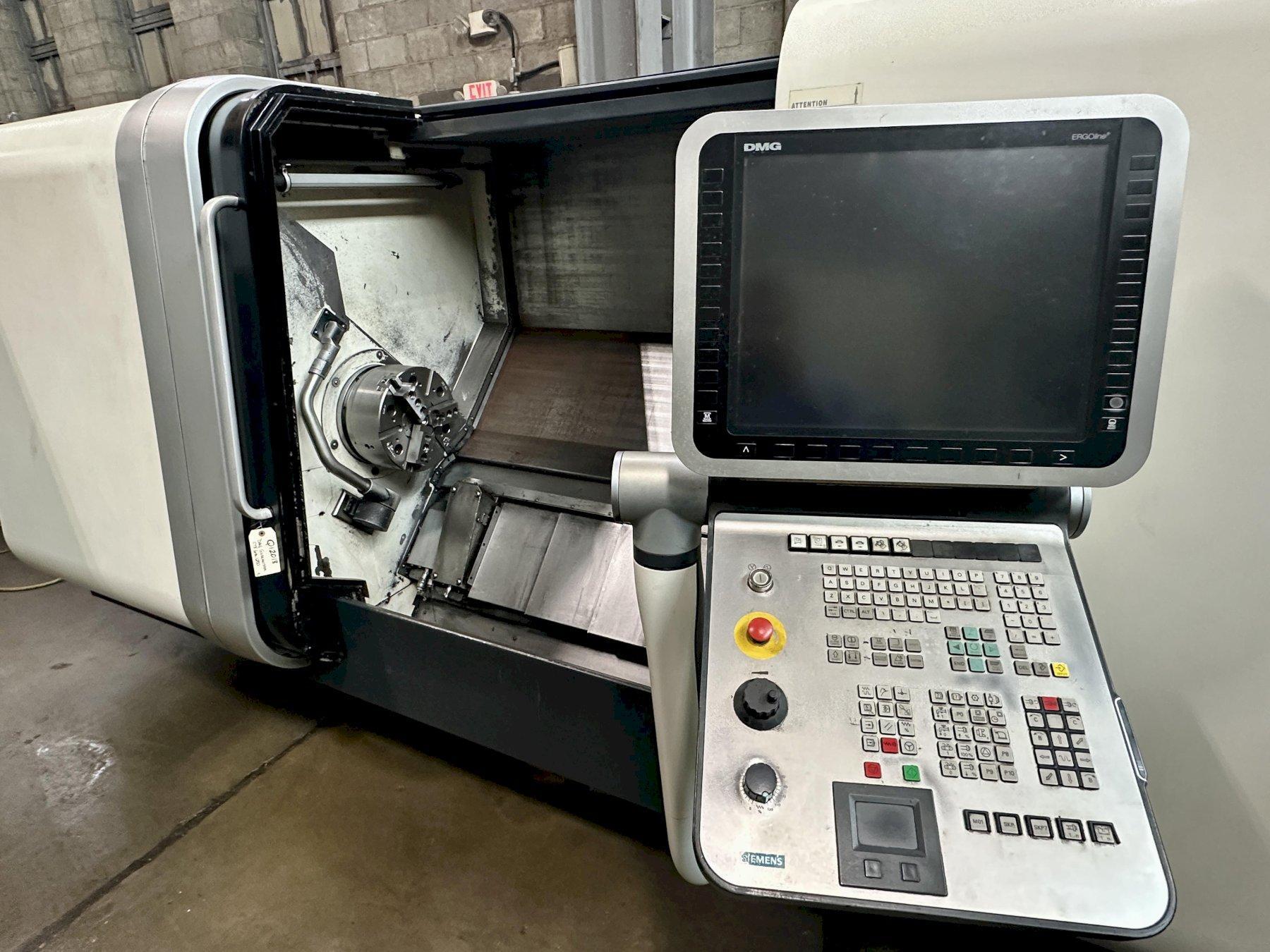

DMG MORI ERGOline® Control with Siemens Sinumerik 840DI, 12" 3-Jaw Chuck, 12" Position Tool Turret with Live Tooling, C-Axis & Y-Axis, Prepped for Steady Rest, Heavy Duty 45° Slant Bed Construction, Paper Filtration Coolant System, Chip Conveyor.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Siemens 840D SL CNC Control |
| Max Swing Over Bed | 27.6" |
| Max Swing Over Cross Slide | 14.9" |
| Max Turning Diameter | 16.1" |
| Chuck Size | 12" |
| Max Distance Between Centers | 56.1" |
| Max Turning Length | 49.2" |
| Max Part Weight | 1461 LBS |
| X-Axis (Cross Travel) | 11.8" |
| Z-Axis (Longitudinal Travel) | 51.2" |
| X-Axis Feed Rates | 899 - 1687 IPM |
| X-Axis Rapid Traverse Rate | 2362.2 IPM |
| Z-Axis Feed Rates | 899 - 1687 IPM |
| Z-Axis Rapid Traverse Rate | 1181 - 2362 IPM |
| Y- Axis Travel | ± 2.36" |
| # Tool Turrets | 1 |
| Tool Turret Capacity | 12 |
| Spindle Nose | FL 220 h5 |
| Max Spindle Speed | 4,000 RPM |
| Spindle Power | 46.9 HP |
| Tailstock Travel | 47.2" |
| Tailstock Morse Taper | MK 5 |
| Tailstock Quill Diameter | 4.7" |
| Machine Hours | 10,605 |

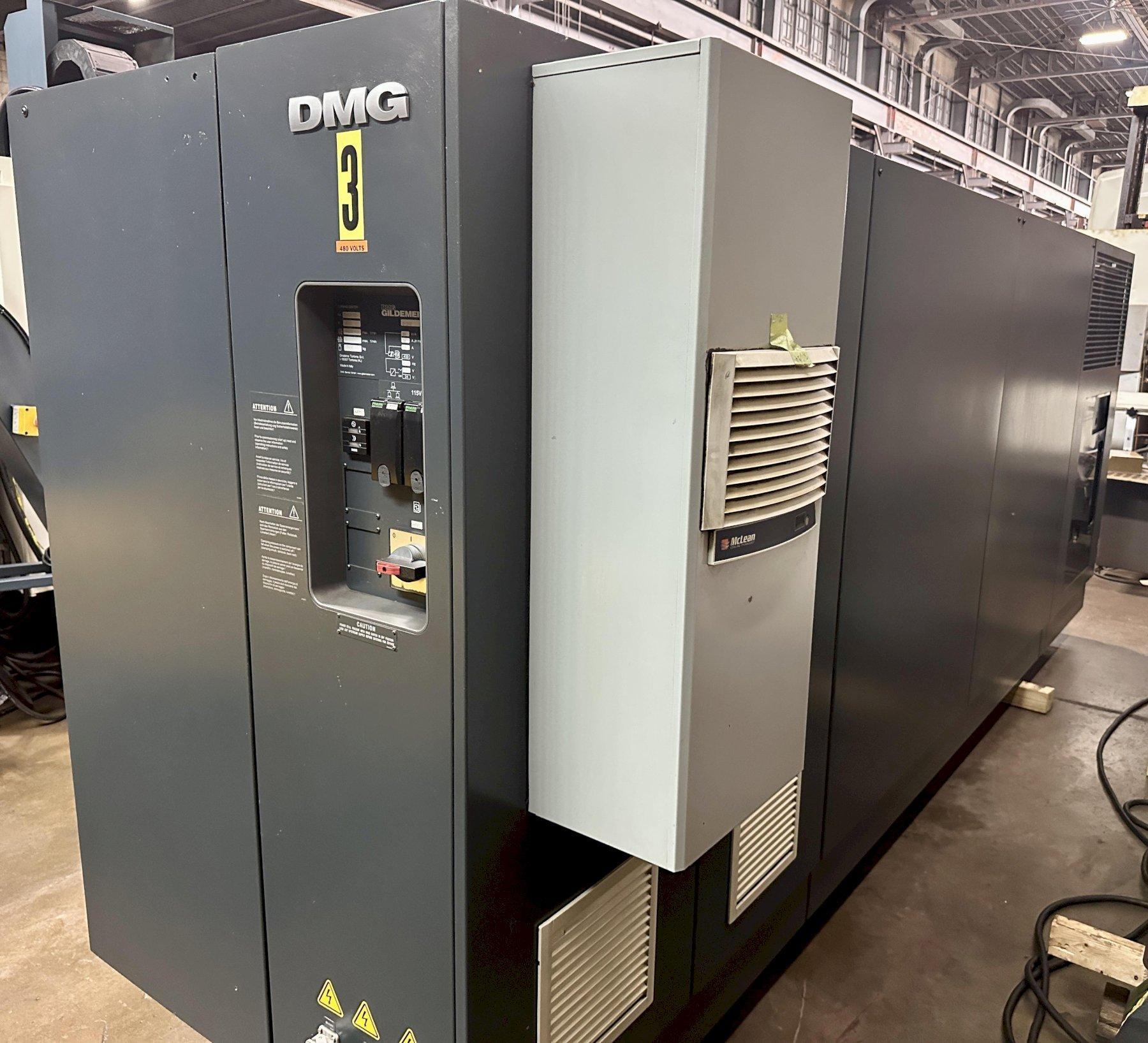

| Electrics | 480/3/60 |
| Approximate Machine Dimensions | 190" x 93" |
| Approximate Machine Height | 81" |
| Approximate Machine Weight | 16,865 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
