Stock #: Q11994
Brand: LEBLOND MAKINO
Model: 14C
Type: Lathes, Engine
Condition: Excellent
Year: 1984
Hard and Ground Steel Bed Ways, Inch/Metric Threading, Thread Chasing Dial, 10" 3-Jaw Cushman Chuck, Brand New CXA wedge Type Tool Post with (5) Holders, Tailstock, Chip Pan.
Specifications: |
|
|---|---|
| Max Swing Over Bed | 15-1/2" |
| Max Swing Over Cross Slide | 9-1/2" |
| Distance Between Centers | 54" |
| Width of Bed | 12-3/16" |

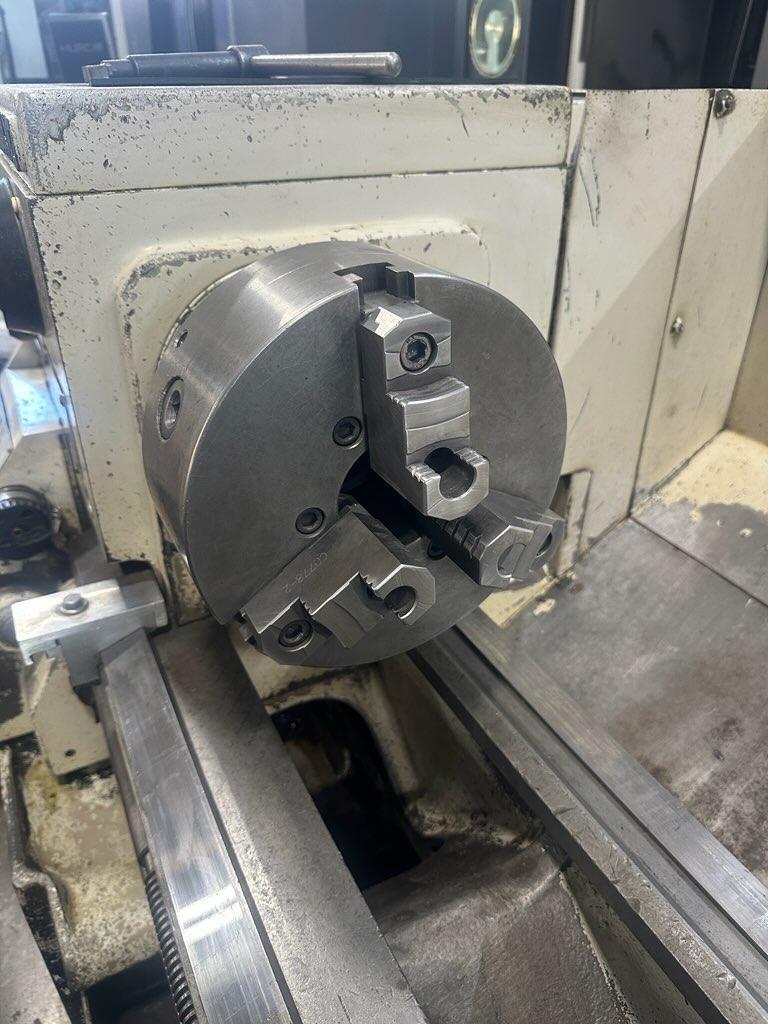

| Chuck Size | 10" 3-Jaw |
| Cross Slide Travel | 7-7/8" |
| Spindle Nose | L-1 |
| Spindle Thru Hole | 2-13/16" |
| # of Spindle Speeds | 14 |
| Spindle Speeds Range | 45 to 1800 RPM |
| # of Threads - Inch | 48 |
| Inch Threads | 2 to 112 TPI |
| # of Feeds | 48 |
| Longitudinal Feeds Range | .0018" to .104 IPR |
| Tailstock Spindle Travel | 5" |
| Taper of Tailstock Center | #4 MT |
| Tailstock Spindle Diameter | 1-15/16" |
| Main Motor | 7-1/2 HP |
| Electrics | 230/3/60 |
| Approximate Machine Dimensions | 44" x 110" |
| Approximate Machine Height | 54" |
| Approximate Machine Weight | 3,260 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
