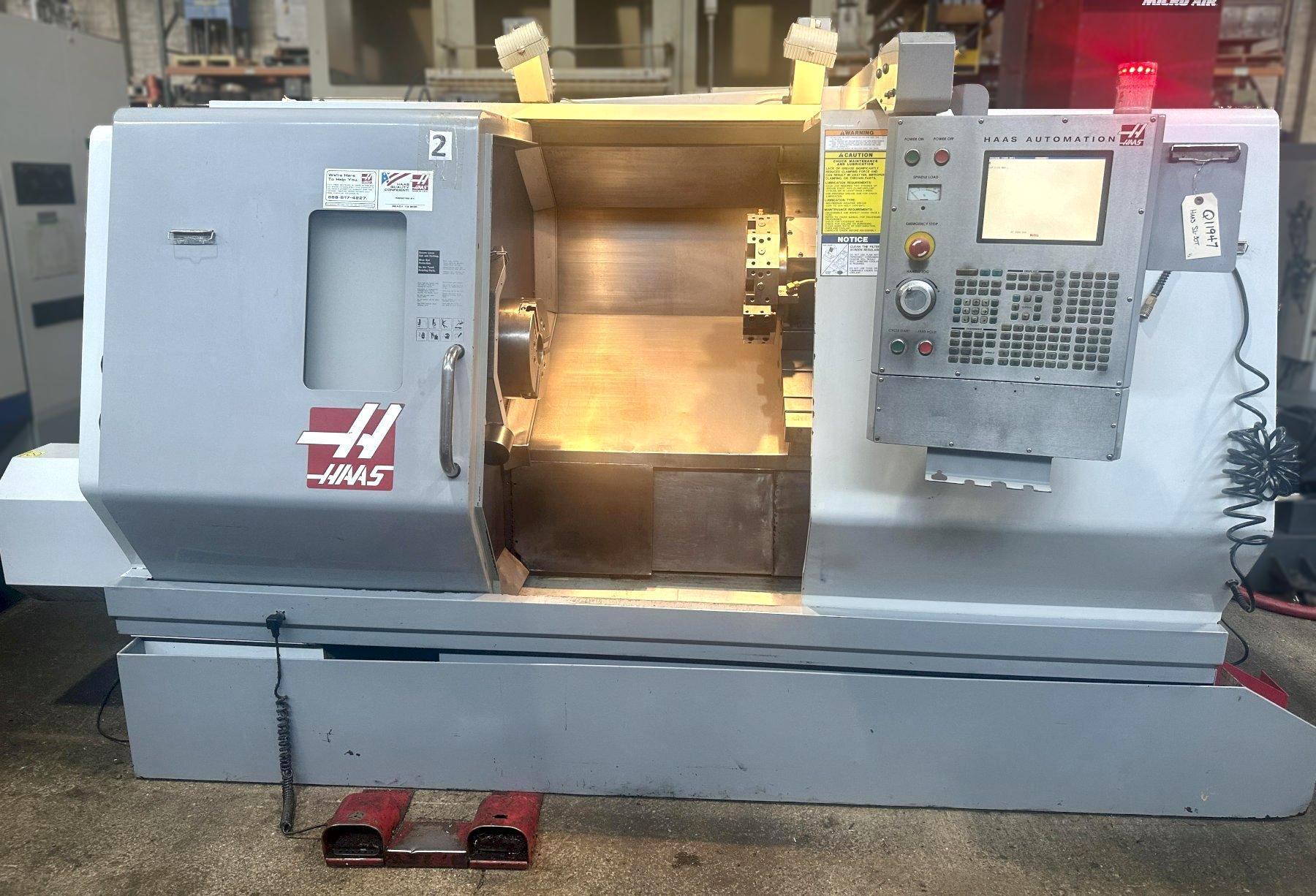

HAAS SL-30T CNC TURNING CENTER

Stock #: Q11947

Brand: HAAS
Model: SL-30T
Type: Lathes, CNC
Condition: Very Good
Year: 2005

Equipped With:

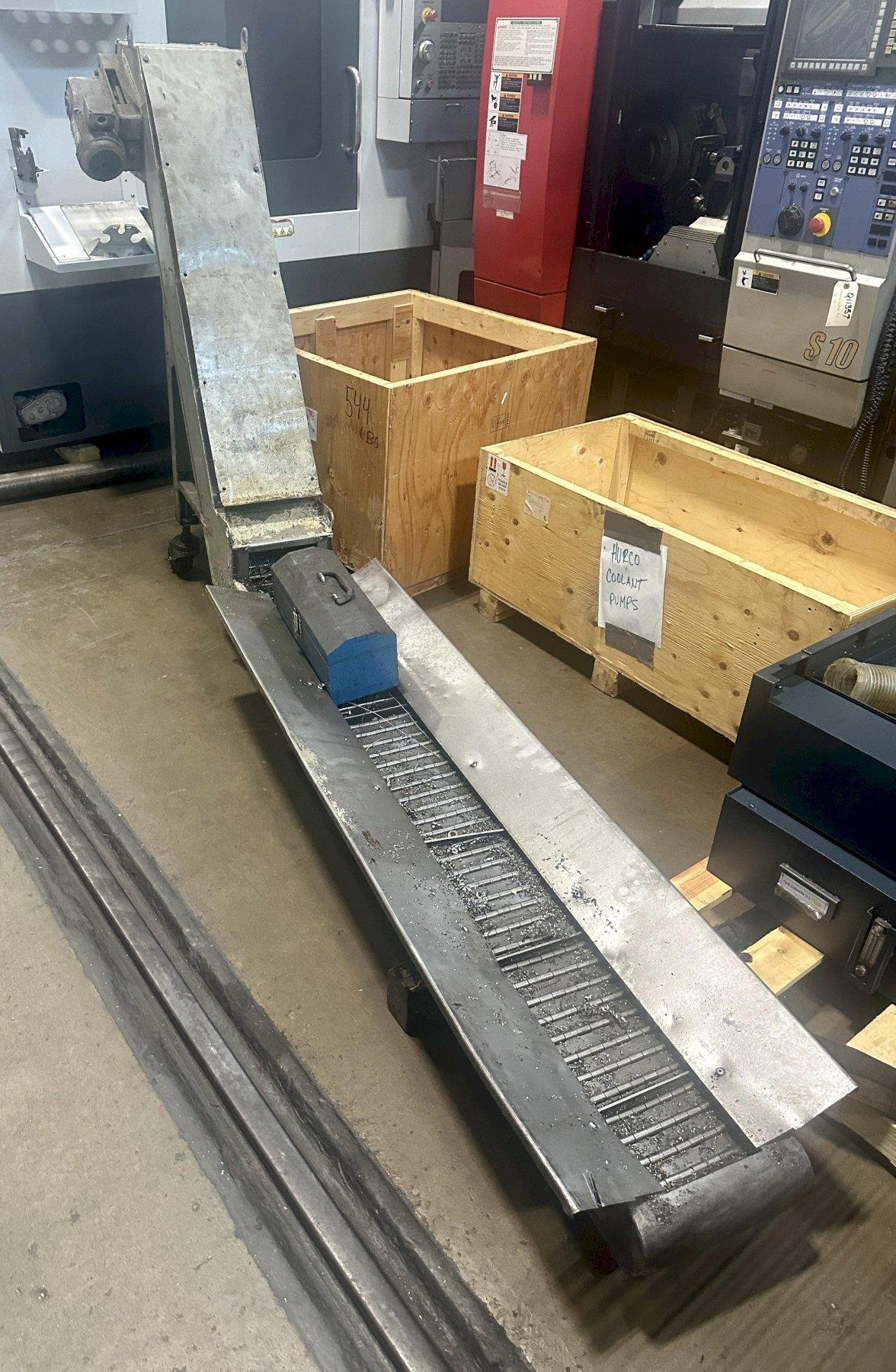

Haas CNC Control, 12" 3-Jaw Kitagawa Chuck, VOP-A, 2 Speed Gear Box, Tool Presetter, 3.5" Spindle Bore, 12 Station Tool Turret (1 Boring Bar Holder Included), Foot Pedal for Chuck Clamp/Unclamp, Tailstock, Coolant System, Chip Conveyor.

Specifications:

CNC Control Haas CNC
Max Swing Over Bed 30"
Max Swing Over Carriage 14.5"
Chuck Size 12"
Max Distance Between Centers 39"
X-Axis (Cross Travel) 14"
Z-Axis (Longitudinal Travel) 34"
X-Axis Rapid Traverse Rate 710 IPM
Z-Axis Rapid Traverse Rate 710 IPM
# Tool Turrets 1
Tool Turret Positions 12 Total
Spindle Nose A2-6
Spindle Bore 3.5"
Bar Capacity 3"
Max Spindle Speed 3,400 RPM
Spindle Horsepower 30 HP
Electrics 220/3/60
Approximate Machine Dimensions 126" x 83"
Approximate Machine Height 74"
Approximate Machine Weight 16,000 LBS
CONDITION: This Machine Appears to be in Very Good Condition !
