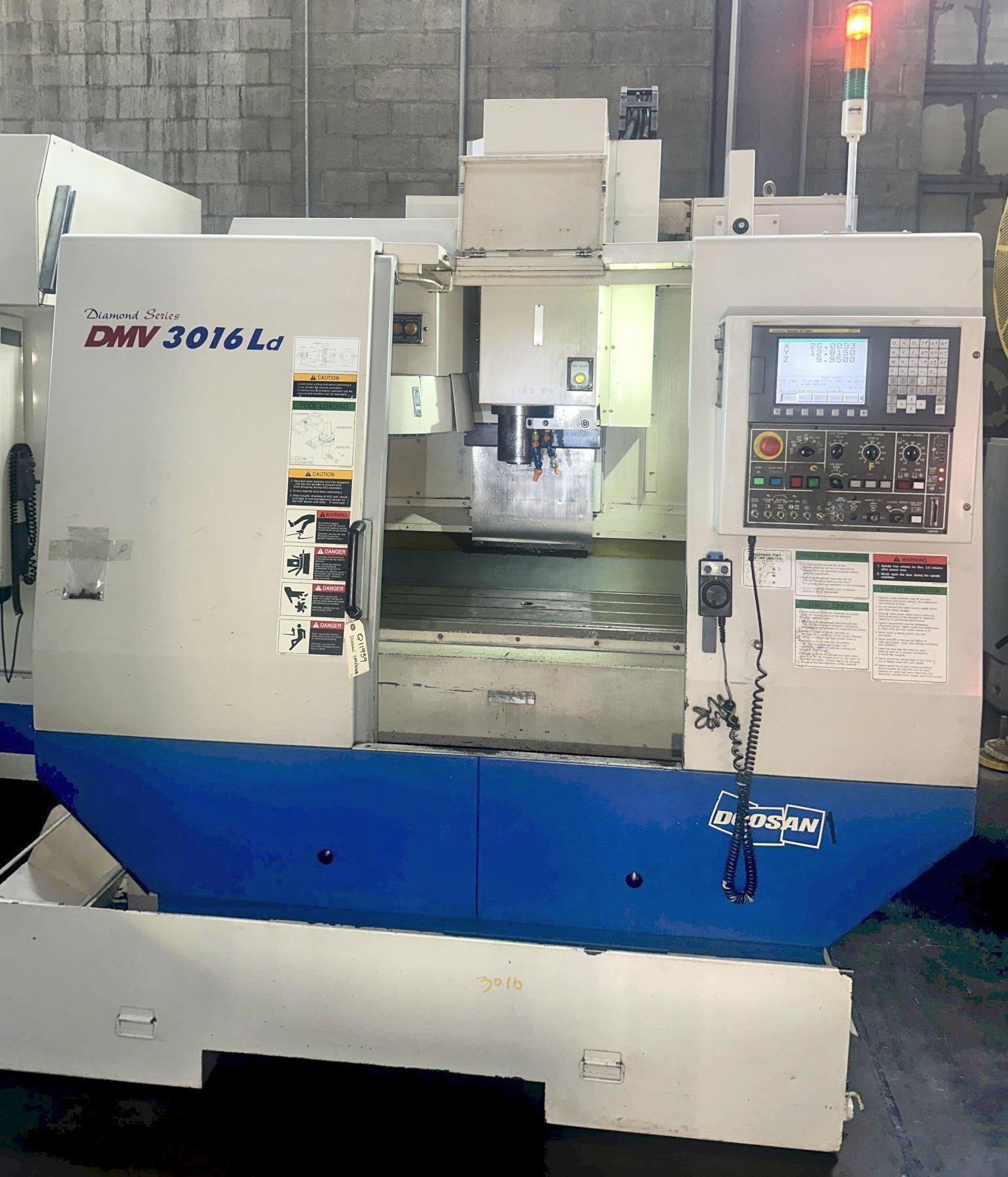

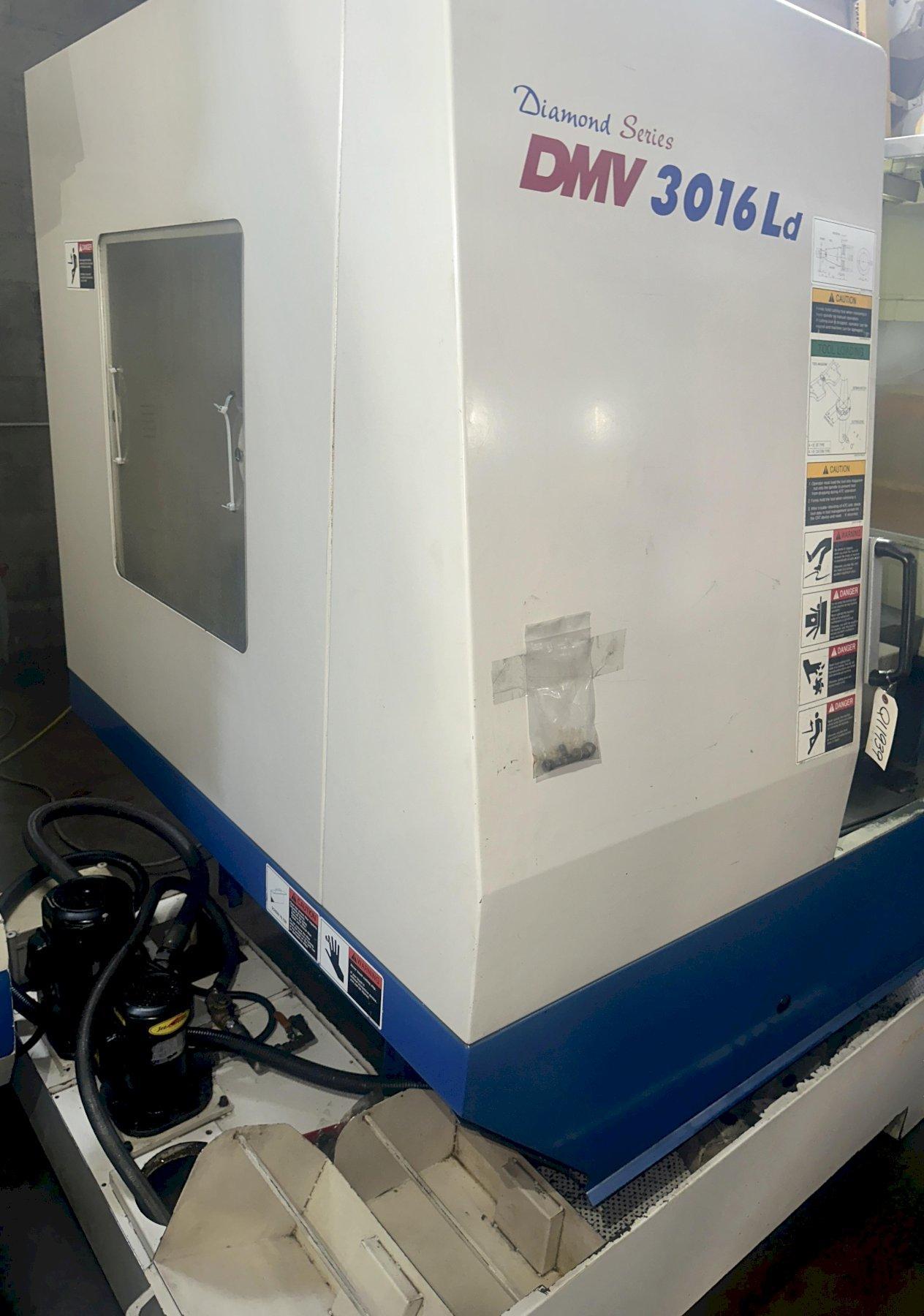

DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER

Stock #: Q11939

Brand: DOOSAN
Model: DMV3016LD
Type: Machining Centers, Vertical
Condition: Very Good
Year: 2007

Equipped With:

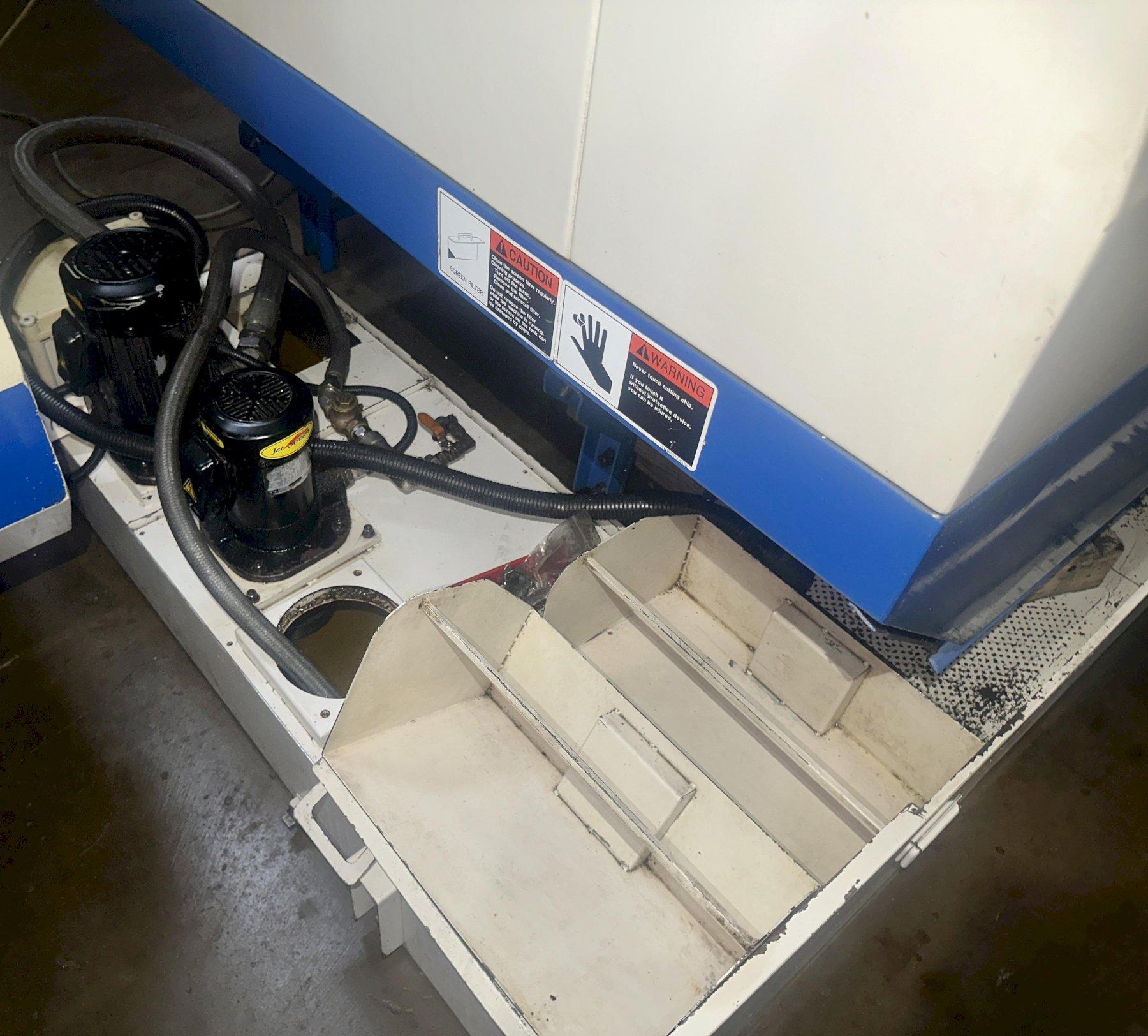

Fanuc Oi-MC CNC Control, 40" x 18" Table, 8000 RPM Spindle, Flood Coolant, Chip Pans & Coolant System.

Specifications:

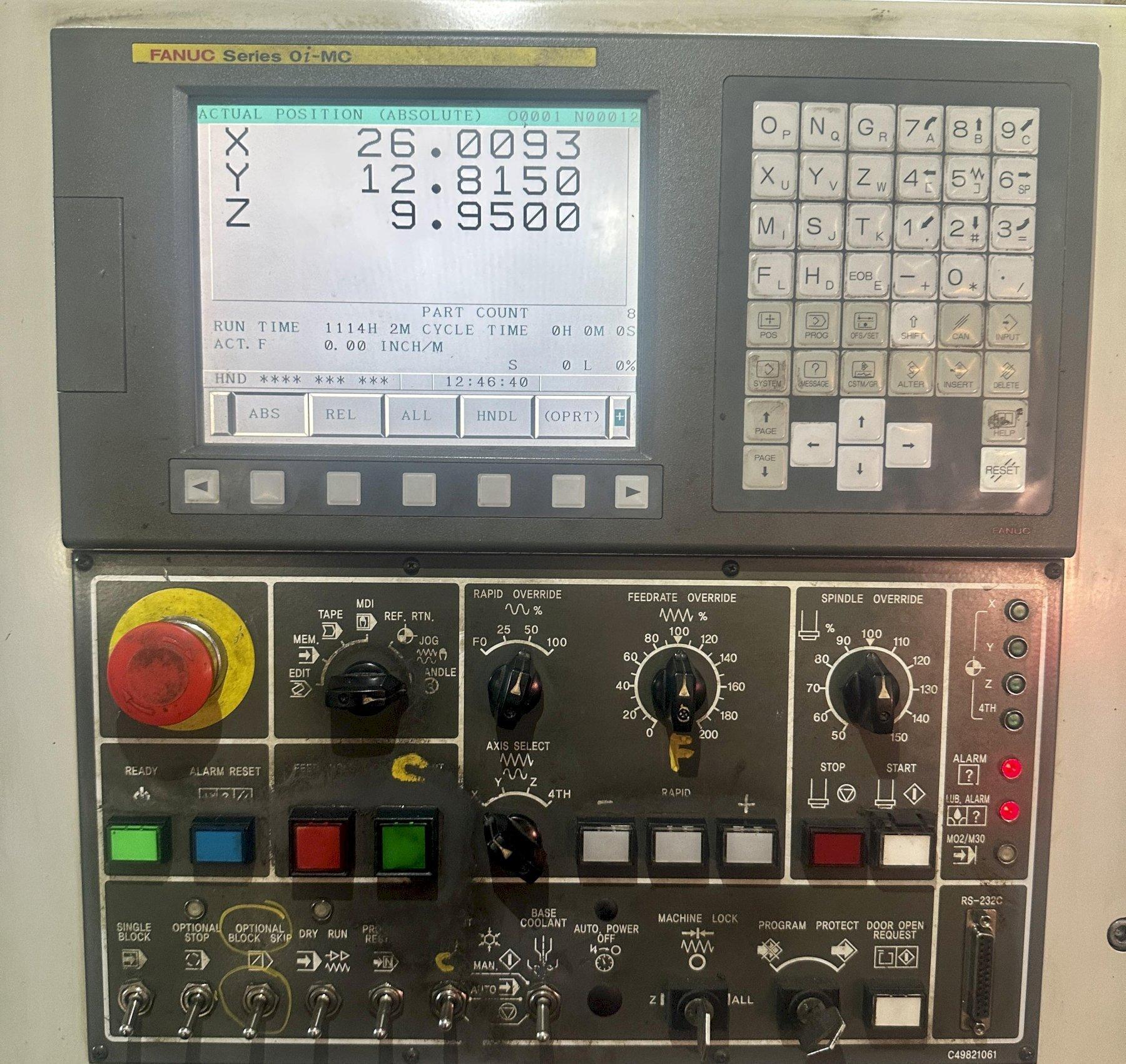

CNC Control Fanuc Oi-MC CNC
# Axis 3

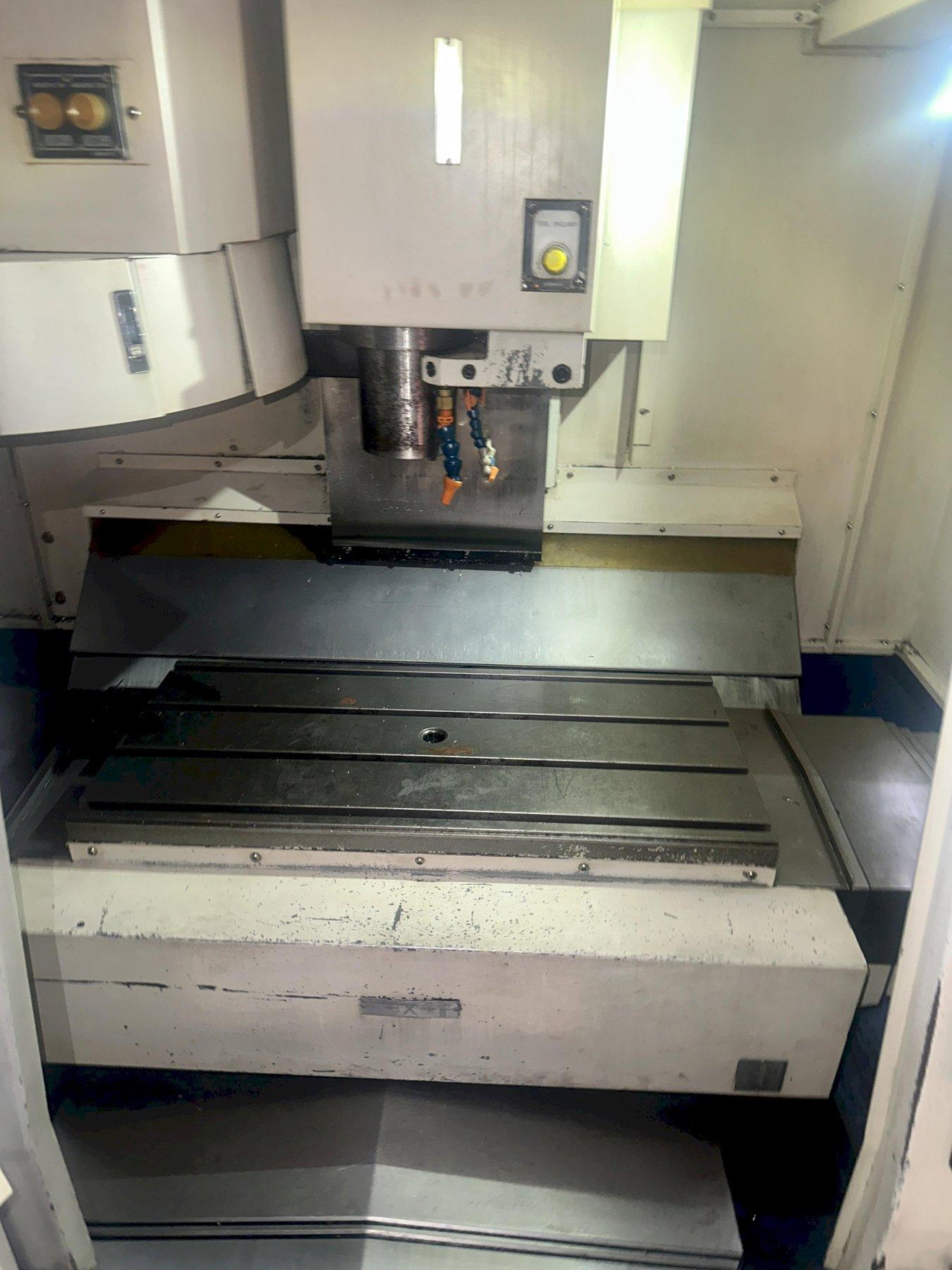

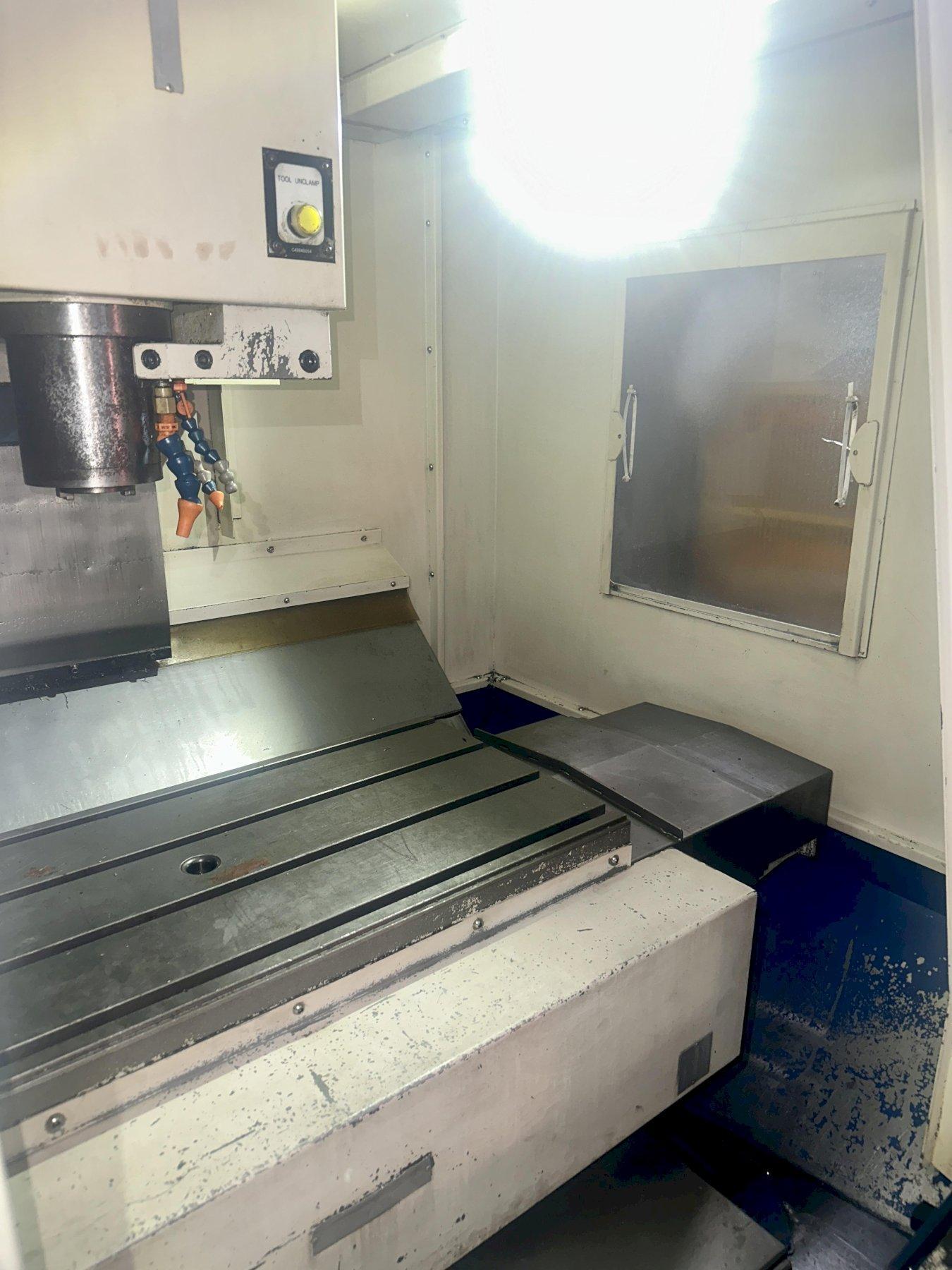

Table Size 39.4" x 17.7"
Table Load Capacity 1,320 LBS
X-Axis (Longitudinal Travel) 30"
Y-Axis (Cross Travel) 16"
Z-Axis (Vertical Travel) 20"
Max Clearance Tabletop to Spindle Nose 26"
Min Clearance Tabletop to Spindle Nose 5.9"
Feed Rates, All Axes .04 - 315 IPM
X-Axis Rapid Traverse Rate 1,181 IPM
Y-Axis Rapid Traverse Rate 1,181 IPM
Z-Axis Rapid Traverse Rate 945 IPM
Spindle Horsepower 15 HP
Max Spindle Speed 8,000 RPM
Spindle Taper CAT 40
Torque, Up To 102 FT-LBS

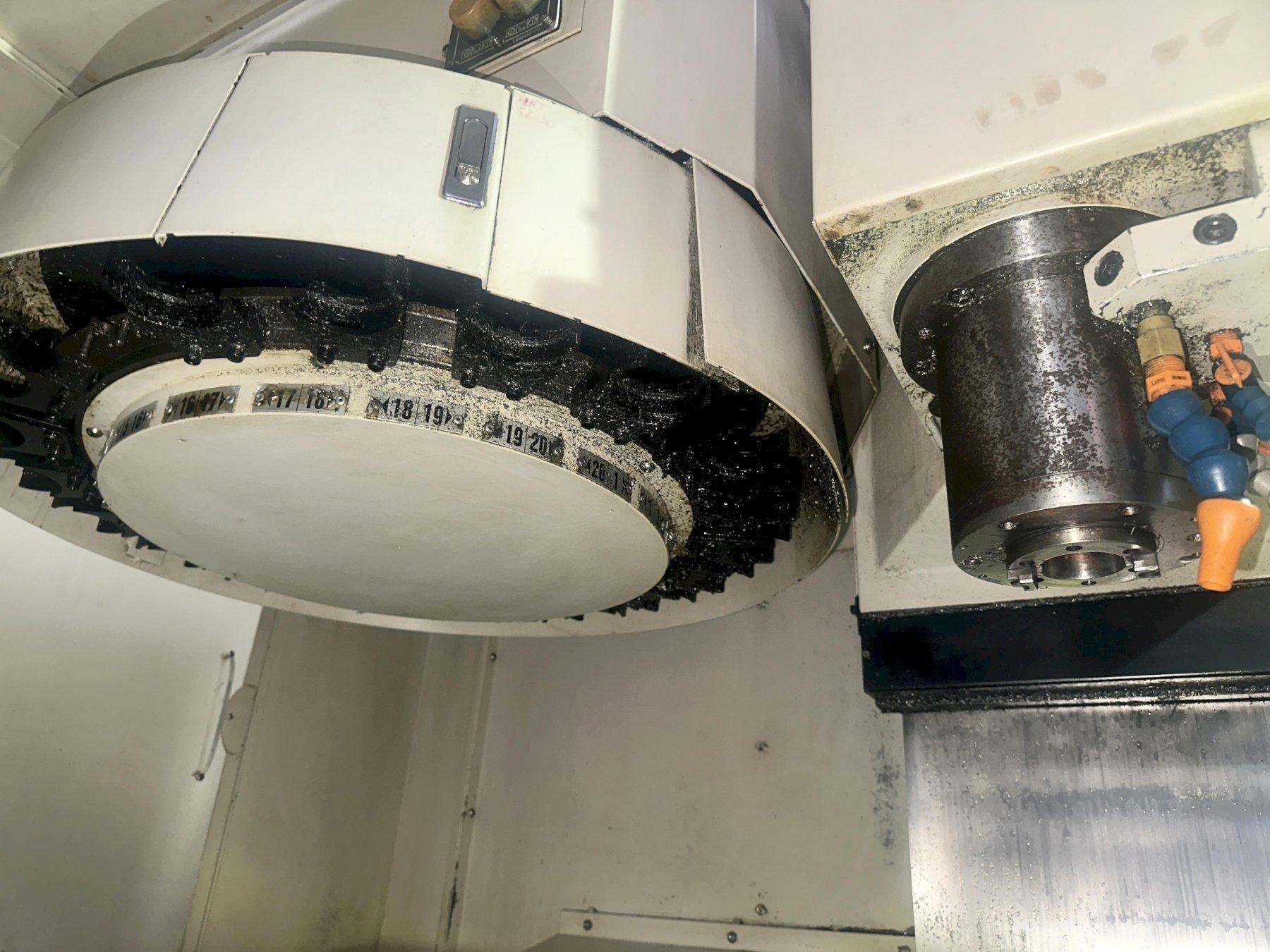

Automatic Tool Changer Capacity (ATC) 20
Automatic Tool Changer Style Direct Load Camless
Electrics 205-235/3/60
Approximate Machine Dimensions 90" x 95"
Approximate Machine Height 122"
Approximate Machine Weight 12,320 LBS
CONDITION: This Machine Appears to be in Very Good Condition !

DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER

DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.
  • DAEWOO DOOSAN DMV3016Ld CNC VERTICAL MACHINING CENTER, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.

Share:

Print Details

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      DOOSAN

      Model
      DMV3016LD

      Type
      Machining Centers, Vertical

      Stock #
      Q11939

      Condition
      Very Good

      Year
      2007

      Request a Quote Today!

      Get Started

      Equipped With

      Fanuc Oi-MC CNC Control, 40" x 18" Table, 8000 RPM Spindle, Flood Coolant, Chip Pans & Coolant System.

      Specifications
      CNC Control Fanuc Oi-MC CNC
      # Axis 3
      Table Size 39.4" x 17.7"
      Table Load Capacity 1,320 LBS
      X-Axis (Longitudinal Travel) 30"
      Y-Axis (Cross Travel) 16"
      Z-Axis (Vertical Travel) 20"
      Max Clearance Tabletop to Spindle Nose 26"
      Min Clearance Tabletop to Spindle Nose 5.9"
      Feed Rates, All Axes .04 - 315 IPM
      X-Axis Rapid Traverse Rate 1,181 IPM
      Y-Axis Rapid Traverse Rate 1,181 IPM
      Z-Axis Rapid Traverse Rate 945 IPM
      Spindle Horsepower 15 HP
      Max Spindle Speed 8,000 RPM
      Spindle Taper CAT 40
      Torque, Up To 102 FT-LBS
      Automatic Tool Changer Capacity (ATC) 20
      Automatic Tool Changer Style Direct Load Camless
      Electrics 205-235/3/60
      Approximate Machine Dimensions 90" x 95"
      Approximate Machine Height 122"
      Approximate Machine Weight 12,320 LBS
      CONDITION: This Machine Appears to be in Very Good Condition !
