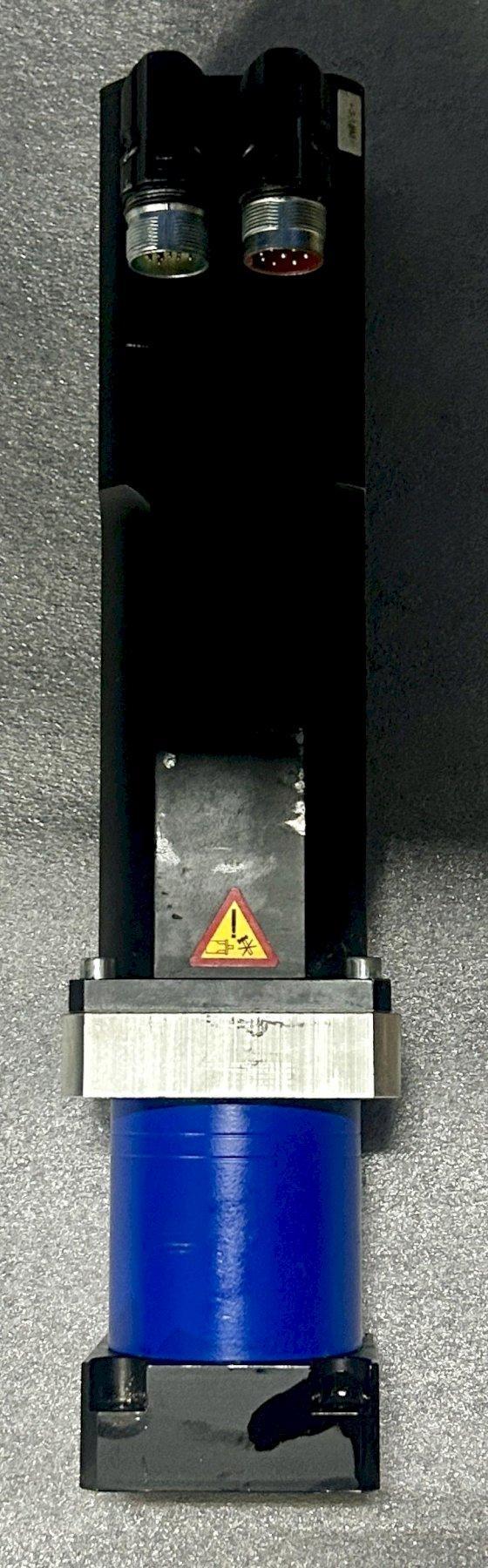

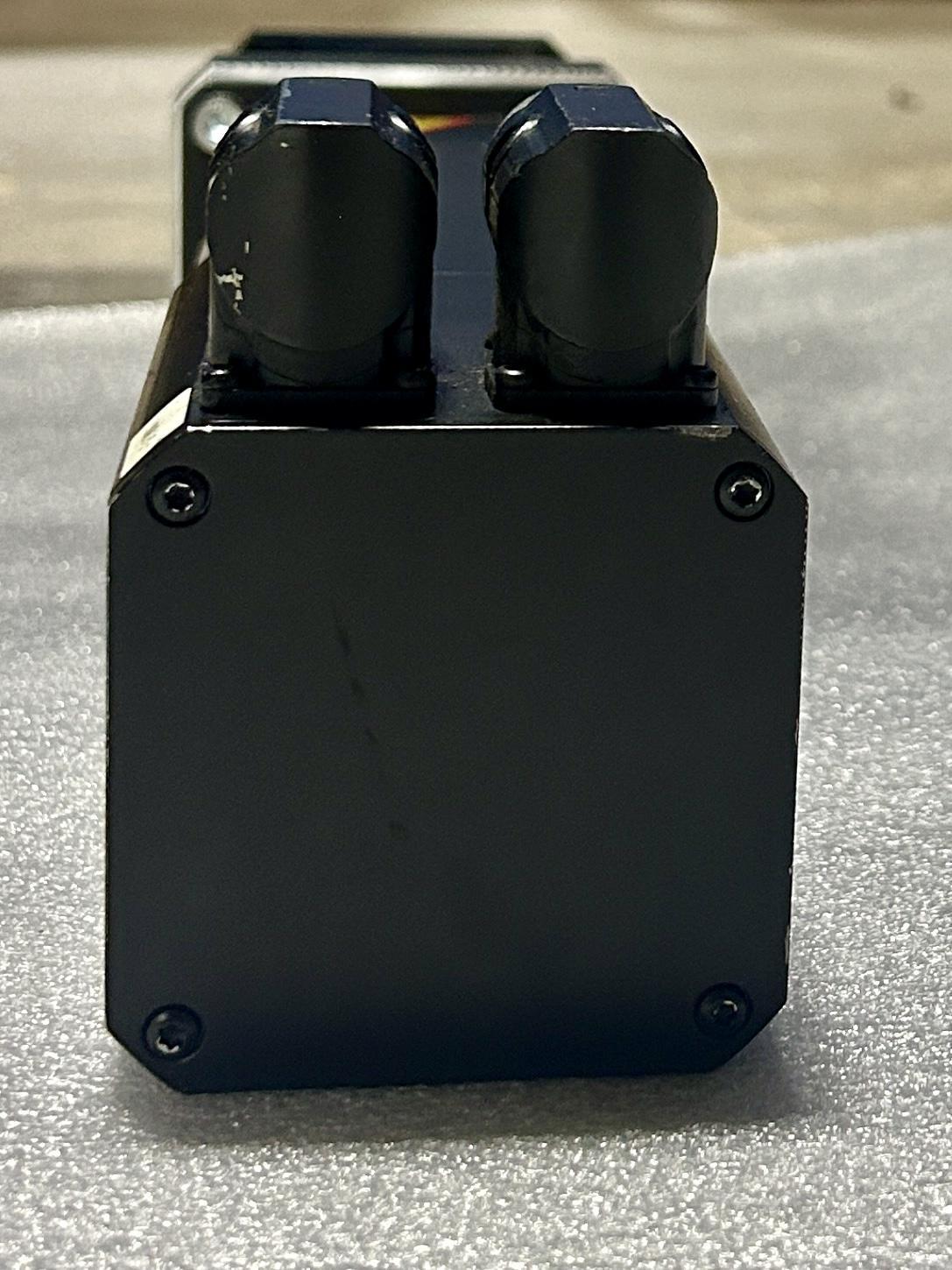

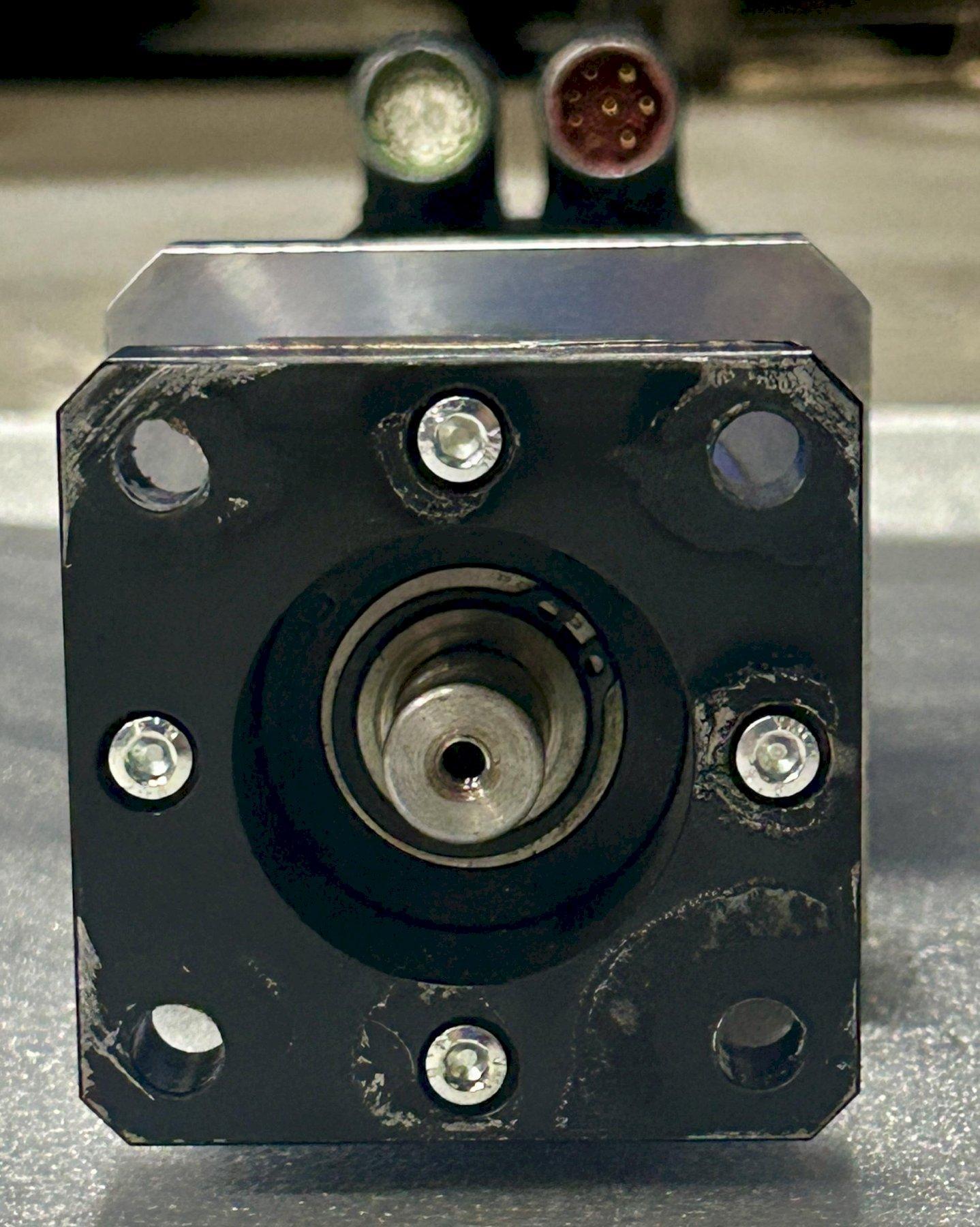

WITTENSTEIN LP070-M01-5-111-000 GEAR BOX WITH B&R 8MSA3L.E0-32 SYNCHRONOUS MOTOR

Stock #: Q11918

Brand: WITTENSTEIN
Model: LP070-M01-5-111-000
Type: Gearboxes
Condition: Excellent
Year: Not Specified

Equipped With:

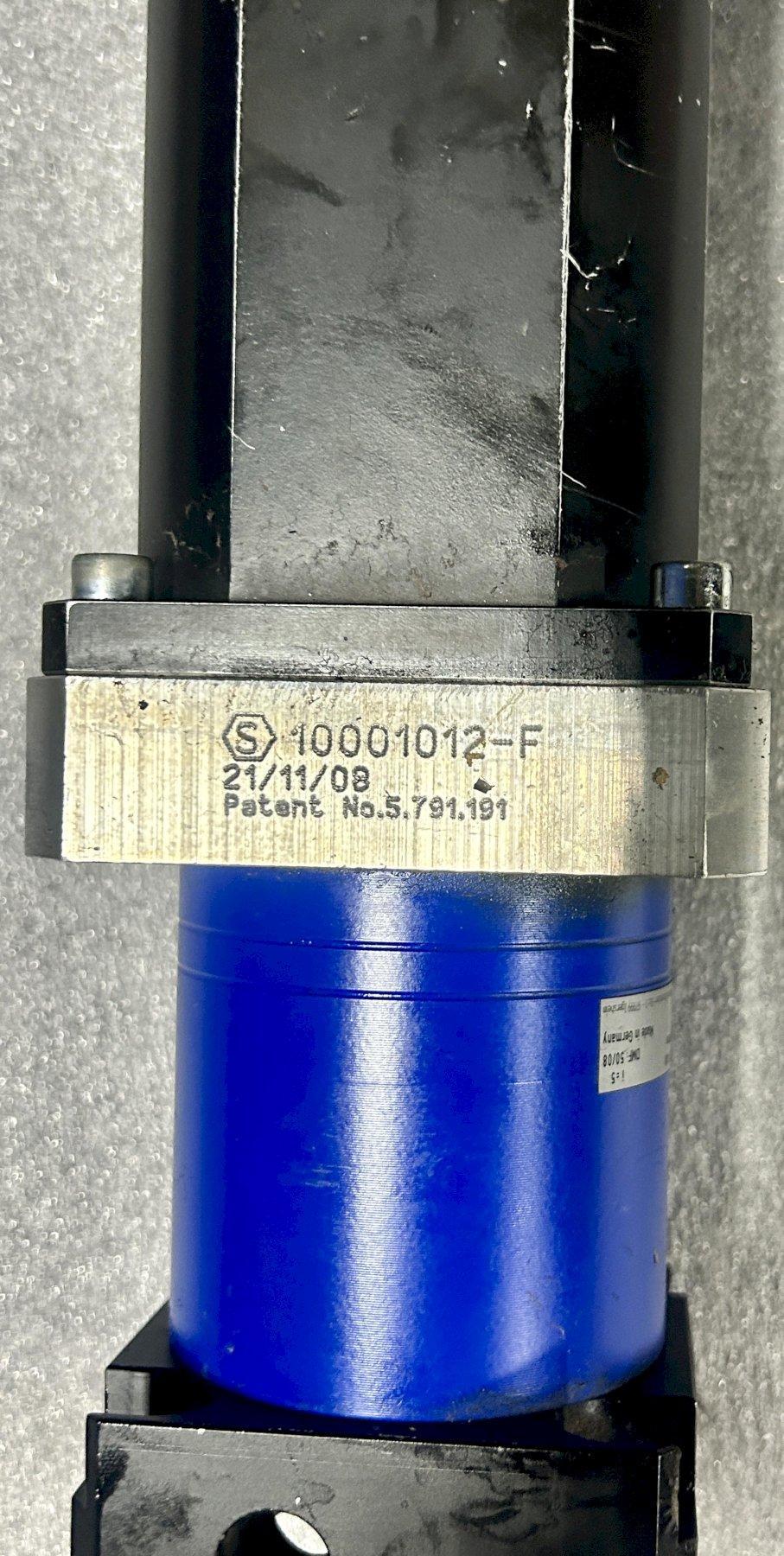

GEARBOX
Generation 3, Single Stage, Set Screw Mounting, Size 070.

Specifications:

Gear Box Model LP070-M01-5-111-000

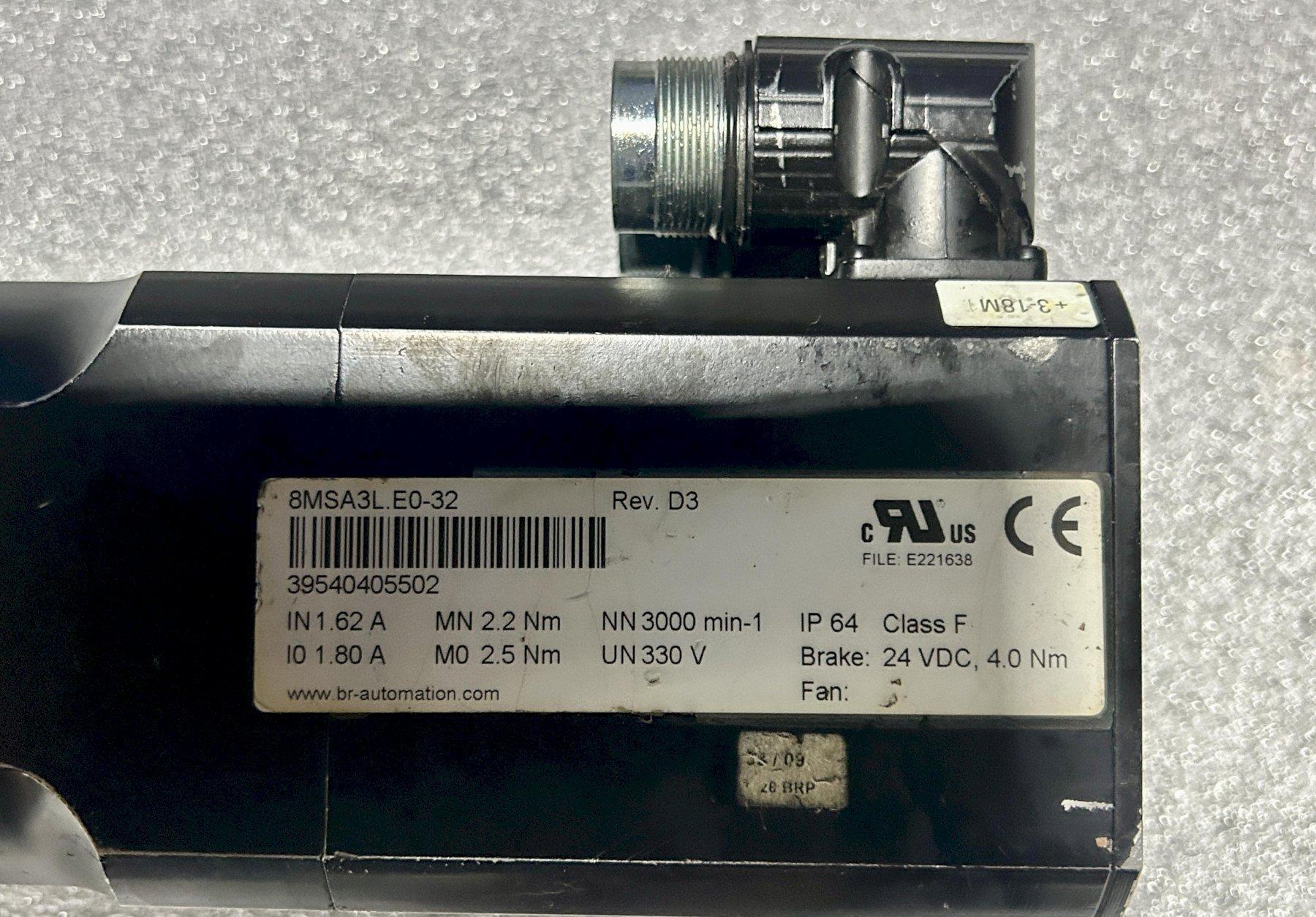

Motor Model 8MSA3L.E0-32
Gear Ratio 5:1
Motor Frame Size 3
Motor Power .68 kW
Motor Speed 3,000 RPM
Insulation Class F (Max 155° C / 311° F)
Motor Voltage 330 V
Motor Phase 3-Phase
Enclosure Rating IP64
Approximate Dimensions 19" x 6"
Approximate Height 7"
Approximate Weight 20 LBS
CONDITION: This Gear Unit Appears to be in Excellent Condition !

WITTENSTEIN LP070-M01-5-111-000 GEAR BOX WITH B&R 8MSA3L.E0-32 SYNCHRONOUS MOTOR
