Stock #: 3195
Brand: NORTHWOOD
Model: 255-FAMT
Type: Routers
Condition: Excellent
Year: 2011

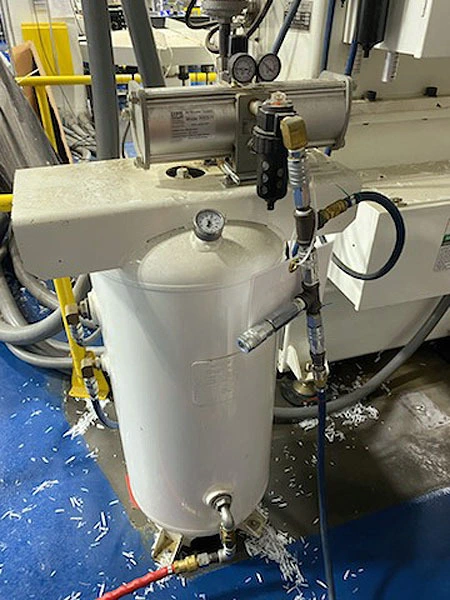

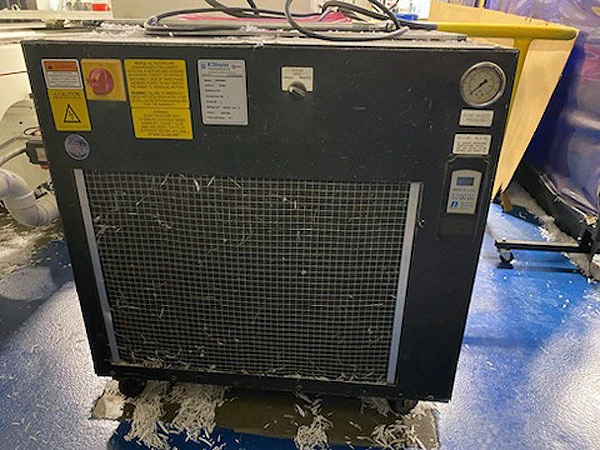

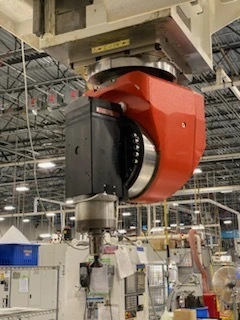

Fanuc Series 31i Model 5 CNC Control, Coolant Kooler Chiller, Max 20000 RPM, Booster System to 300 psi, Graco Auto Grease System, HSK-63F Spindle, 22 HP Liquid-cooled Spindle, TCP for tool Center Point, Heidenhain Scales on X, Y, C, Z Axis, With fully enclosed purged housing, 20 HSK F Tool Holders – Collet Type.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc Series 31i Model 5 CNC Control |
| X-Axis (Longitudinal Travel) | 108" |
| Y-Axis (Cross Travel) | 192" |
| Z-Axis (Vertical Travel) | 50" |
| C-Axis | +517°/-115° |
| A-Axis Rotation | ± 115° |
| Rapid Traverse Rate (X & Y Axis) | 2,150 IPM |
| Rapid Traverse Rate (Z-Axis) | 500 IPM |
| Continuous Positioning Speed (A & C Axis) | 30 DPS |
| Max Spindle Speed | 20,000 RPM |
| Spindle Taper | HSK-63F |
CONDITION: This Machine Appears to be in Excellent Condition !










Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Fanuc Series 31i Model 5 CNC Control, Coolant Kooler Chiller, Max 20000 RPM, Booster System to 300 psi, Graco Auto Grease System, HSK-63F Spindle, 22 HP Liquid-cooled Spindle, TCP for tool Center Point, Heidenhain Scales on X, Y, C, Z Axis, With fully enclosed purged housing, 20 HSK F Tool Holders – Collet Type. |
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc Series 31i Model 5 CNC Control |
| X-Axis (Longitudinal Travel) | 108" |
| Y-Axis (Cross Travel) | 192" |
| Z-Axis (Vertical Travel) | 50" |
| C-Axis | +517°/-115° |
| A-Axis Rotation | ± 115° |
| Rapid Traverse Rate (X & Y Axis) | 2,150 IPM |
| Rapid Traverse Rate (Z-Axis) | 500 IPM |
| Continuous Positioning Speed (A & C Axis) | 30 DPS |
| Max Spindle Speed | 20,000 RPM |
| Spindle Taper | HSK-63F |
| CONDITION: This Machine Appears to be in Excellent Condition ! |
