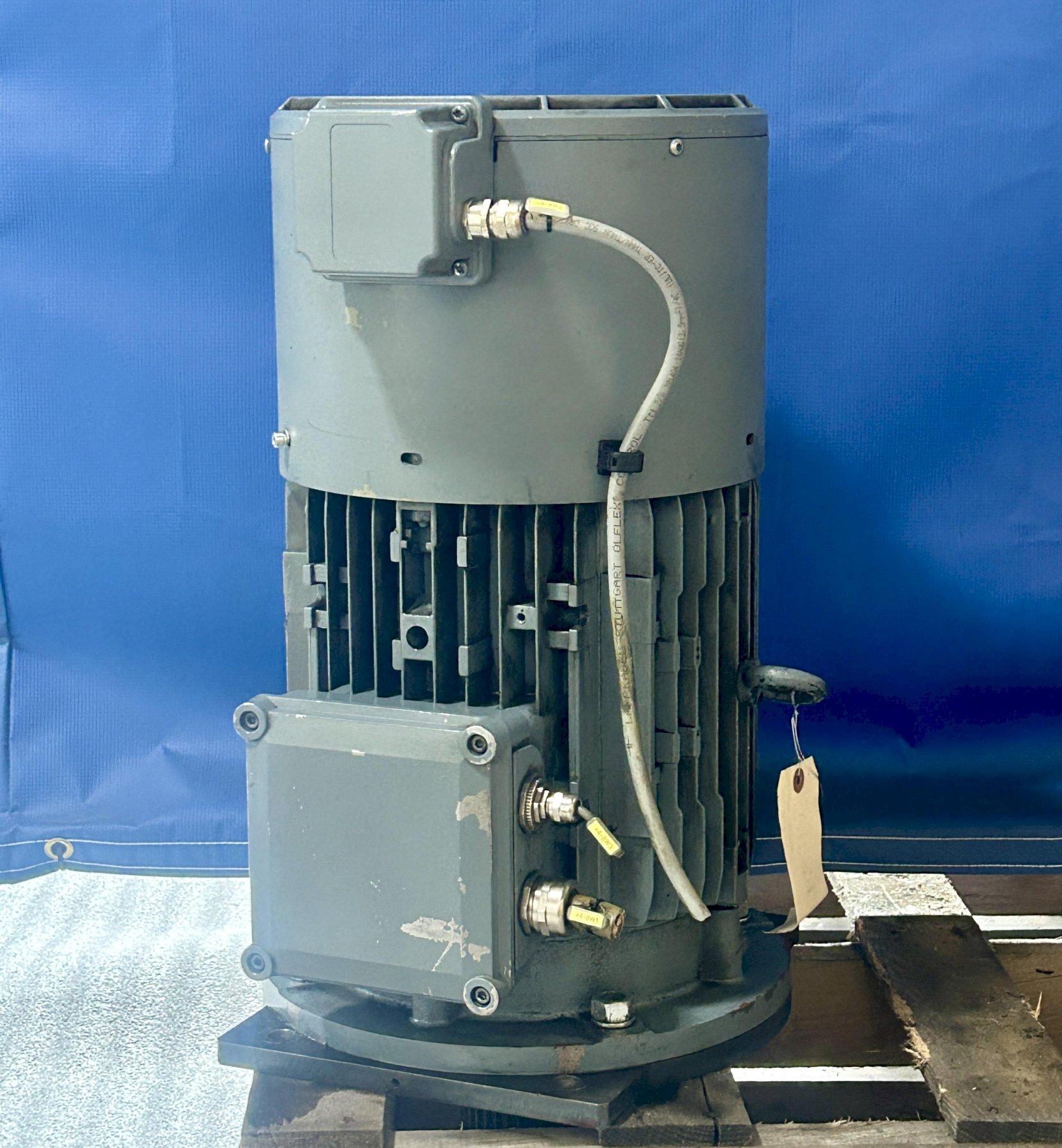

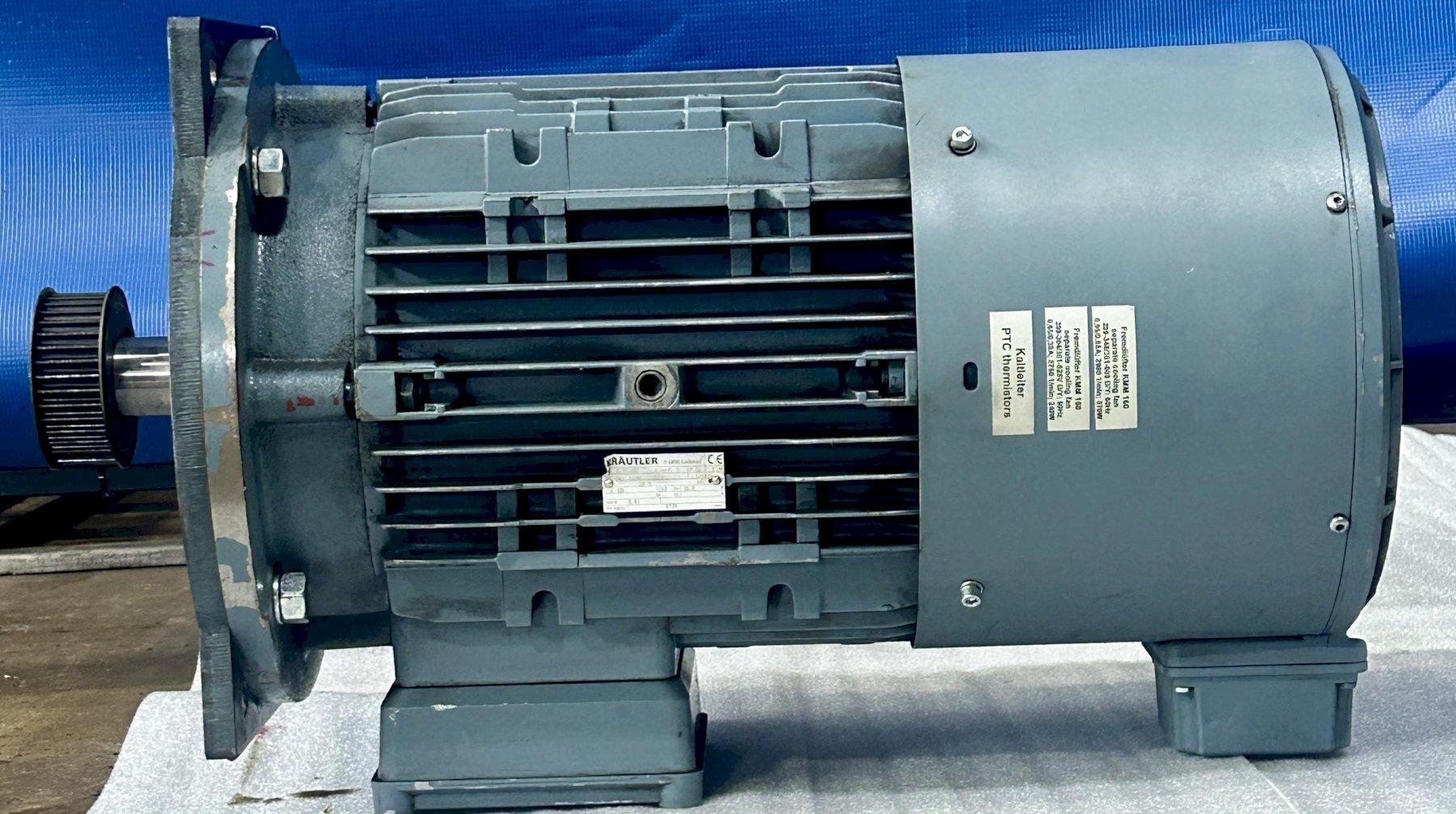

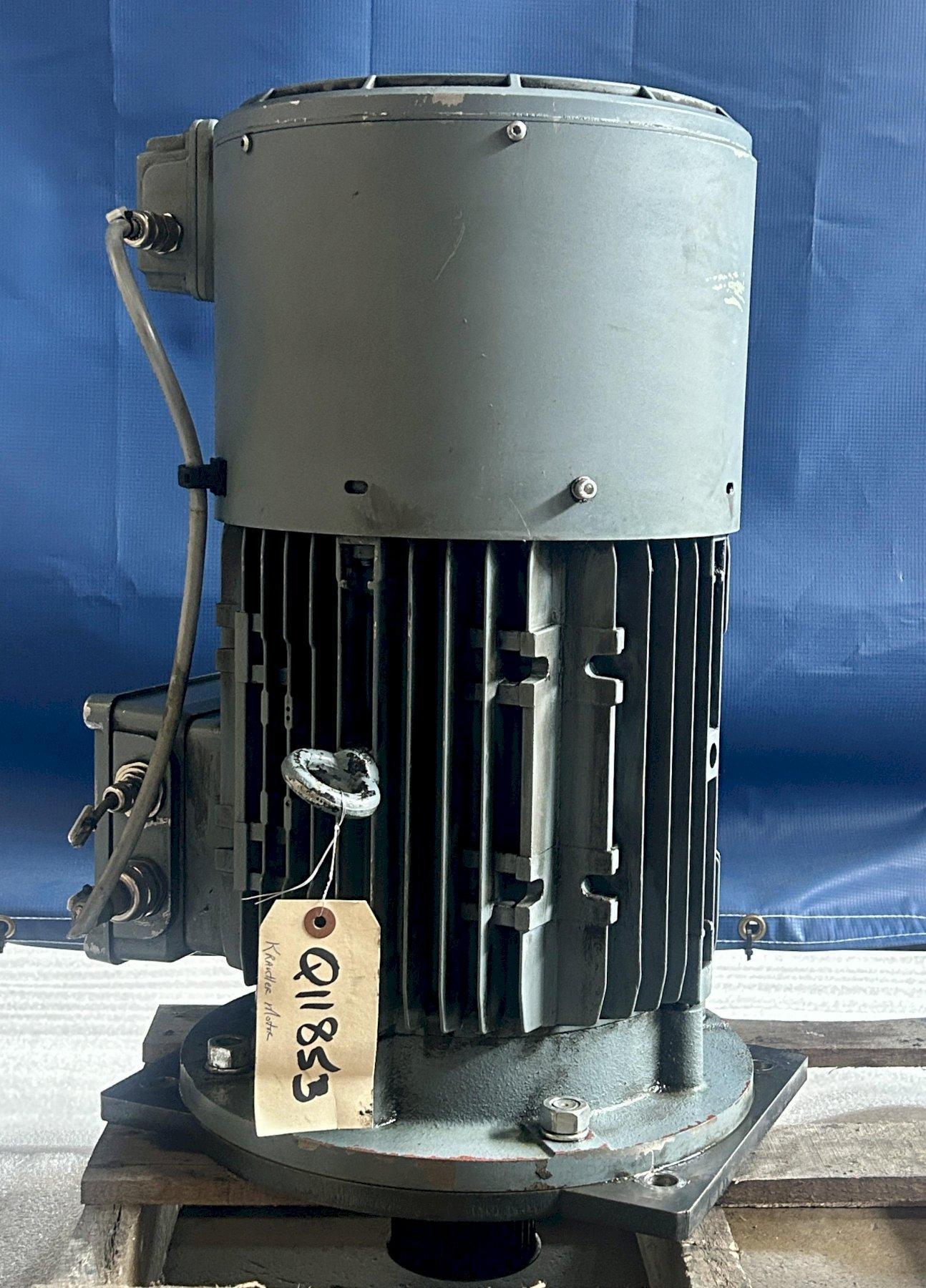

KRAUTLER DKF 160MI 2702 FL AC MOTOR

Stock #: Q11853

Brand: Kräutler
Model: DKF 160MI 2702 FL
Type: Motors, A.C.
Condition: Excellent
Year: 2009

Equipped With:

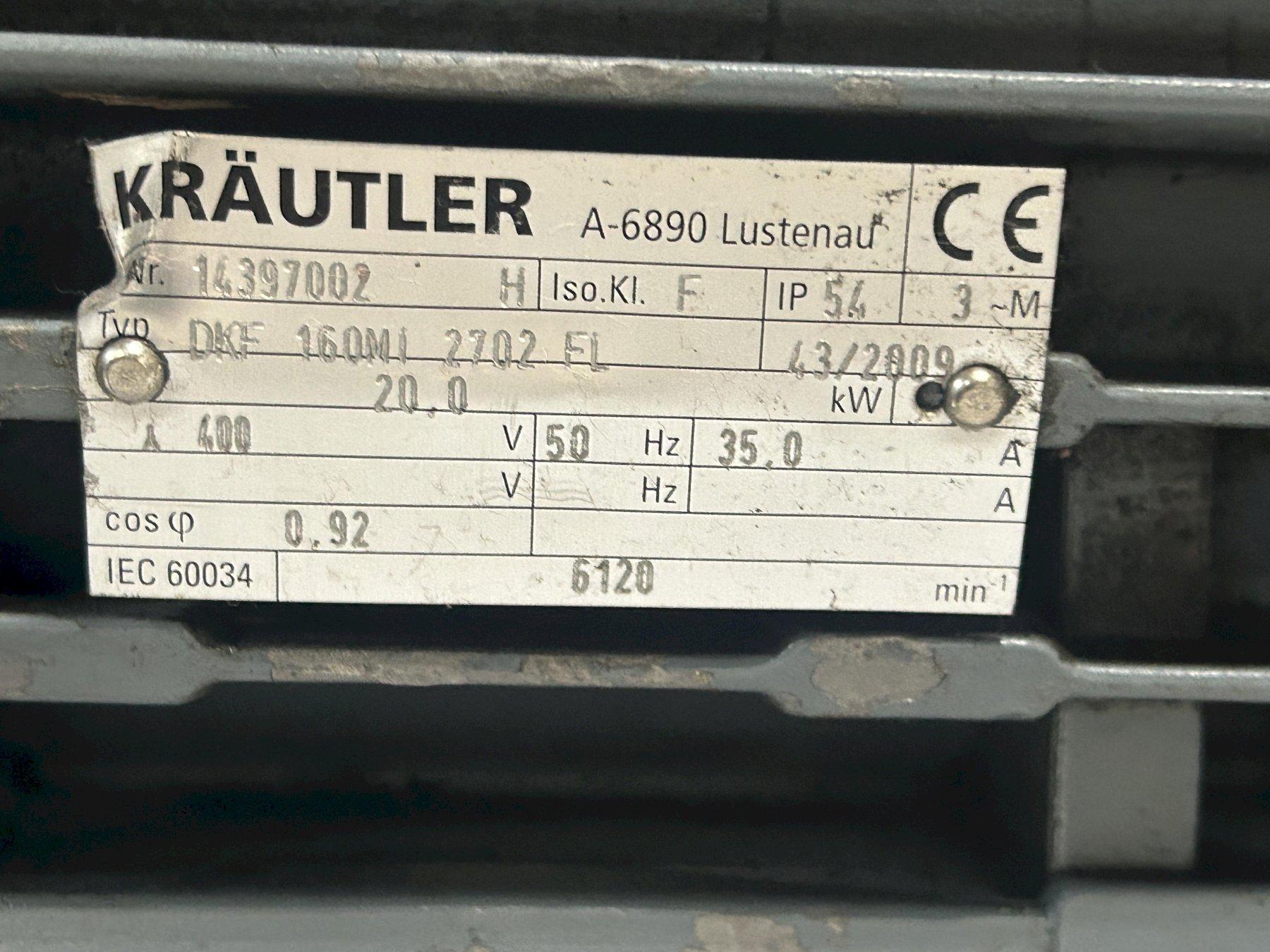

Specifications:

Shaft Diameter 1.65" | 41.99mm
Motor Power 20 kW
Actual Rated Input Voltage 400 V
Full Load Amps 35 A
AC Frequency Rating 50 Hz
Motor Phase 3-Phase
Insulation Class F (Max 155° C)
Power Factor 92%
Current Type AC
Enclosure Rating IP 54
Balancing Half Feather Key
Approximate Dimensions 30" x 22"
Approximate Height 20"
Approximate Weight 230 LBS
CONDITION: This Motor Appears to be in Excellent Condition !
