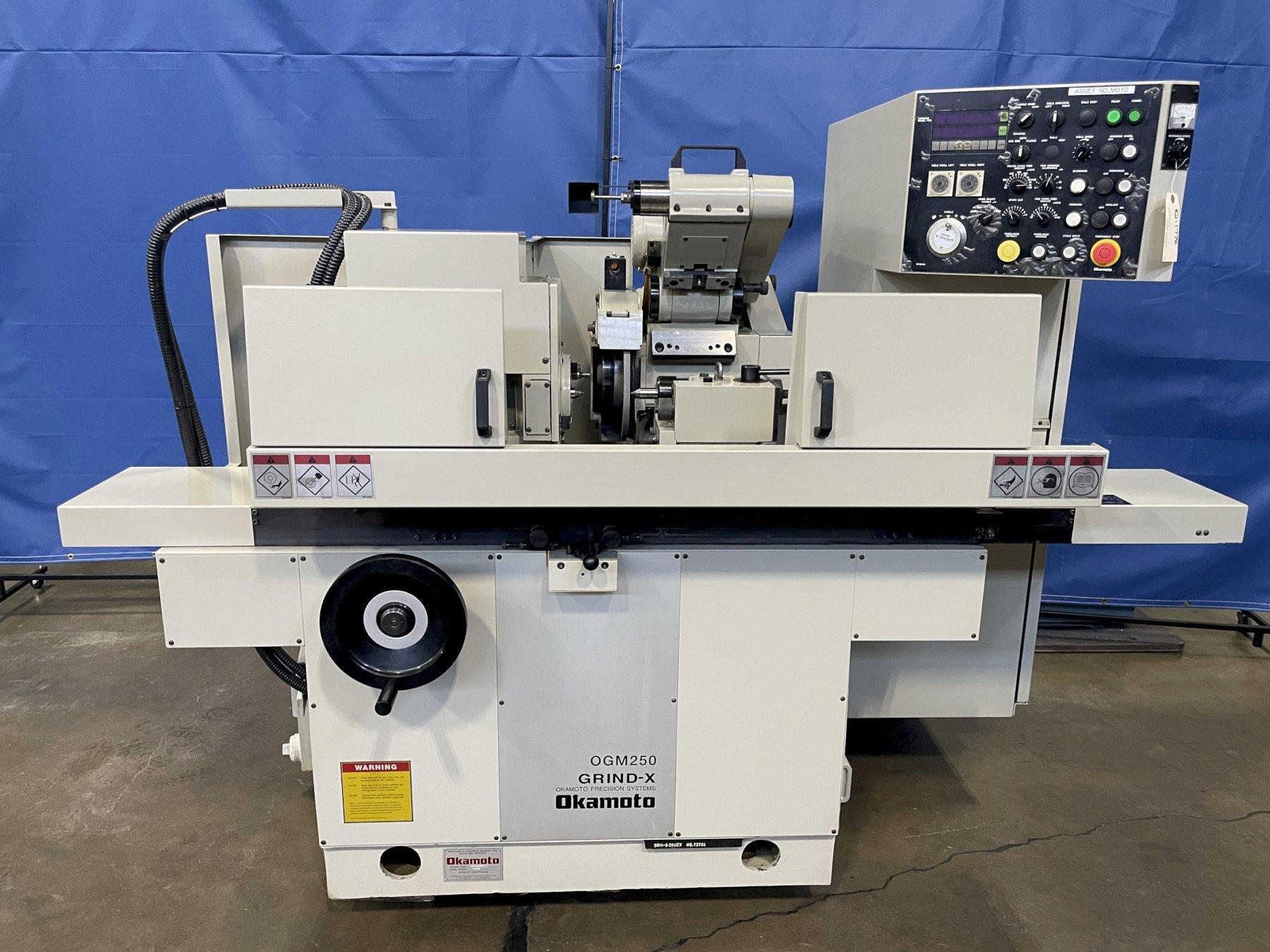

Stock #: Q11778
Brand: OKAMOTO
Model: OGM-8•20UDX
Type: Grinders, Cylindrical, Universal
Condition: Excellent
Year: 2015

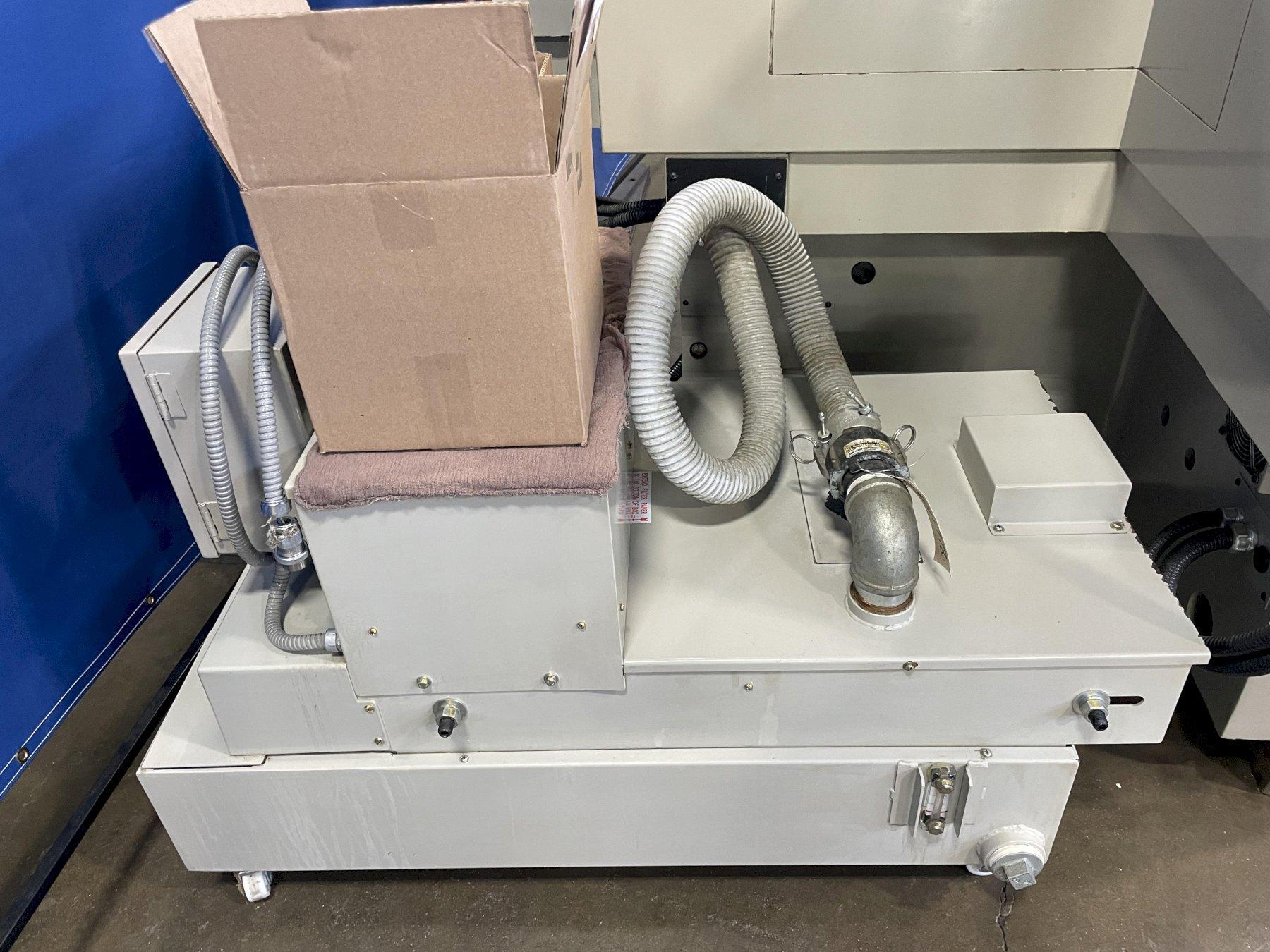

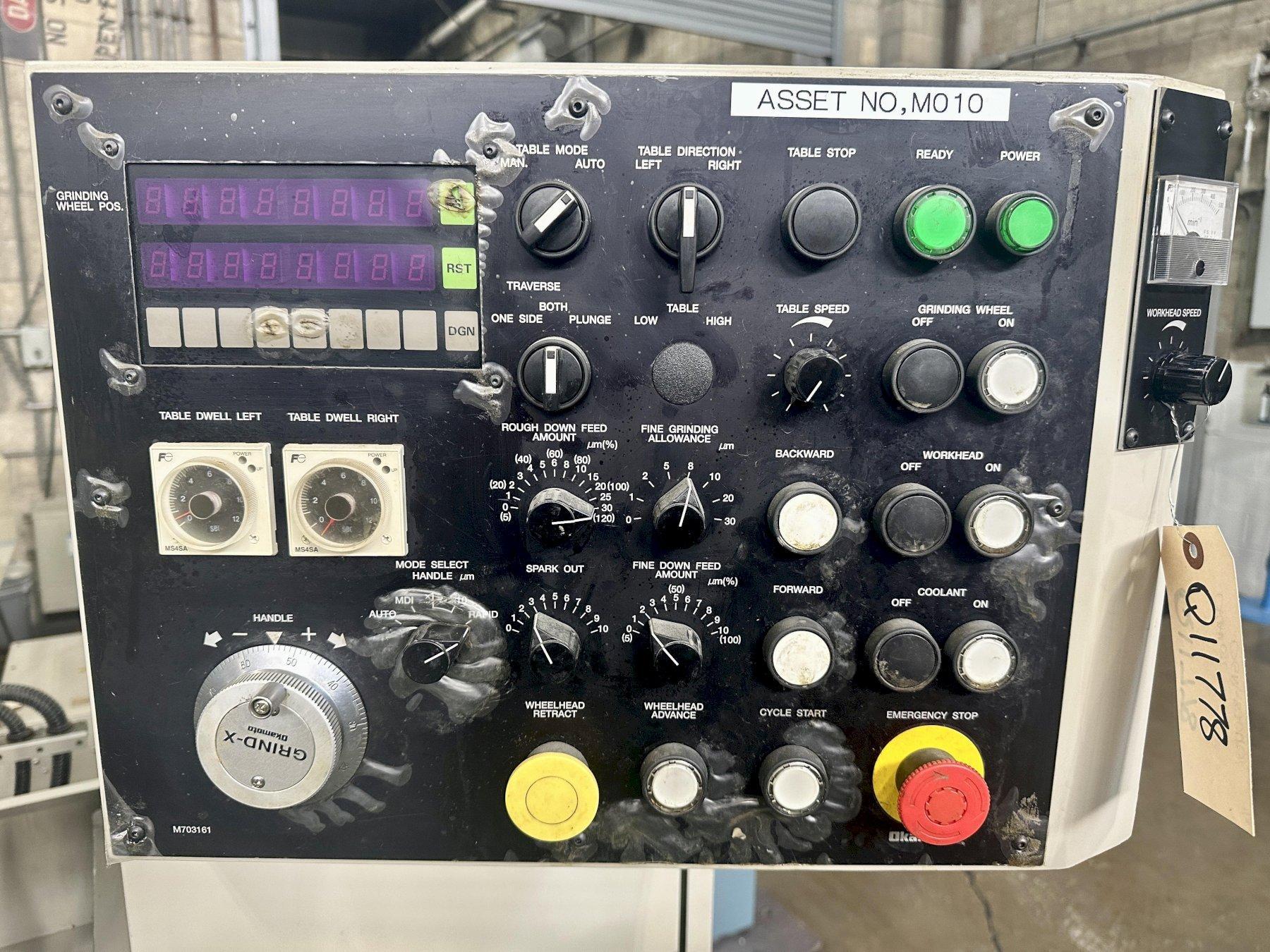

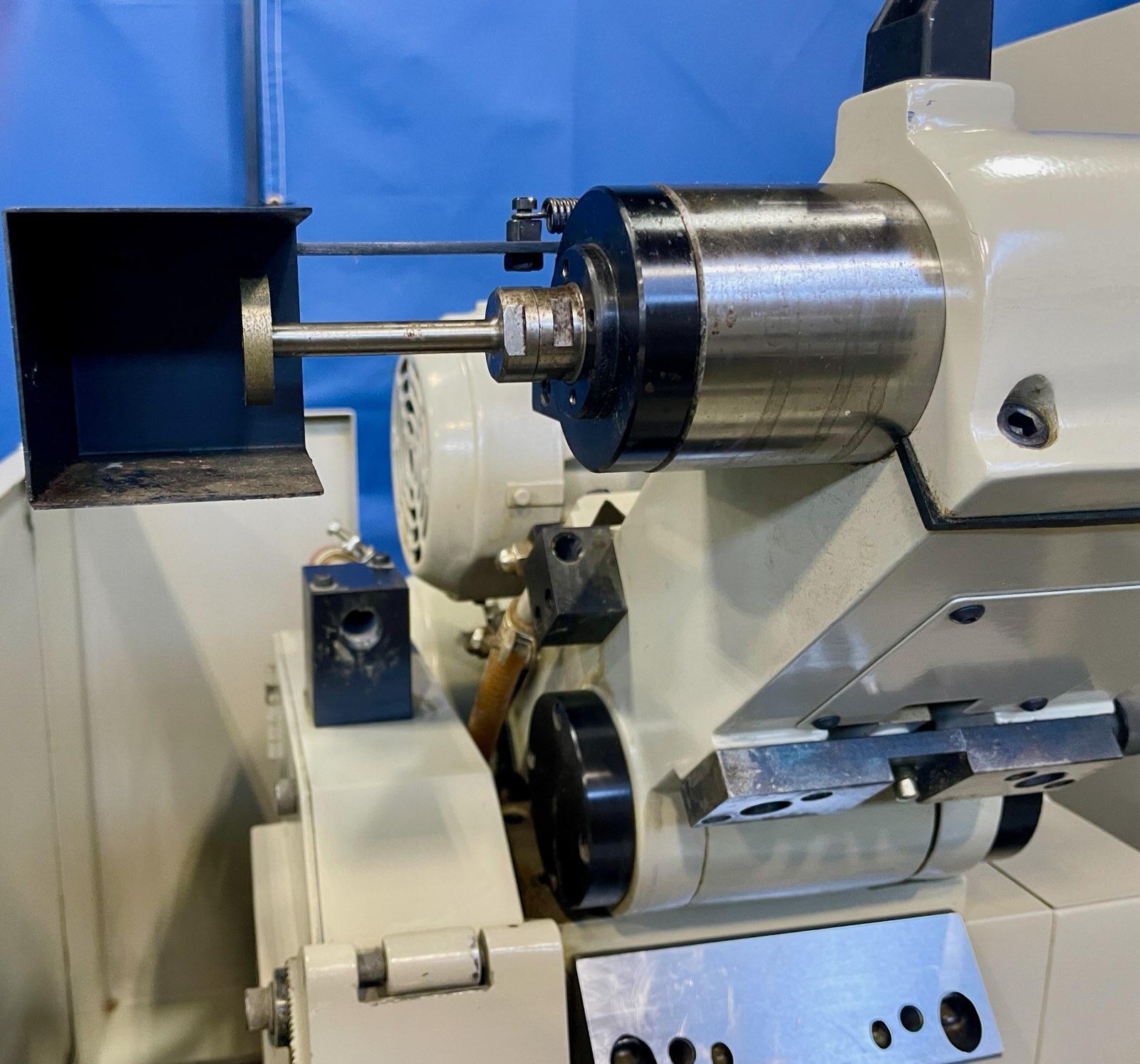

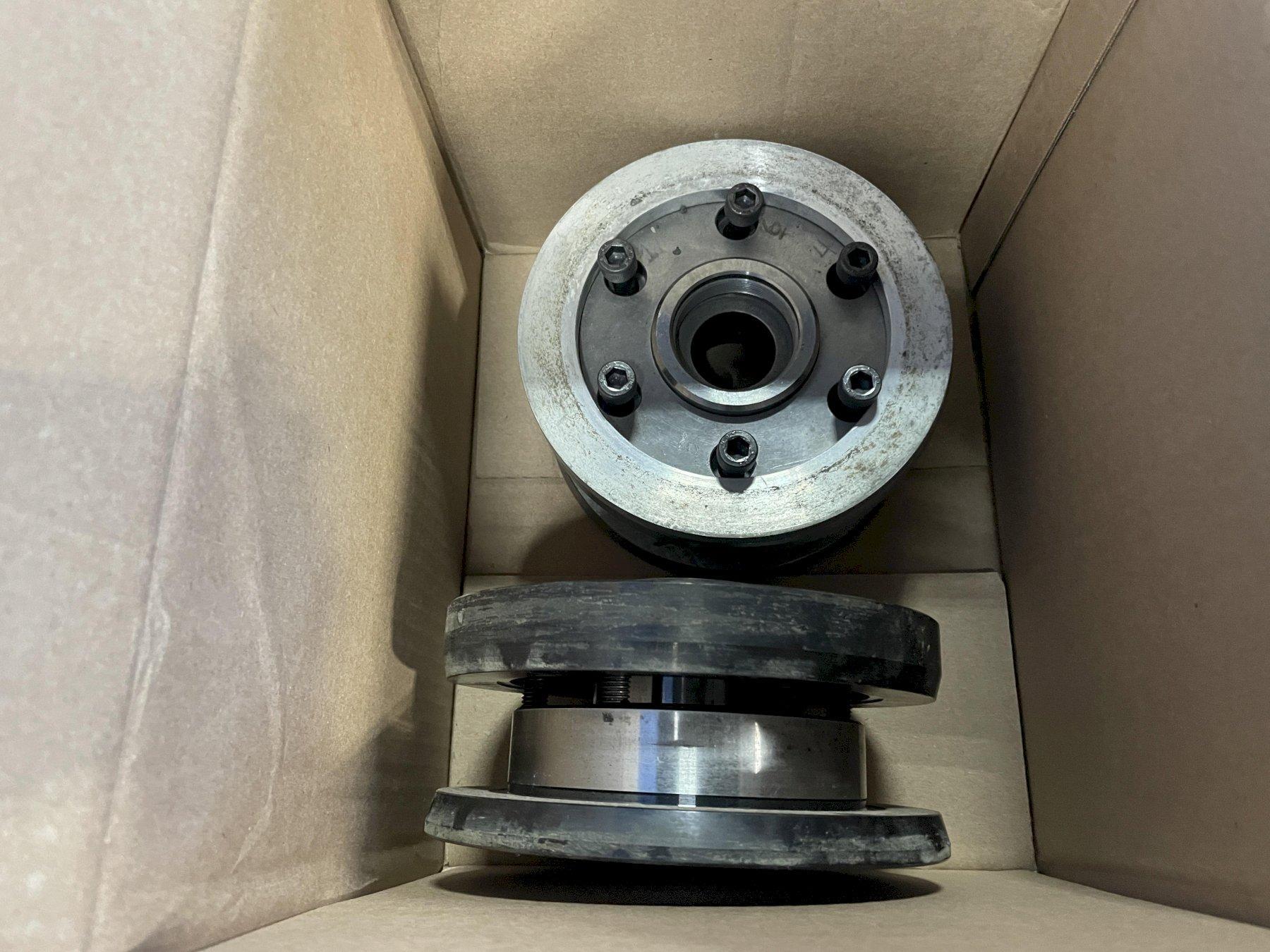

User-friendly DX Control, ID Grinding Attachment, AC Servo/Ballscrew Table Movement, Adjustable Workhead Speed, Adjustable Table Speed, Spark Out, Dual Table Dwell Timers, (2) Grinding Wheel Mounts, Coolant Filtration System.
Specifications: |
|
|---|---|
| Max Swing Over Table | 8.6" |
| Max Grinding Diameter | 7.87" |
| Max Distance Between Centers | 19.84" |
| Max Grinding Wheel Diameter | 14" |
| Max Grinding Wheel Width | 1.5" |
| Grinding Wheel Hole Diameter | 5" |
| Wheelhead Infeed Rate | .0001-.0008" |
| Handle Wheelhead Infeed Rate | .1 Dia. per Handle Turn |
| Wheelhead Swivel Range | ± 30° |
| Wheelhead Horsepower | 2 HP |
| Workhead Swivel Range | 30° to -90° |
| Wheelhead Speed (Grinding Wheel) | 2087 & 2357 RPM |
| Workhead Horsepower | 28 HP |
| Workhead Speed | 150 / 250 / 400 RPM |
| Through Hole Diameter | .55" Dia |
| Z-Axis Travel | 15.75" |
| Max Work Capacity | 132 LBS |
| Table Feed Rates (Infinitely Variable) | 2 - 157.5 IPM |

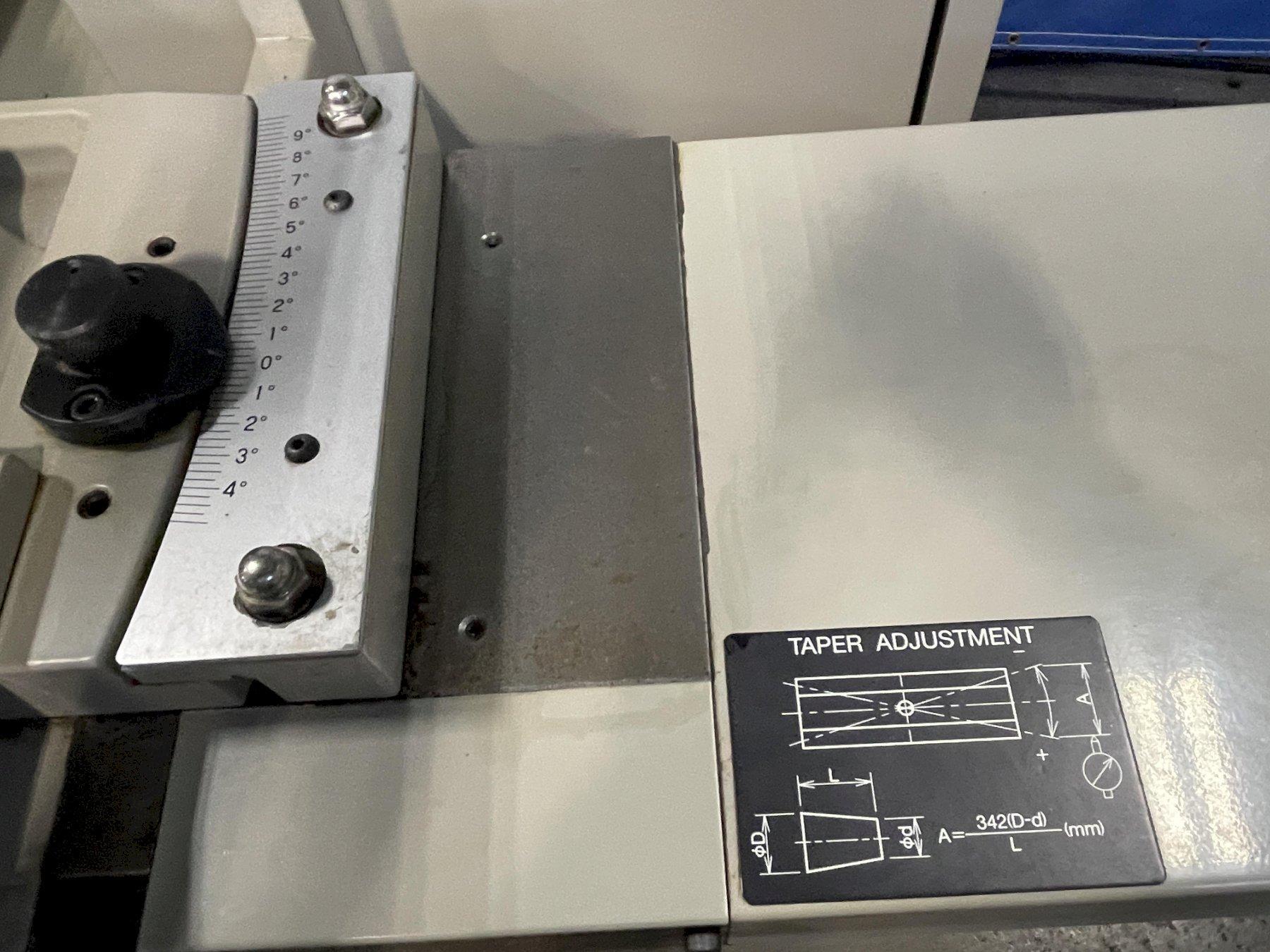

| Table Swivel Angle | 5° - 11° |
| Tailstock Center Tapers | MT #3 |
| Electrics | 200/3/60 |
| Approximate Machine Dimensions | 87" x 77" |
| Approximate Machine Height | 67" |
| Approximate Machine Weight | 3,370 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
