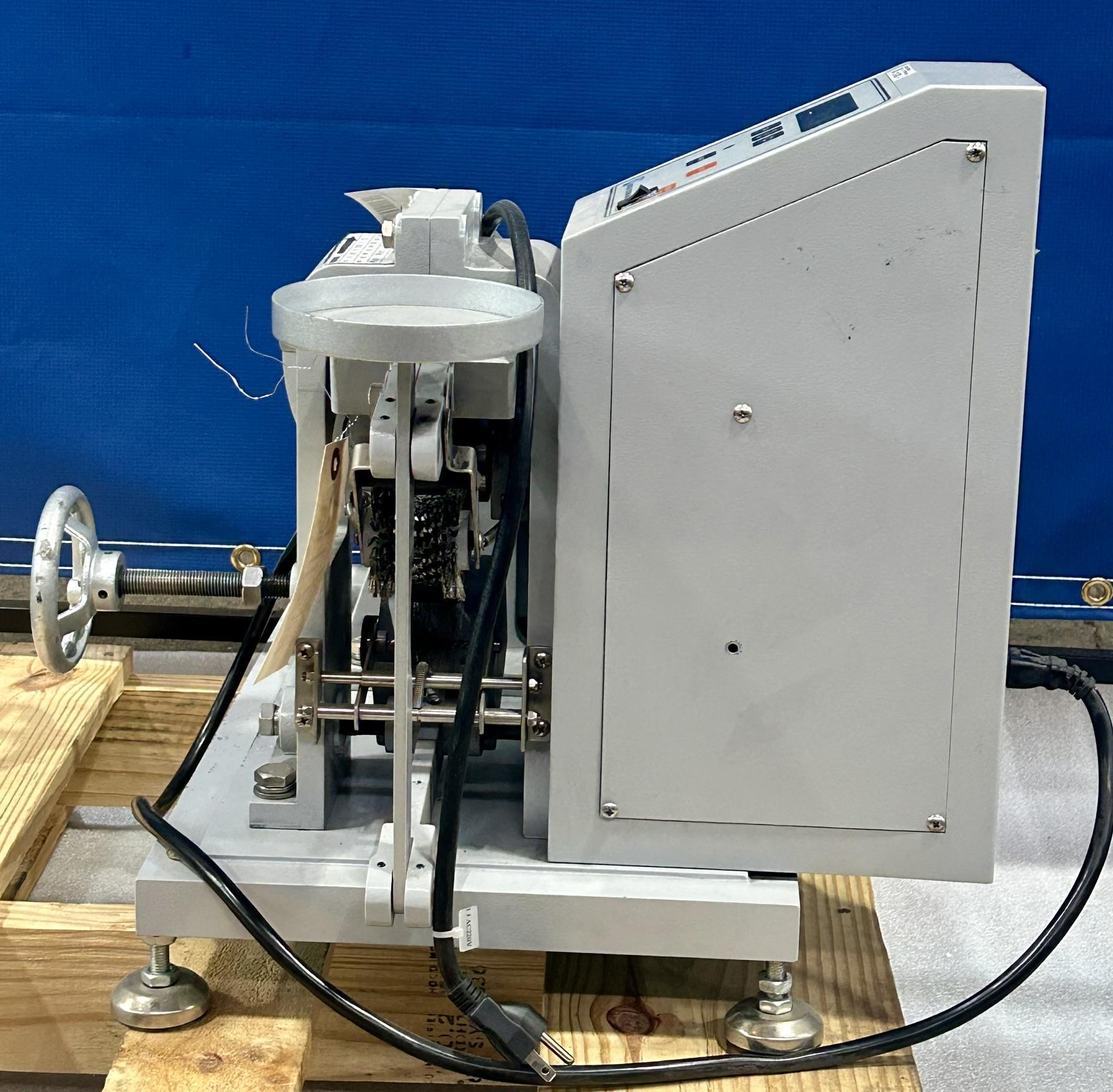

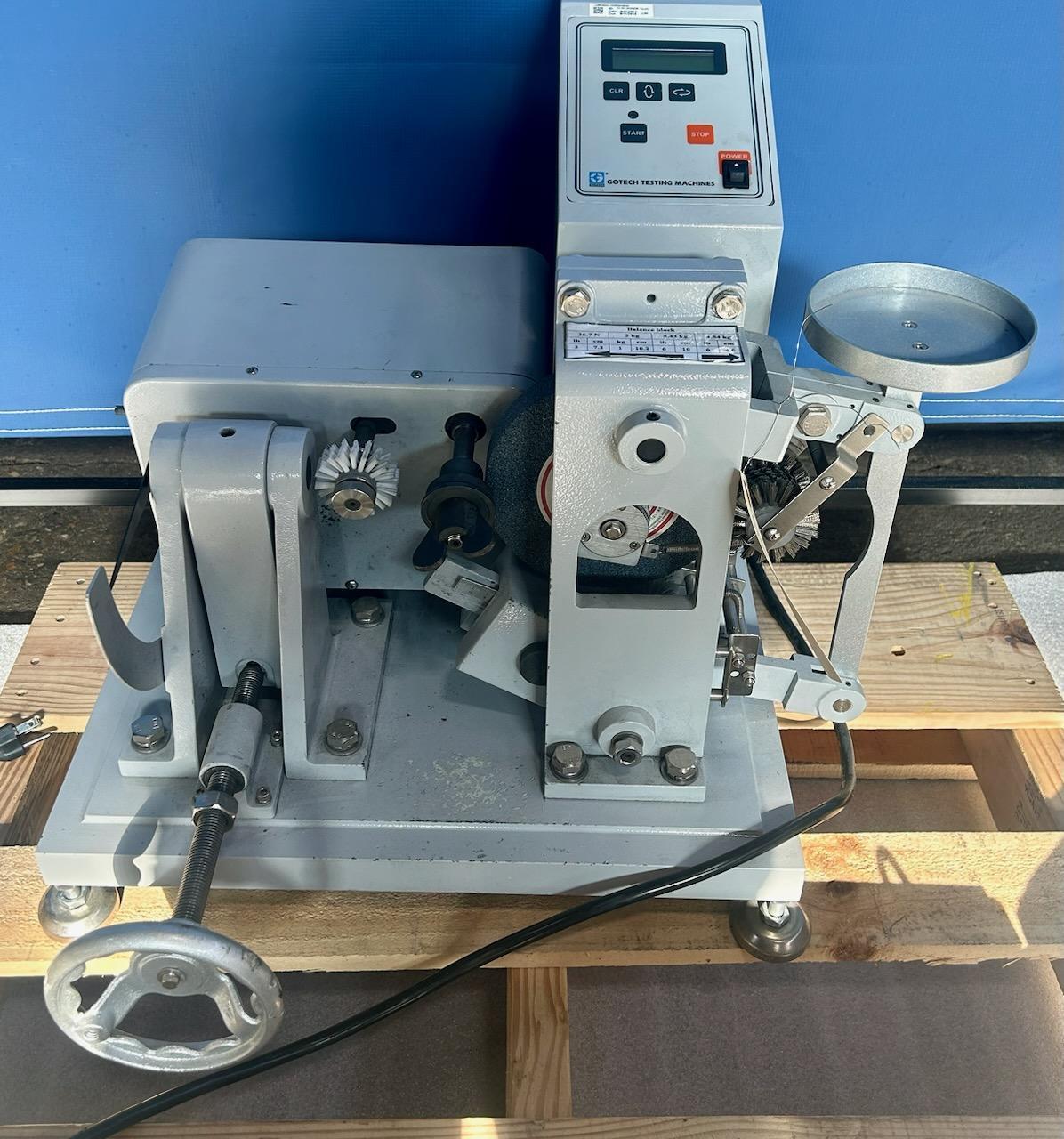

Stock #: Q11728
Brand: GOTECH

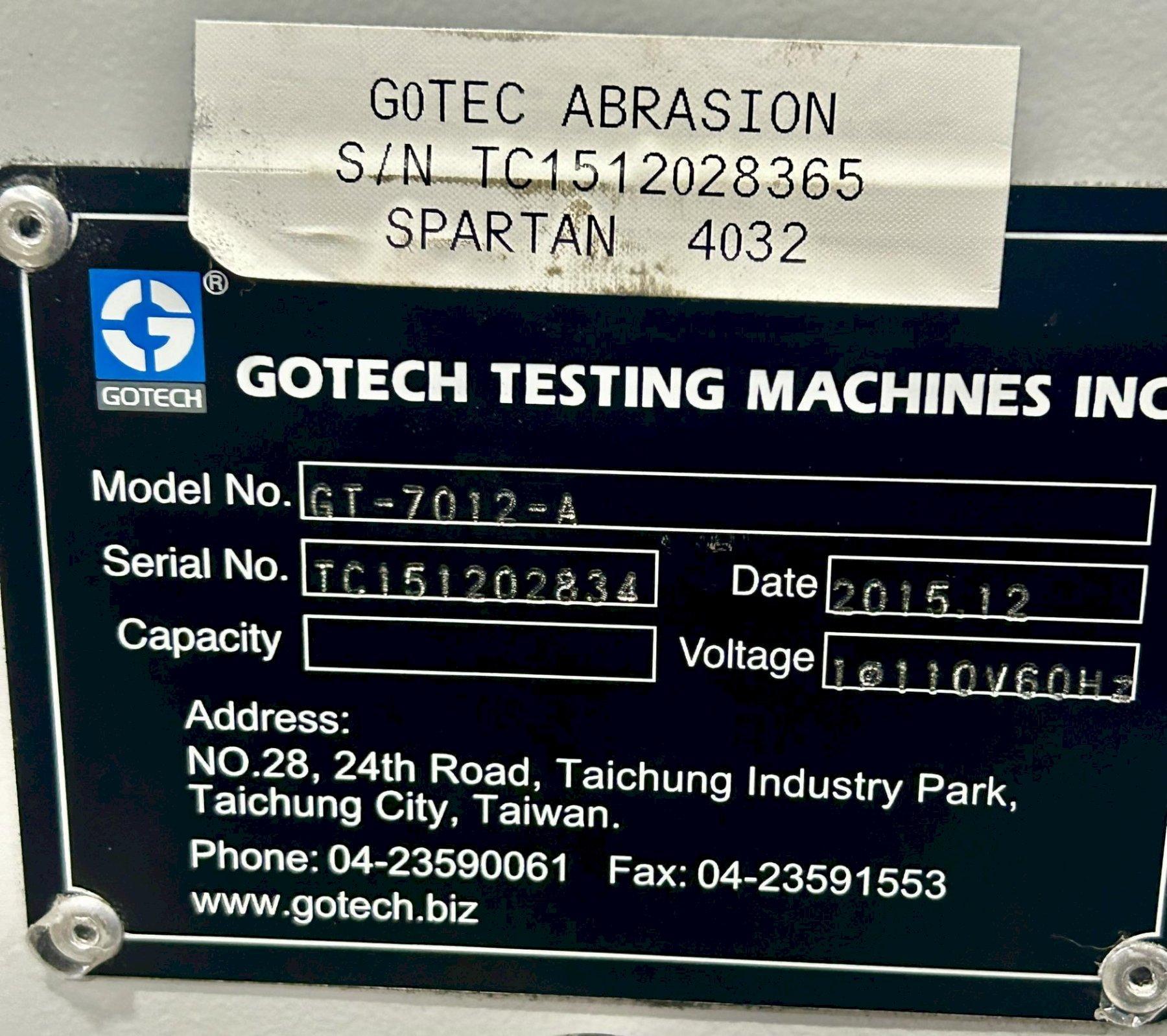

Model: GT-7012-A
Type: Testers, Miscellaneous
Condition: Excellent
Year: 2015
DESCRIPTION:
This tester is designed to use together with a special balance for testing the abrasive consumption for the rubber products such as tire, belt of tank etc.
Specifications: |
|
---|---|
Grinding Wheel Outside Diameter | 150mm |
Grinding Wheel Thickness | 25mm |
Grinding Wheel Thickness with Grit | 32mm w/ #36 |
Grinding Wheel Rotating Speed | 34 ±1 RPM |
Load | 26.7 ±0.2N (GB) |
Inclination Angle | 0°~35° (adjustable) |

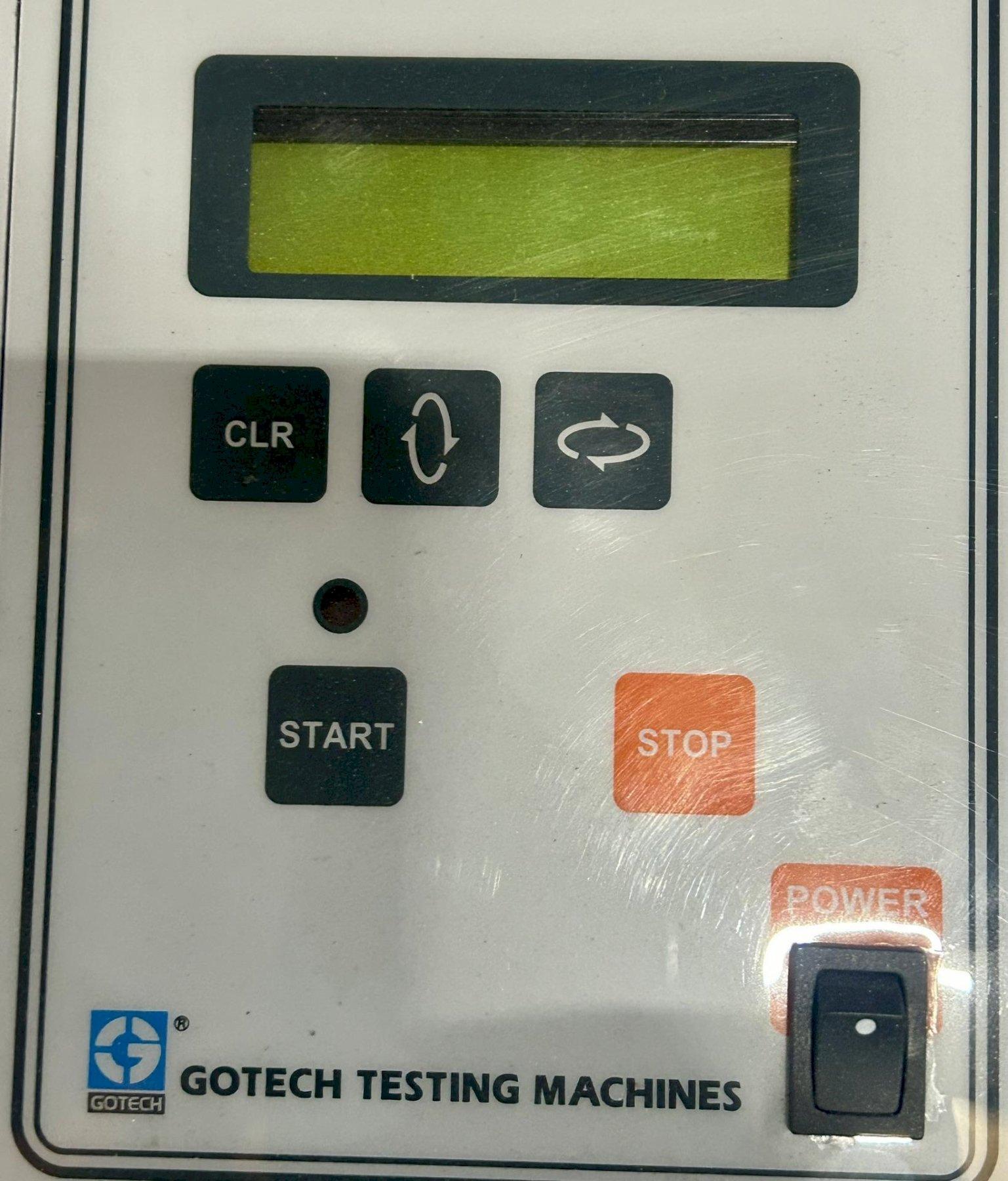

Counter | LCD, 0 to 99,999,999 (adjustable) |
Electrics | 220 VAC / 1 / 50 Hz |
Approximate Dimensions | 30" x 30" |
Approximate Height | 25" |
Approximate Weight | 130 LBS |
CONDITION: This Machine Appears to be in Excellent Condition.
