Stock #: Q11660
Brand: FANUC
Model: ABU10A A03B-0807-C001
Type: Servo Drives
Condition: Very Good
Year: Not Specified
Specifications: |
|
---|---|
Product Series | A03B-0807 |

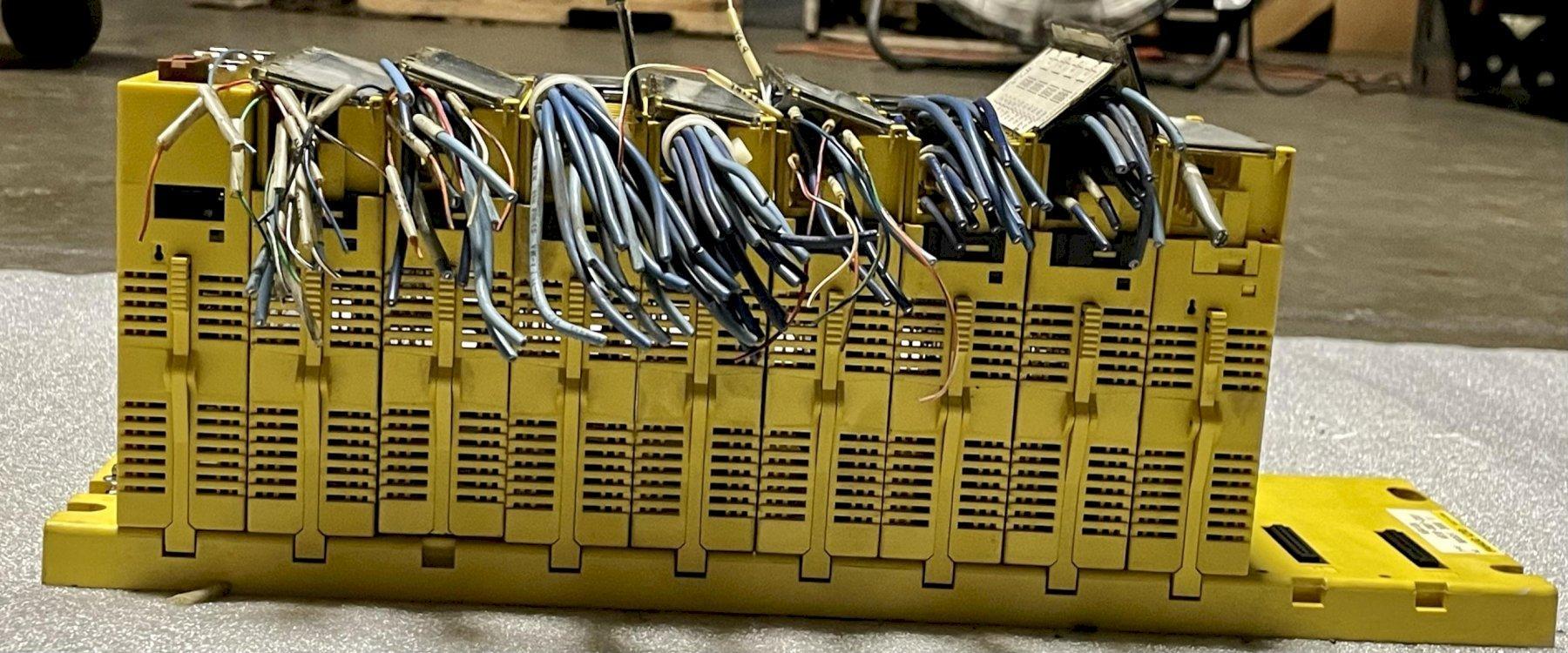

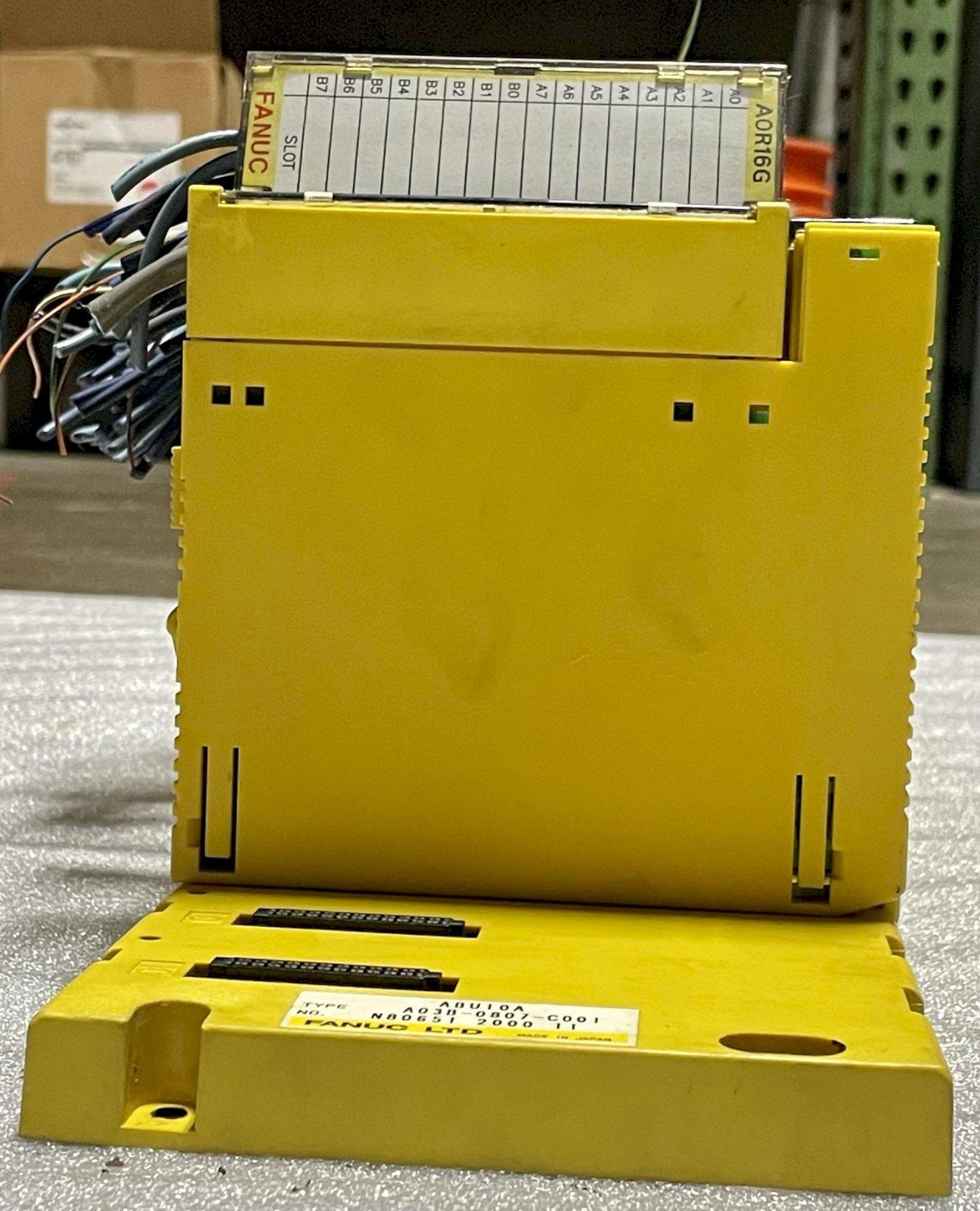

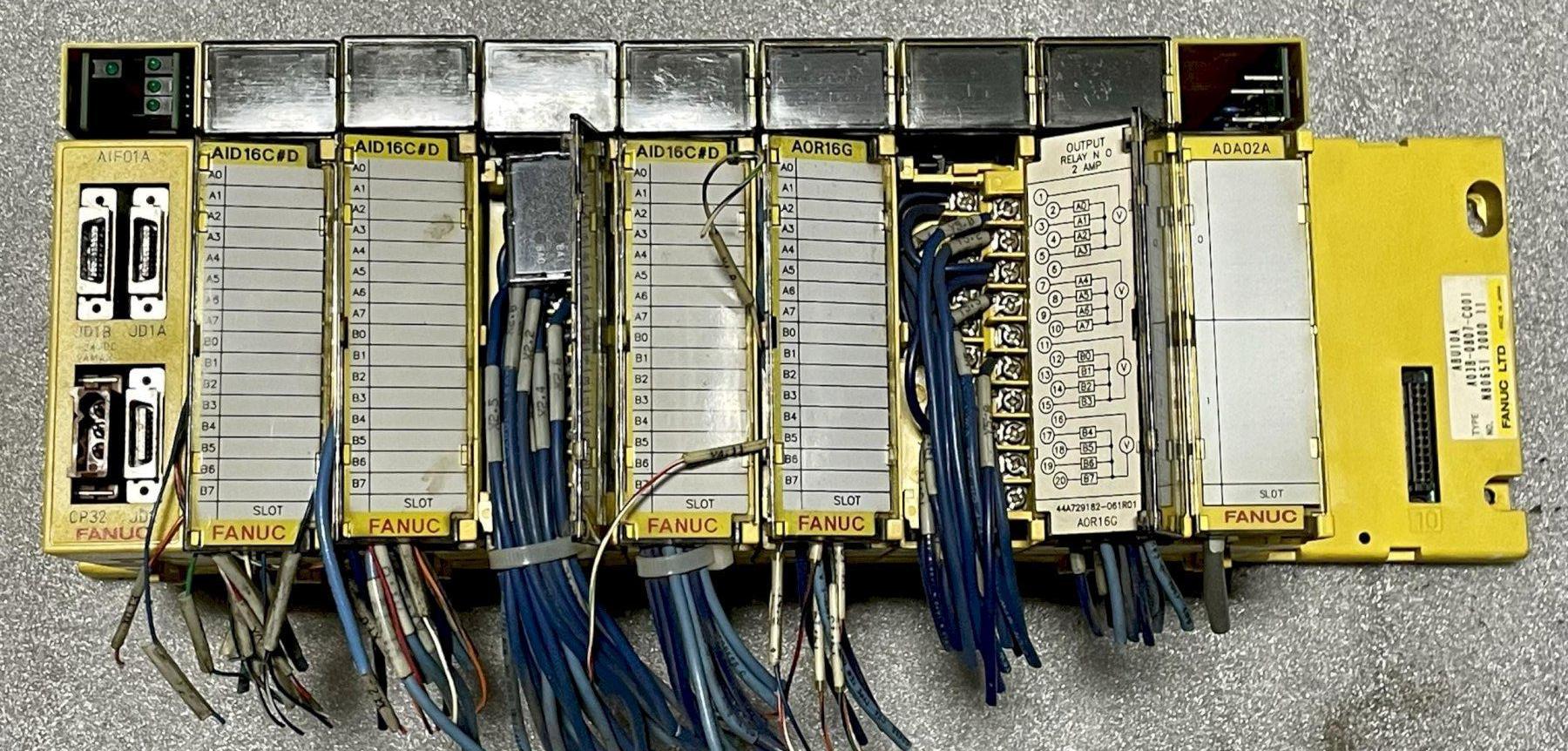

Function | I/O Base Unit ABU10A Horizontal |
Discontinued by Manufacturer? | yes |
CNC? | yes |
# Slots | 10 |
Slots Empty? | no |

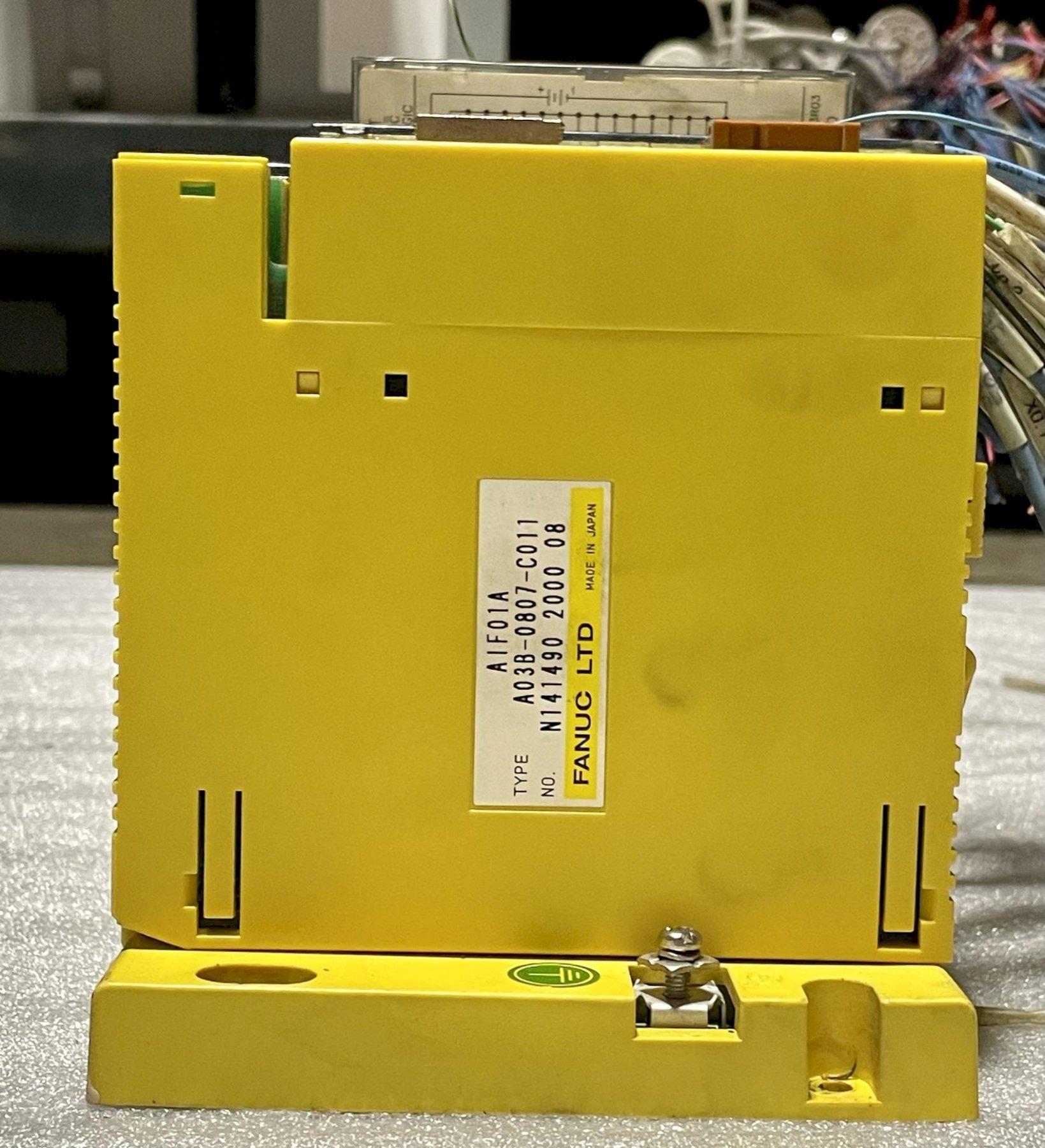

Slot 1 | A03B-0807-C011 I/O Interface Module Model AIF01A 24VDC |
Slot 2 | A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC |
Slot 3 | A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC |
Slot 4 | A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC |
Slot 5 | A03B-0807-C103 16 Point DC Input Module Model AID16C 24VDC |

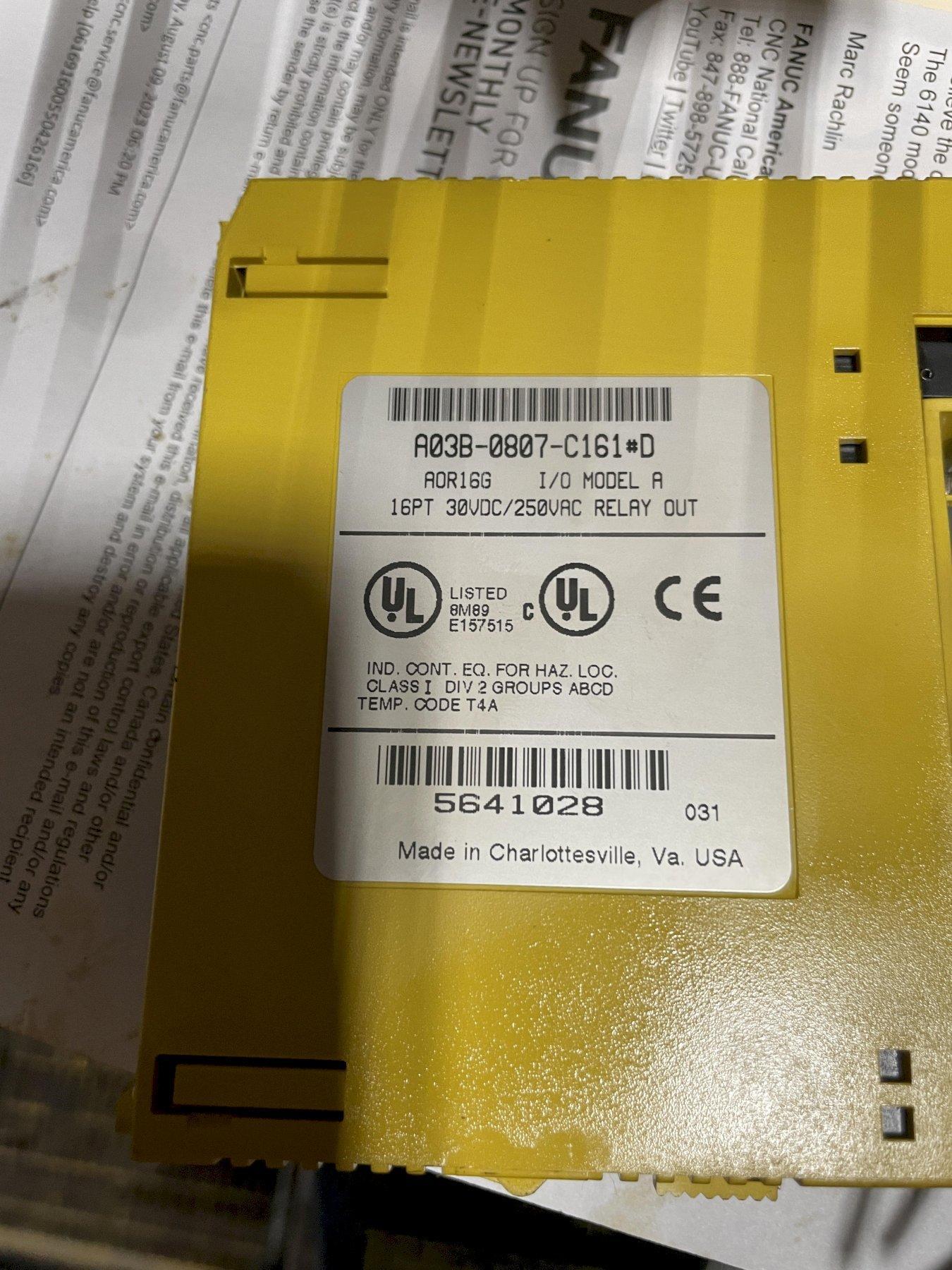

Slot 6 | A03B-0807-C161 16 Point Relay Output Module Model AOR16G 2A 250VAC 30VDC |
Slot 7 | A03B-0807-C161 16 Point Relay Output Module Model AOR16G 2A 250VAC 30VDC |
Slot 8 | A03B-0807-C161 16 Point Relay Output Module Model AOR16G 2A 250VAC 30VDC |

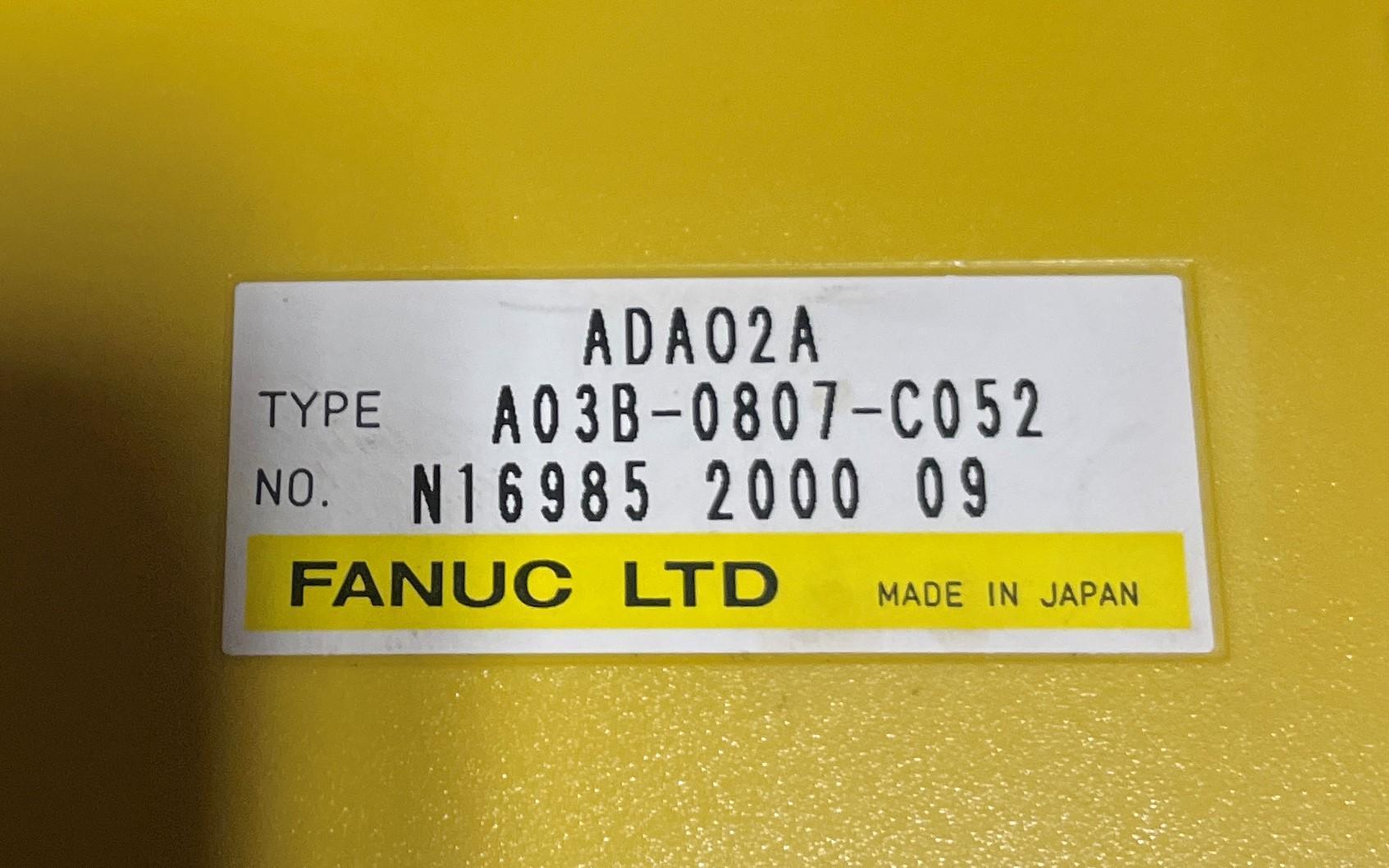

Slot 9 | A03B-0807-C052 2 Point Analog Output Module Model ADA02A |
Slot 10 | empty |
Approximate Dimensions | 19" x 7" |
Approximate Height | 7" |
Approximate Weight | 9 LBS |
CONDITION: This Unit Appears to be in Very Good Condition.
