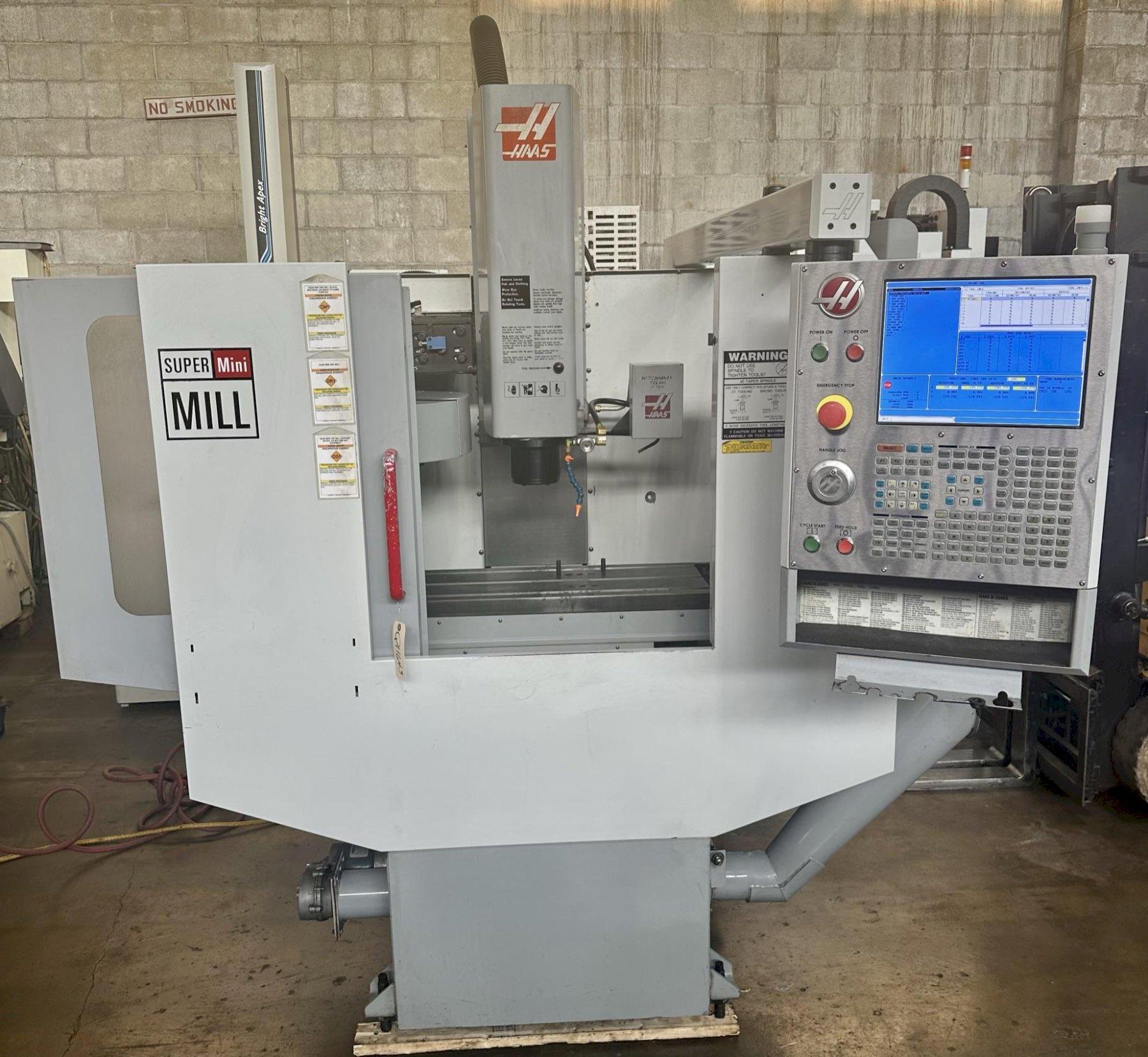

HAAS SUPER MINI MILL CNC VERTICAL MACHINING CENTER

Stock #: Q11643

Brand: HAAS
Model: SUPER MINI MILL
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2003

Equipped With:




Specifications:

CNC Control yes

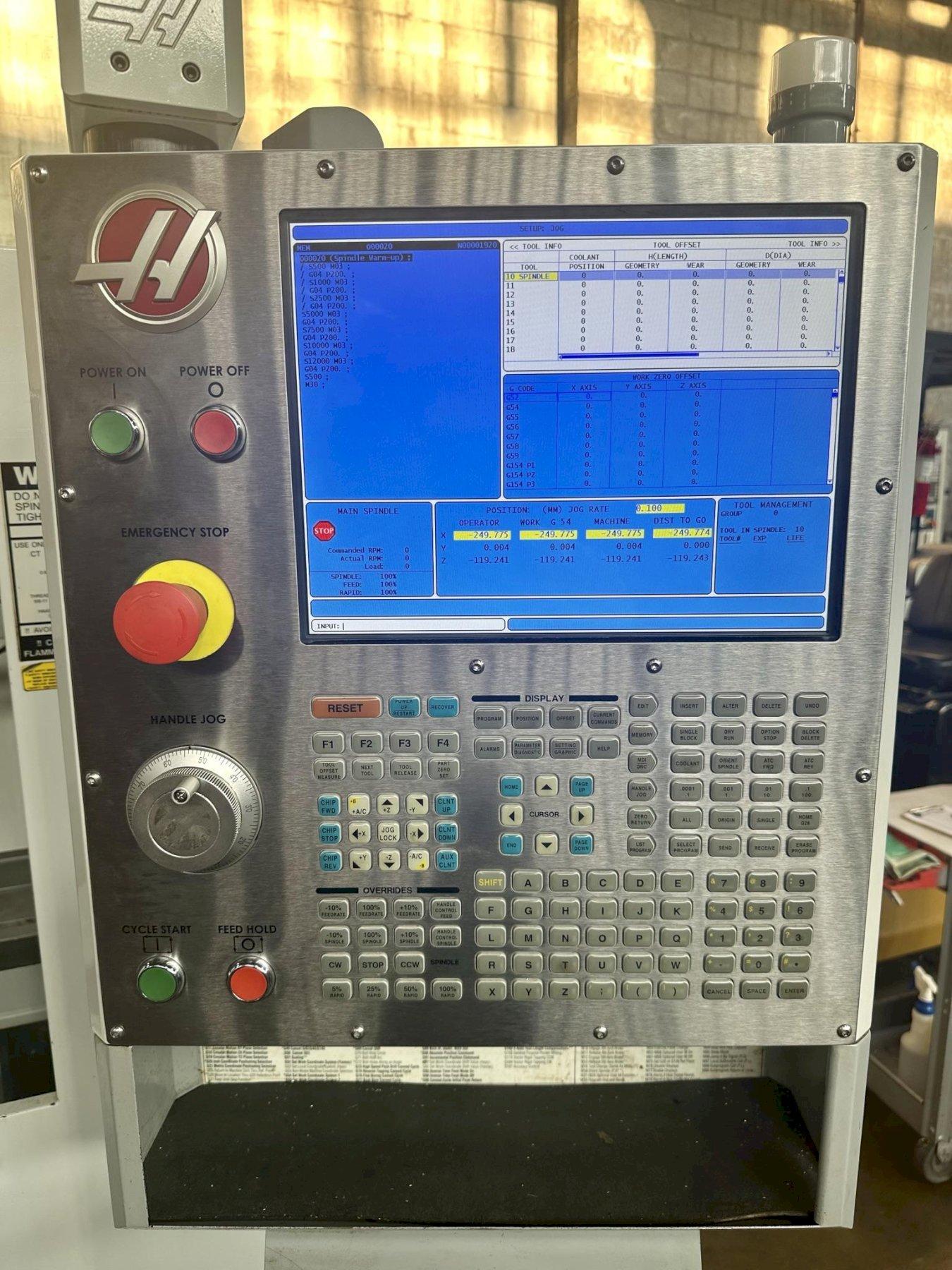

Type of CNC Control Haas High Speed CNC Control
# Axis 3
Table Size 36" x 12"
Table Load Capacity 500 LBS
X-Axis (Longitudinal Travel) 16"
Y-Axis (Cross Travel) 12"
Z-Axis (Vertical Travel) 10"
Max Clearance Table Top to Spindle Nose 14"
Feed Rates, All Axes 0 to 833 IPM
Rapid Traverse Rate, All Axes 1,200 IPM
Spindle Horsepower 15 HP
Spindle Speed Range 0 - 15,000 RPM
Spindle Taper CAT 40 (V-Flange)
Automatic Tool Changer Capacity (ATC) 10
Electrics 230/3/60
Approximate Machine Dimensions 90" x 74"
Approximate Machine Height 100"
Approximate Machine Weight 4,400 LBS
CONDITION: This Machine Appears to be in Excellent Condition !

HAAS SUPER MINI MILL CNC VERTICAL MACHINING CENTER
