Stock #: Q11530
Brand: BLISS
Model: 23 M
Type: Presses, O.B.I.
Condition: Very Good
Year: Not Specified

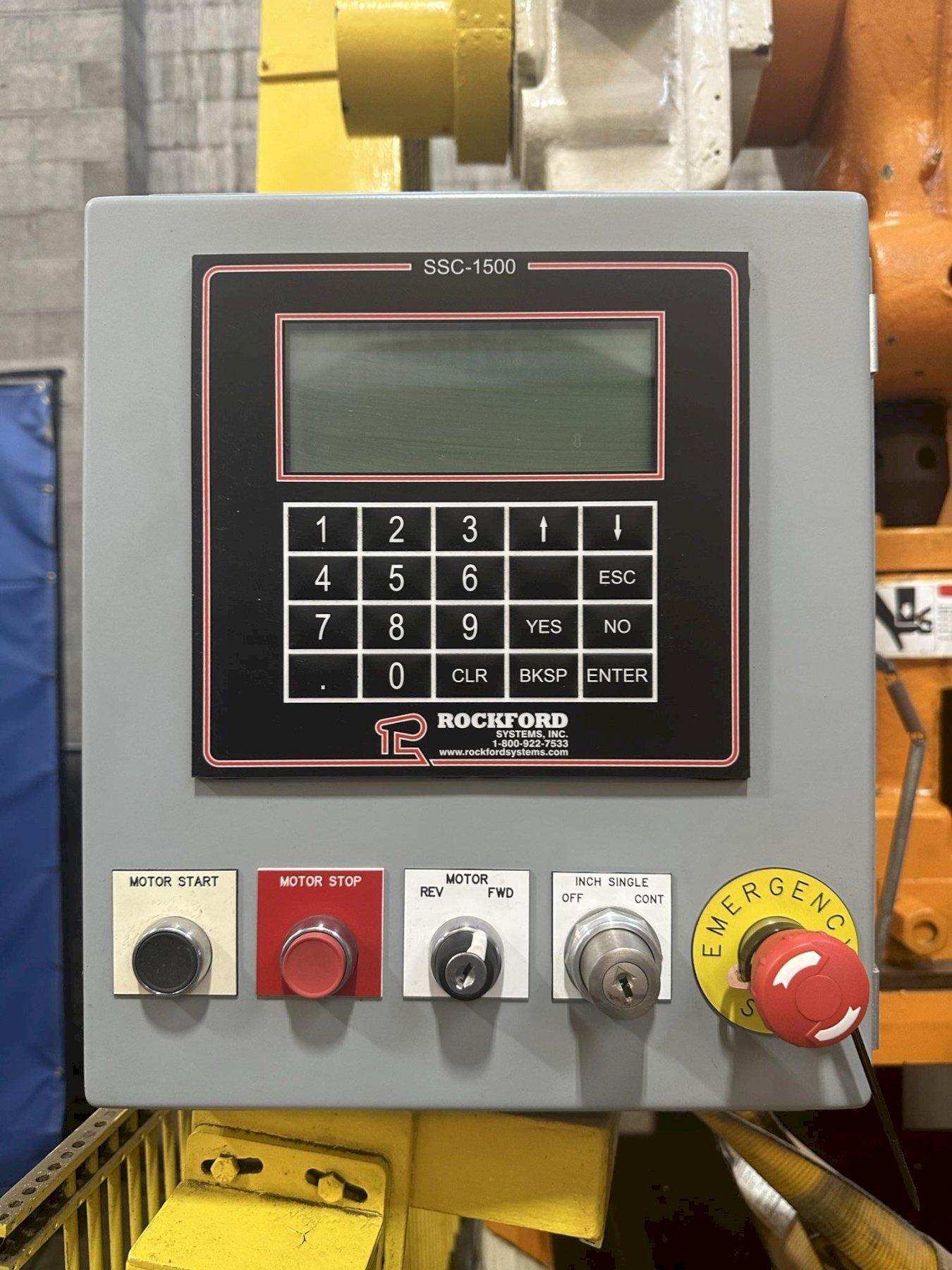

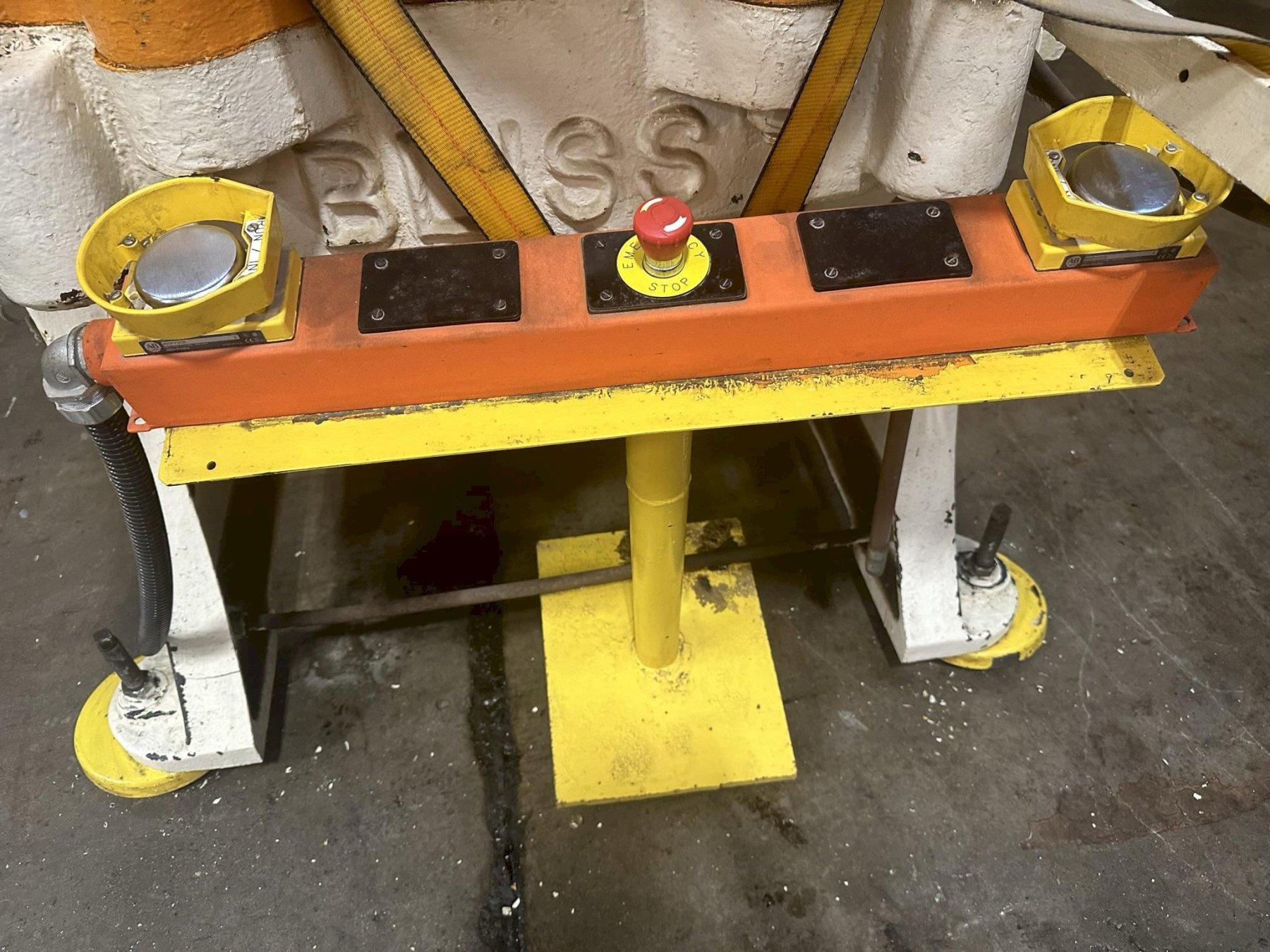

2011 Rockford PLC Control Retrofit, Backgeared ,Air Clutch and Brake, Dual Palm Buttons, Light Curtains.
Specifications: |
|
|---|---|
| Tonnage Capacity | 75 Ton |
| Stroke Length | 4" |
| Shut Height to Bed, SDAU | 14-1/4" |
| Ram Adjustment | 3" |
| Ram Area (L-R x F-B) | 16" x 10" |
| Bolster/Bed Area (L-R x F-B) | 24" x 32" |

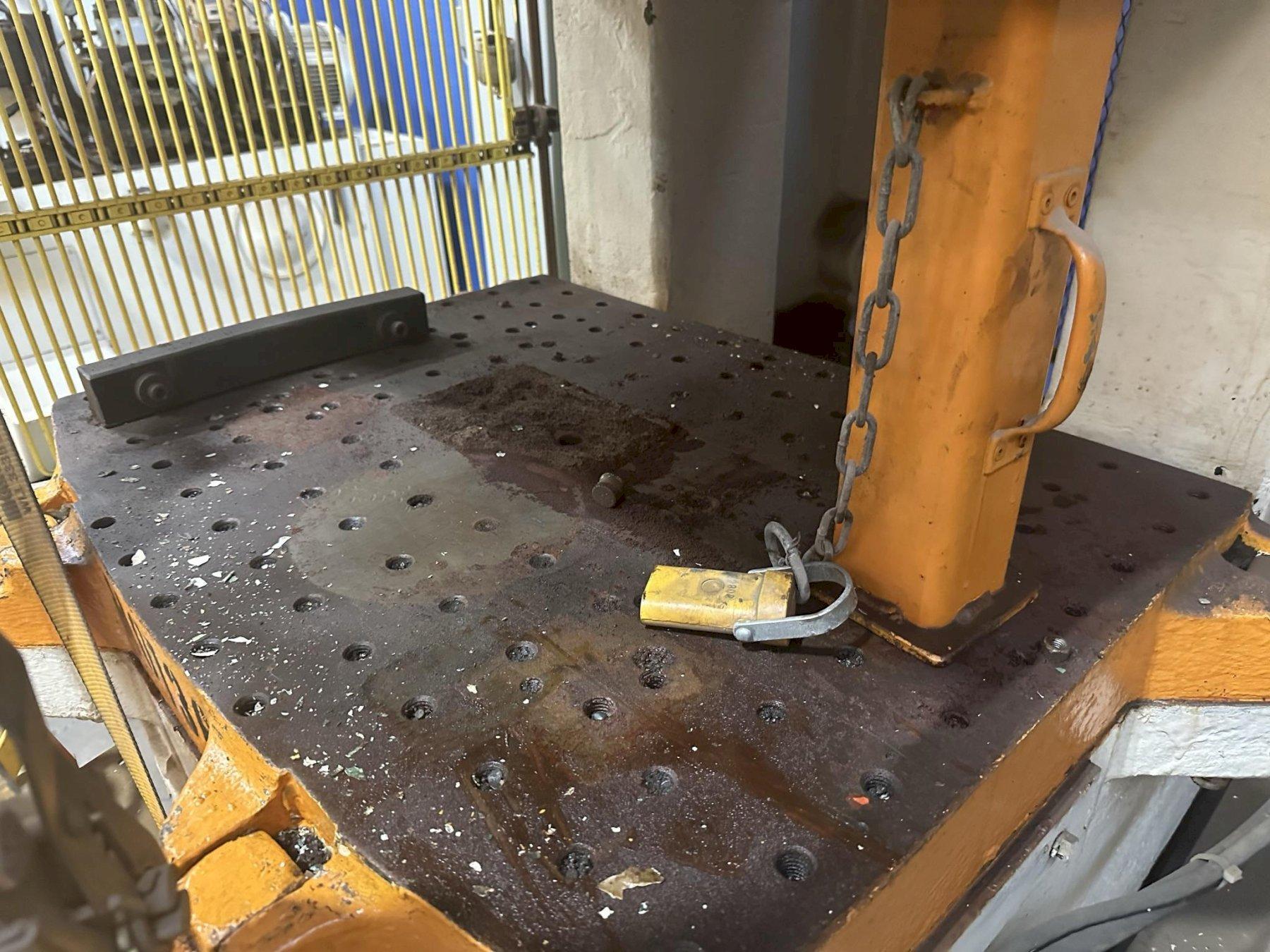

| Bolster Plate | 3-1/2" H, T-Slotted |
| Distance Between Uprights | 14-3/4" |
| Floor to Bed | 35-1/4" |
| Strokes Per Minute | 45 - 90 SPM |
| Air Clutch | yes |
| Type | Backgeared |
| Crank | Single |
| Motor Horsepower | 5 HP |
| Electrics | 240/480/3/60 |
| Approximate Machine Dimensions | 65" x 84" |
| Approximate Machine Height | 112" |
| Approximate Machine Weight | 15,300 LBS |
CONDITION: This Machine Appears to be in Very Good Condition.
