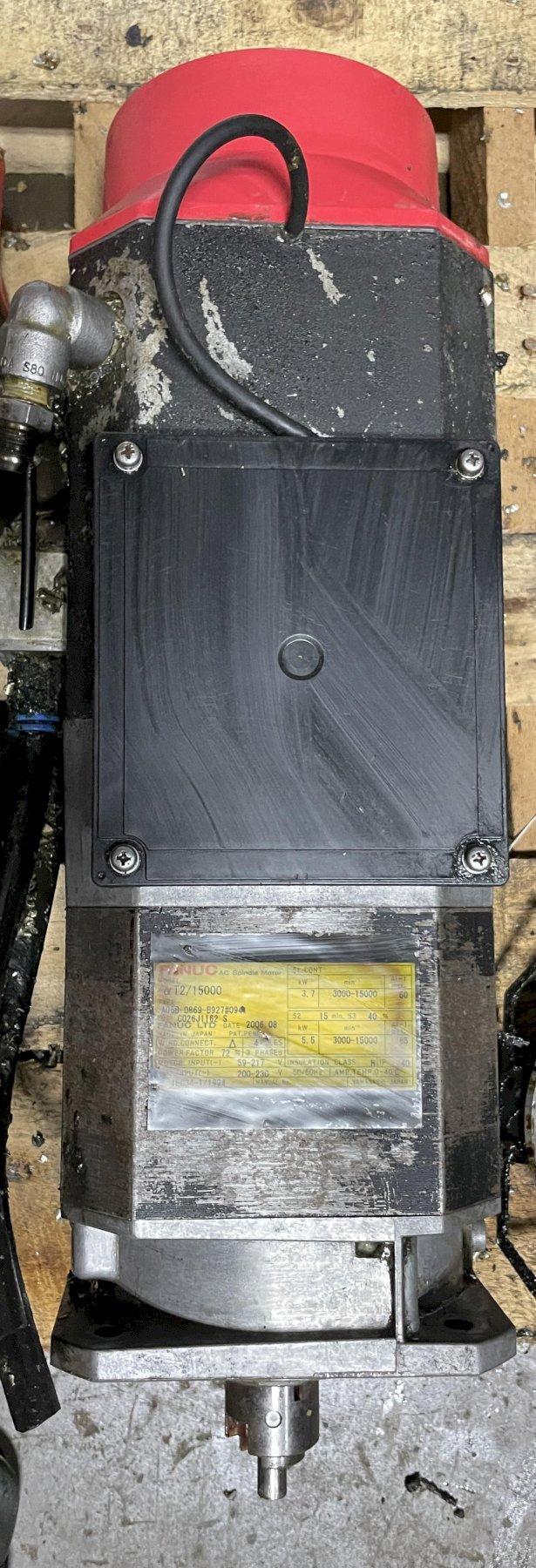

Stock #: Q11485
Brand: FANUC
Model: A06B-0869-B927#094
Type: Spindle Motors
Condition: Excellent
Year: Not Specified

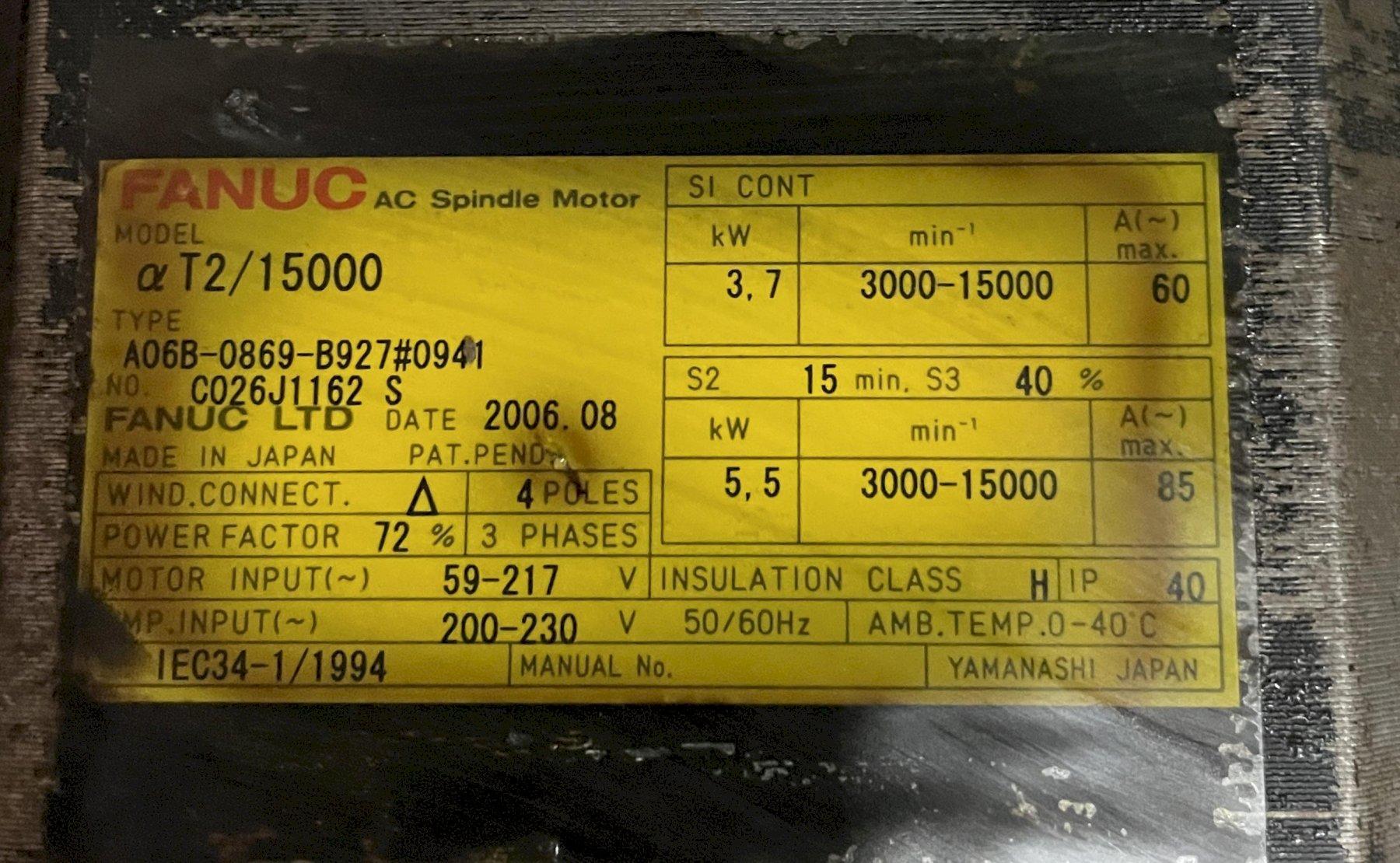

Specifications: |
|
---|---|
Current Type | AC |
Motor Power | 3.7 kW |
# Poles | 4 |
Base Speed | 15,000 RPM |
Wound | Delta |
Power Factor | 72% |
Insulation Class | H (Max 180° C) |
Duty | Continuous |
Ambient | 40° C |
Enclosure Rating | IP 40 |
Standards | IEC34-1/1994 |
Approximate Dimensions | 28" x 12" |
Approximate Height | 13" |
Approximate Weight | 82 LBS |
CONDITION: This Motor Appears to be in Excellent Condition !
