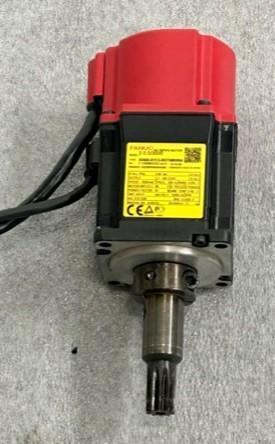

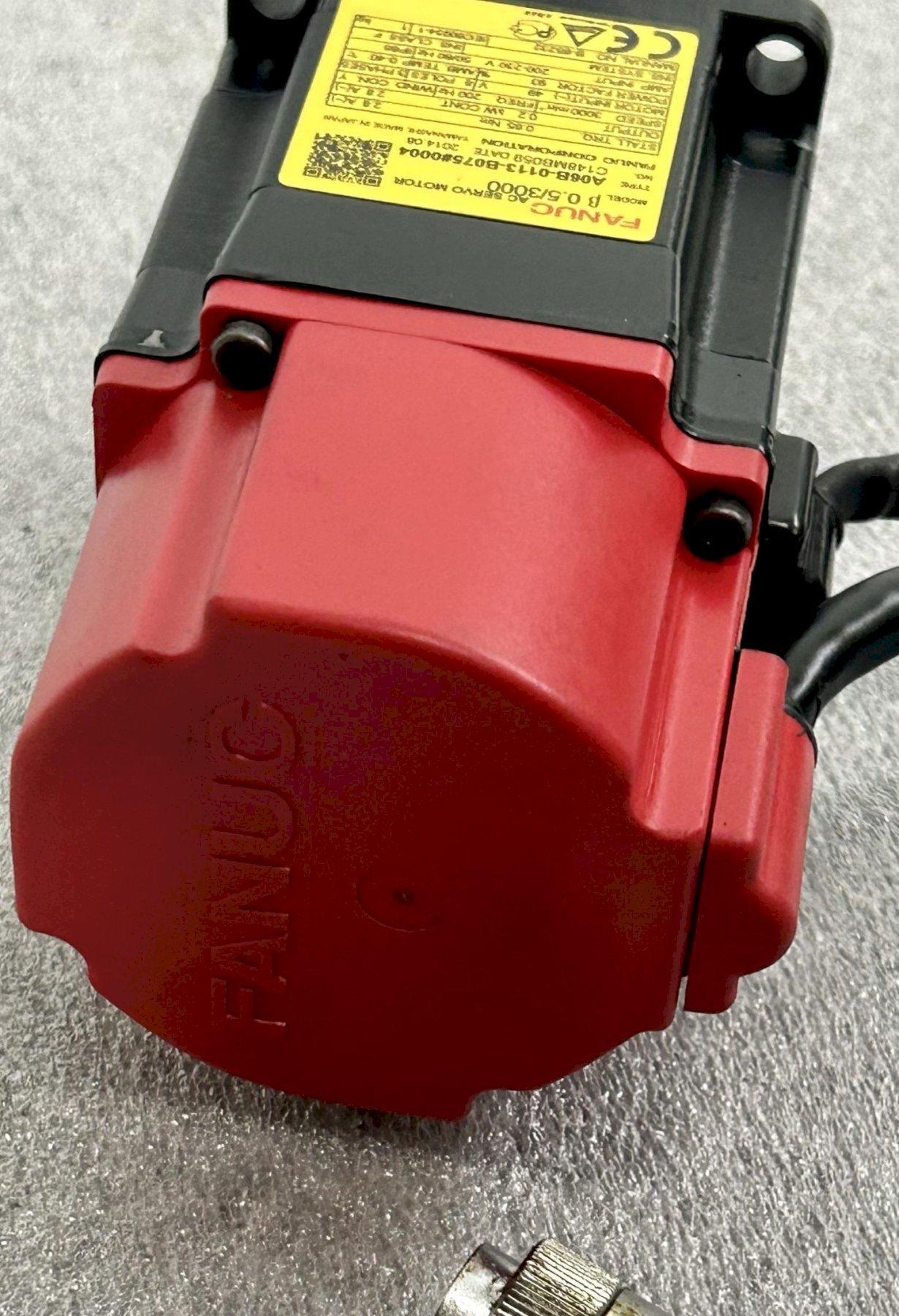

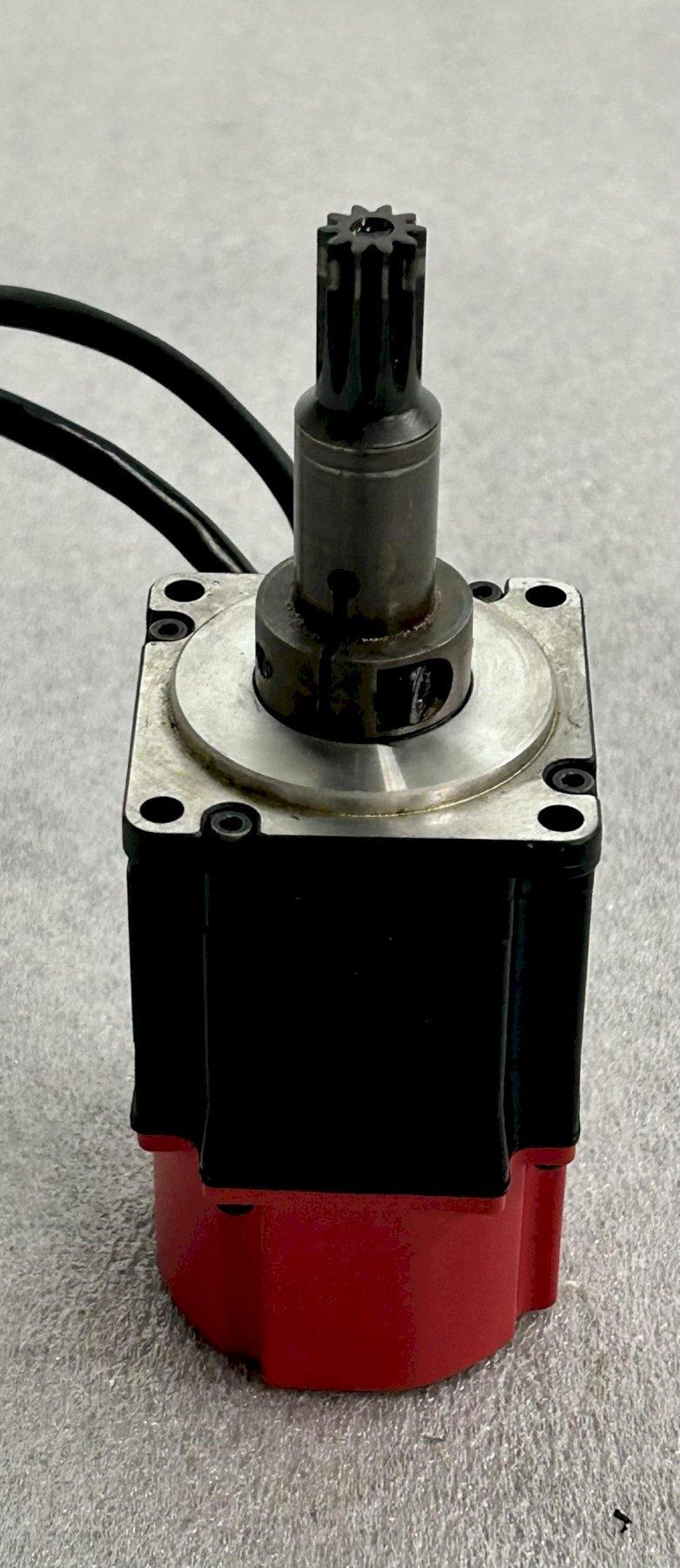

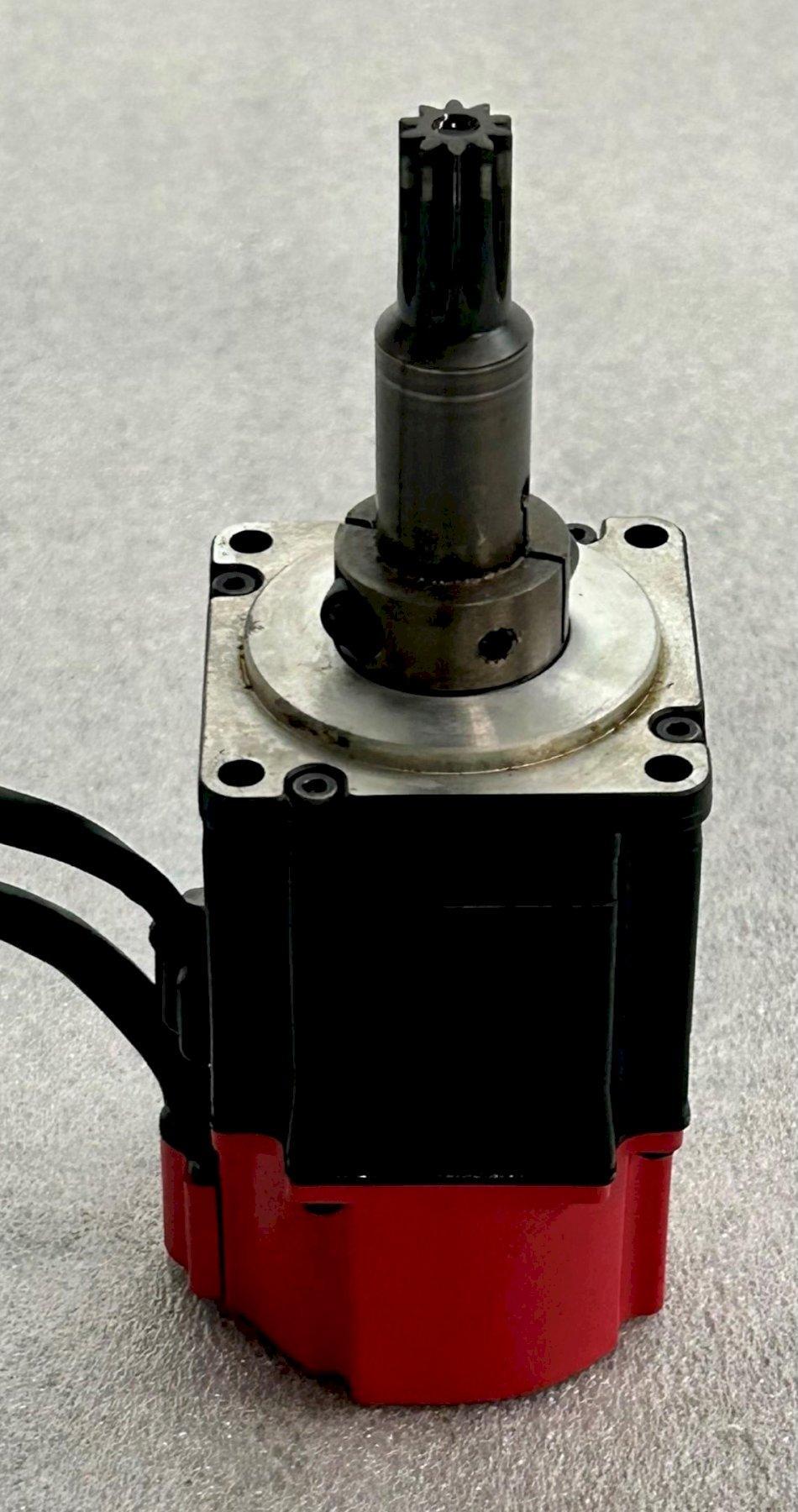

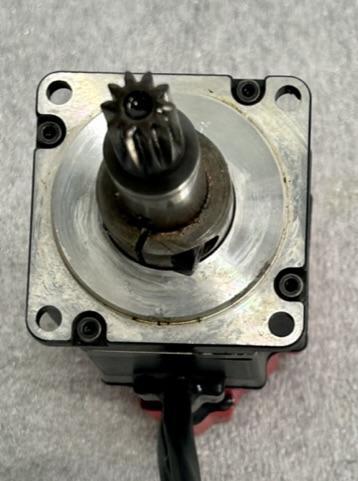

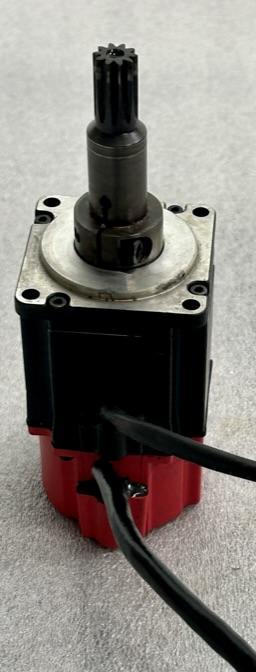

FANUC AC SERVO MOTOR A06B-0113-B075#0004

Stock #: Q11479

Brand: FANUC
Model: A06B-0113-B075#0004
Type: Servo Motors
Condition: Excellent
Year: Not Specified

Equipped With:

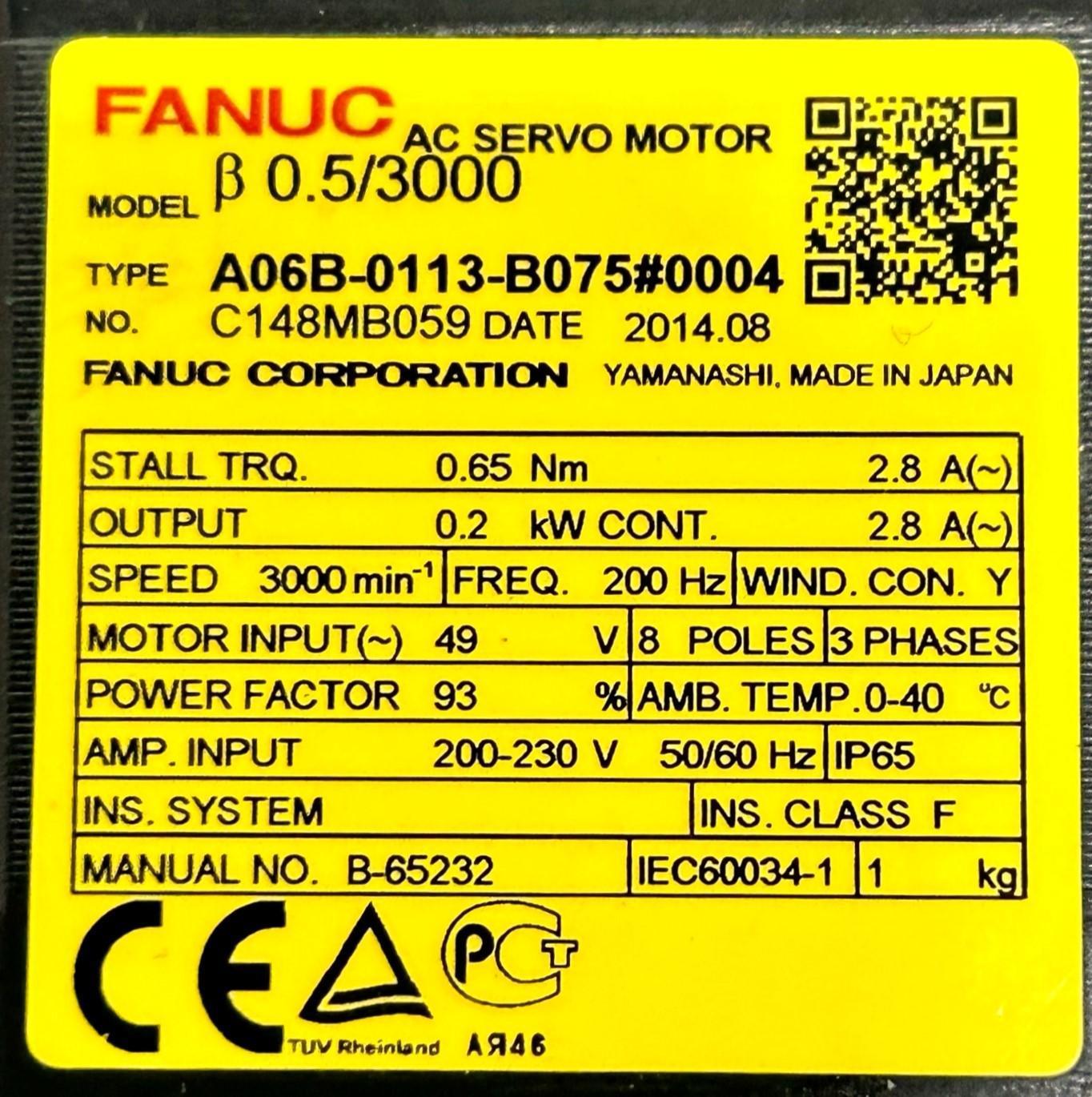

Specifications:

Current Type AC
Torque (Stall) 0.65 Nm
Amp (Stall) 2.8 A
Voltage 200 - 230 V
# Poles 8
Max Speed 3,000 RPM
Ambient 40° C
Power Rating Continuous
Power Factor 93%
Frequency 200 Hz
Motor Phase 3-Phase
Insulation Class F (Max 155° C / 311° F)
Enclosure Rating IP 65
Manual No B-65232
Standards IEC60034-1
Approximate Dimensions 8" x 7"
Approximate Height 5"
Approximate Weight 5 LBS
CONDITION: This Servo Motor Appears to be in Excellent Condition !
