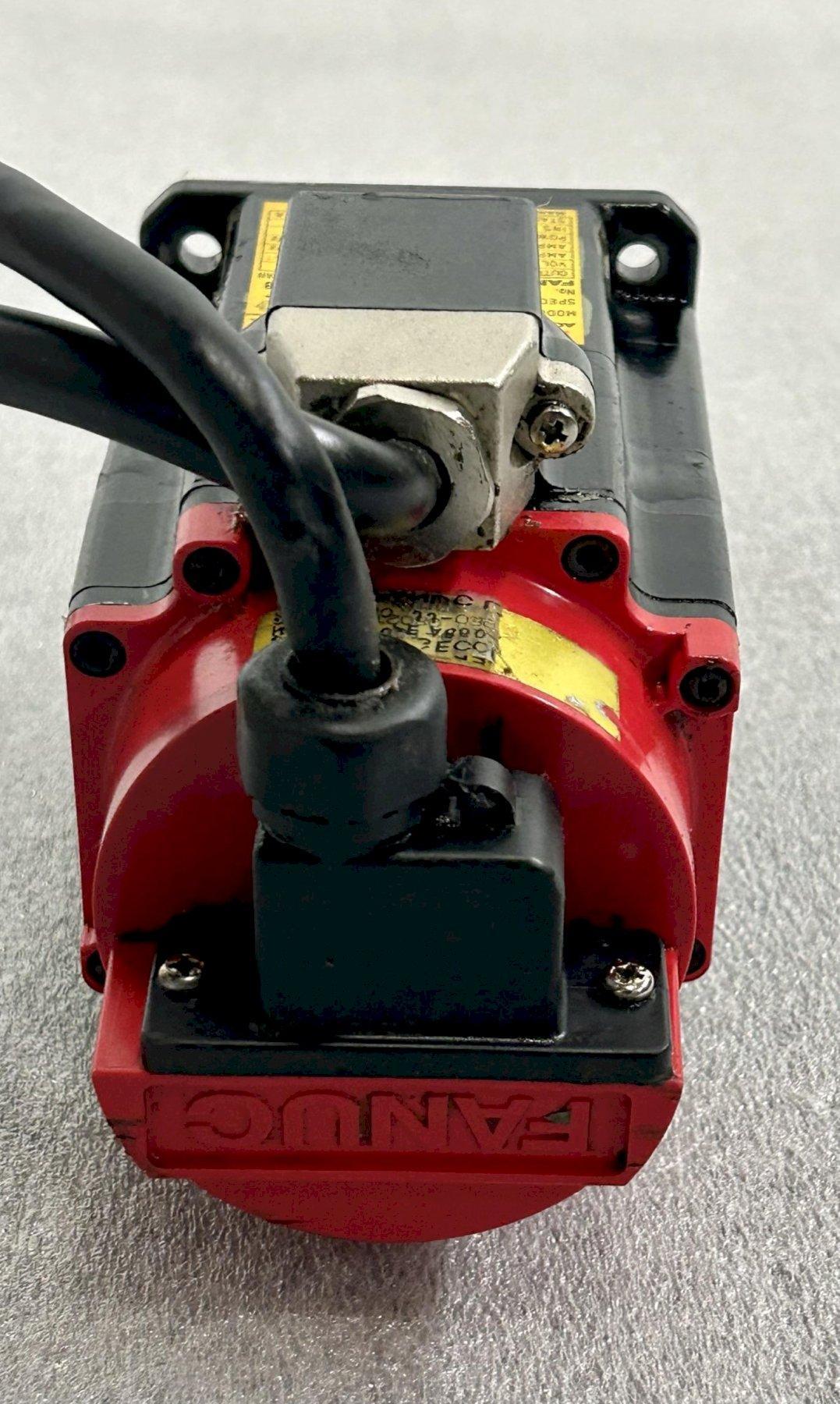

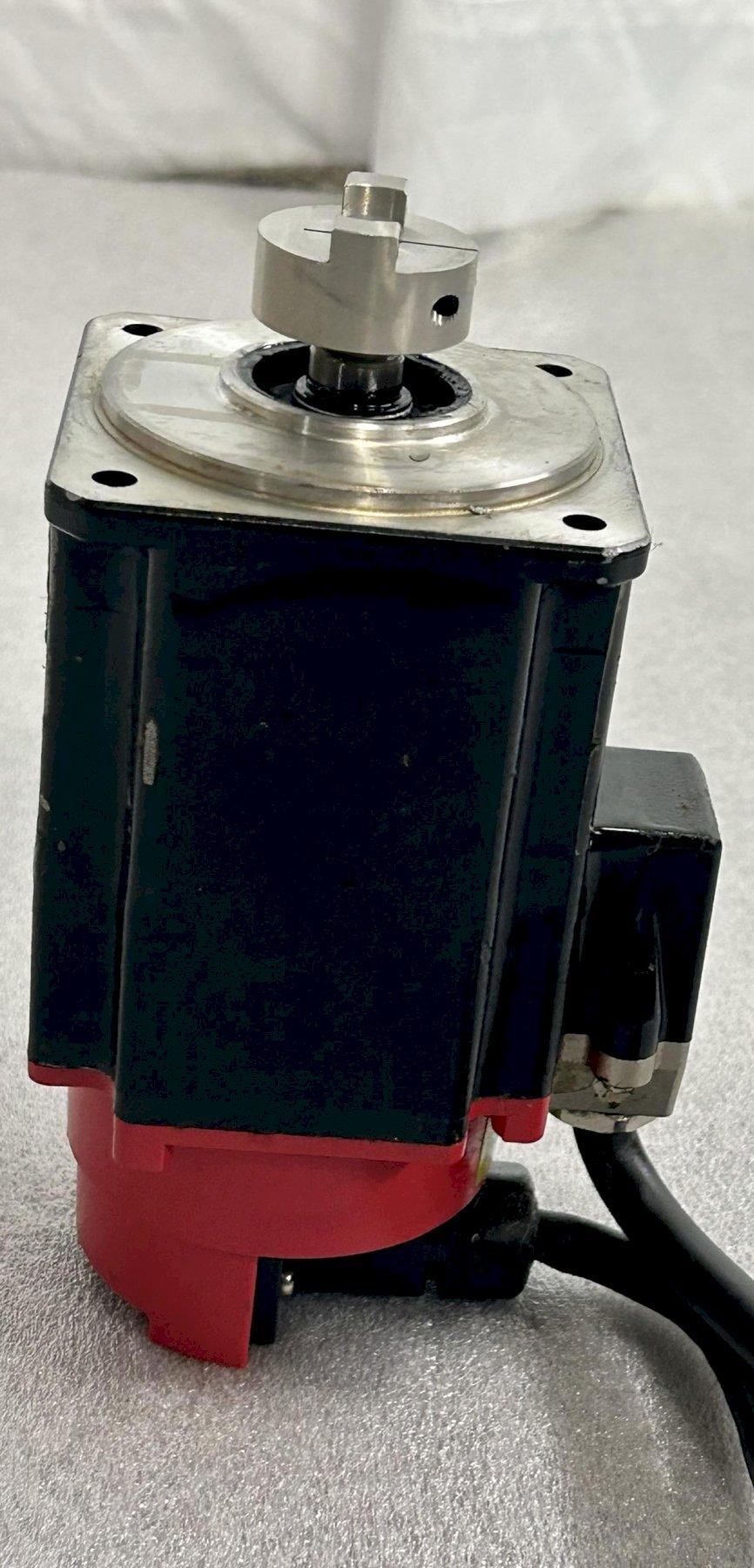

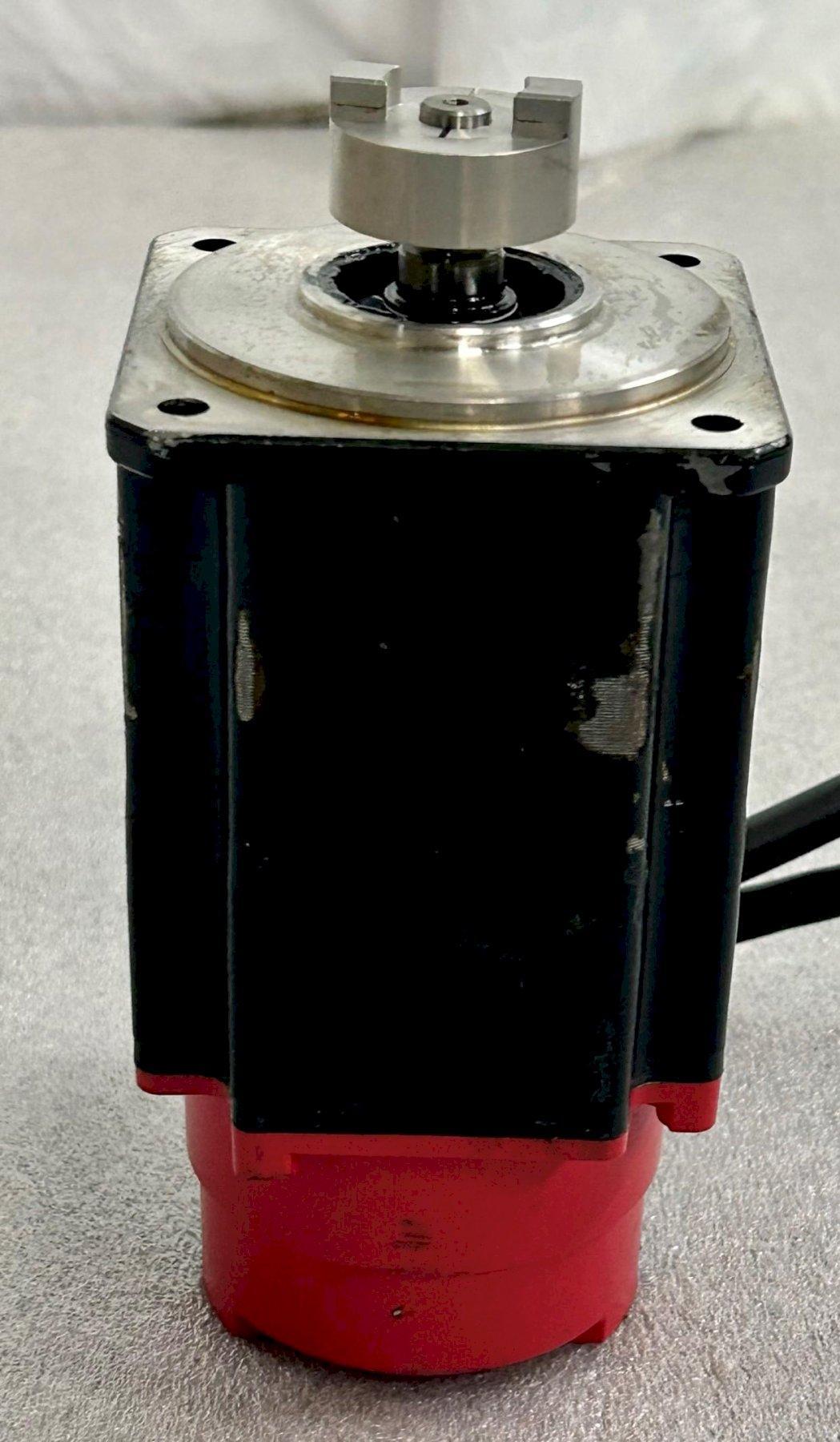

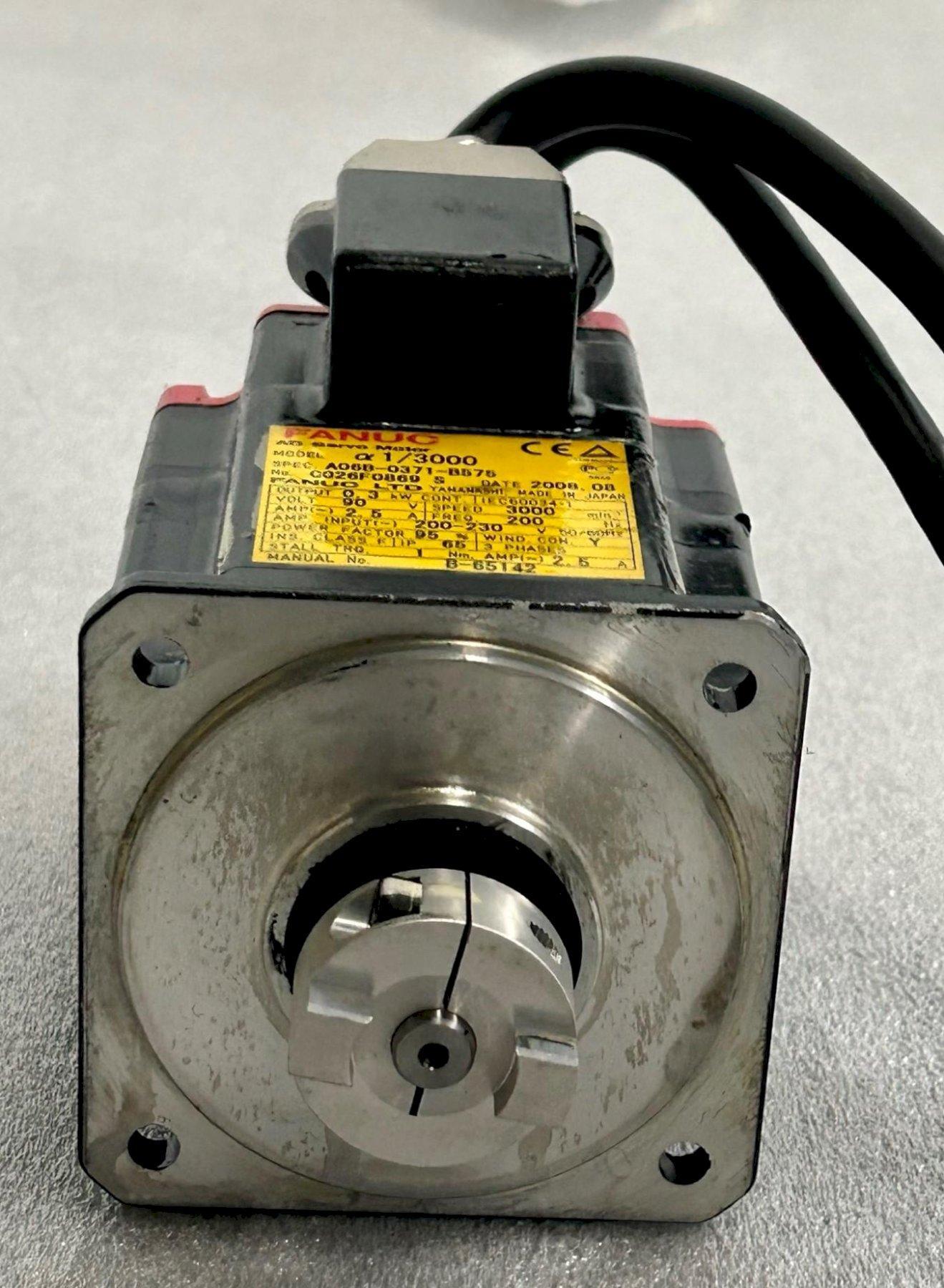

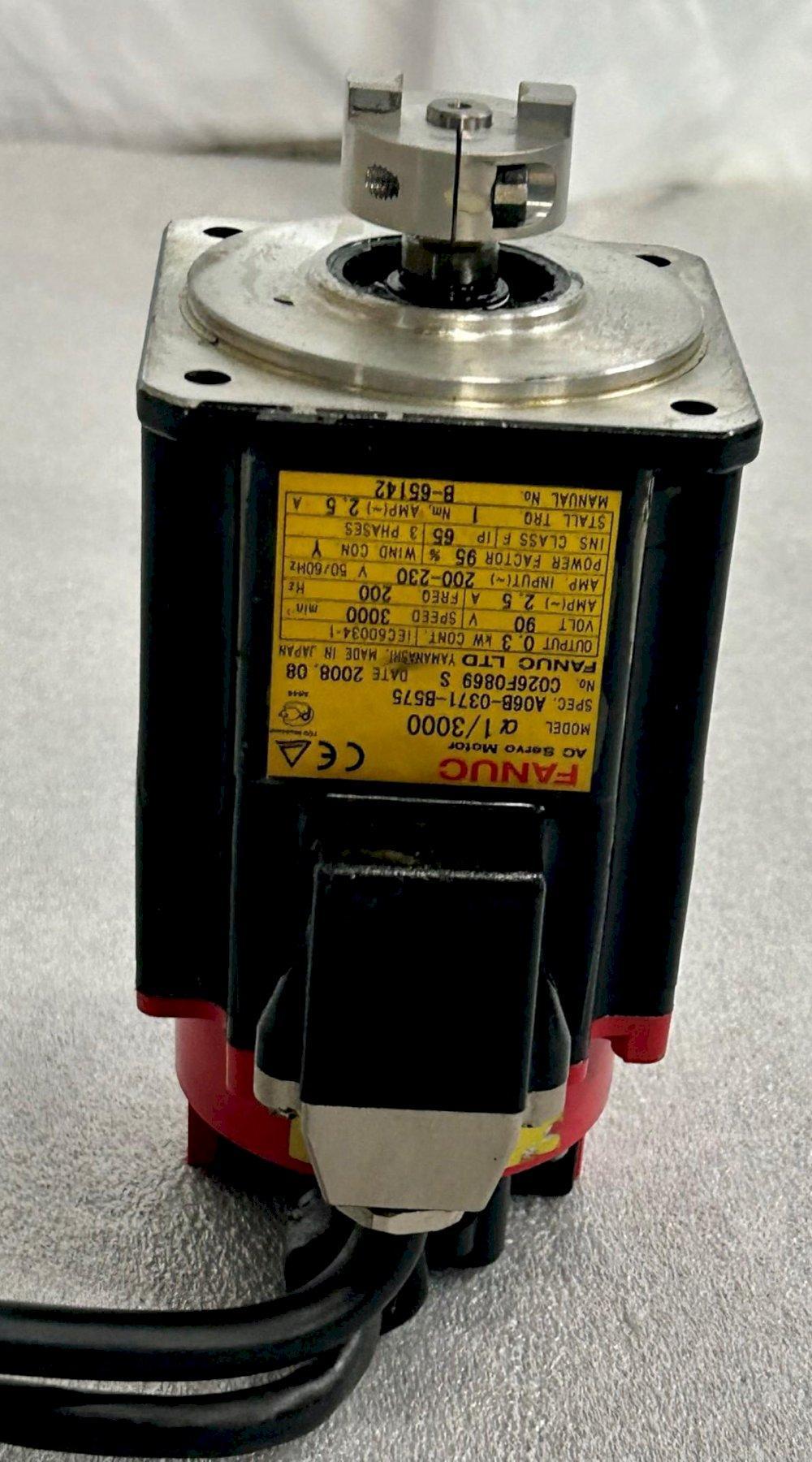

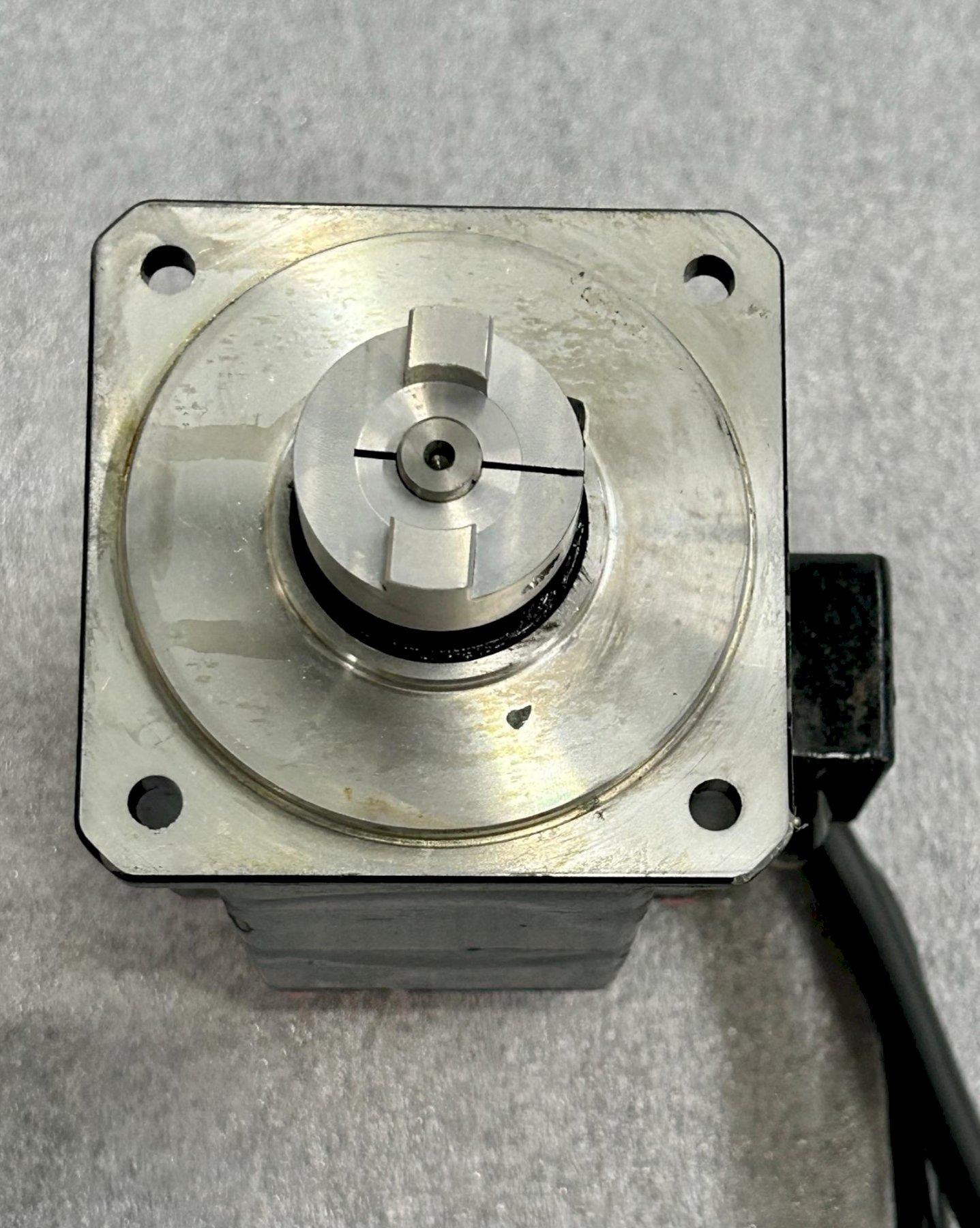

FANUC AC SERVO MOTOR A06B-0371-B575

Stock #: Q11478

Brand: FANUC
Model: A06B-0371-B575
Type: Servo Motors
Condition: Excellent
Year: Not Specified

Equipped With:

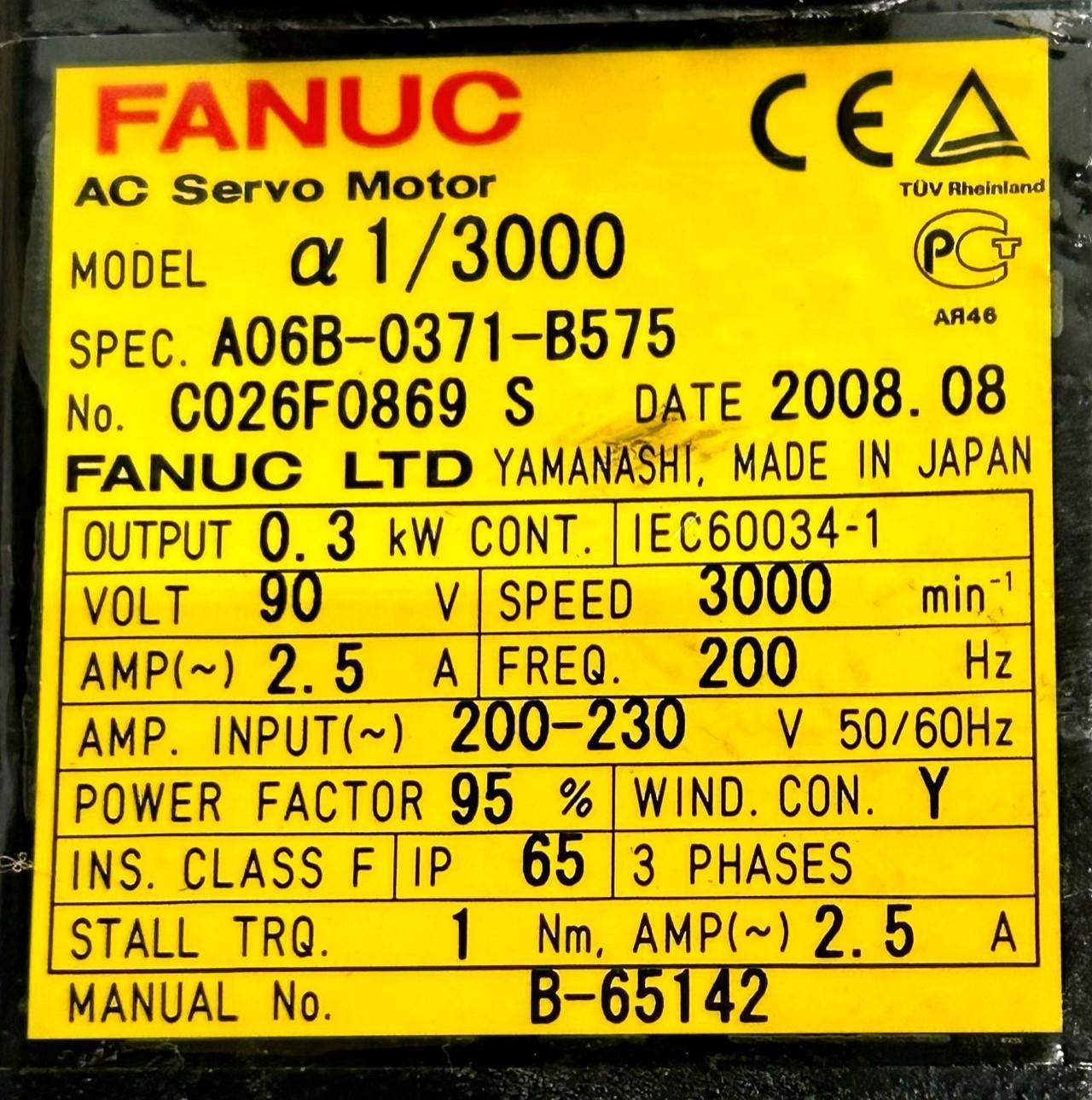

Specifications:

Current Type AC
Torque (Stall) 1 Nm
Amp (Stall) 2.5 A
Voltage 90 V
Max Speed 3,000 RPM
Power Rating Continuous
Power Factor 95%
Frequency 200 Hz
Motor Phase 3-Phase
Insulation Class F (Max 155° C / 311° F)
Enclosure Rating IP 65
Manual No B-65142
Standards IEC60034-1
Approximate Dimensions 11" x 7"
Approximate Height 8"
Approximate Weight 8 LBS
CONDITION: This Servo Motor Appears to be in Excellent Condition !

FANUC AC SERVO MOTOR A06B-0371-B575

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      FANUC

      Model
      A06B-0371-B575

      Type
      Servo Motors

      Stock #
      Q11478

      Condition
      Excellent

      Year

      Request a Quote Today!

      Get Started

      Specifications

      Current Type AC
      Torque (Stall) 1 Nm
      Amp (Stall) 2.5 A
      Voltage 90 V
      Max Speed 3,000 RPM
      Power Rating Continuous
      Power Factor 95%
      Frequency 200 Hz
      Motor Phase 3-Phase
      Insulation Class F (Max 155° C / 311° F)
      Enclosure Rating IP 65
      Manual No B-65142
      Standards IEC60034-1
      Approximate Dimensions 11" x 7"
      Approximate Height 8"
      Approximate Weight 8 LBS
      CONDITION: This Servo Motor Appears to be in Excellent Condition !
