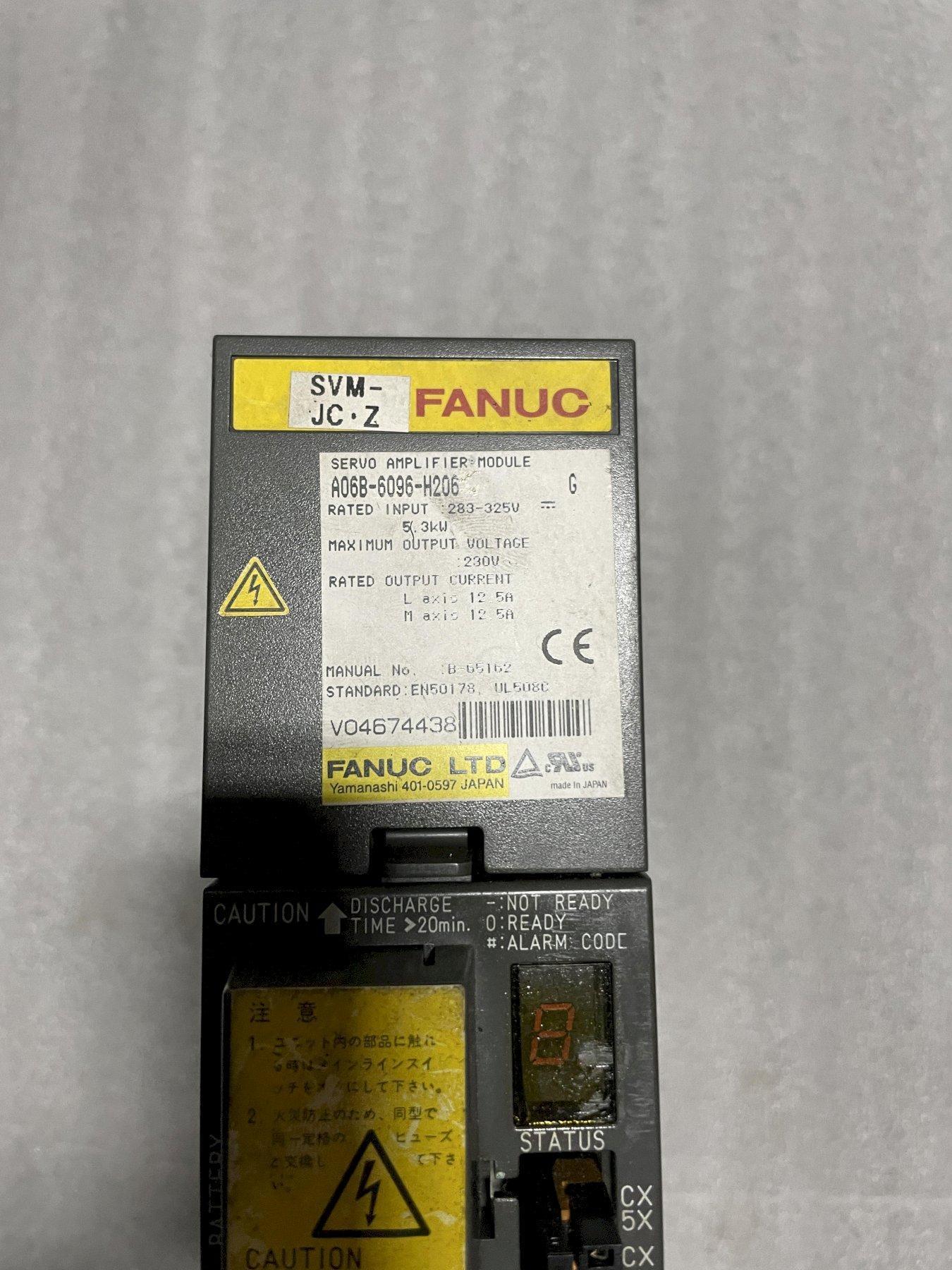

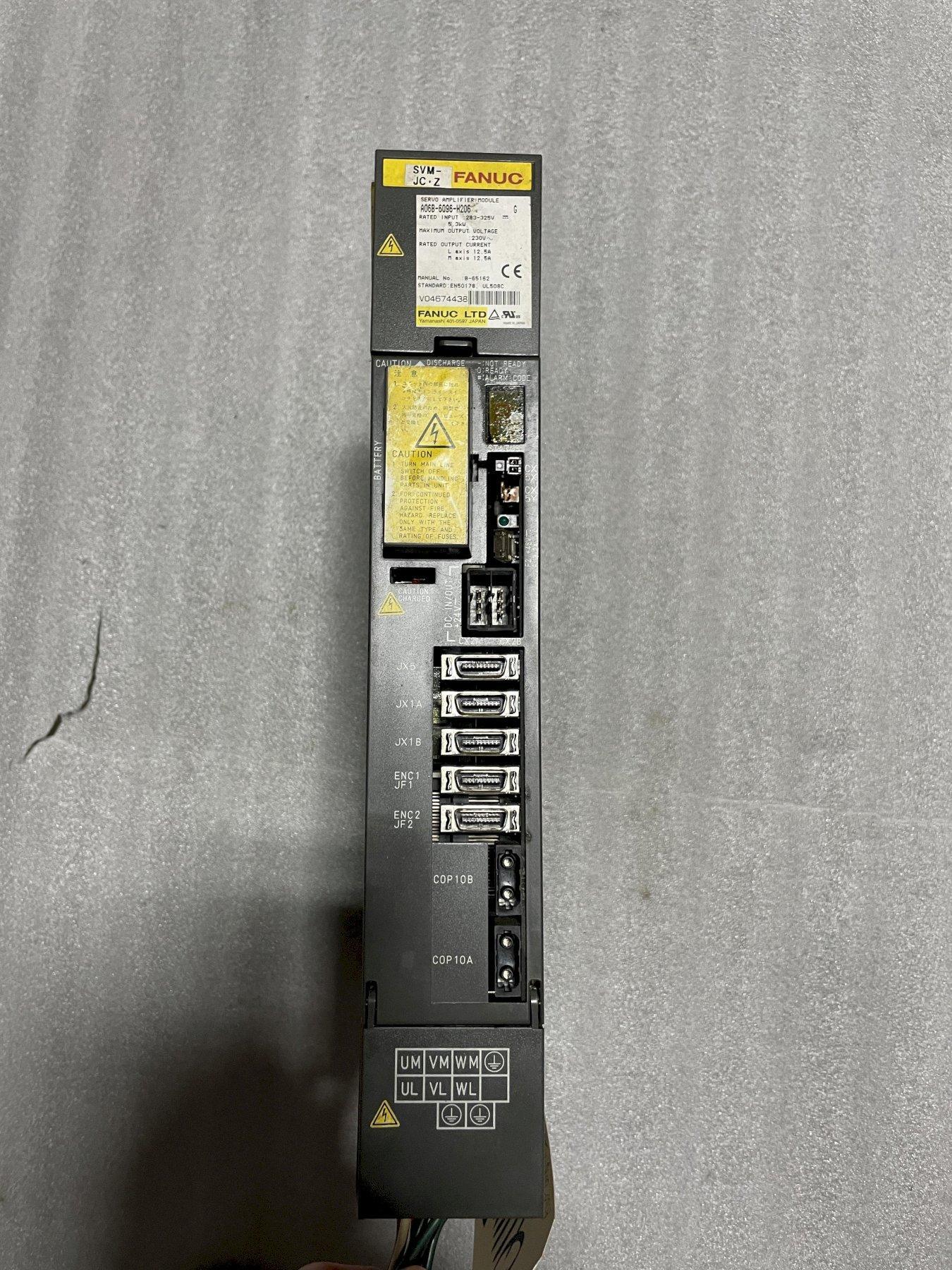

FANUC SERVO AMPLIFIER MODULE A06B-6096-H206

Stock #: Q11447

Brand: FANUC
Model: A06B-6096-H206
Type: Servo Drives
Condition: Excellent
Year: Not Specified

Equipped With:


NOTE: Servo Amplifier SVM2-20/40 FSSB Interface Alpha

Specifications:

Type Servo Amplifier Module
Discontinued by Manufacturer? yes
# Axis 2
Rated Input 283 - 325 VDC (5.3 kW)
Max Output Voltage 230 VAC
L-Axis Rated Output Current 12.5 A
M-Axis Rated Output Current 12.5 A
Manual No B-65162
Standards DIN VDE0160
CNC? yes
Approximate Dimensions 17" x 15"
Approximate Height 6"
Approximate Weight 10 LBS
CONDITION: This Module Appears to be in Excellent Condition.
