Stock #: Q11434
Brand: FANUC
Model: A06B-6079-H206
Type: Servo Drives
Condition: Excellent
Year: Not Specified

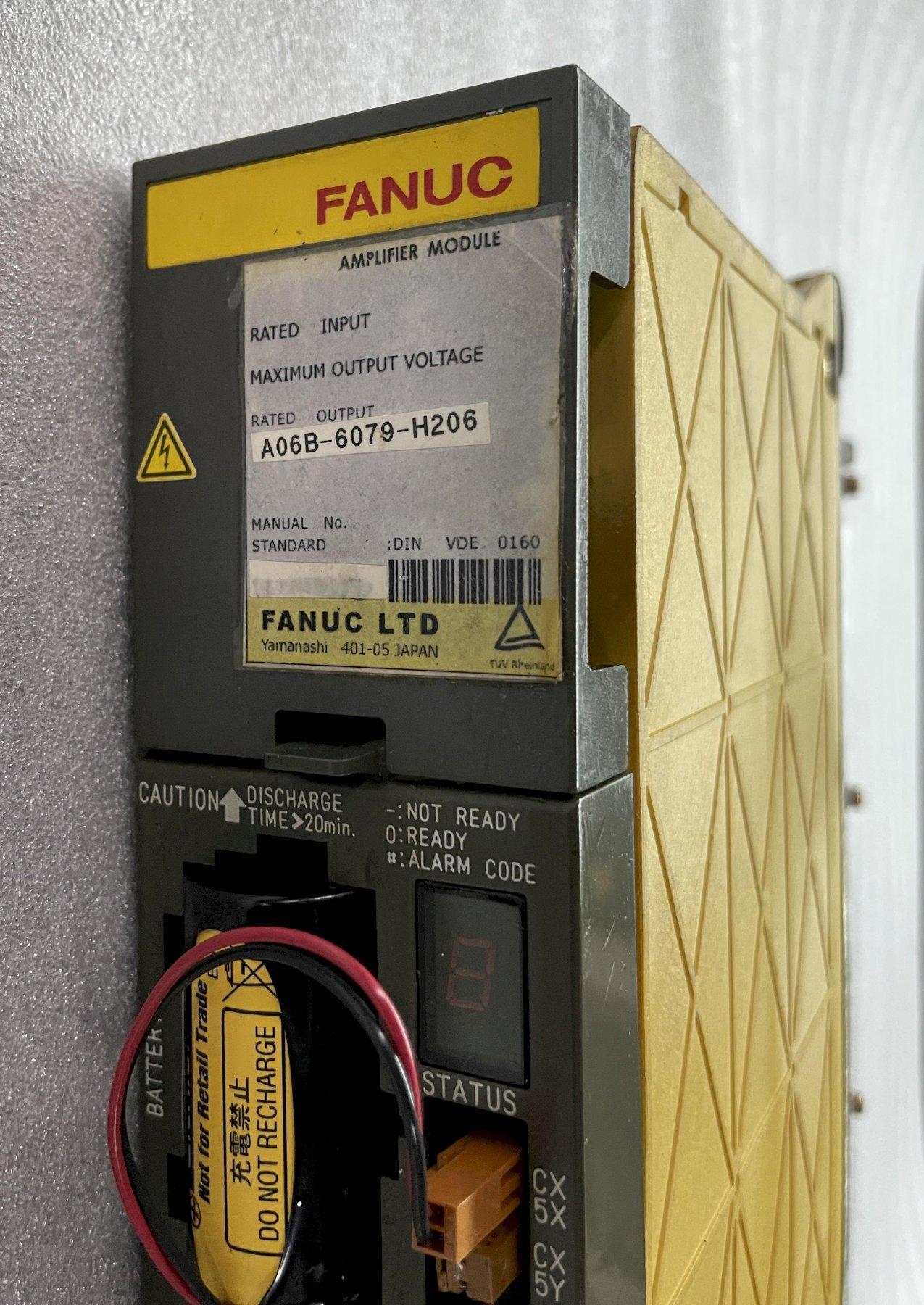

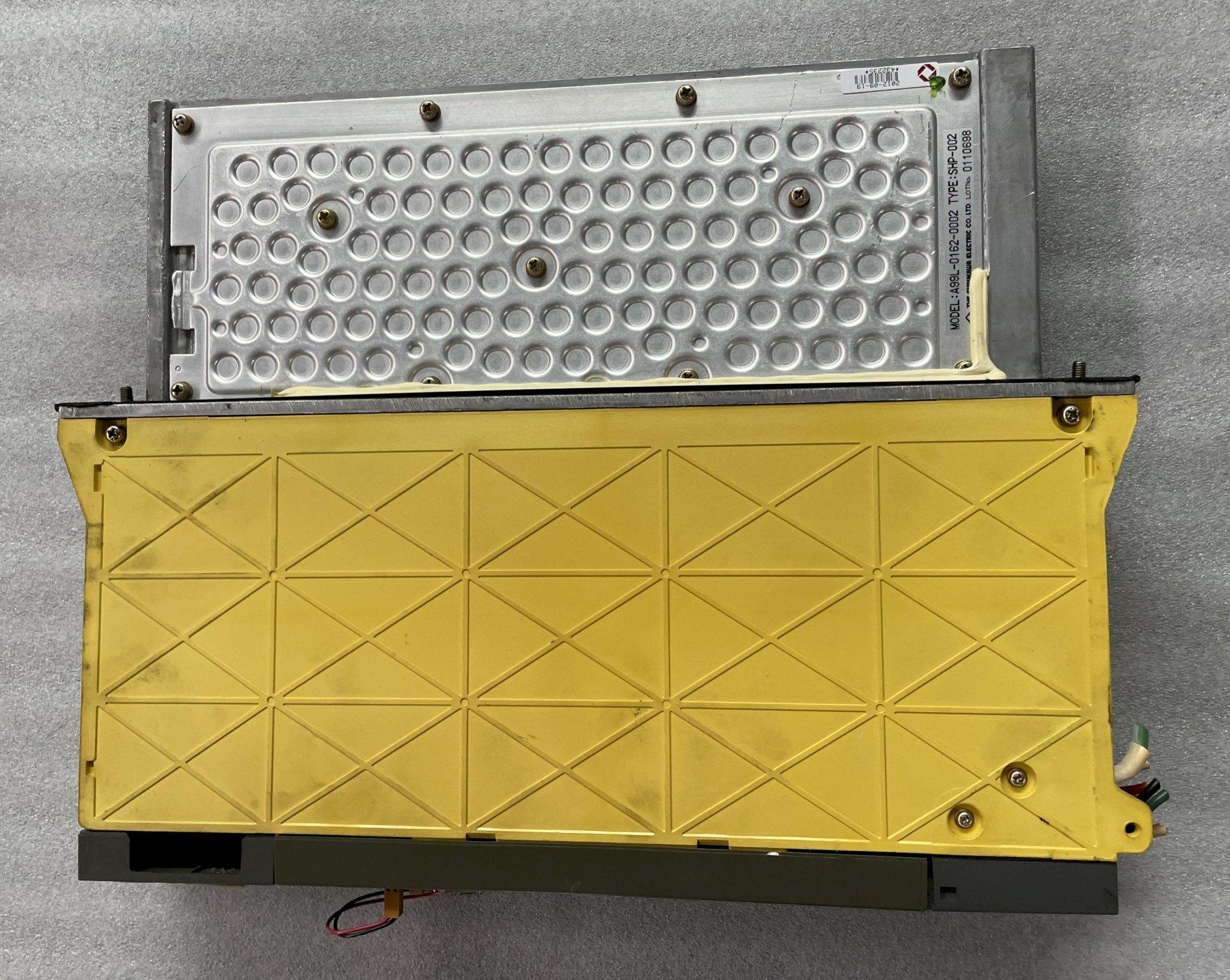

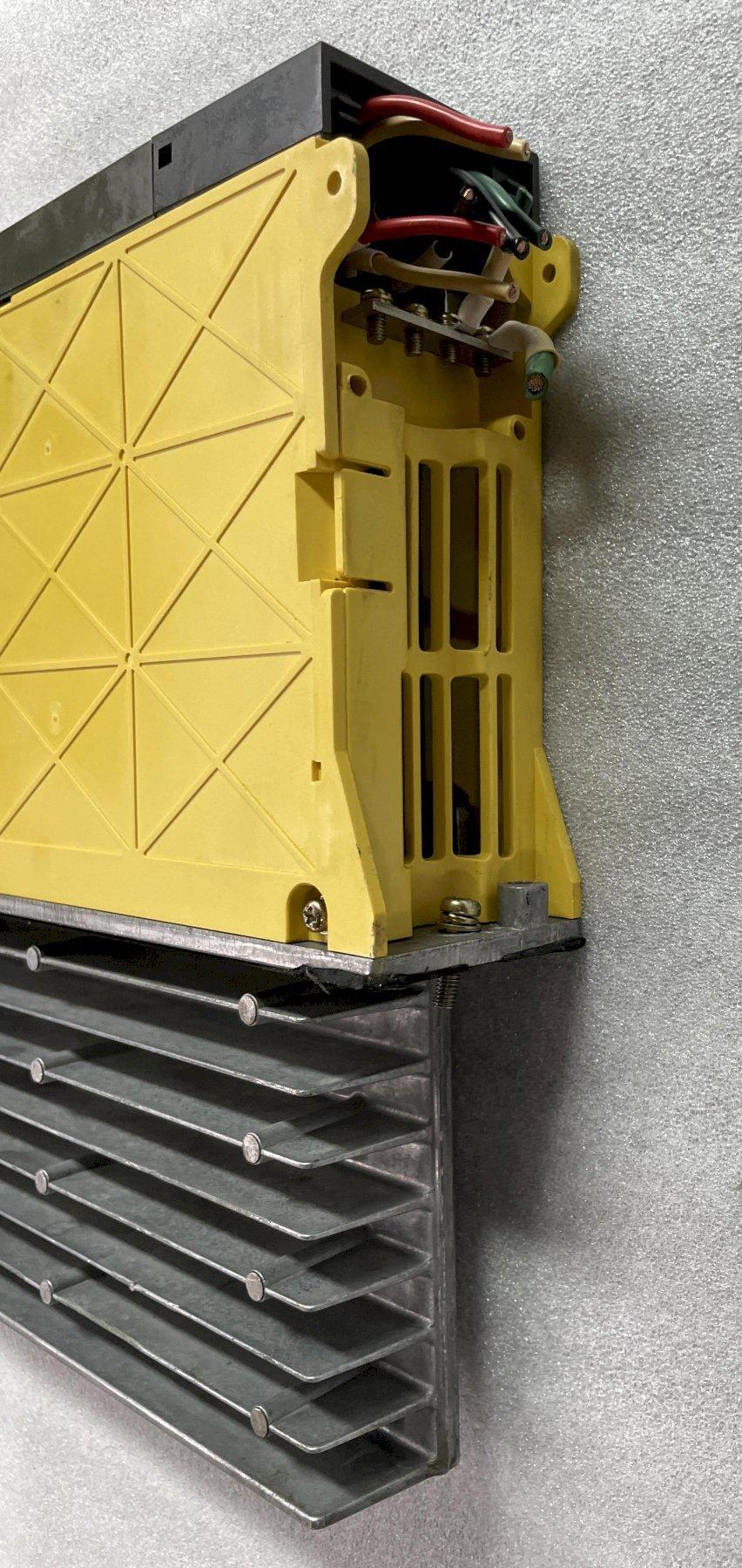

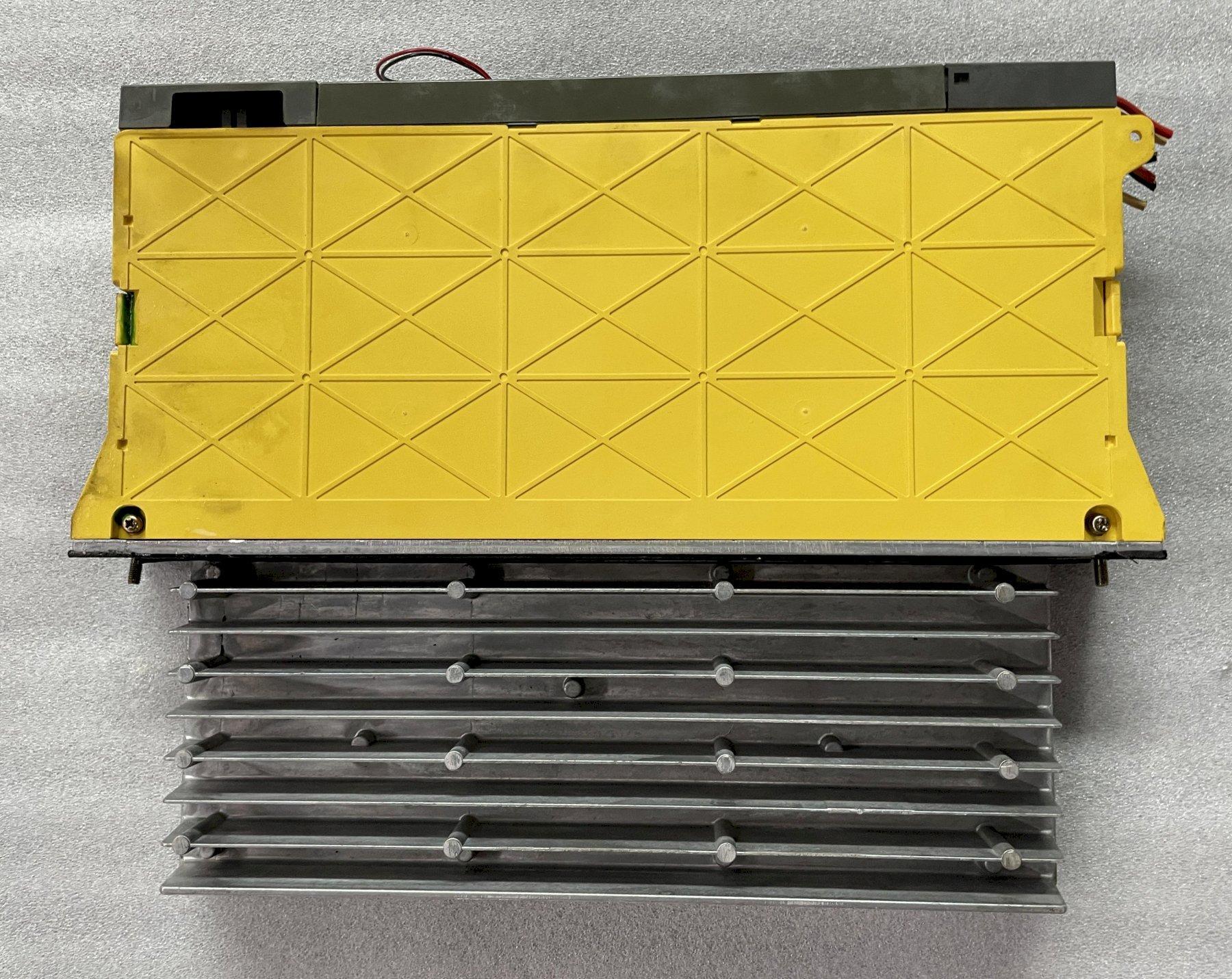

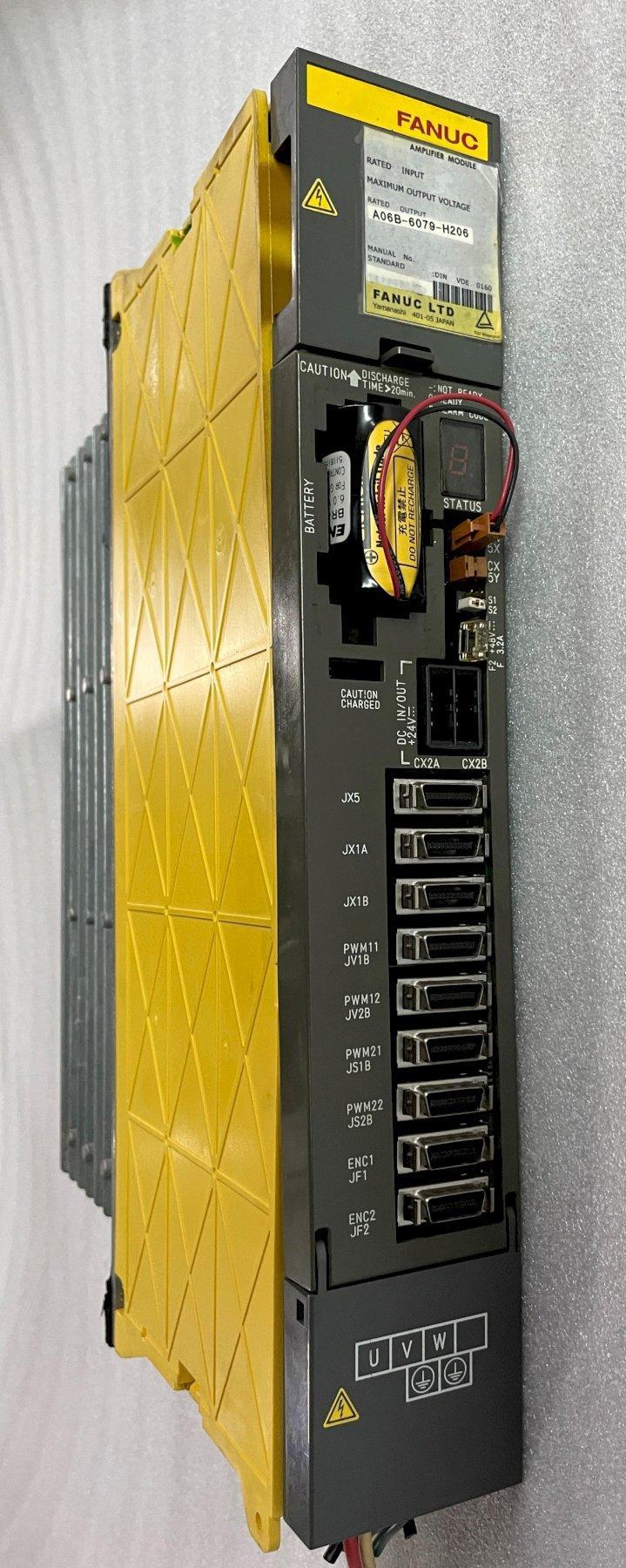

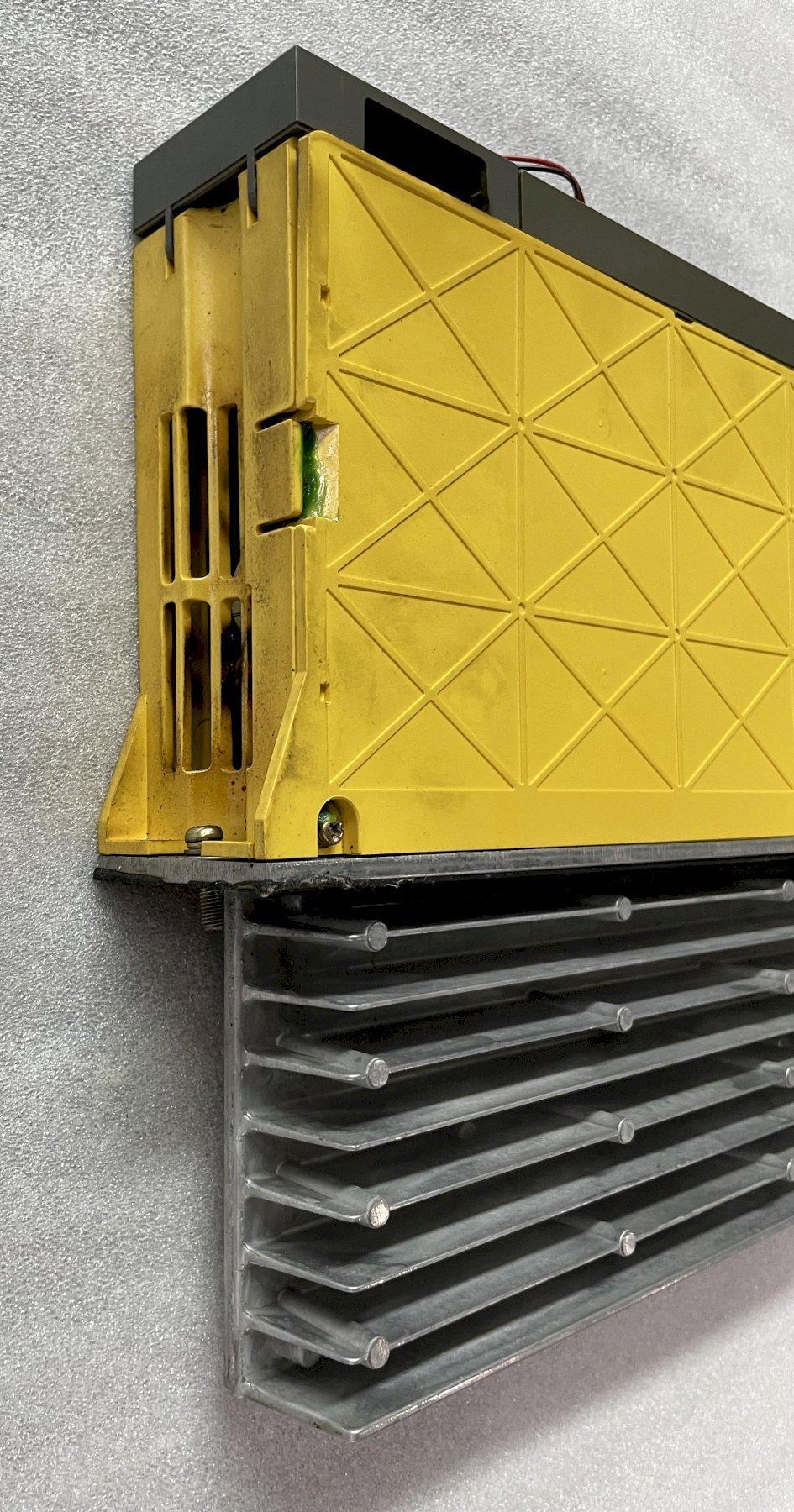

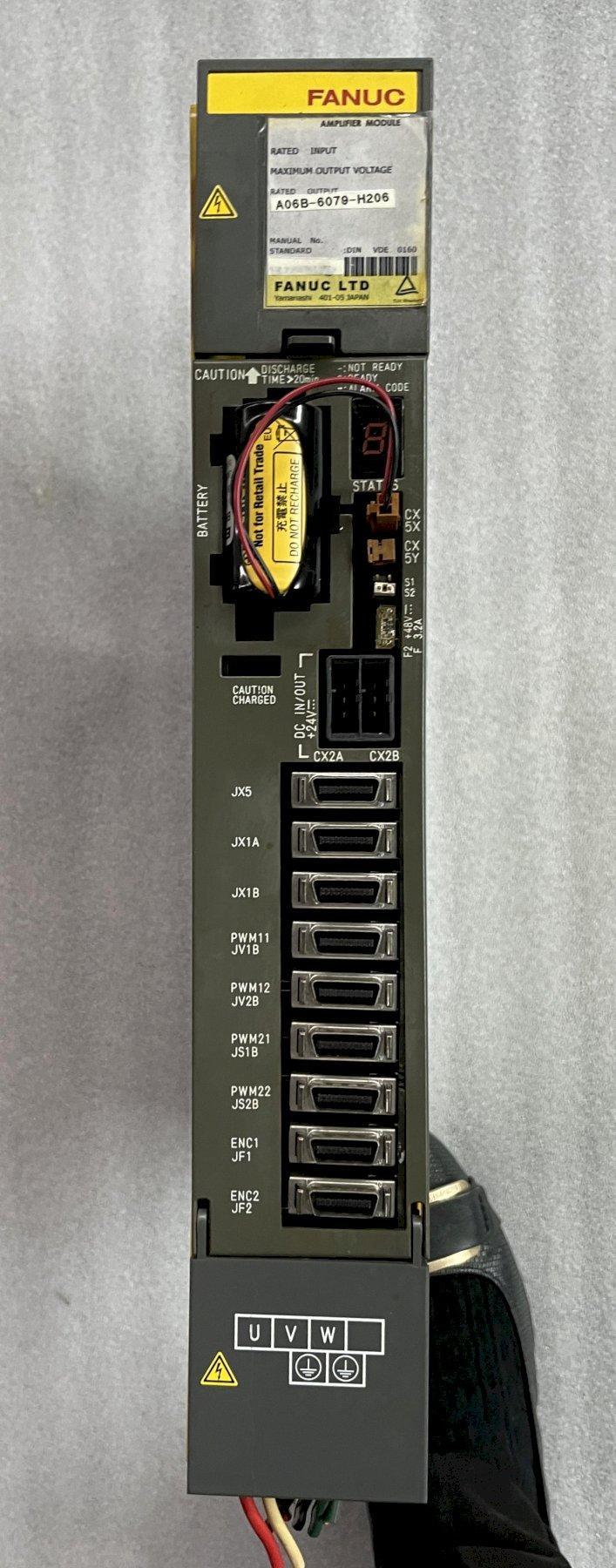

Servo Amplifier Alpha-40/40
Dual Axis Alpha Servo Drive Model SVM2-40X2
Specifications: |
|
|---|---|
| Type | Servo Amplifier Module |
| Function | Axis Control |
| Discontinued by Manufacturer? | yes |
| # Axis | 2 |
| Rated Input | 283 - 325 VDC (5.3 kW) |
| Max Output Voltage | 230 VAC |
| L-Axis Rated Output Current | 12.5 A |
| M-Axis Rated Output Current | 12.5 A |
| Manual No | B-65162 |
| Standards | DIN VDE 0160 |
| CNC? | yes |
| Approximate Dimensions | 17" x 14" |
| Approximate Height | 3.5" |
| Approximate Weight | 13 LBS |
CONDITION: This Module Appears to be in Excellent Condition.







Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Servo Amplifier Alpha-40/40
Dual Axis Alpha Servo Drive Model SVM2-40X2 |
Specifications |
|
|---|---|
| Type | Servo Amplifier Module |
| Function | Axis Control |
| Discontinued by Manufacturer? | yes |
| # Axis | 2 |
| Rated Input | 283 - 325 VDC (5.3 kW) |
| Max Output Voltage | 230 VAC |
| L-Axis Rated Output Current | 12.5 A |
| M-Axis Rated Output Current | 12.5 A |
| Manual No | B-65162 |
| Standards | DIN VDE 0160 |
| CNC? | yes |
| Approximate Dimensions | 17" x 14" |
| Approximate Height | 3.5" |
| Approximate Weight | 13 LBS |
| CONDITION: This Module Appears to be in Excellent Condition. |
