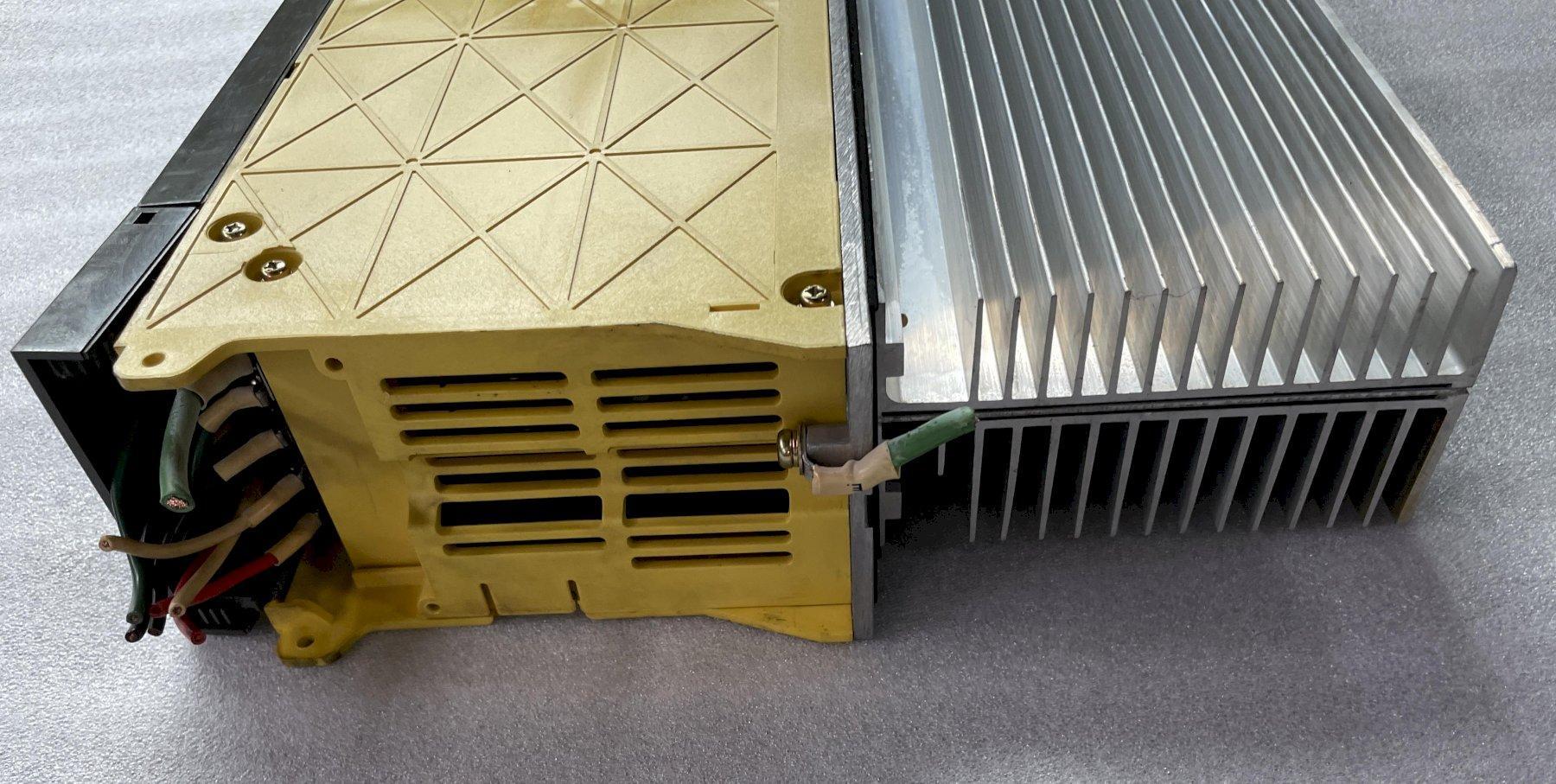

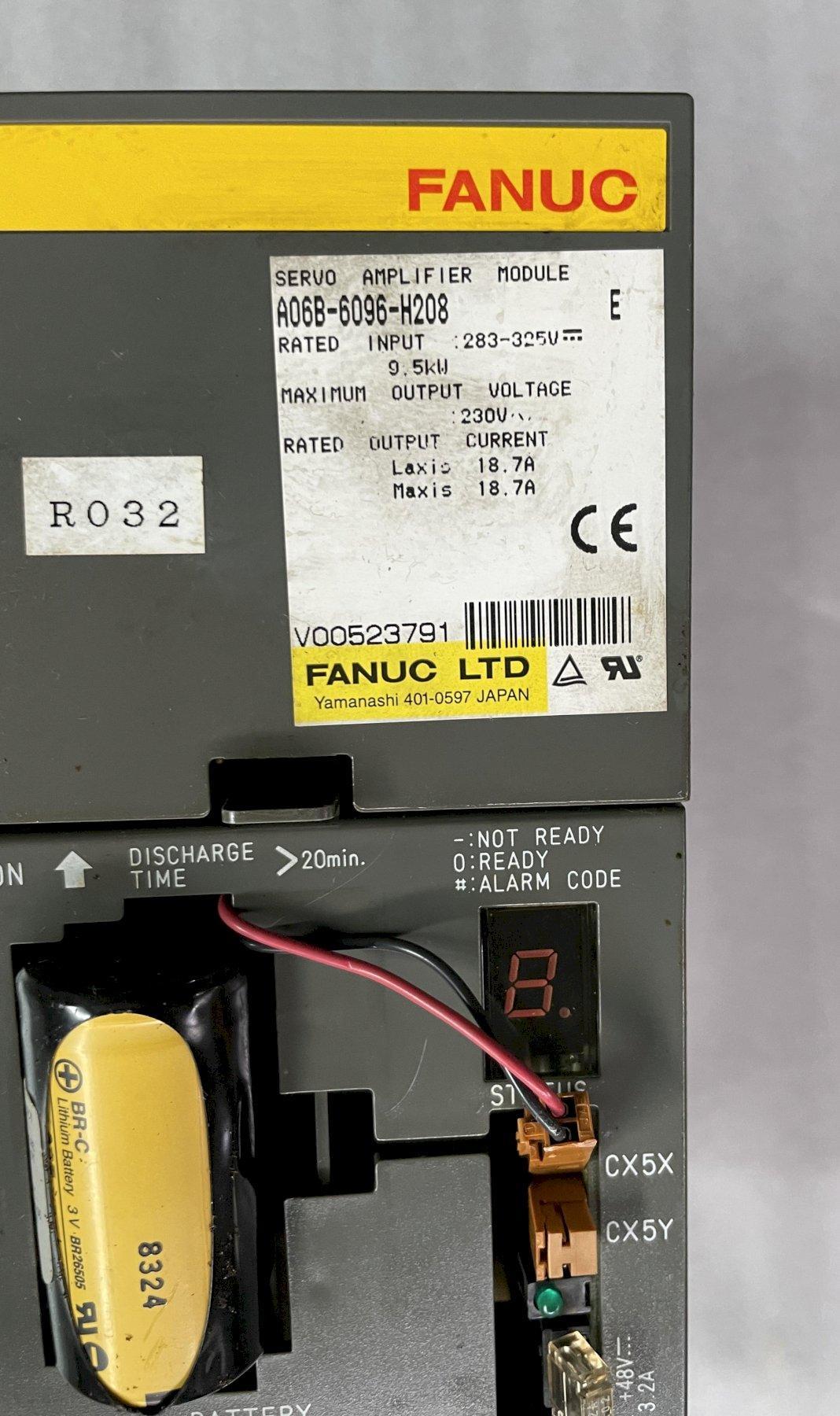

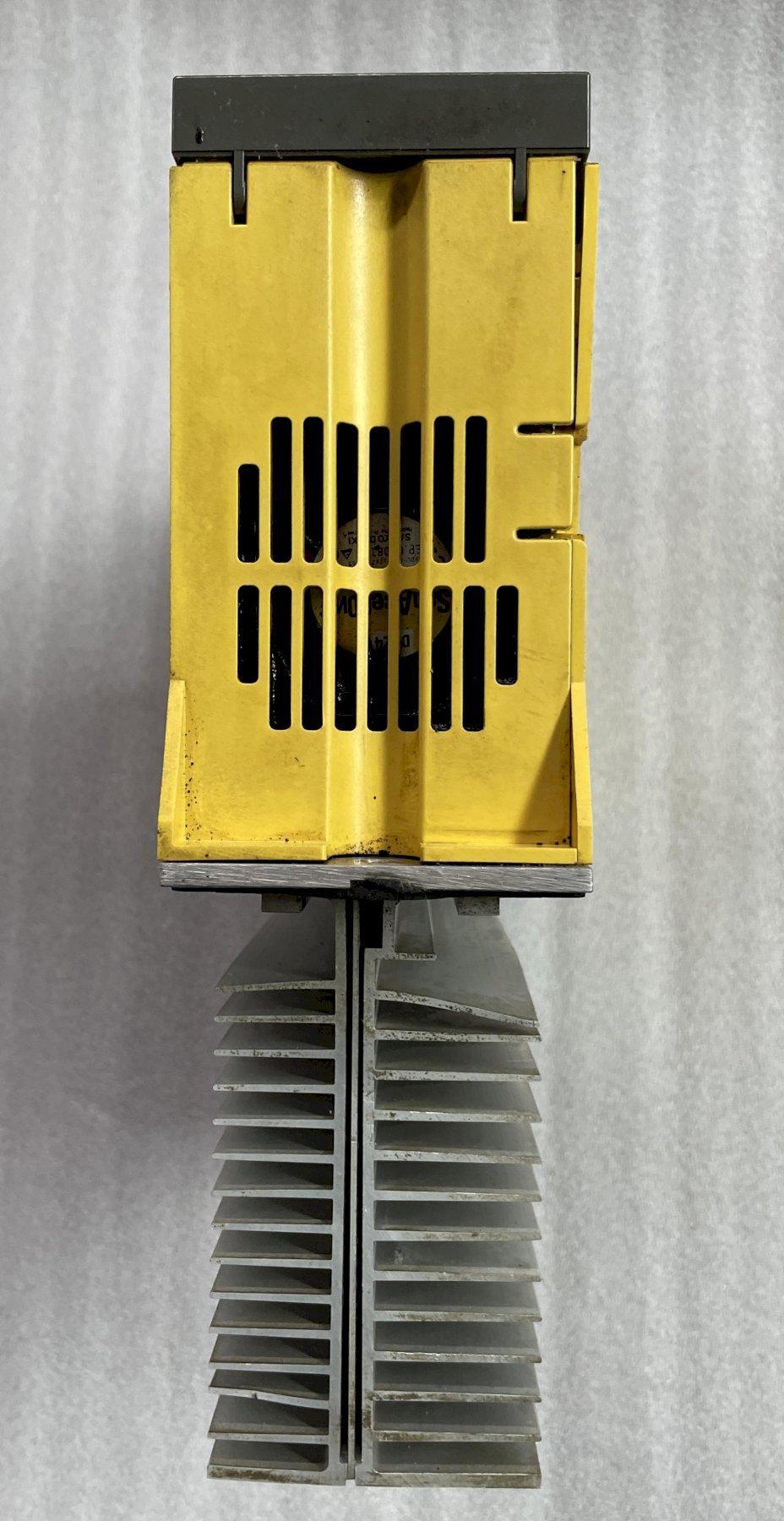

FANUC SERVO AMPLIFIER MODULE A06B-6096-H208

Stock #: Q11430

Brand: FANUC
Model: A06B-6096-H208
Type: Servo Drives
Condition: Excellent
Year: Not Specified

Equipped With:



NOTE:
Servo Amplifier SVM2-80/80 FSSB Interface Alpha

Specifications:

Type Servo Amplifier Module
Function Axis Control
# Axis 2
Discontinued by Manufacturer? yes
Rated Input 283 - 325 VDC (9.5 kW)
Max Output Voltage 230 VAC
L-Axis Rated Output Current 18.7 A
M-Axis Rated Output Current 18.7 A
CNC? yes
Approximate Dimensions 17" x 14"
Approximate Height 4.5"
Approximate Weight 16 LBS
CONDITION: This Module Appears to be in Excellent Condition.
