Stock #: Q11403
Brand: BRIDGEPORT
Model: Series 1-J
Type: Millers, Knee, CNC
Condition: Excellent
Year: 1989

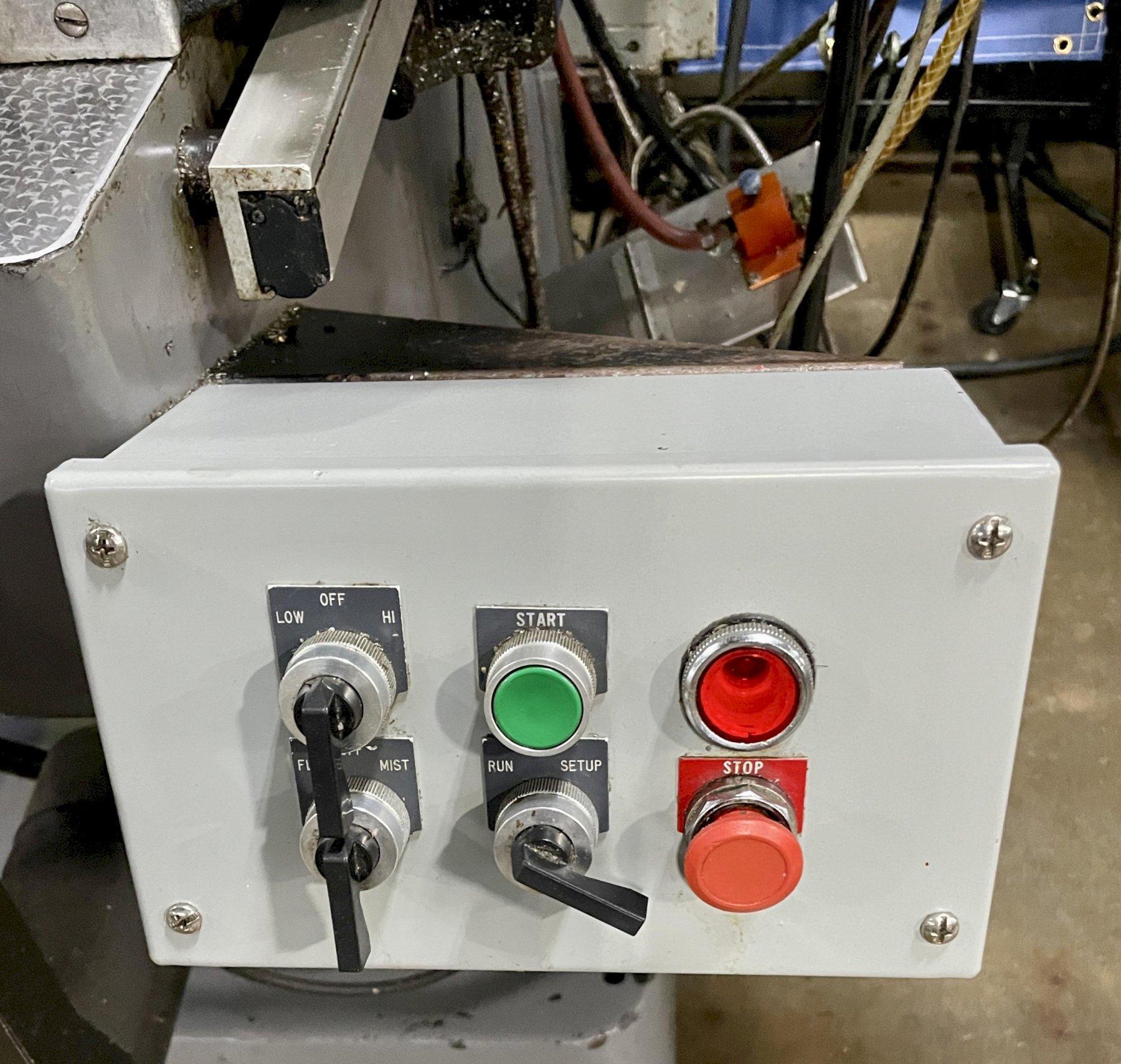

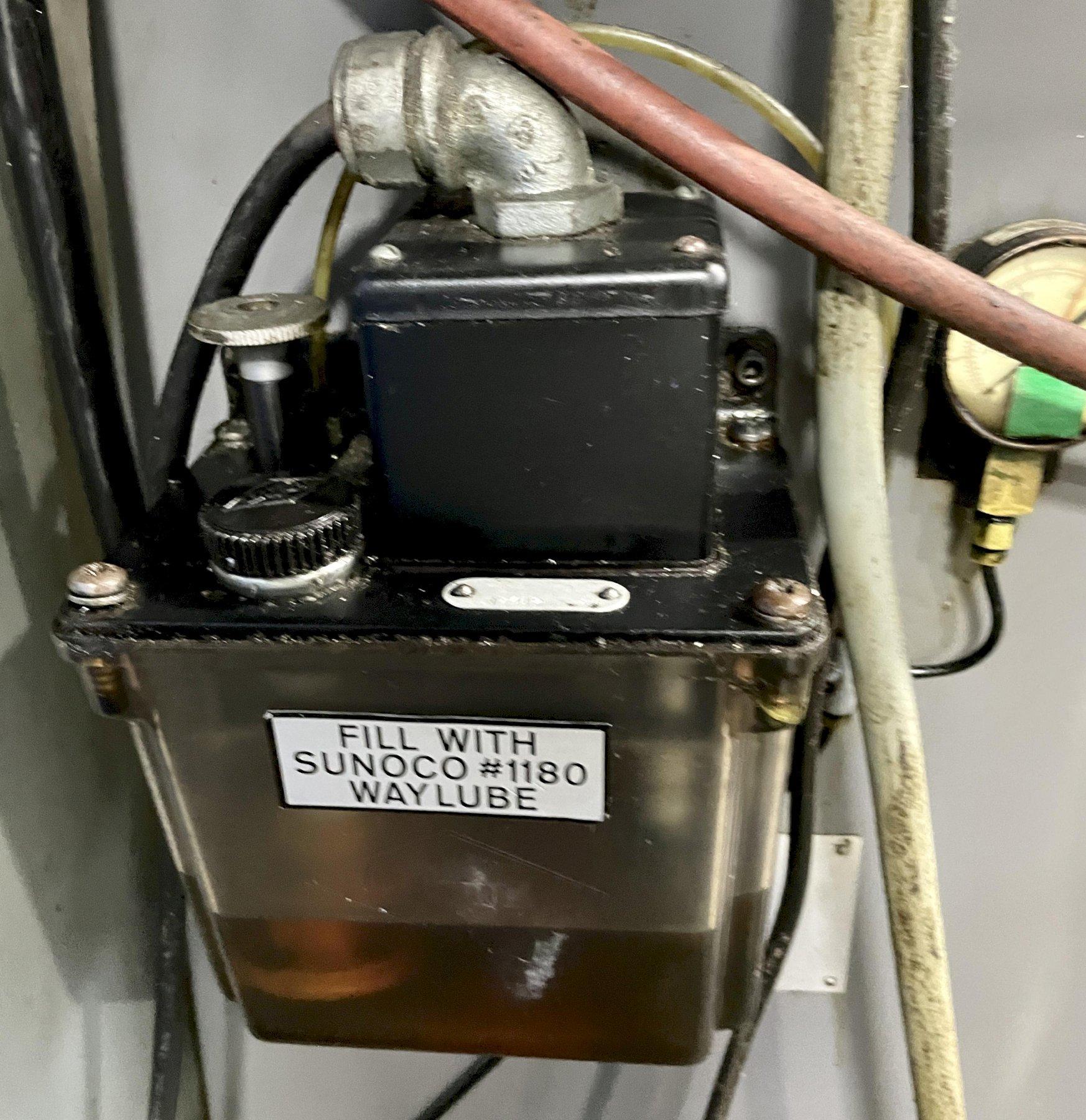

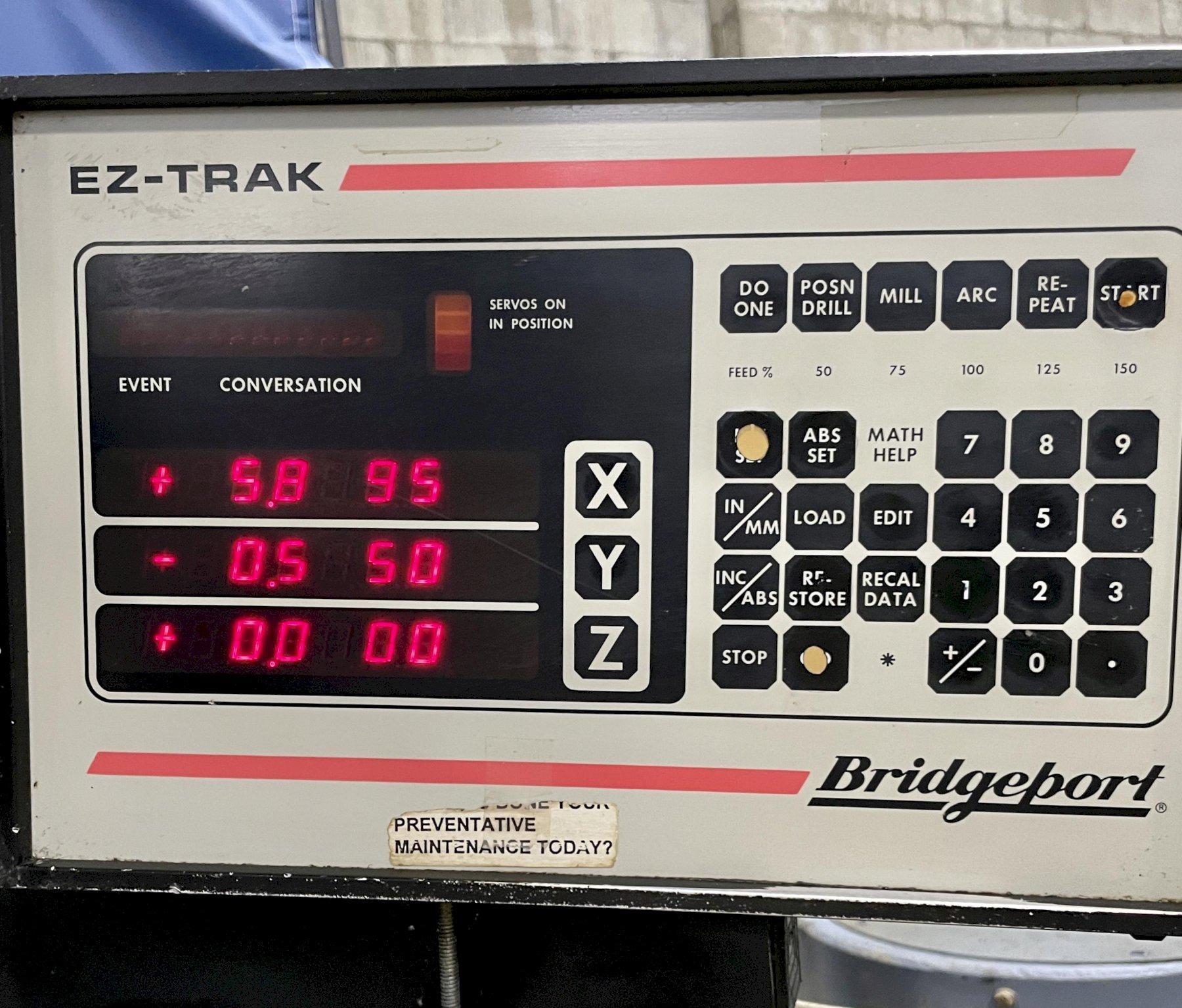

EZ Trak 2-Axis CNC Control, 9" x 48" Power feed Table on X and Y Axis, Operator Panel, Bijur Way Lube System, Haas 5C Collet Closer, 1.5 HP Motor.
Specifications: |
|
---|---|
CNC Control | yes |
Type of CNC Control | EZ Trak CNC Control |
Table Size | 9" x 48" |
X-Axis (Longitudinal Table Travel Power Feed) | 30" |
Y-Axis (Cross Saddle Travel) | 12" |
W-Axis (Vertical Knee Travel) | 16" |
Z-Axis (Vertical Head Travel) | 5" |
Spindle Taper | R8 |
Spindle Speeds | 60 - 4,200 RPM |
Table Feed Rates (Infinitely Variable) | .750 - 35 IPM |
Spindle Horsepower | 1-1/2 HP |
Electrics | 220/440/3/60 |
Approximate Machine Dimensions | 68" x 65" |
Approximate Machine Height | 89" |
Approximate Machine Weight | 2,500 LBS |
CONDITION: This Machine Appears to be in Excellent Condition.
