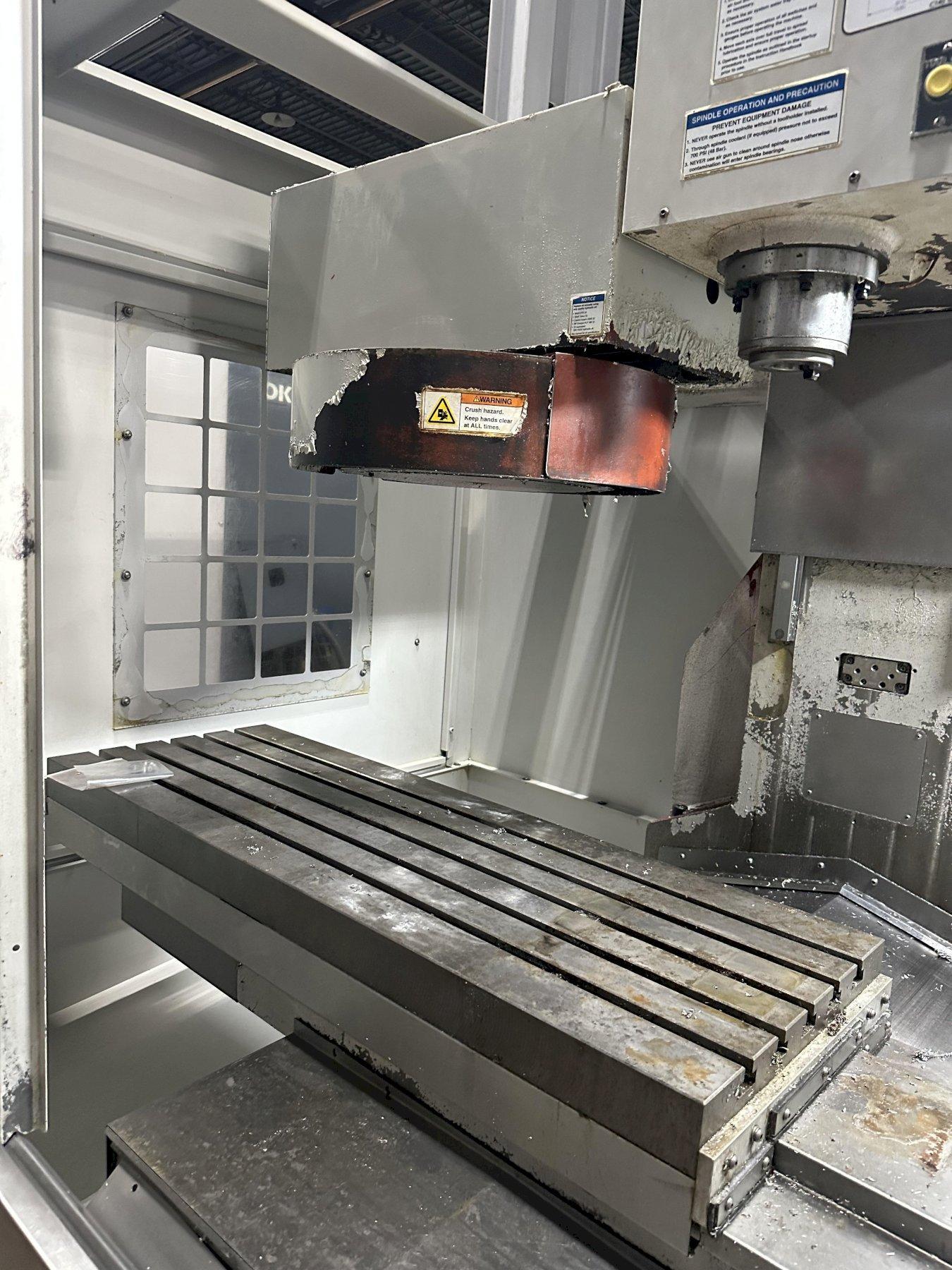

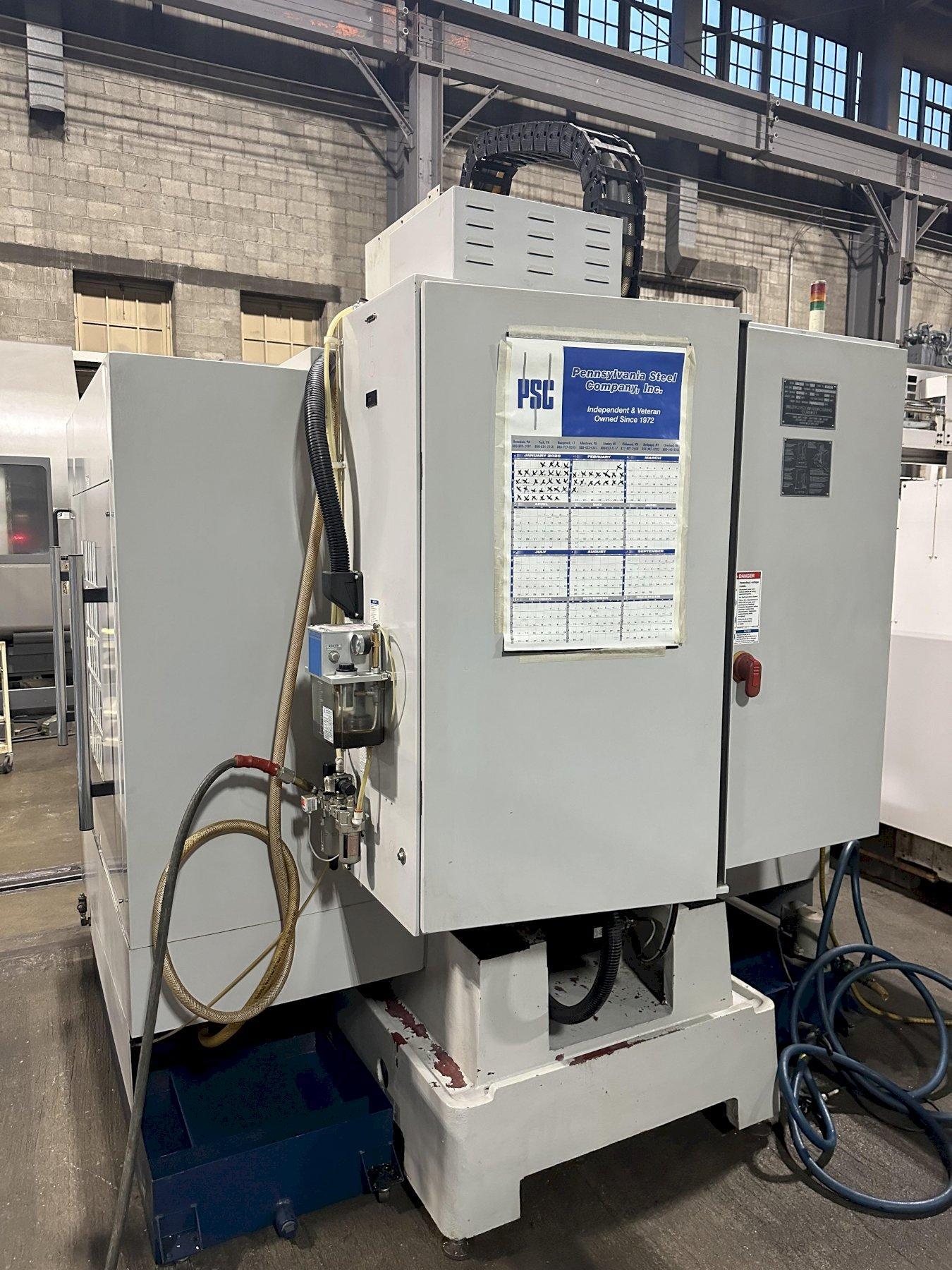

MILLTRONICS VM-16 CNC VERTICAL MACHINING CENTER

Stock #: Q11252

Brand: MILLTRONICS
Model: VM-16
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2012

Equipped With:


Milltronics 7200 CNC Control, 16 Station Umbrella Style Tool Changer, Coolant System.

Specifications:

CNC Control yes

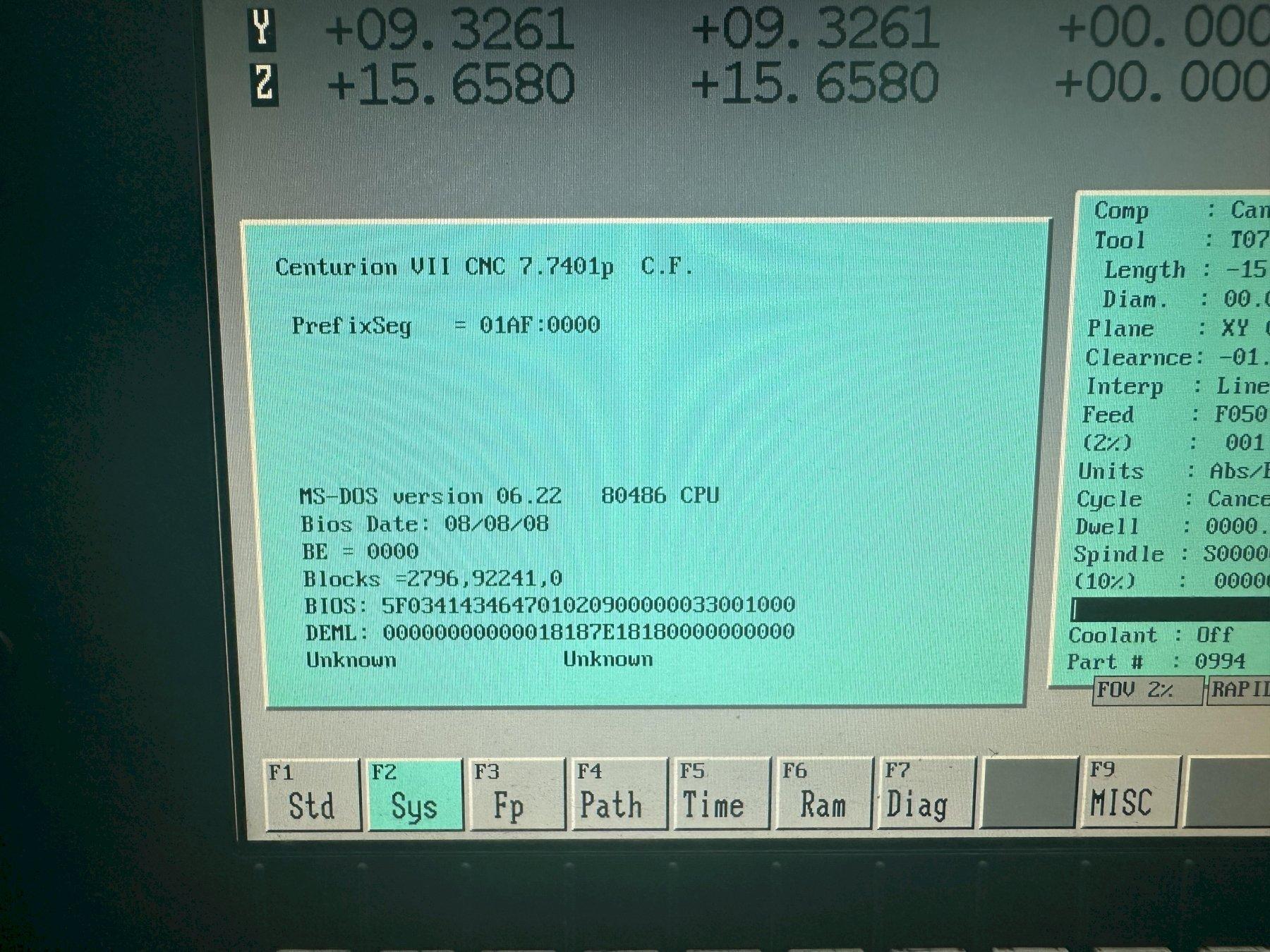

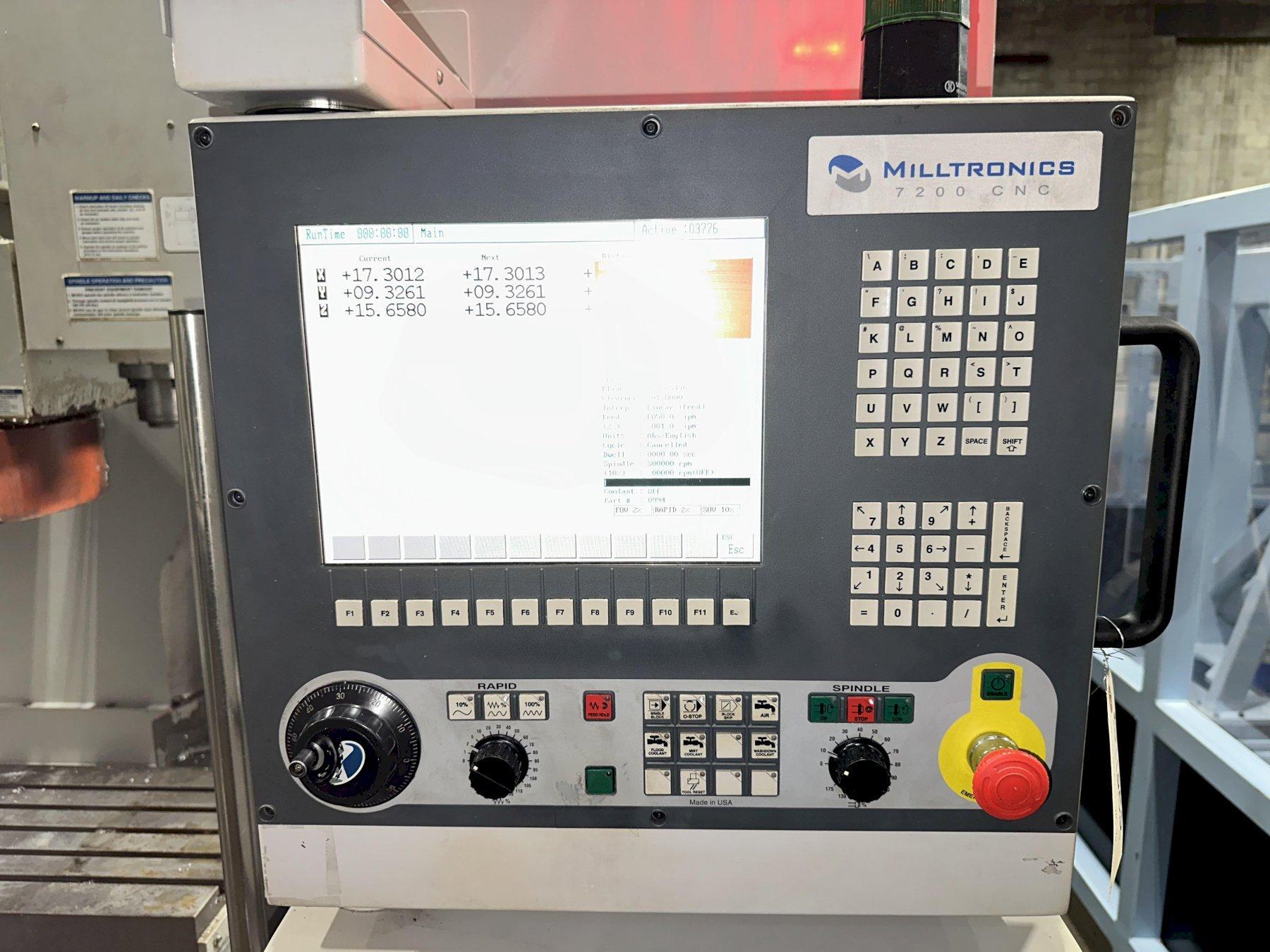

Type of CNC Control Milltronics 7200 CNC Control
# Axis 3
Table Size 45" x 16"
Table Load Capacity 1,000 LBS
X-Axis (Longitudinal Travel) 30"
Y-Axis (Cross Travel) 16"
Z-Axis (Vertical Travel) 20"
Max/Min Clearance Table Top to Spindle Nose 24" / 4"
Rapid Traverse Rate, All Axes 1,000 IPM
Spindle Horsepower 18 HP
Spindle Speed Range 0 - 8,000 RPM
Spindle Taper 40
Automatic Tool Changer Capacity (ATC) 16
Automatic Tool Changer Style Umbrella
Approximate Machine Dimensions 86" x 70"
Approximate Machine Height 98"
Approximate Machine Weight 9,300 LBS
CONDITION: This Machine Appears to be in Excellent Condition!

MILLTRONICS VM-16 CNC VERTICAL MACHINING CENTER

Machine Videos

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Model
      VM-16

      Type
      Machining Centers, Vertical

      Stock #
      Q11252

      Condition
      Excellent

      Year
      2012

      Request a Quote Today!

      Get Started

      Equipped With

      Milltronics 7200 CNC Control, 16 Station Umbrella Style Tool Changer, Coolant System.

      Specifications

      CNC Control yes
      Type of CNC Control Milltronics 7200 CNC Control
      # Axis 3
      Table Size 45" x 16"
      Table Load Capacity 1,000 LBS
      X-Axis (Longitudinal Travel) 30"
      Y-Axis (Cross Travel) 16"
      Z-Axis (Vertical Travel) 20"
      Max/Min Clearance Table Top to Spindle Nose 24" / 4"
      Rapid Traverse Rate, All Axes 1,000 IPM
      Spindle Horsepower 18 HP
      Spindle Speed Range 0 - 8,000 RPM
      Spindle Taper 40
      Automatic Tool Changer Capacity (ATC) 16
      Automatic Tool Changer Style Umbrella
      Approximate Machine Dimensions 86" x 70"
      Approximate Machine Height 98"
      Approximate Machine Weight 9,300 LBS
      CONDITION: This Machine Appears to be in Excellent Condition!
