Stock #: Q10396
Brand: BALDOR
Model: VM3615T
Type: Motors, A.C.
Condition: Very Good
Year: Not Specified

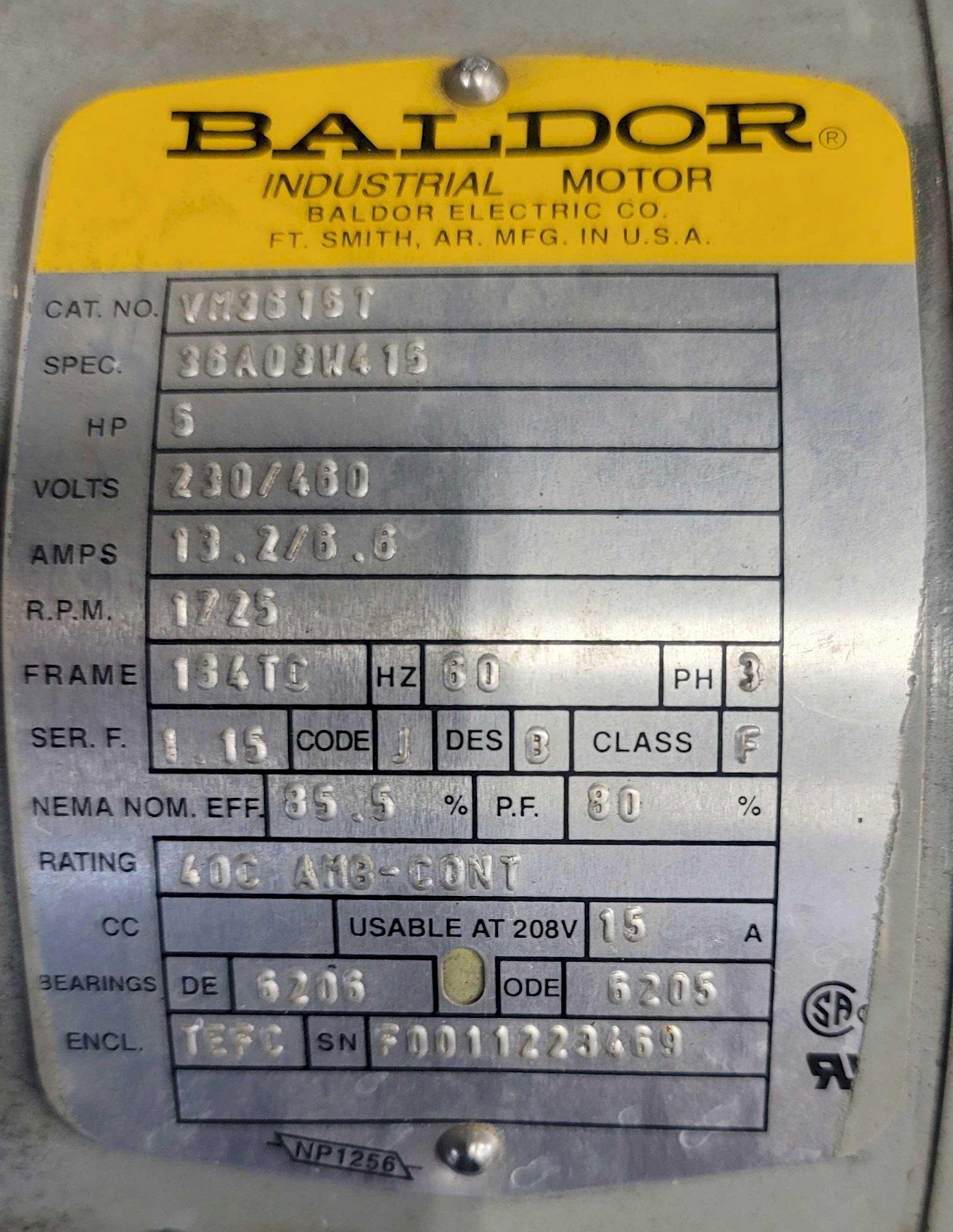

Specifications: |
|
|---|---|
| Spec Number | 36A03W415 |
| Motor Horsepower | 5 HP |
| Actual Rated Input Voltage | 230/460 V |
| Full Load Amps | 13.2/6.6 A |
| Base Speed | 1,725 RPM |
| Frame | 184TC |
| AC Frequency Rating | 60 Hz |
| Motor Phase | 3 Phase |
| Service Factor | 1.15 |
| NEMA KVA Code | J (Locked Rotor Code: 7.1 - 7.99 kVA) |
| NEMA Design Letter | B (General Purpose) |
| Insulation Class | F (Max 155° C) |
| NEMA-NOM Efficiency | 85.5% |
| Power Factor | 80% |
| Ambient and Time Rating | 40° C AMB-CONT |
| Drive End (DE) | 6206 |
| Opposite Drive End (ODE) | 6205 |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Current Type | AC |
| Approximate Dimensions | 19" x 12" |
| Approximate Height | 15" |
| Approximate Weight | 74 LBS |

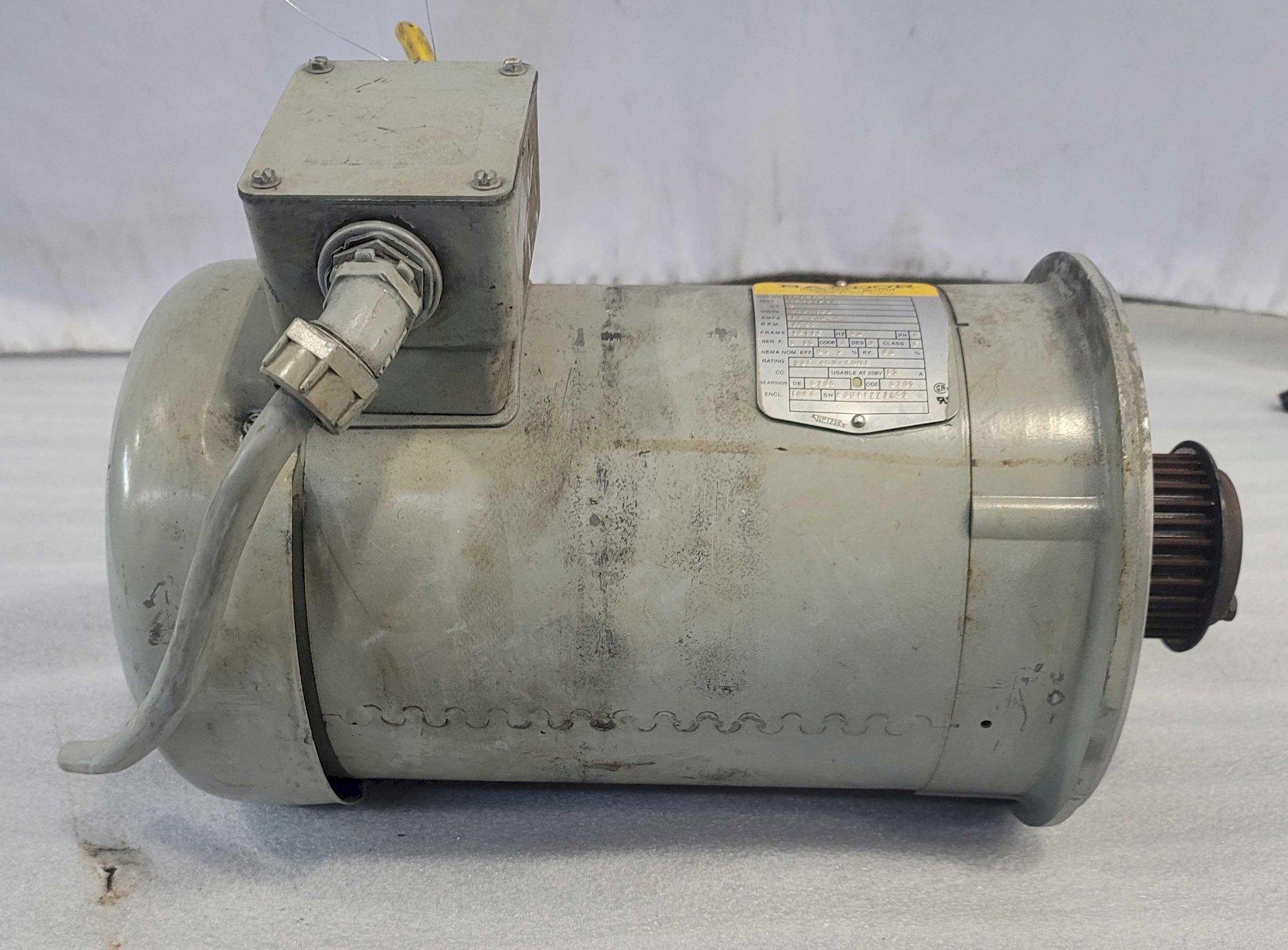

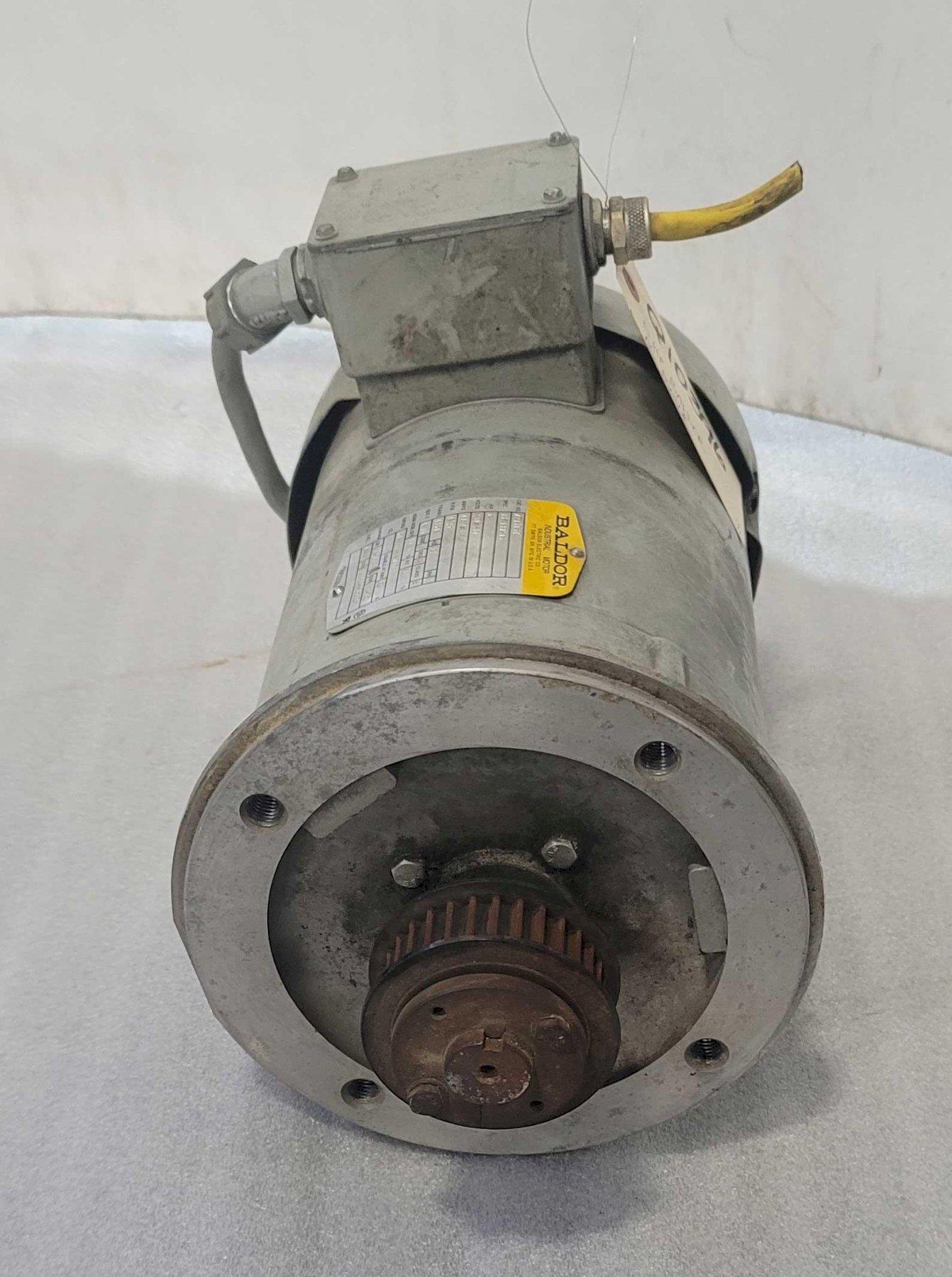

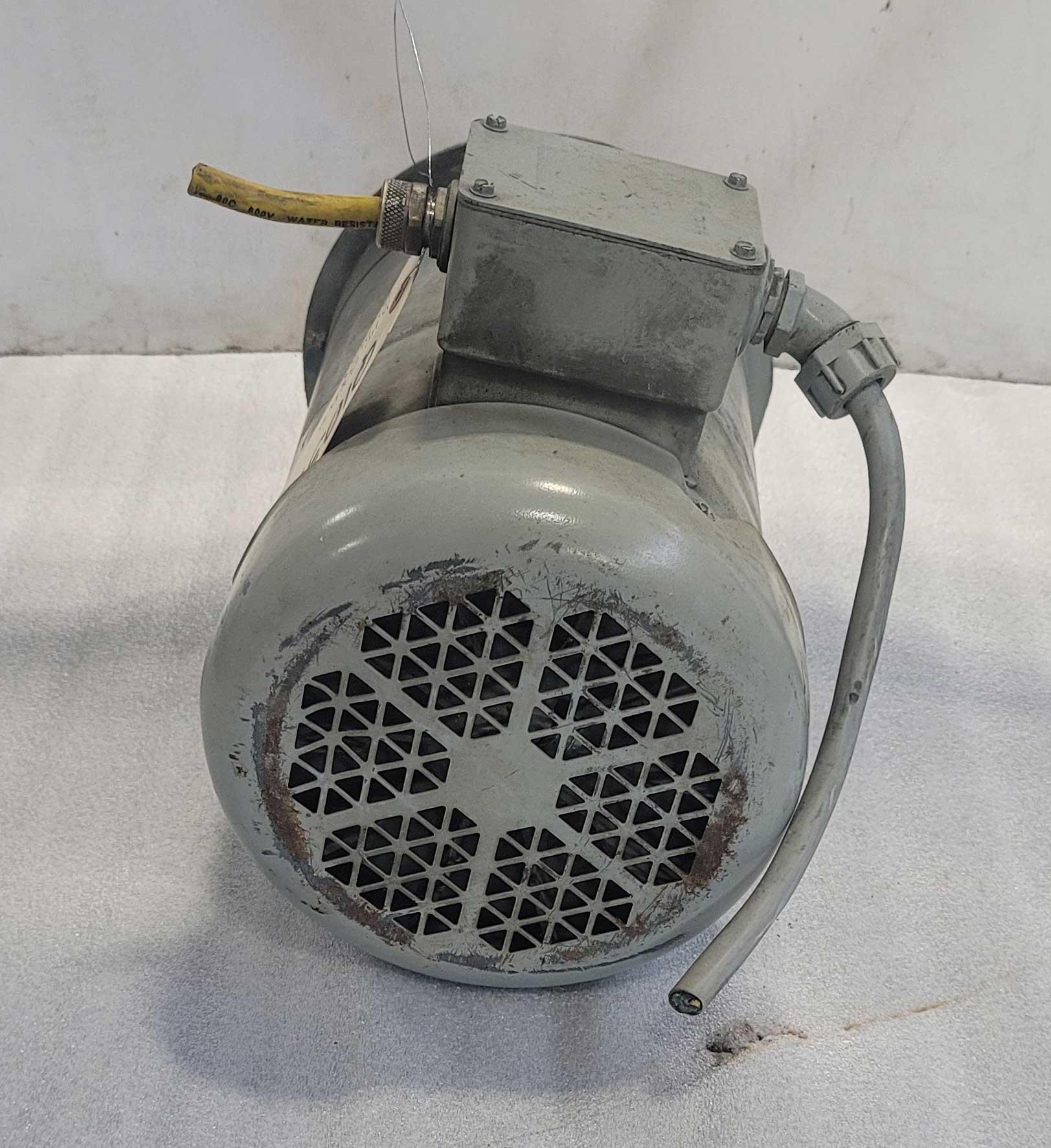

CONDITION: Motor Appears to be in Very Good Condition.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Specifications |
|
|---|---|
| Spec Number | 36A03W415 |
| Motor Horsepower | 5 HP |
| Actual Rated Input Voltage | 230/460 V |
| Full Load Amps | 13.2/6.6 A |
| Base Speed | 1,725 RPM |
| Frame | 184TC |
| AC Frequency Rating | 60 Hz |
| Motor Phase | 3 Phase |
| Service Factor | 1.15 |
| NEMA KVA Code | J (Locked Rotor Code: 7.1 - 7.99 kVA) |
| NEMA Design Letter | B (General Purpose) |
| Insulation Class | F (Max 155° C) |
| NEMA-NOM Efficiency | 85.5% |
| Power Factor | 80% |
| Ambient and Time Rating | 40° C AMB-CONT |
| Drive End (DE) | 6206 |
| Opposite Drive End (ODE) | 6205 |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Current Type | AC |
| Approximate Dimensions | 19" x 12" |
| Approximate Height | 15" |
| Approximate Weight | 74 LBS |
| CONDITION: Motor Appears to be in Very Good Condition. |
