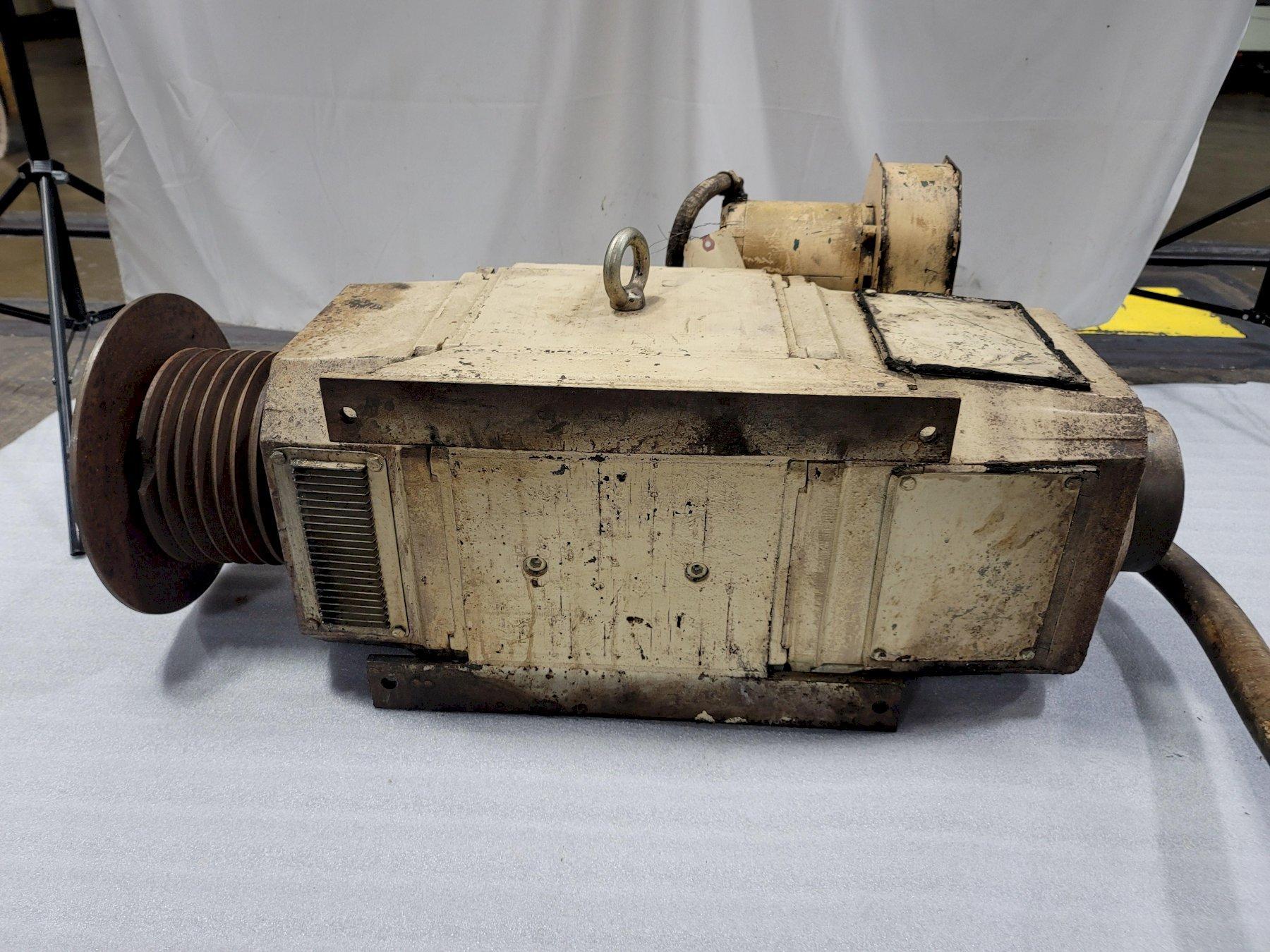

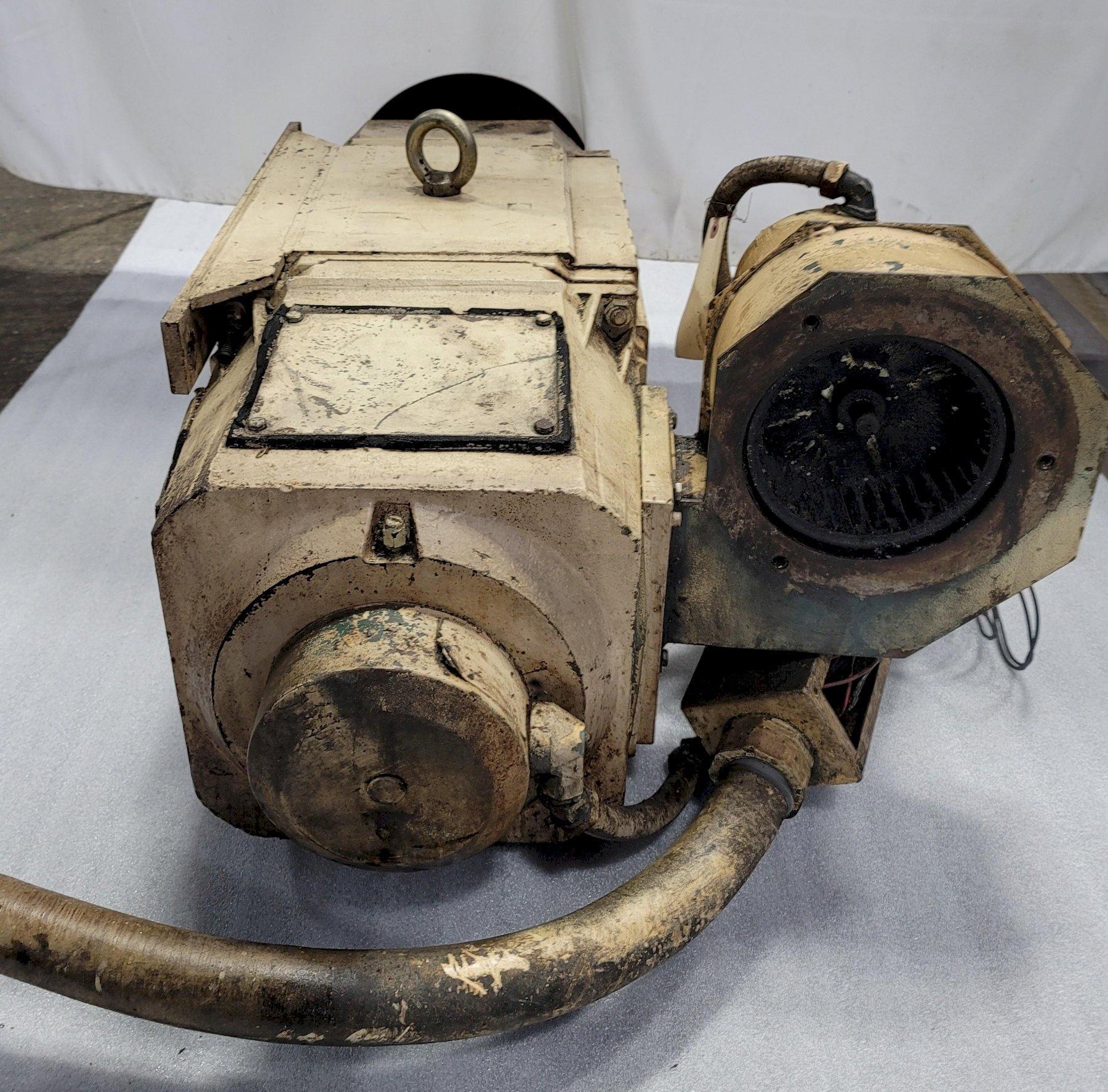

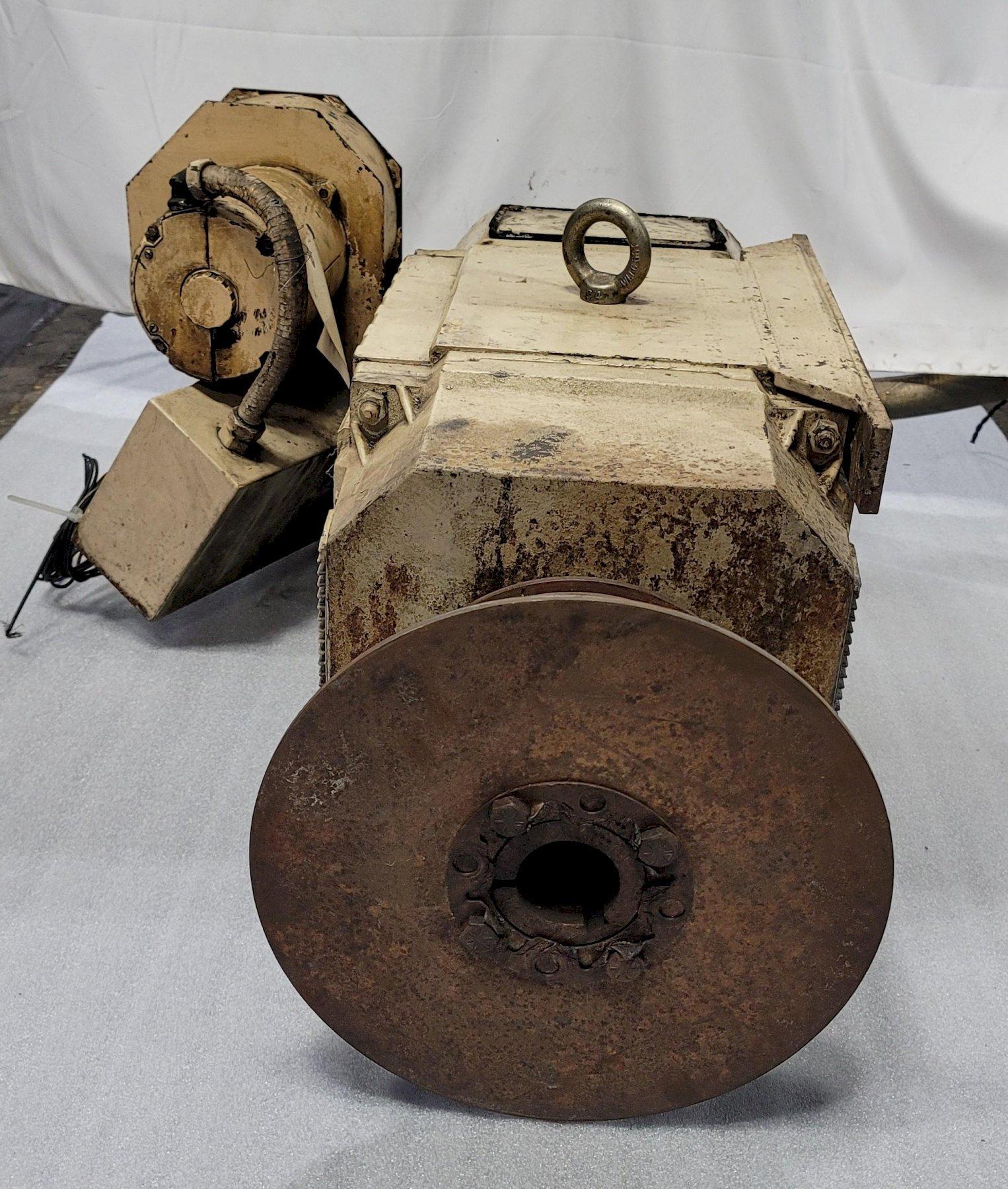

Stock #: Q10838
Brand: RELIANCE
Model: Super RPM
Type: Motors, D.C.
Condition: Very Good
Year: Not Specified
Specifications: |
|
---|---|
Motor Horsepower | 30/25/40 HP |
Base Speed | 1150/3450 RPM |
Field Amps | 110 A |
Field Voltage | 240 V |
Insulation Class | F (Max 155° C) |
Ambient | 40° C |
Frame | B2810ATZ |
Enclosure Type | DP (Drip-Proof) |
Approximate Dimensions | 40" x 25" |
Approximate Height | 17" |
Approximate Weight | 800 LBS |
CONDITION: This Motor Appears to be in Very Good Condition.
