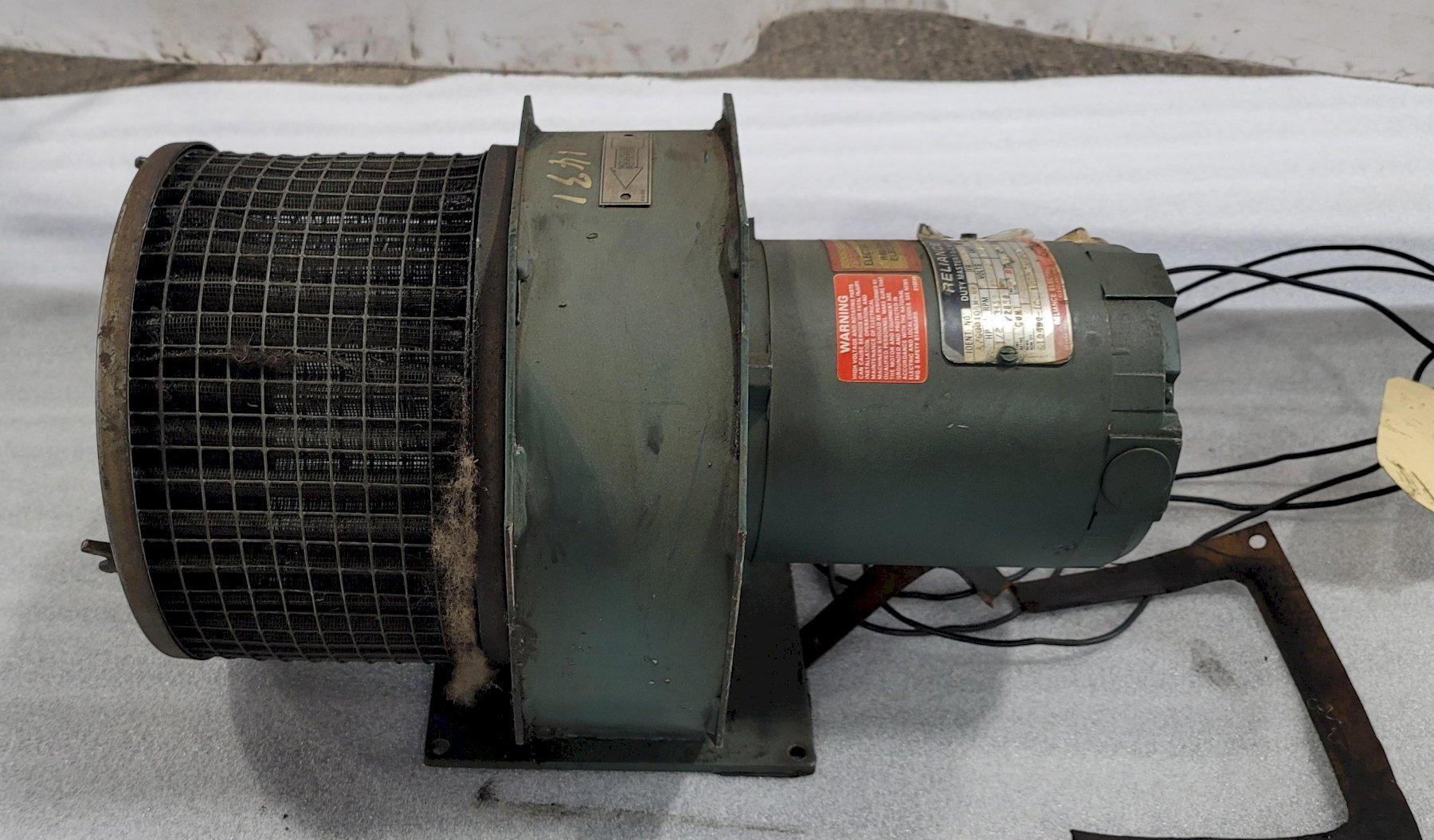

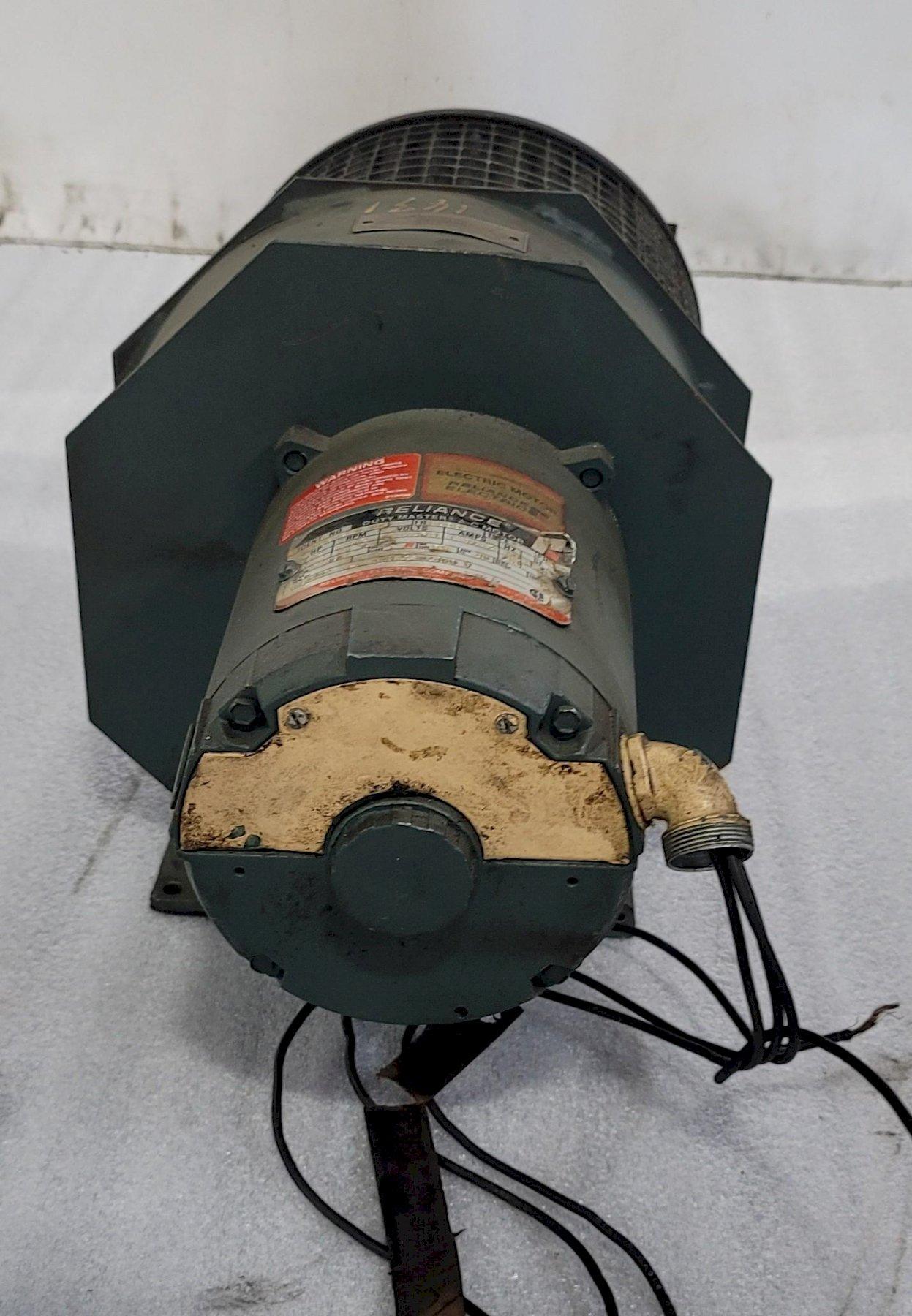

1/2 HP RELIANCE ELECTRIC DUTY MASTER AC MOTOR WITH BLOWER

Stock #: Q10836

Brand: RELIANCE
Model: DUTY MASTER
Type: Motors, A.C.
Condition: Very Good
Year: Not Specified

Equipped With:



Specifications:

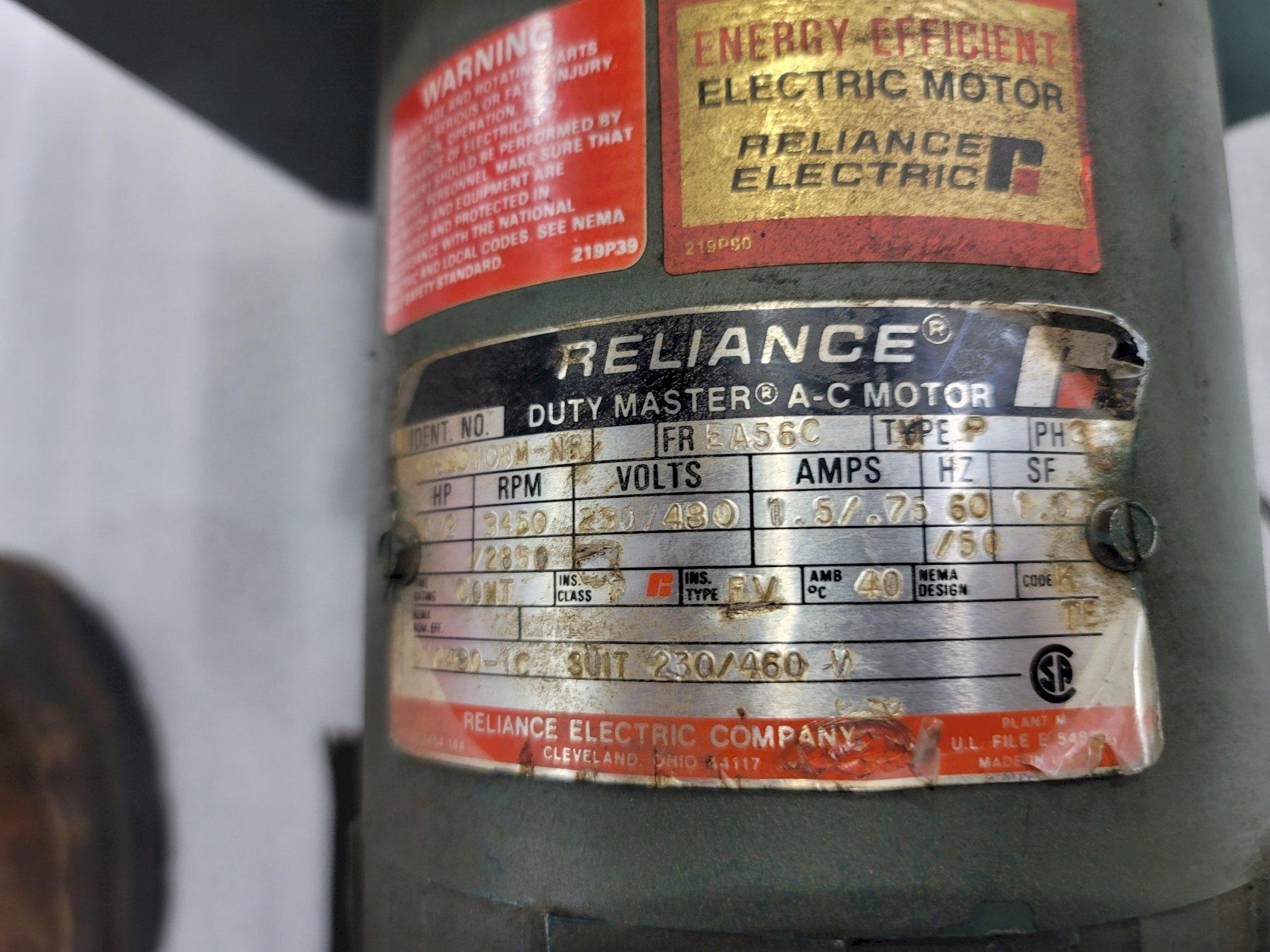

AC Motor Type P
Motor Horsepower 1/2 HP
Actual Rated Input Voltage 230/480 V
Full Load Amps 1.5/.75 A
Base Speed 3,450 RPM
Frame EA56C
Motor Phase 3 Phase
Service Factor 1.0
NEMA Design Letter K
Insulation Class F (Max 155° C)
Ambient and Time Rating 40° C AMB-CONT
Current Type AC
Approximate Dimensions 10" x 10"
Approximate Height 17"
Approximate Weight 28 LBS
CONDITION: This Motor & Blower Unit Appears to be in Very Good Condition.

1/2 HP RELIANCE ELECTRIC DUTY MASTER AC MOTOR WITH BLOWER
