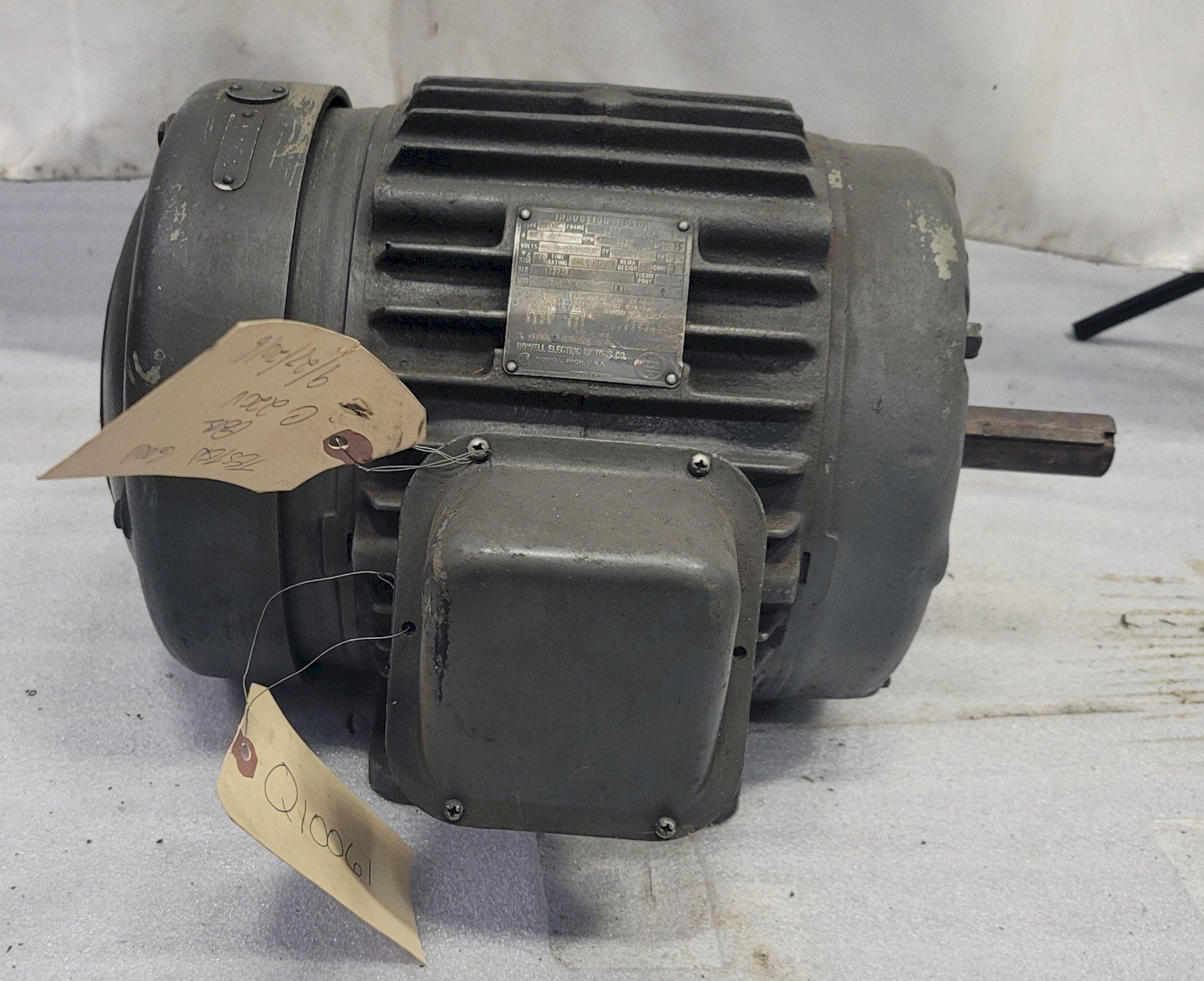

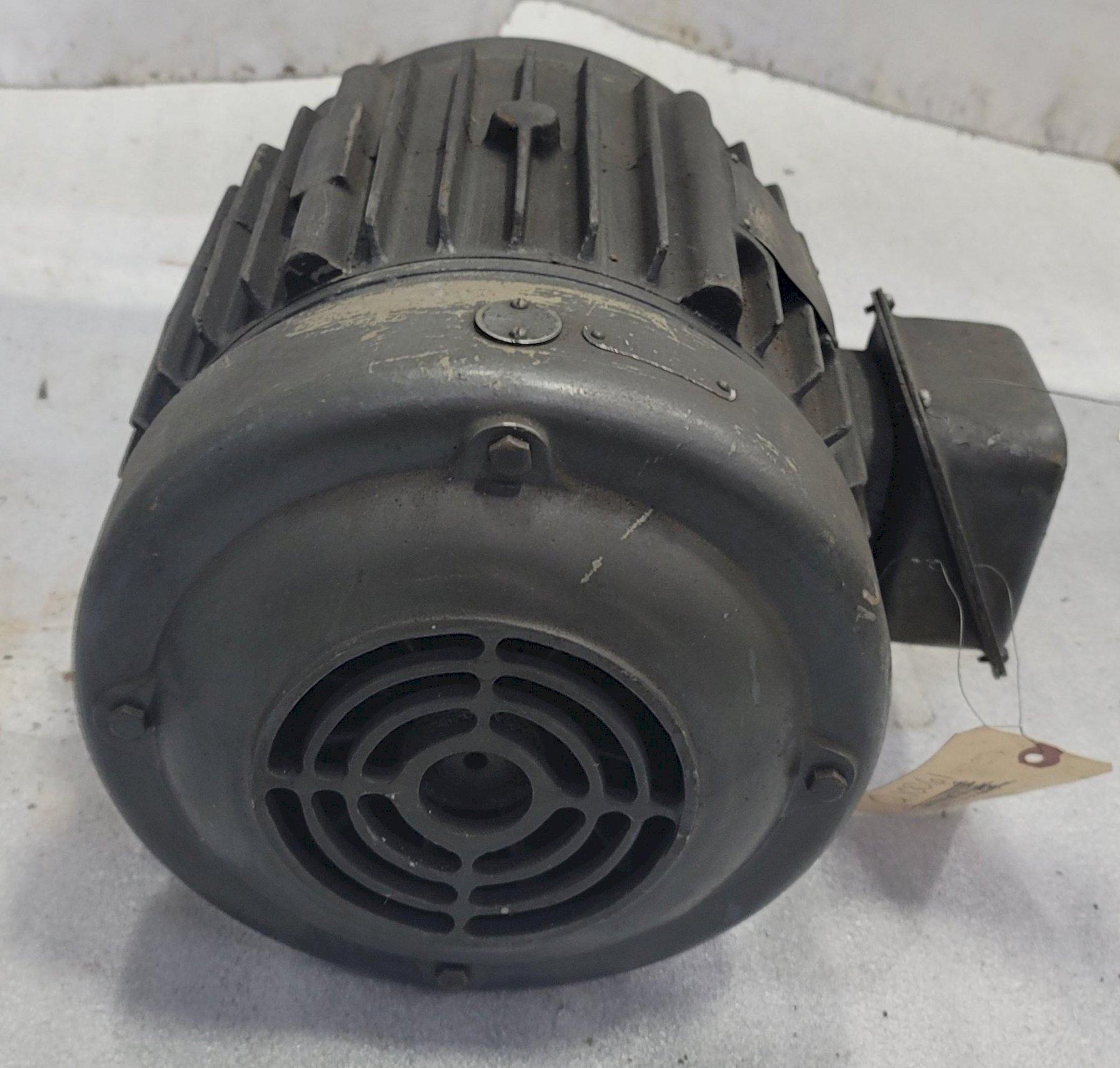

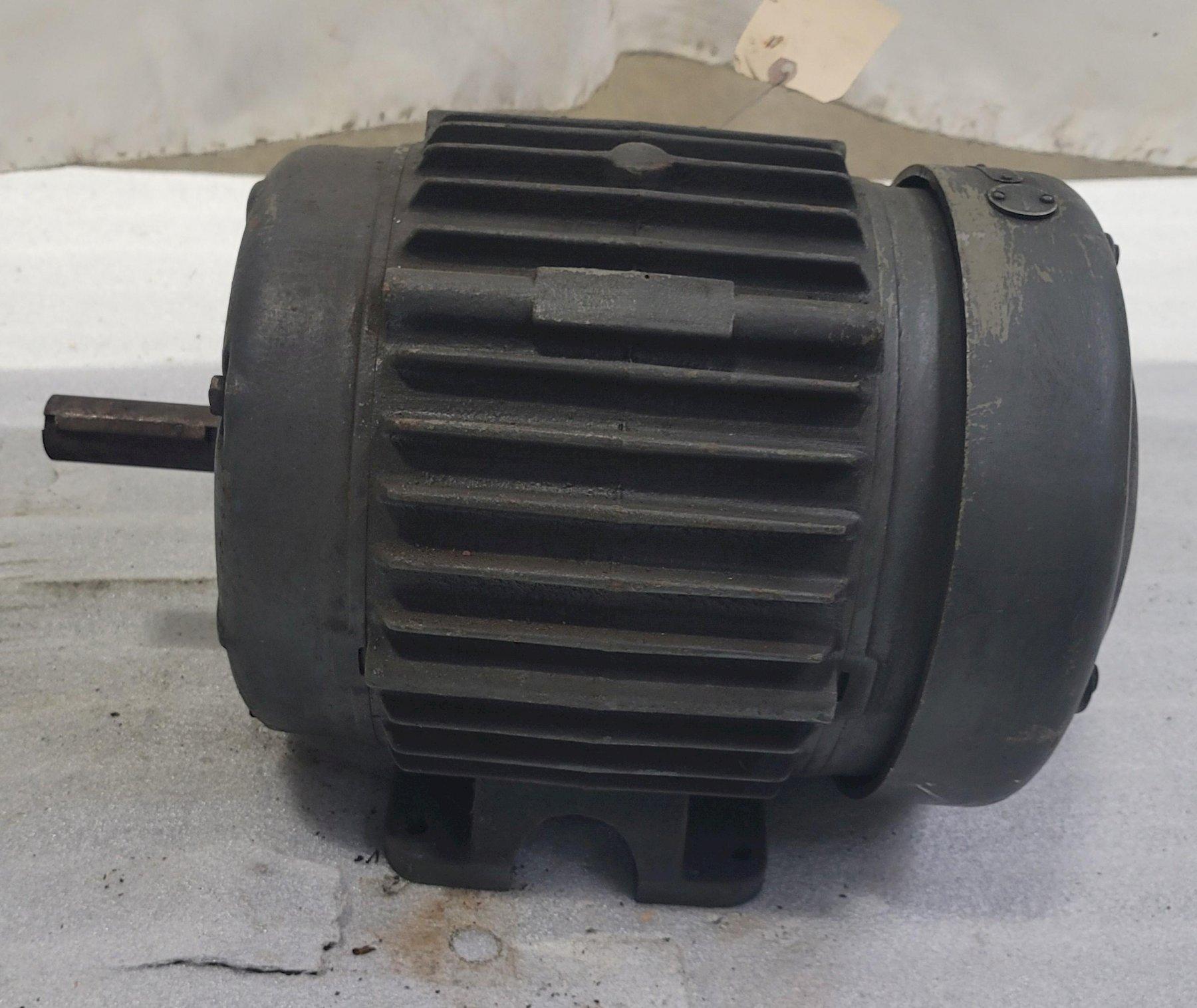

3 HP HOWELL ELECTRIC MOTOR, MODEL 124B-53011

Stock #: Q10828

Brand: HOWELL
Model: 124B-53011
Type: Motors, A.C.
Condition: Very Good
Year: Not Specified

Equipped With:



Specifications:

AC Motor Type NK
Motor Horsepower 3 HP
Actual Rated Input Voltage 208-220/440 V
Full Load Amps 8.4/4.2 A
Base Speed 1730 RPM
Frame C213
AC Frequency Rating 60 Hz
Motor Phase 3-Phase
Service Factor 1.15
NEMA KVA Code J (Locked Rotor Code: 7.1 - 7.99 kVA)
NEMA Design Letter B (General Purpose)
Insulation Class B (Max 266°F)
Current Type AC
Approximate Dimensions 17" x 14"
Approximate Height 11"
Approximate Weight 100 LBS
CONDITION: This Motor Appears to be in Very Good Condition.
