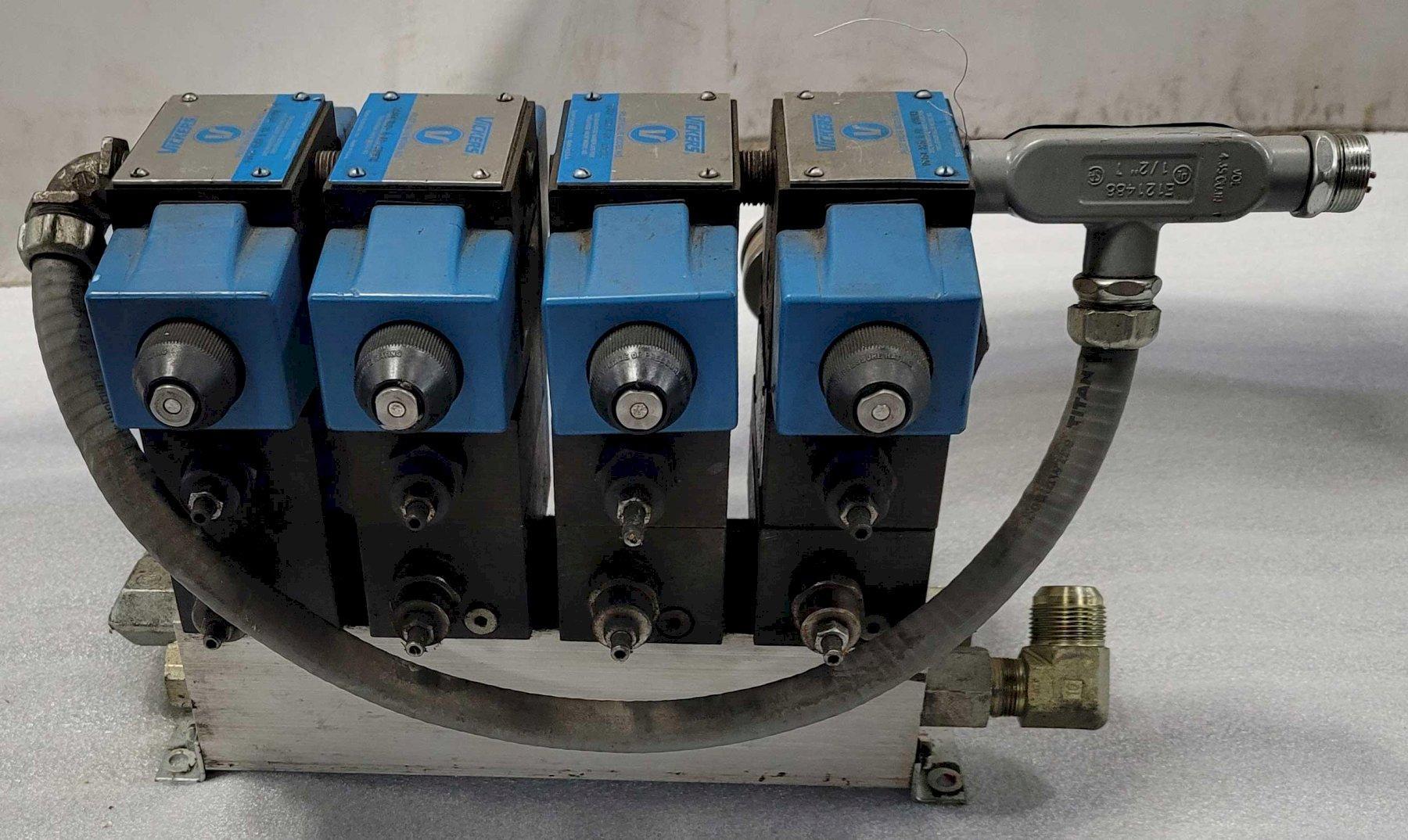

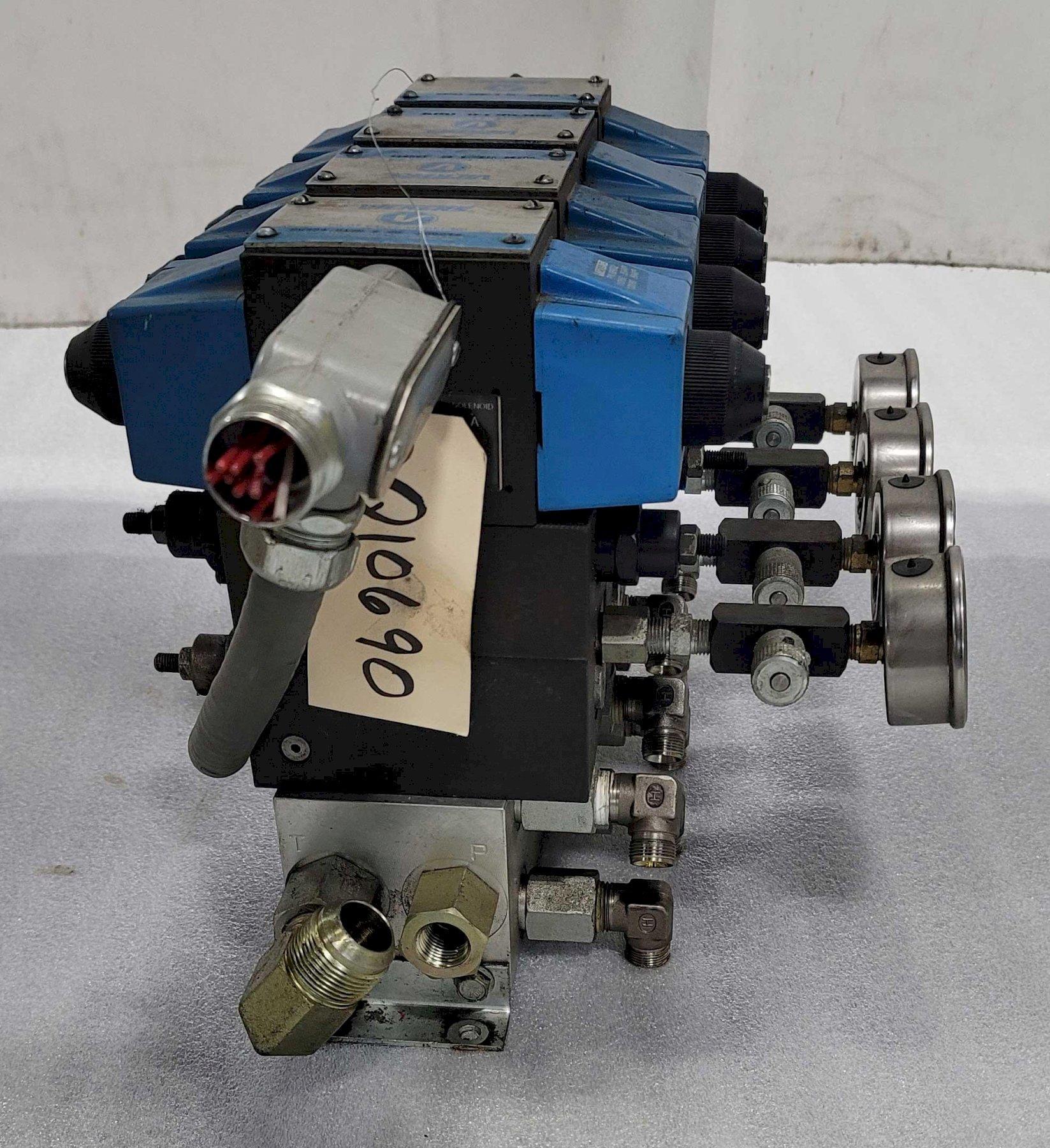

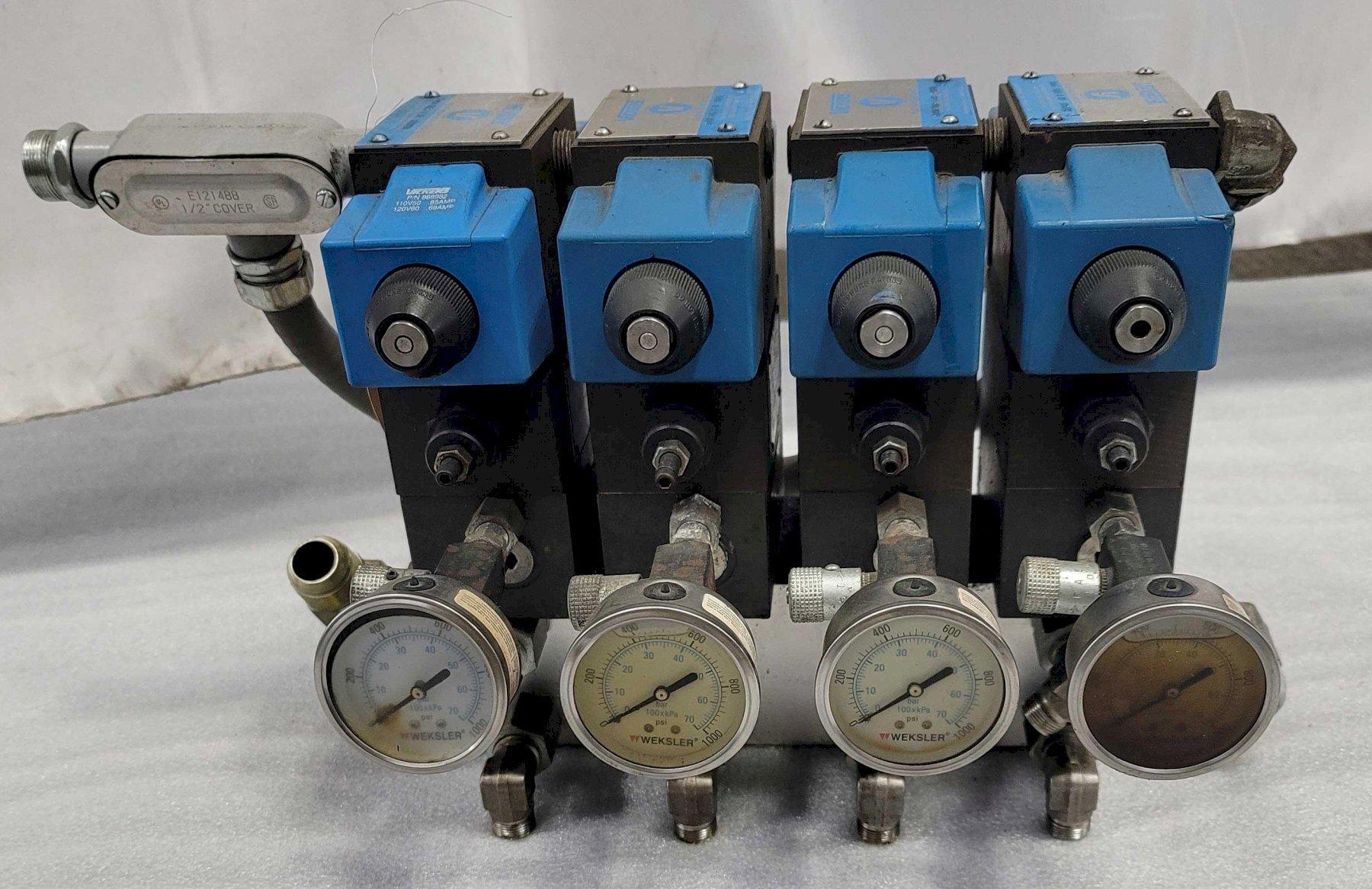

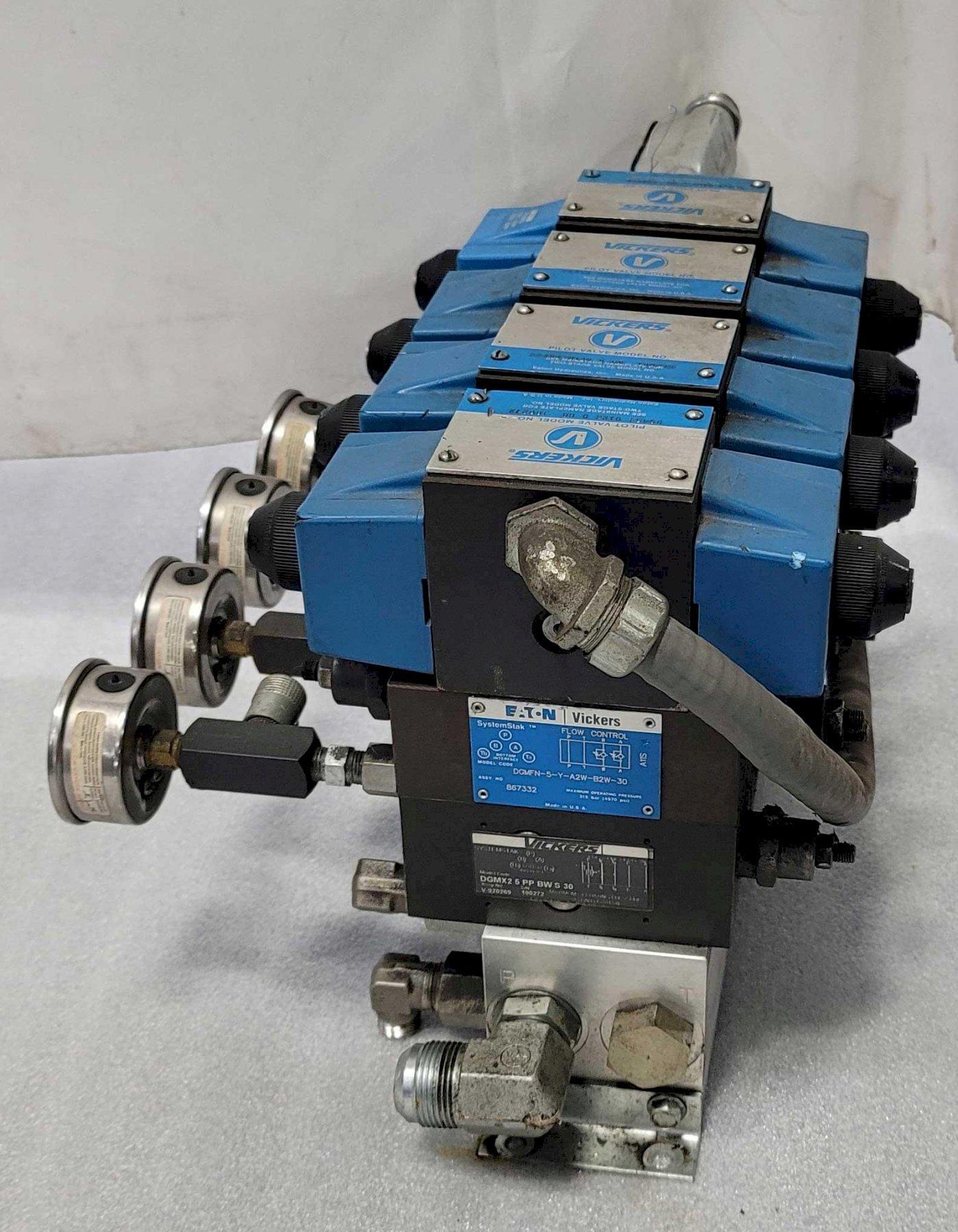

EATON VICKERS SYSTEMSTAK FLOW CONTROL VALVES

Stock #: Q10690

Brand: EATON VICKERS

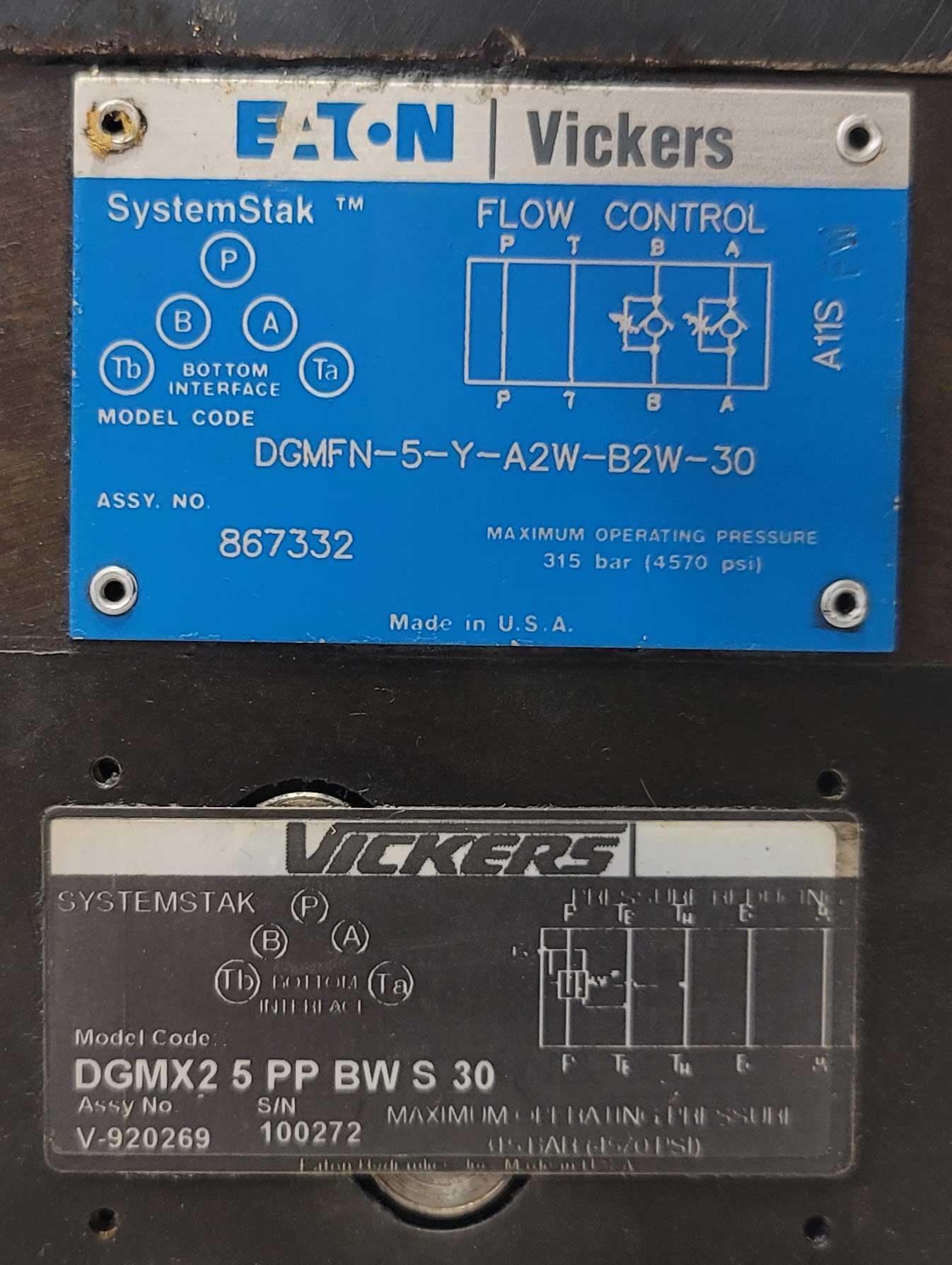

Model: DGMFN-5-Y-A2W-B2W-30
Type: Valves
Condition: Very Good
Year: Not Specified

Equipped With:


  - ASSY NO   V-920269
  - S/N 100272
  - 4,570 PSI
  - 315 bar

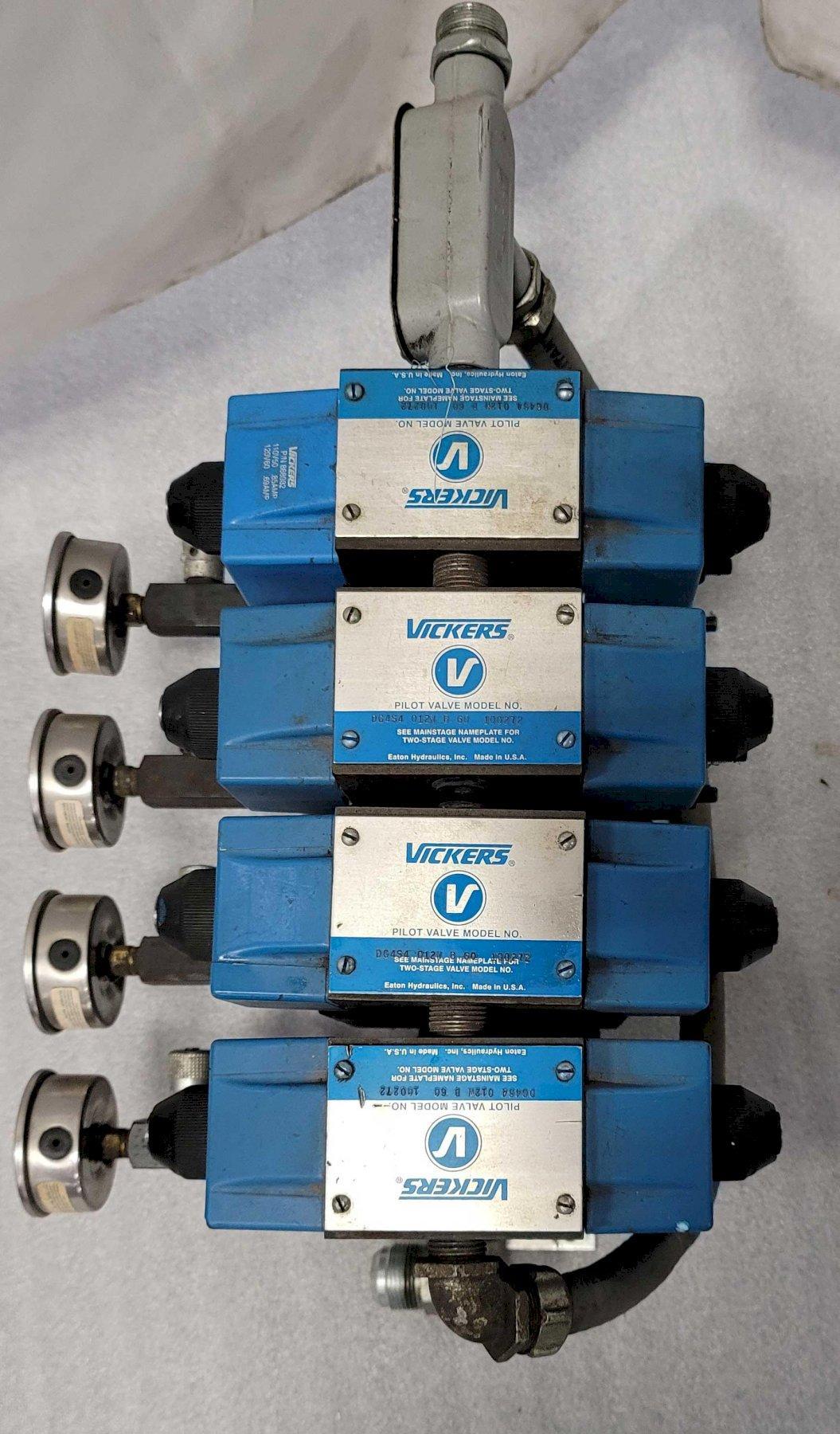

Hydraulic Directional Pilot Valve, with 4-Way Solenoid Action
  - MODEL   DG4S4-012N-B-60
  - MAX FLOW   20 GPM
  - Valve Coil P/N 868982, 110 VAC 50 Hz or 120 VAC 60 Hz

Specifications:

Valve Type Check Valve
Stages Two Stage
Type of Actuation Pressure Operated
Flow Rate 120 L/Min, 32 GPM
Max Operating Pressure 315 Bar, 4,570 PSI
Approximate Dimensions (each) 9.2" x 2.8" x 2"
Approximate Weight (each) 7 LBS
Approximate Dimensions Overall 21" x 13"
Approximate Height Overall 12"
Approximate Weight Overall 175 LBS
CONDITION: The Valves Appear to be in Very Good Condition.
