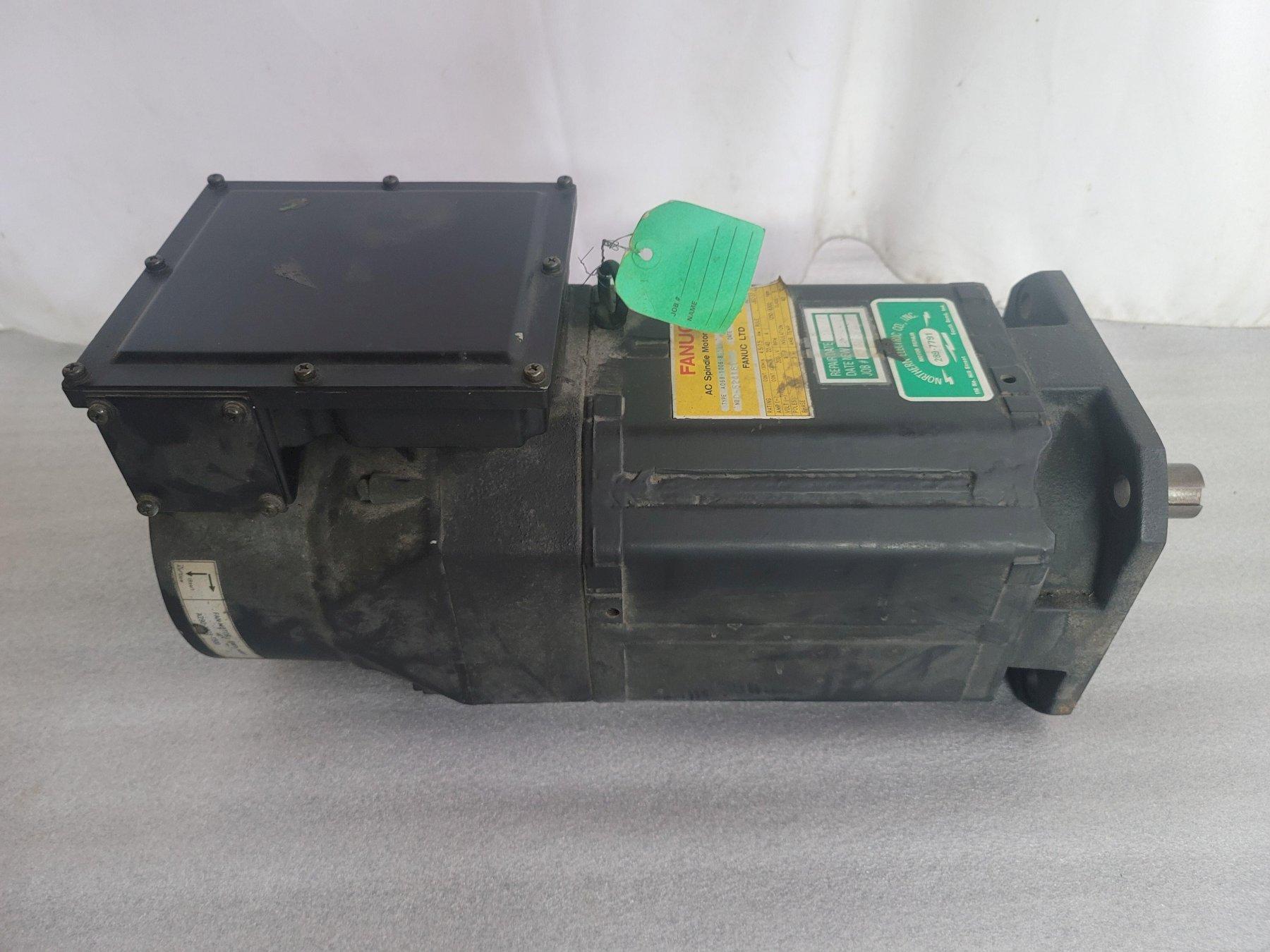

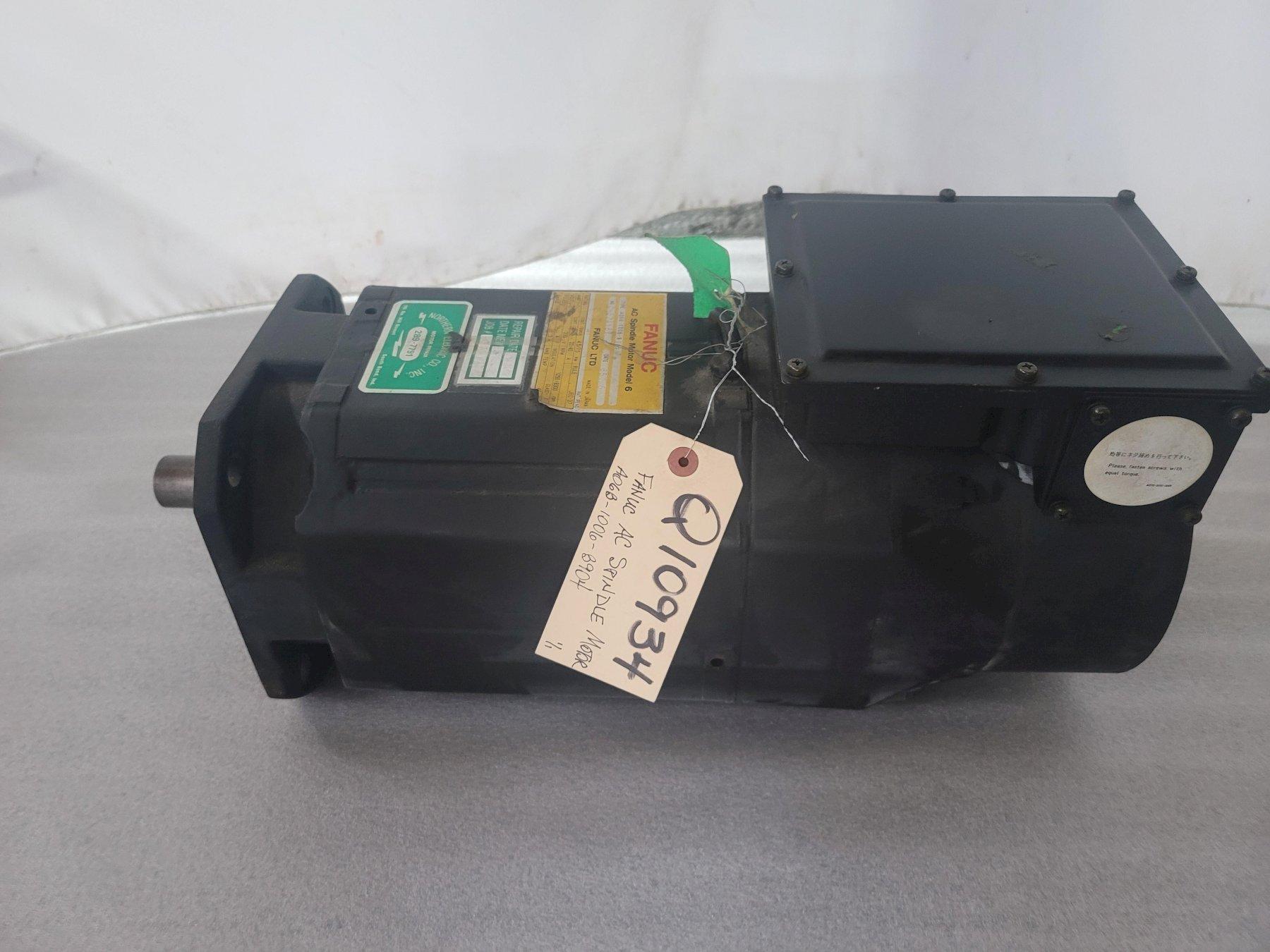

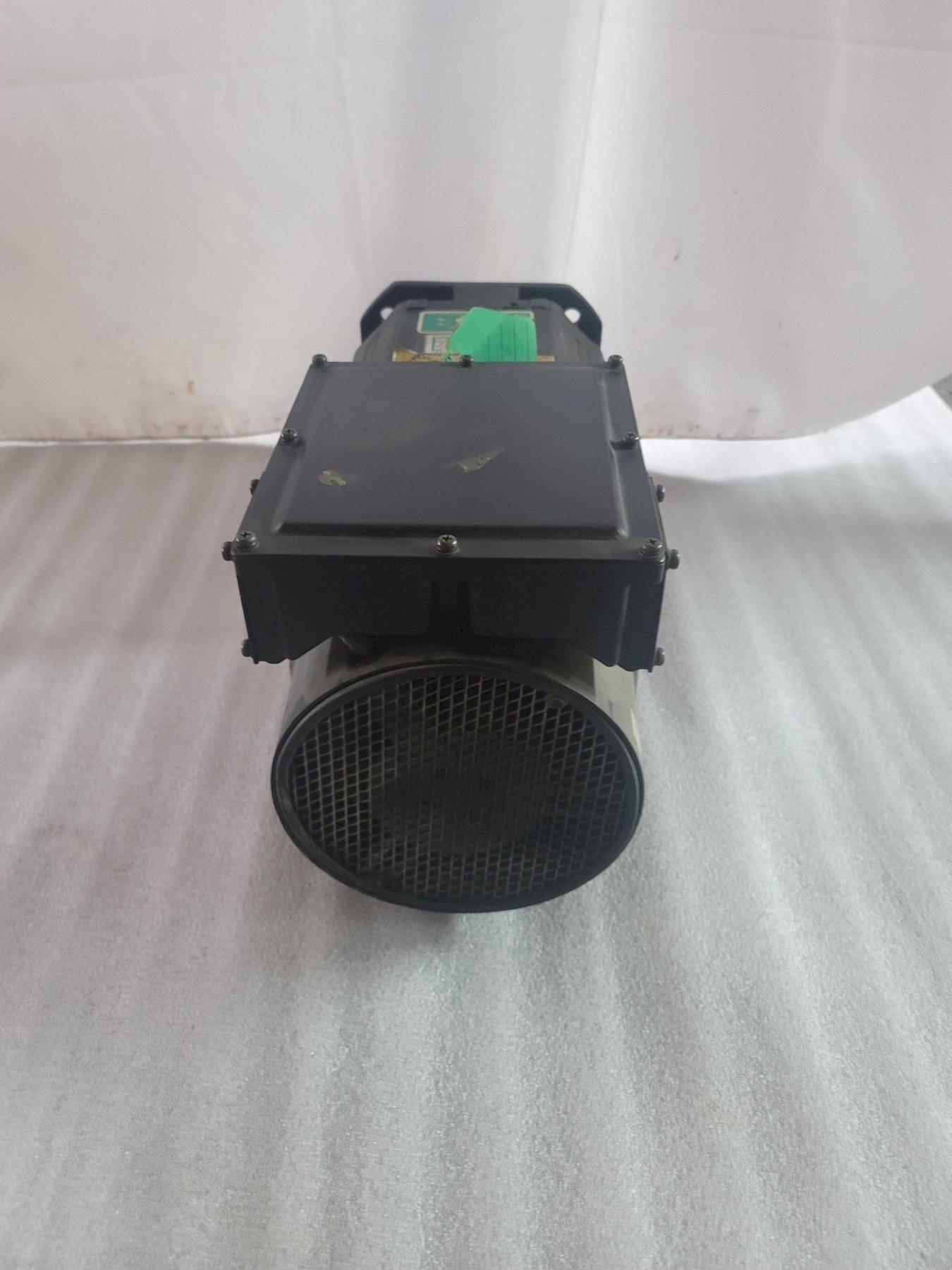

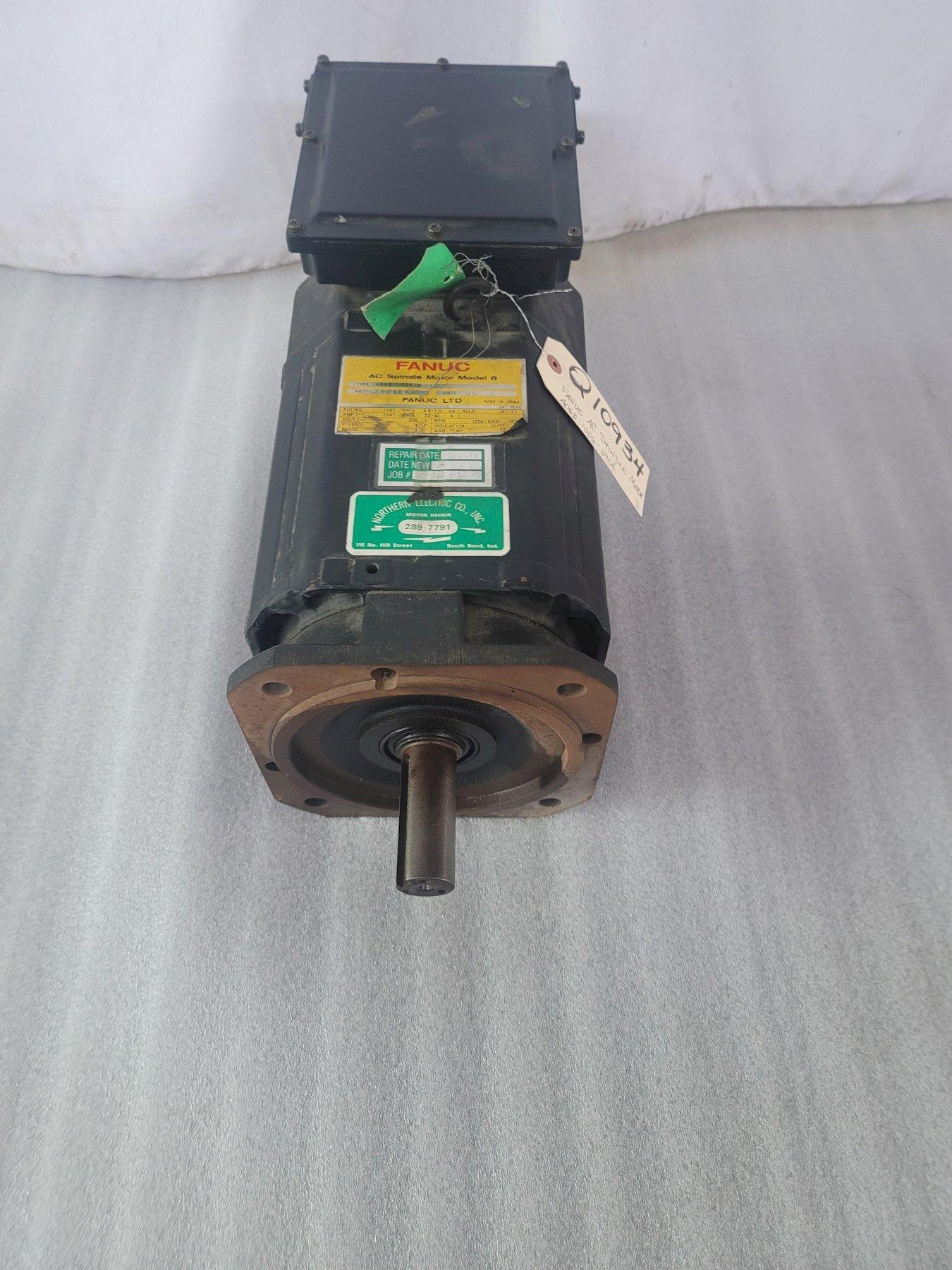

FANUC AC SPINDLE MOTOR A06B-1006-B904

Stock #: Q10934

Brand: FANUC
Model: A06B-1006-B904
Type: Spindle Motors
Condition: Very Good
Year: 1985

Equipped With:



3-Phase, 4 Poles, Fan Motor p/n A290-1003-T500

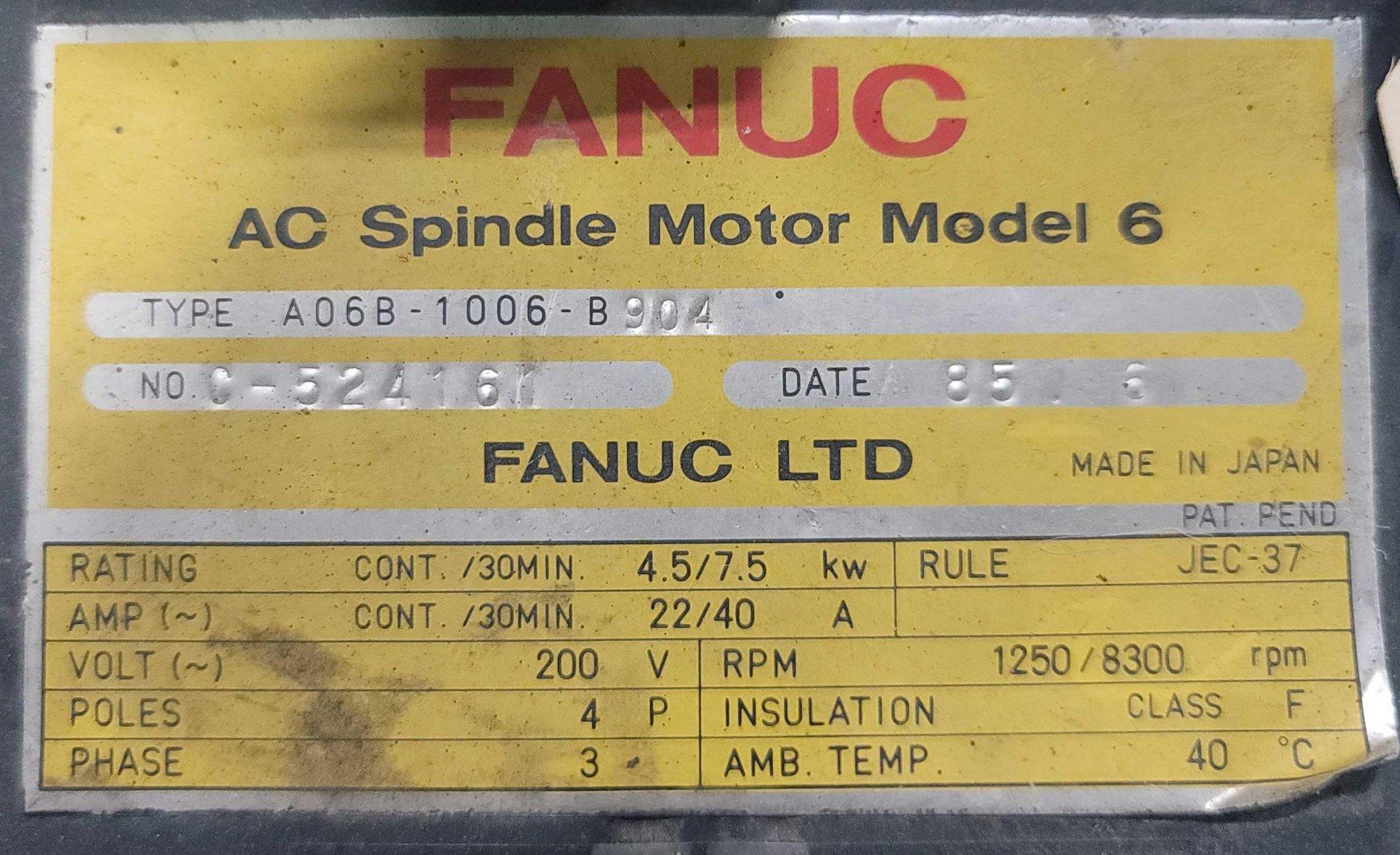

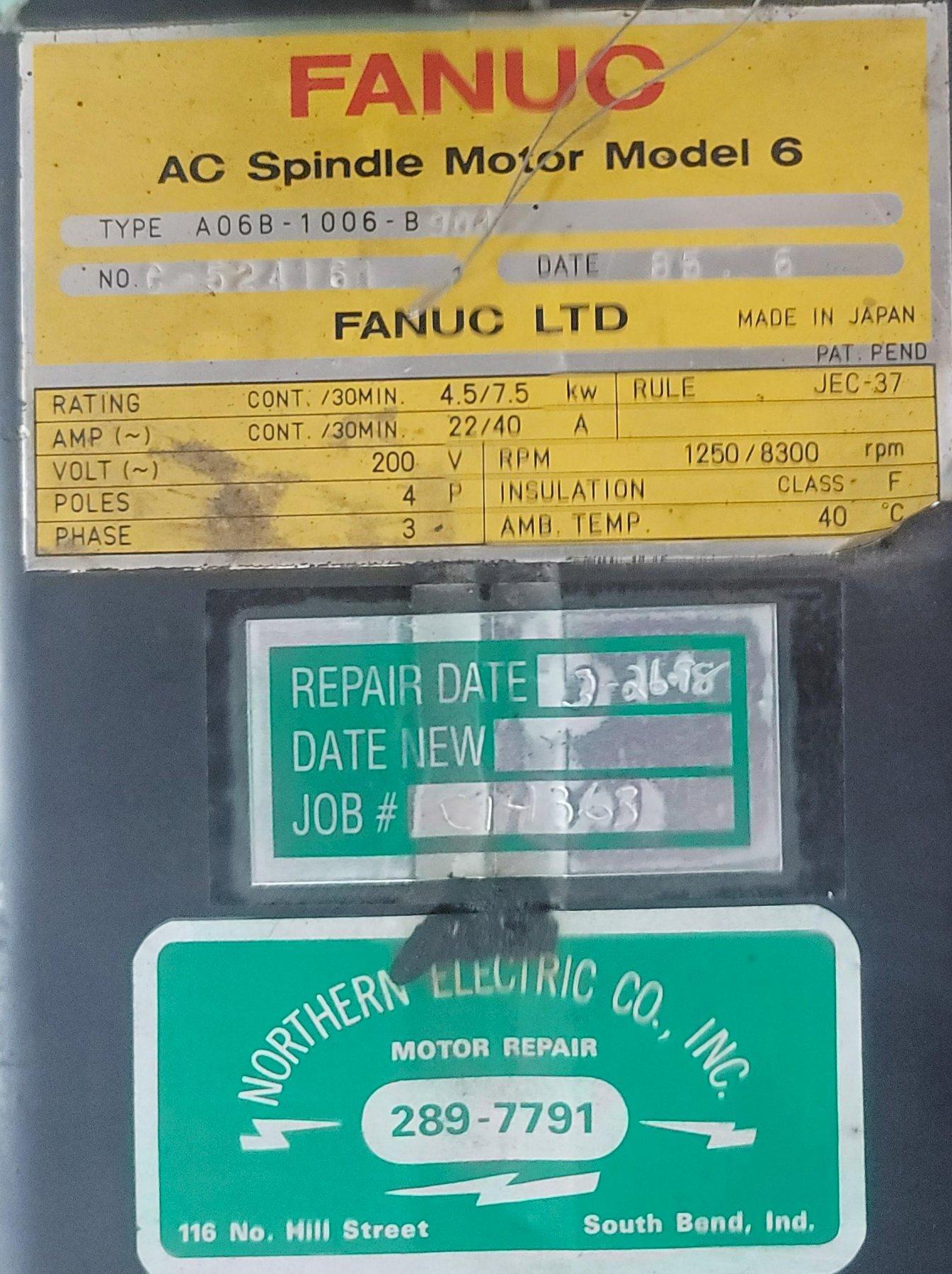

Specifications:

Motor Horsepower 10 HP / 7.5 kW
Base Speed 1,250 / 8,300 RPM
Amperage 22 / 40 A
Voltage 200 V
Insulation Class F (Max 155° C)
Duty CONT
Ambient 40° C
Current Type AC
Approximate Dimensions 22" x 9"
Approximate Height 10"
Approximate Weight 150 LBS
CONDITION: This Motor Appears to be in Very Good Condition.

FANUC AC SPINDLE MOTOR A06B-1006-B904
