Stock #: Q10805
Brand: MILLTRONICS
Model: VM-20
Type: Machining Centers, Vertical
Condition: Very Good
Year: 2003

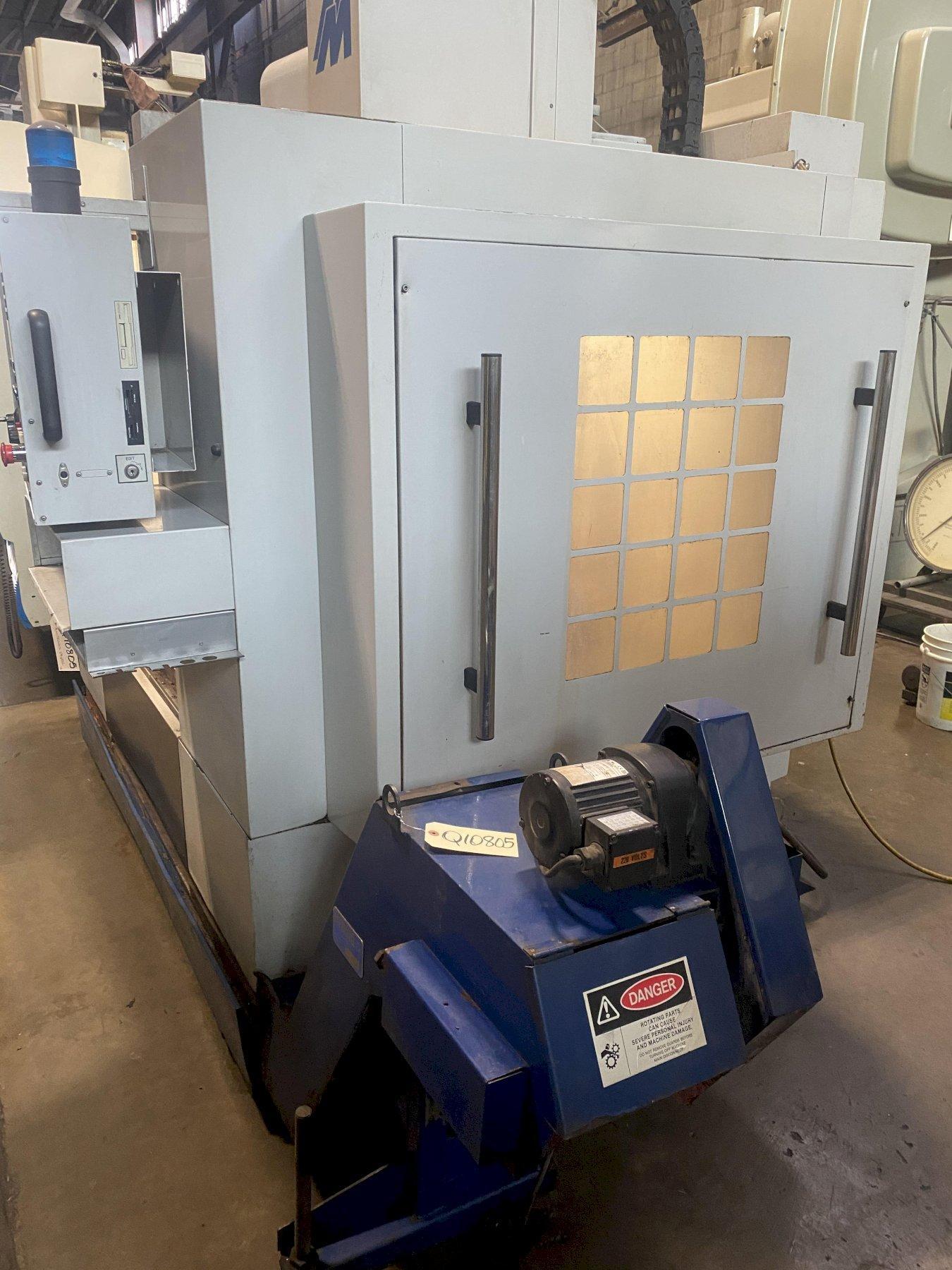

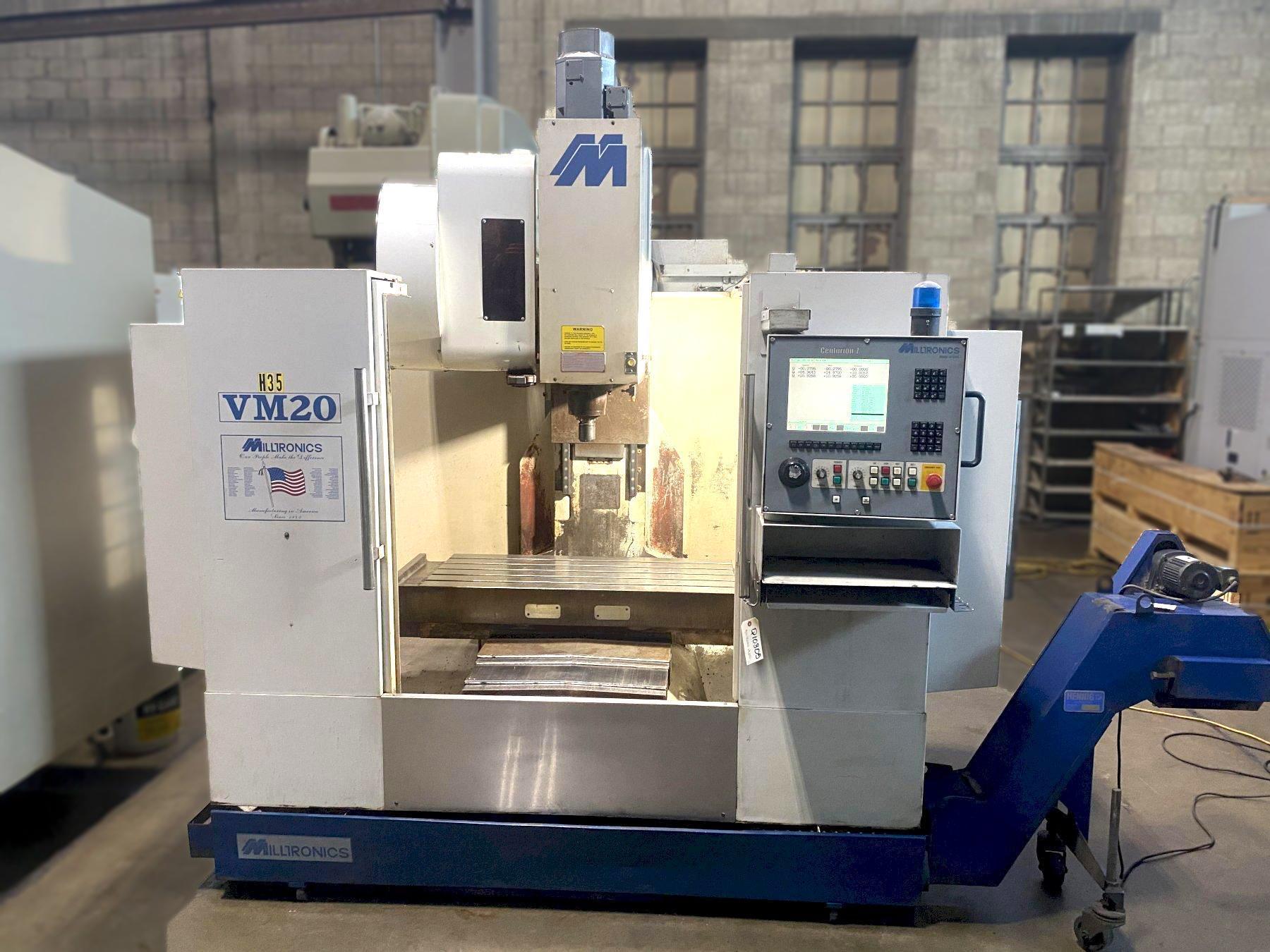

Centurion 7 CNC Control, 34" x 20" Table, Remote Manual Pulse Generator (MPG), Rigid Tapping, 24 Station Side Mount Tool Changer, Chip Conveyor & Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |

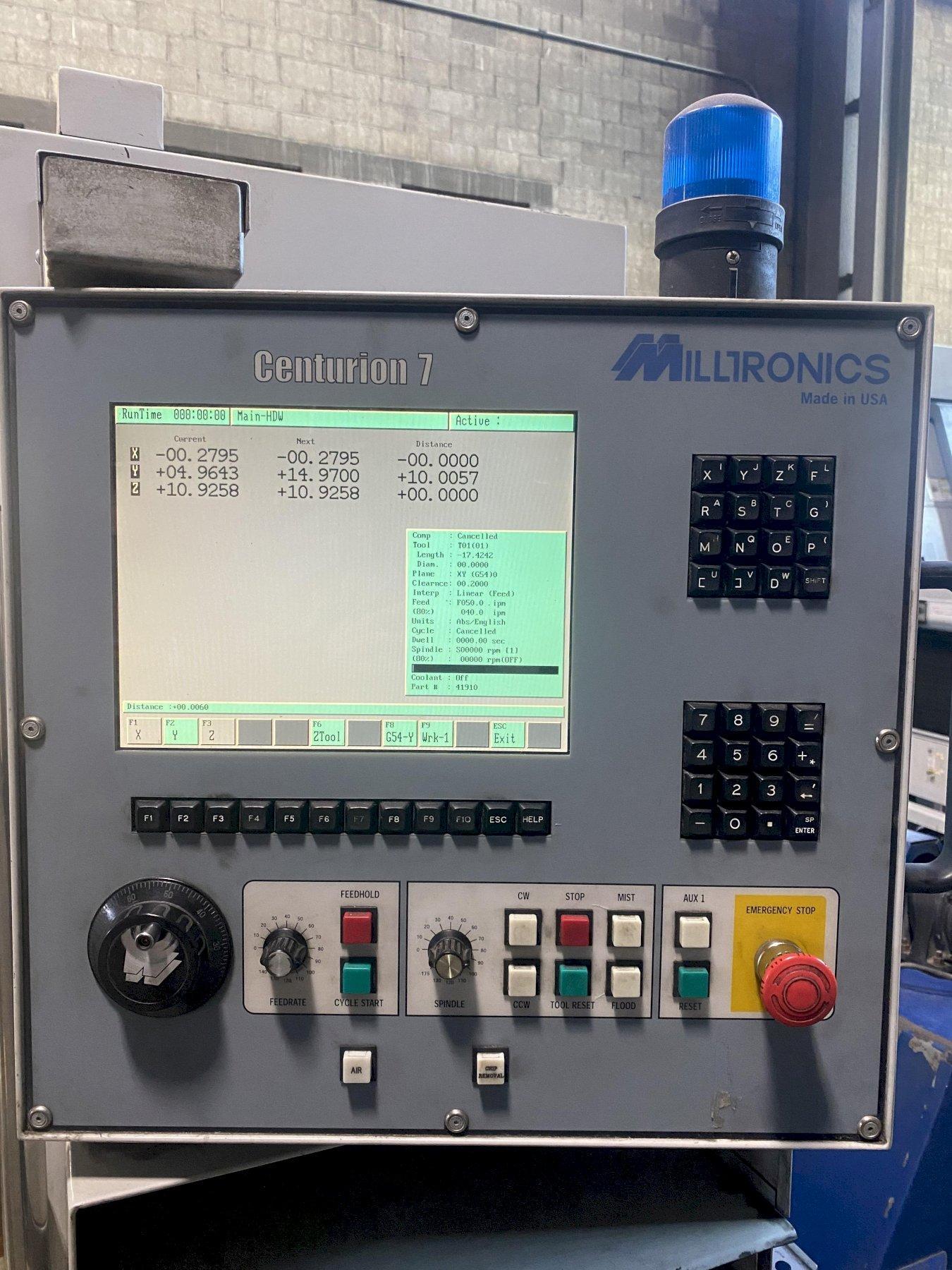

| Type of CNC Control | Centurion 7 CNC Control |
| # Axis | 3 |
| Table Size | 34" x 20" |
| Table Load Capacity | 2,000 LBS |
| X-Axis (Longitudinal Travel) | 40" |
| Y-Axis (Cross Travel) | 20" |
| Z-Axis (Vertical Travel) | 26" |
| Rapid Traverse Rate, All Axes | 1,000 IPM |
| Spindle Horsepower | 24 HP |
| Max Spindle Speed | 8,000 RPM |
| Spindle Taper | CAT 40 |

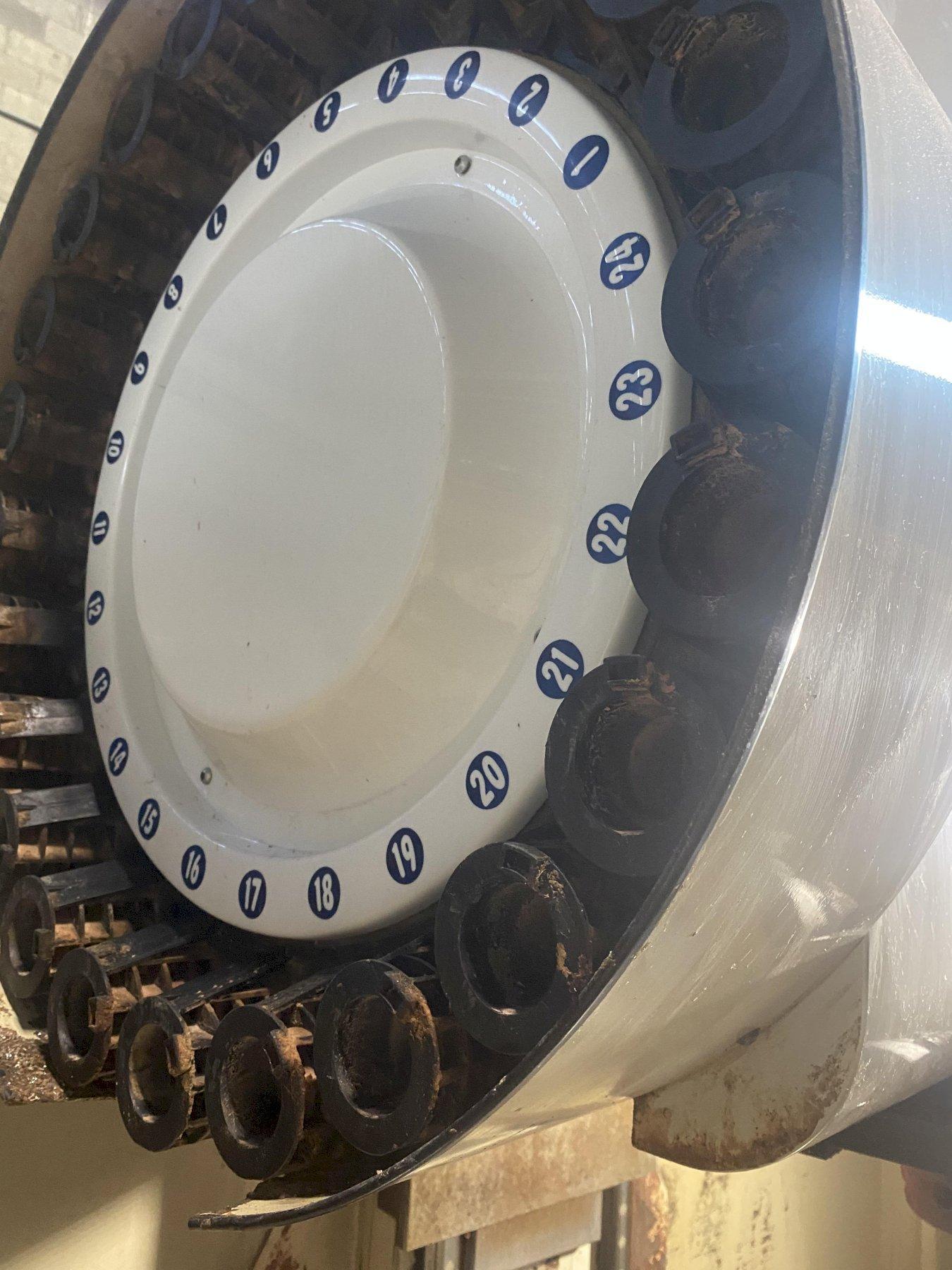

| Automatic Tool Changer Capacity (ATC) | 24 |
| Automatic Tool Changer Style | Side-Mount Carousel |

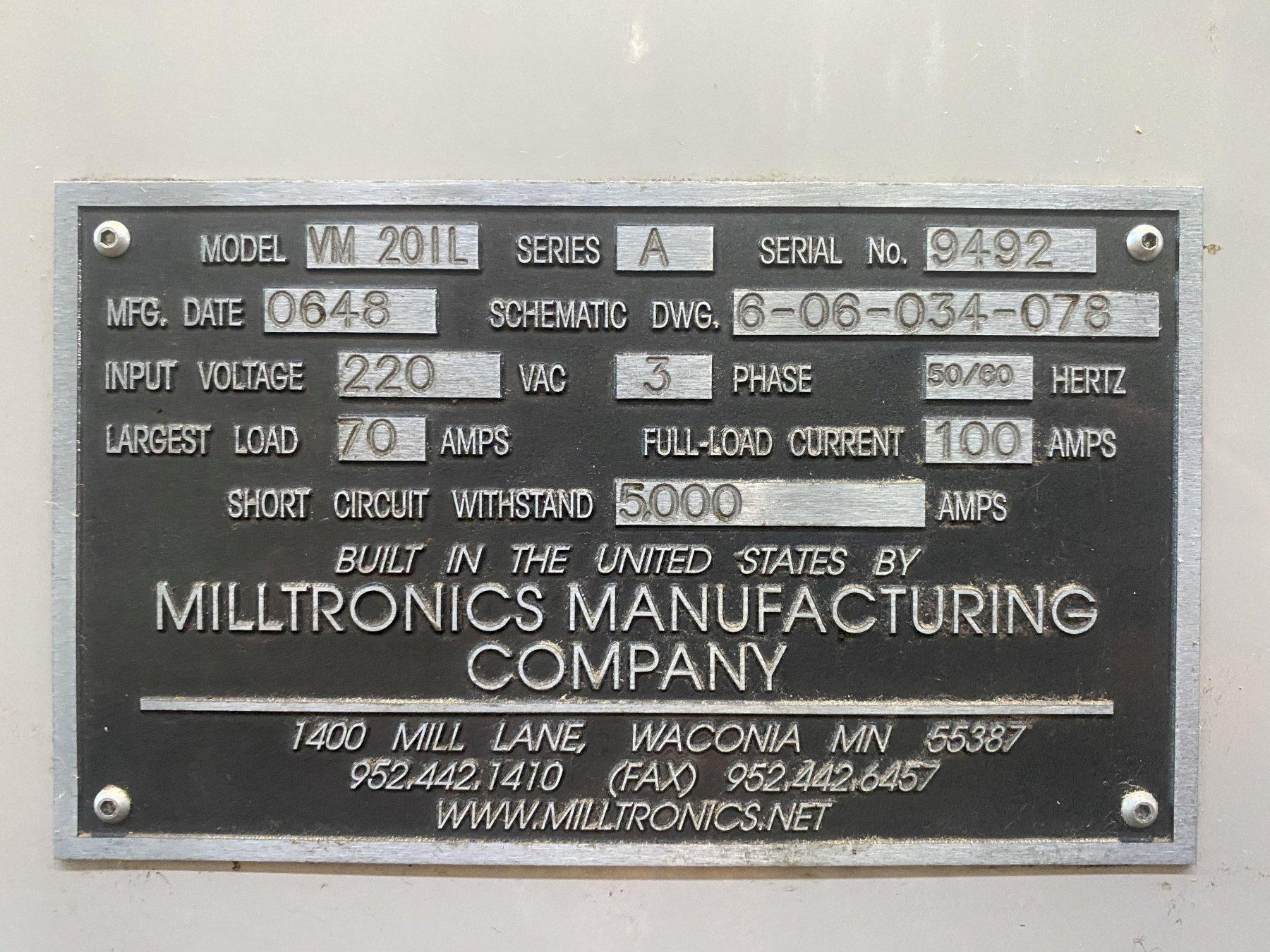

| Electrics | 220/3/60 |
| Approximate Machine Dimensions | 92" x 96" |
| Approximate Machine Height | 112" |
| Approximate Machine Weight | 10,000 LBS |
CONDITION: This Machine Appears to be in Very Good Condition !
