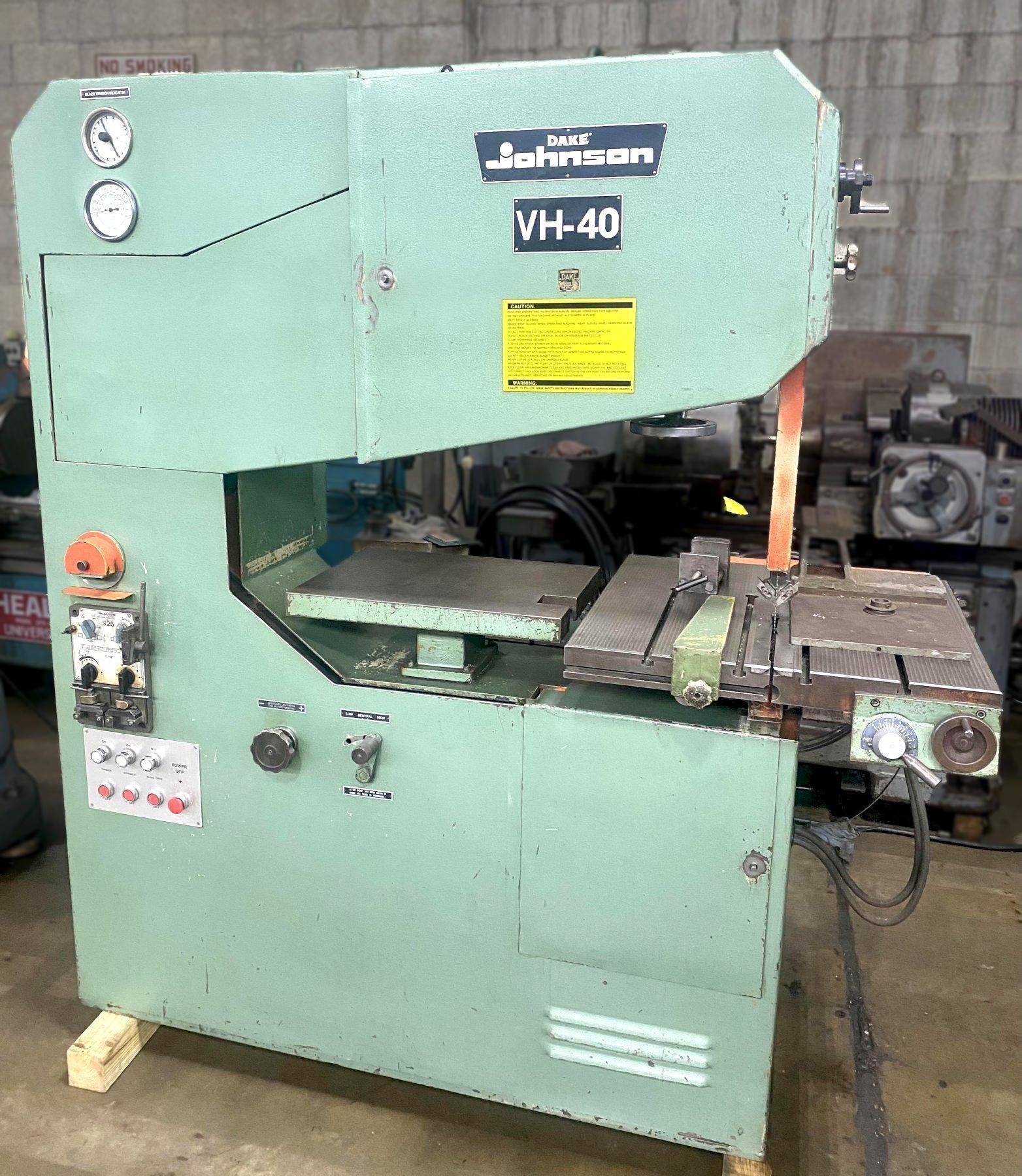

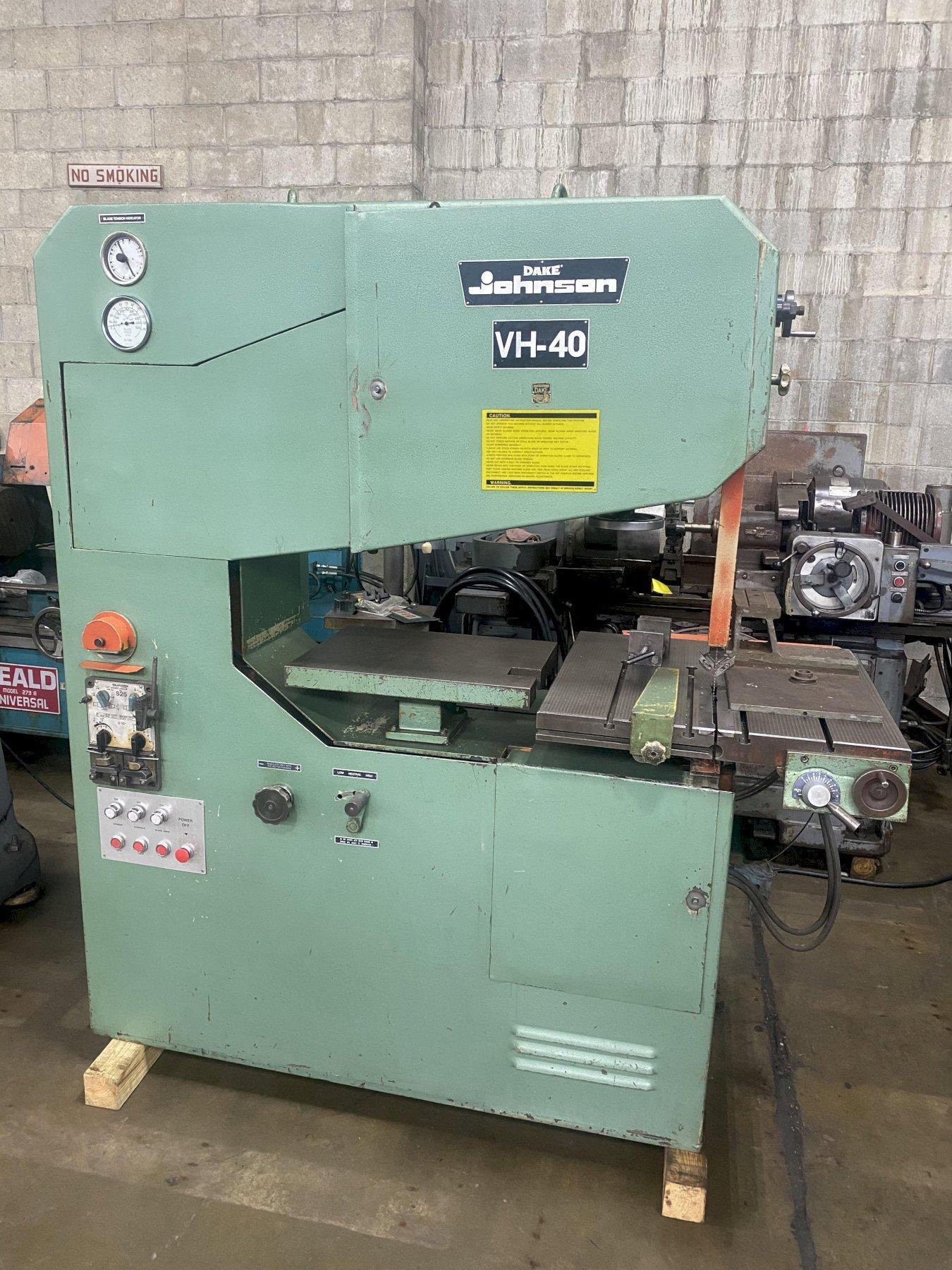

Stock #: Q10776
Brand: DAKE JOHNSON
Model: VH-40
Type: Saws, Band, Vertical
Condition: Excellent
Year: 1985
Power Table Feed, Blade Welder, Several Extra Blades Included.
Specifications: |
|
|---|---|
| Throat Depth | 41" |
| Max Work Height Capacity | 12-1/2" |
| Worktable Dimensions (Overall) W x L | 26-3/8" x 26-3/8" |
| # Table T-Slots | 4 |
| Worktable Tilt (L/R) | 10° / 30° |
| Worktable Travel | 10" |
| Worktable Height | 41" |
| Table Weight Load Capacity | 850 LBS |
| Blade Length | 134"/140" (2 wheels) / 186"/189" (3 wheels) |
| Max Blade Width | 3/4" |
| Wheel Diameter | 16-1/2" |
| Blade Speeds, Infinitely Variable | Low Range: 50 - 425 FPM | High Range: 425 - 4,250 FPM |
| Motor Horsepower | 2.2 HP |
| Hydraulic Pump Horsepower | 1/3 HP |
| Welding Capacity | 1/8" - 1" |
| Electrics | 220/440/3 |
| Approximate Machine Dimensions | 72" x 60" |
| Approximate Machine Height | 78" |
| Approximate Machine Weight | 2,460 LBS |
CONDITION: This Machine Appears to be in Excellent Condition.







Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Power Table Feed, Blade Welder, Several Extra Blades Included. |
Specifications |
|
|---|---|
| Throat Depth | 41" |
| Max Work Height Capacity | 12-1/2" |
| Worktable Dimensions (Overall) W x L | 26-3/8" x 26-3/8" |
| # Table T-Slots | 4 |
| Worktable Tilt (L/R) | 10° / 30° |
| Worktable Travel | 10" |
| Worktable Height | 41" |
| Table Weight Load Capacity | 850 LBS |
| Blade Length | 134"/140" (2 wheels) / 186"/189" (3 wheels) |
| Max Blade Width | 3/4" |
| Wheel Diameter | 16-1/2" |
| Blade Speeds, Infinitely Variable | Low Range: 50 - 425 FPM | High Range: 425 - 4,250 FPM |
| Motor Horsepower | 2.2 HP |
| Hydraulic Pump Horsepower | 1/3 HP |
| Welding Capacity | 1/8" - 1" |
| Electrics | 220/440/3 |
| Approximate Machine Dimensions | 72" x 60" |
| Approximate Machine Height | 78" |
| Approximate Machine Weight | 2,460 LBS |
| CONDITION: This Machine Appears to be in Excellent Condition. |
