Stock #: P11964
Brand: HAAS
Model: VF-5
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 1999

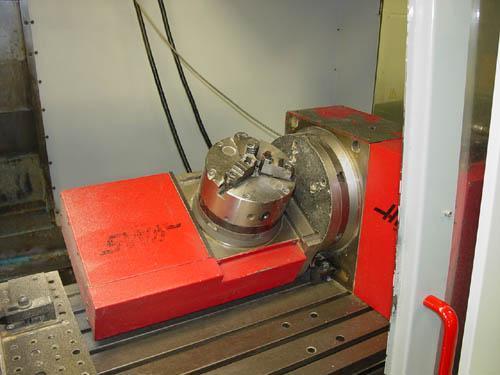

Haas 32-Bit High Speed CNC Control w/CRT, Haas 4th and 5th Axis CNC Rotary Table, RS-232 Port, Programmable Coolant Nozzle, Inch or Metric Programming, Metal Way Covers, Chip Auger, Flood Coolant System with Full Chip-Splash Enclosure.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Haas 32-Bit High Speed CNC Control |
| Table Size | 52" x 23" |
| Table Load Capacity | 4,000 LBS |
| # Axis | 5 |
| X-Axis (Longitudinal Travel) | 50" |
| Y-Axis (Cross Travel) | 26" |
| Z-Axis (Vertical Travel) | 25" |
| Feed Rates (X, Y, & Z Axis) | 0 to 500 IPM |
| Rapid Traverse Rate (X, Y, & Z Axis) | 710 IPM |
| Spindle Horsepower | 20 HP |
| Spindle Speed Range Main | 0 - 7,500 RPM |
| Spindle Taper | No. 40 CAT (V-Flange) |
| Automatic Tool Changer Capacity (ATC) | 32 |
| Approximate Machine Dimensions | 114" x 137" |
| Approximate Machine Height | 118.5" |
| Approximate Machine Weight | 14,600 LBS |
CONDITION: This Machine Has Been Running Only Plastic and Appears to be in Excellent Condition!
