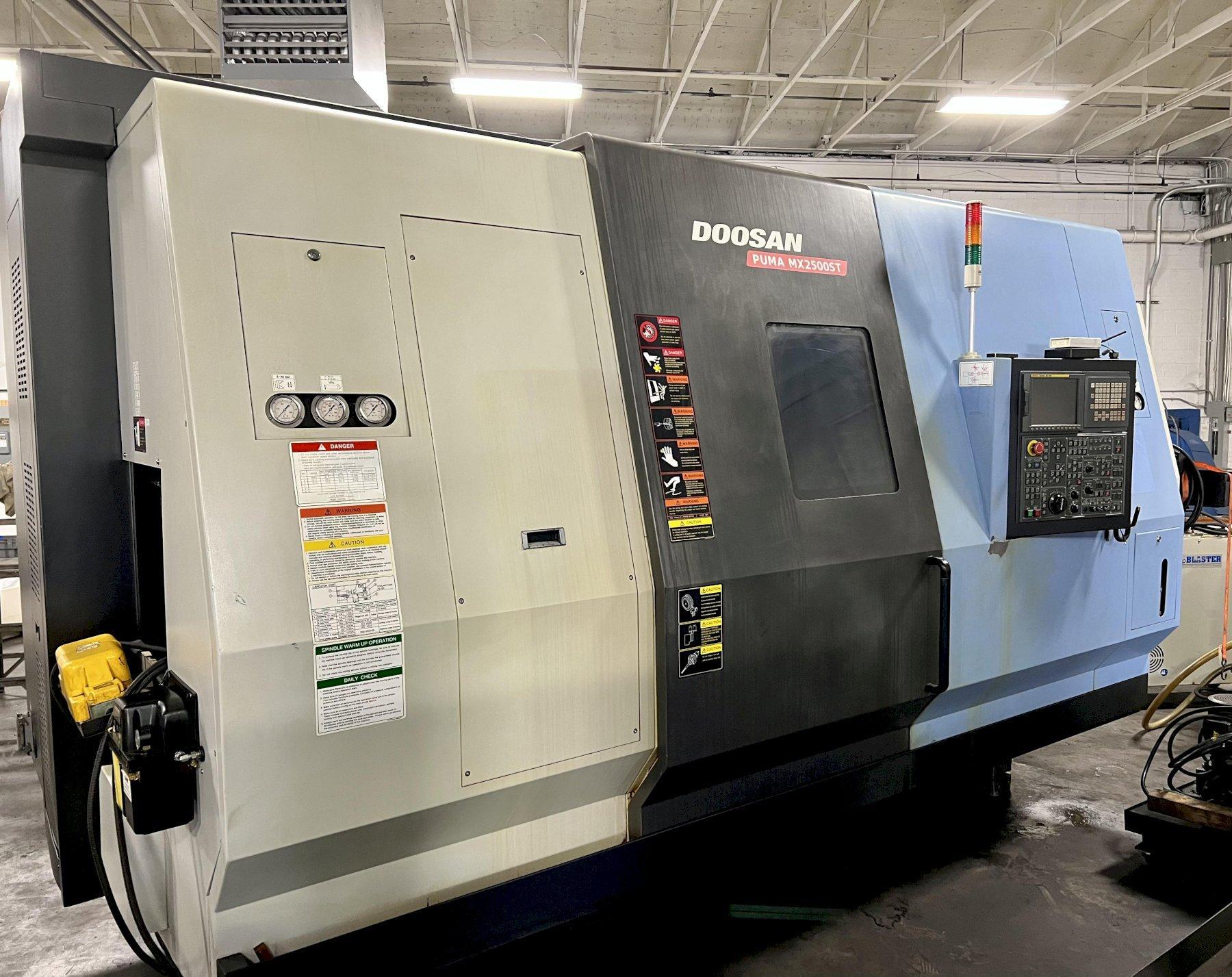

Stock #: Q10746
Brand: DOOSAN
Model: Puma MX2500ST
Type: Lathes, CNC (3-Axis or More)
Condition: Excellent
Year: 2008

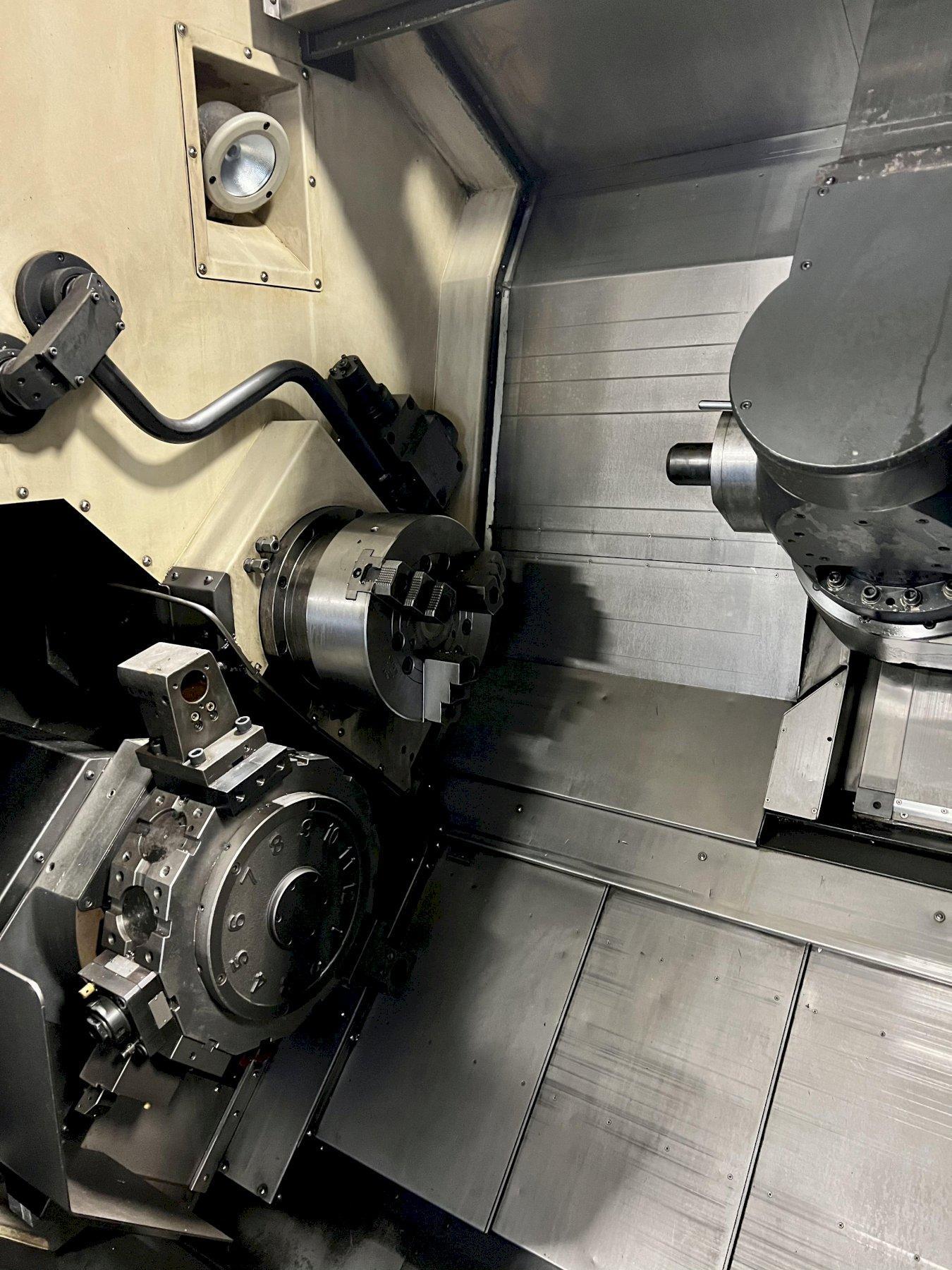

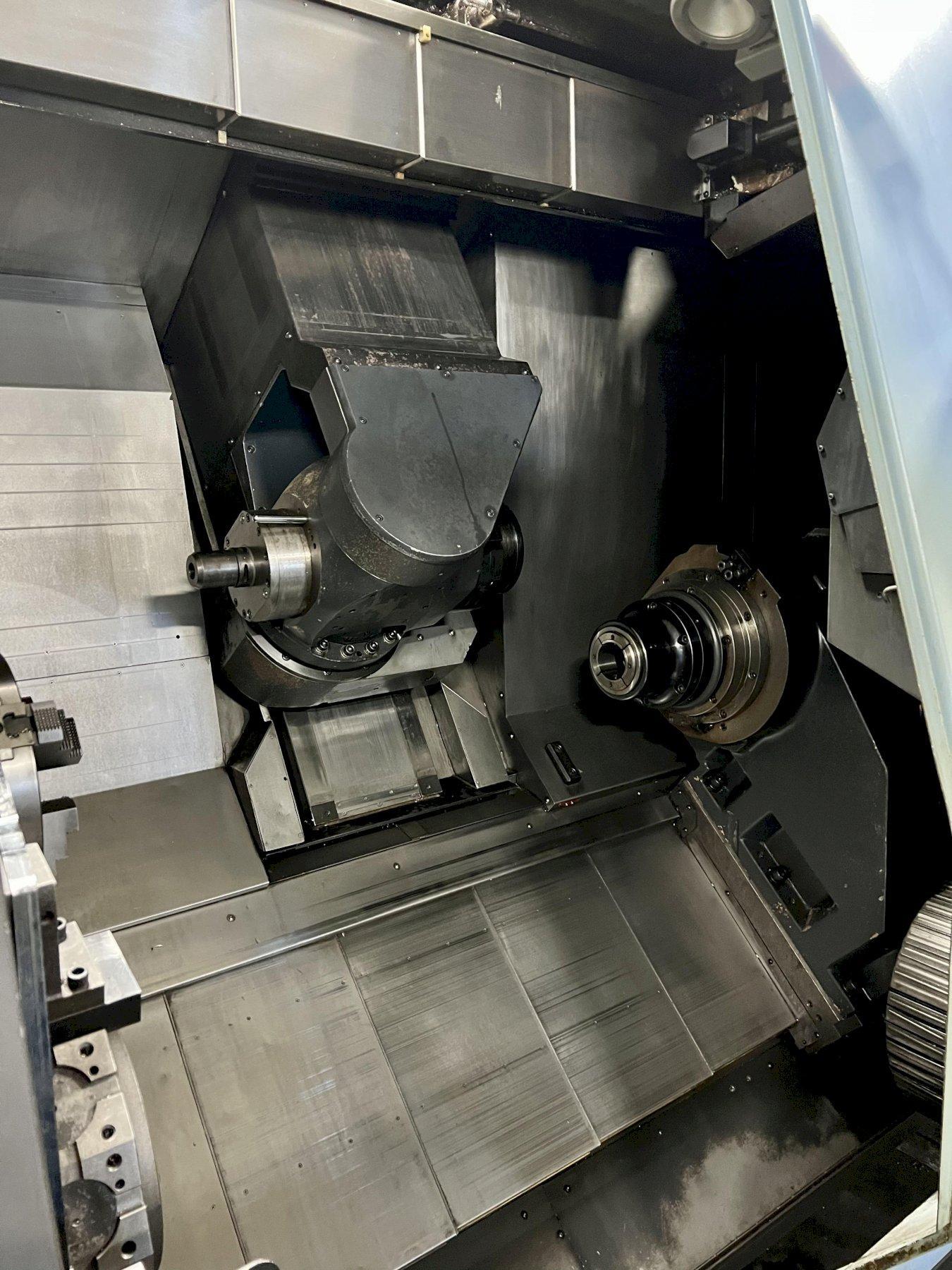

Fanuc 18i-TB CNC Control, 12" Kitagawa B-212 3-Jawed Chuck on Main Spindle, Royal Collet Chuck on Sub Spindle, 59" Center Distance, 10,000 RPM Universal Milling Spindle that Rotates 240°, Lower Turret w/ Live Tooling, 40 Station Tool Changer (Capto C6), Tool Presetter, Parts Catcher, LNS Quick Load S3 Bar Feeder, Bar Feeder Diameter Range 1/4" to 4-3/4", Overall Bar Stock Length 5" to 63", Chip Blaster High Pressure Coolant, Chip Conveyor.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 18i-TB CNC Control |
| # Axis | 9 |
| Max Swing Over Bed | 29.5" |
| Main Spindle Chuck Size | 12" |
| Max Turning Diameter | 21.7" |
| Max Turning Length | 59.9" |
| X-Axis (Cross Travel of Universal Head) | 21.7" |
| Z-Axis (Longitudinal Travel of Universal Head) | 43.1" |
| Y-Axis (Travel of Universal Head) (Y1-Axis) | 6.3" |
| Universal Head Rotary Tool Horsepower | 20 |
| Max Universal Head Rotary Tool Spindle Speed | 10,000 RPM |
| X2-Axis (Cross Travel of Lower Turret) | 7.5" |
| Z2-Axis (Longitudinal Travel of Lower Turret) | 40.9" |
| C-Axis (Indexing Positions of Main Spindle) | .001° |
| C2-Axis (Indexing Positions of Sub Spindle) | .001° |
| Main Spindle Thru Hole | 2.99" |
| Main Spindle Nose | A2-8 |
| Main Spindle Horsepower | 35 HP |
| Max Main Spindle Speed | 3,500 RPM |
| Sub-Spindle Chuck Size | Royal Collet Chuck |
| Sub-Spindle Nose | A2-8 |
| Sub-Spindle Horsepower | 35 HP |
| Max Sub-Spindle Speed | 3,500 RPM |
| Automatic Tool Changer Capacity | 40 |
| Lower Turret Tool Capacity | 12 |
| Lower Turret Live Tool Positions | 12 |
| Max Lower Turret Live Tooling Speed | 5,000 RPM |
| Machine Cutting Hours | 2147 |
| Approximate Machine Dimensions | 178" x 98" |
| Approximate Machine Height | 102" |
| Approximate Machine Weight | 28,500 LBS |
CONDITION: Machine Appears to be in Excellent Condition !
