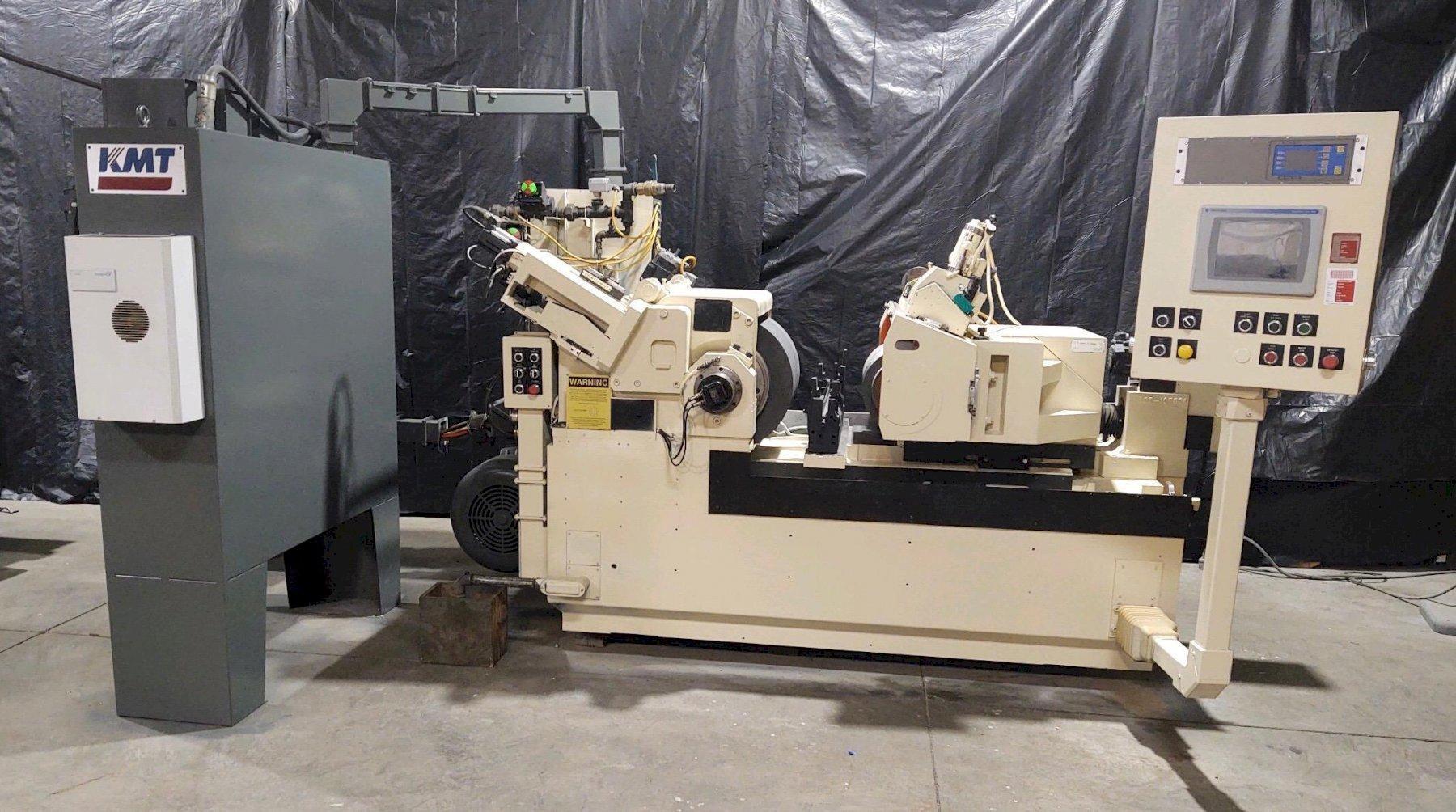

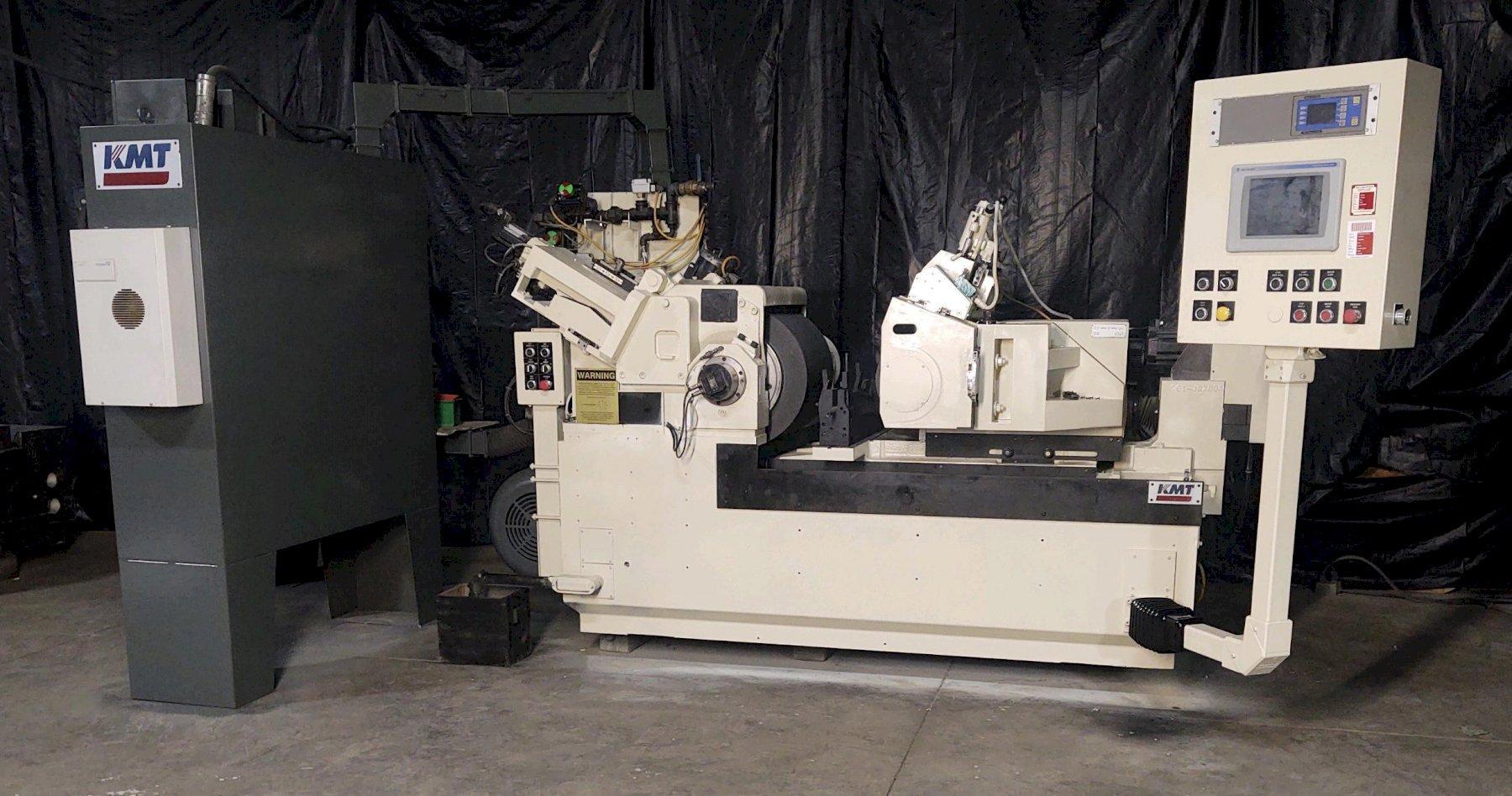

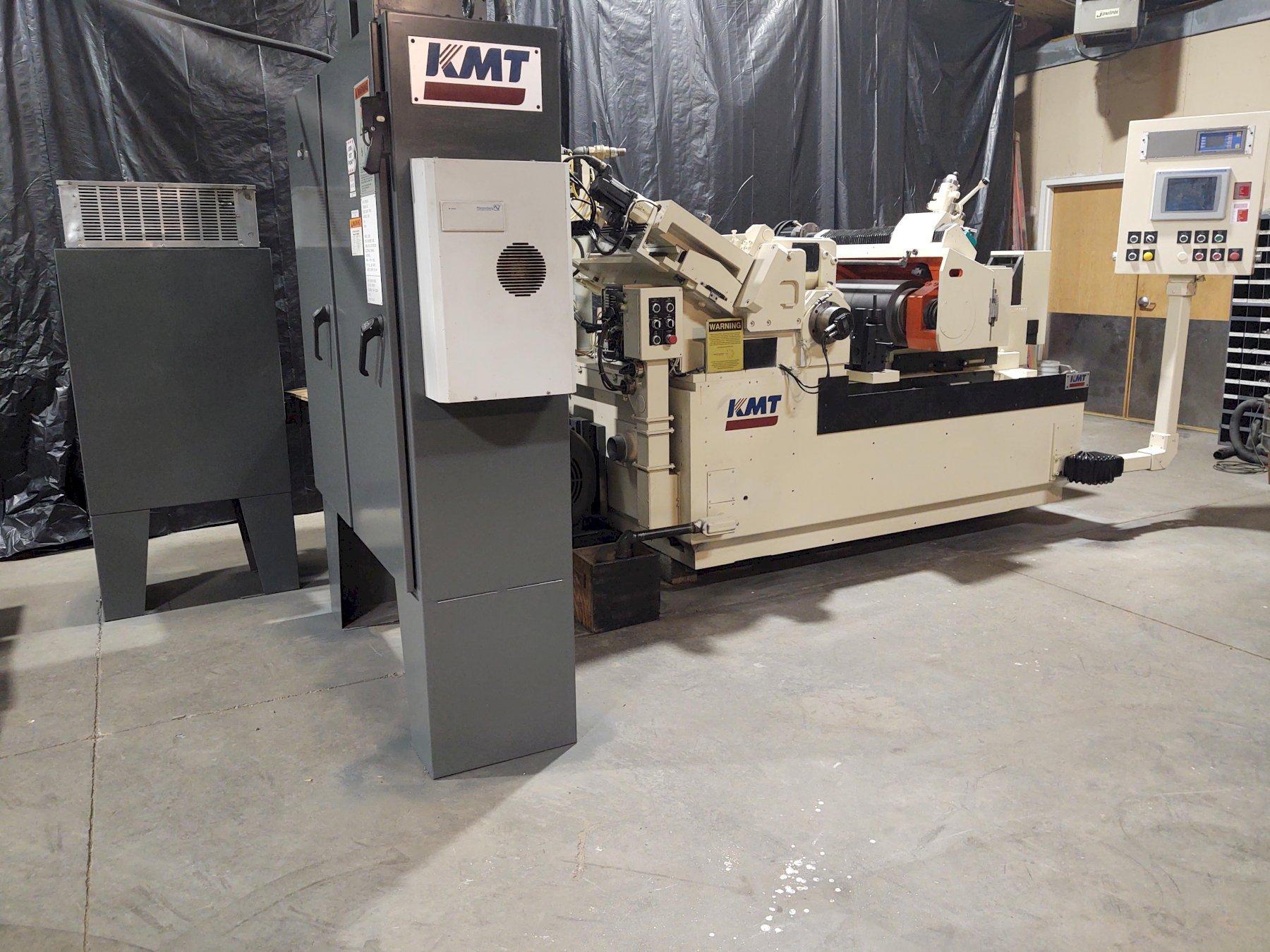

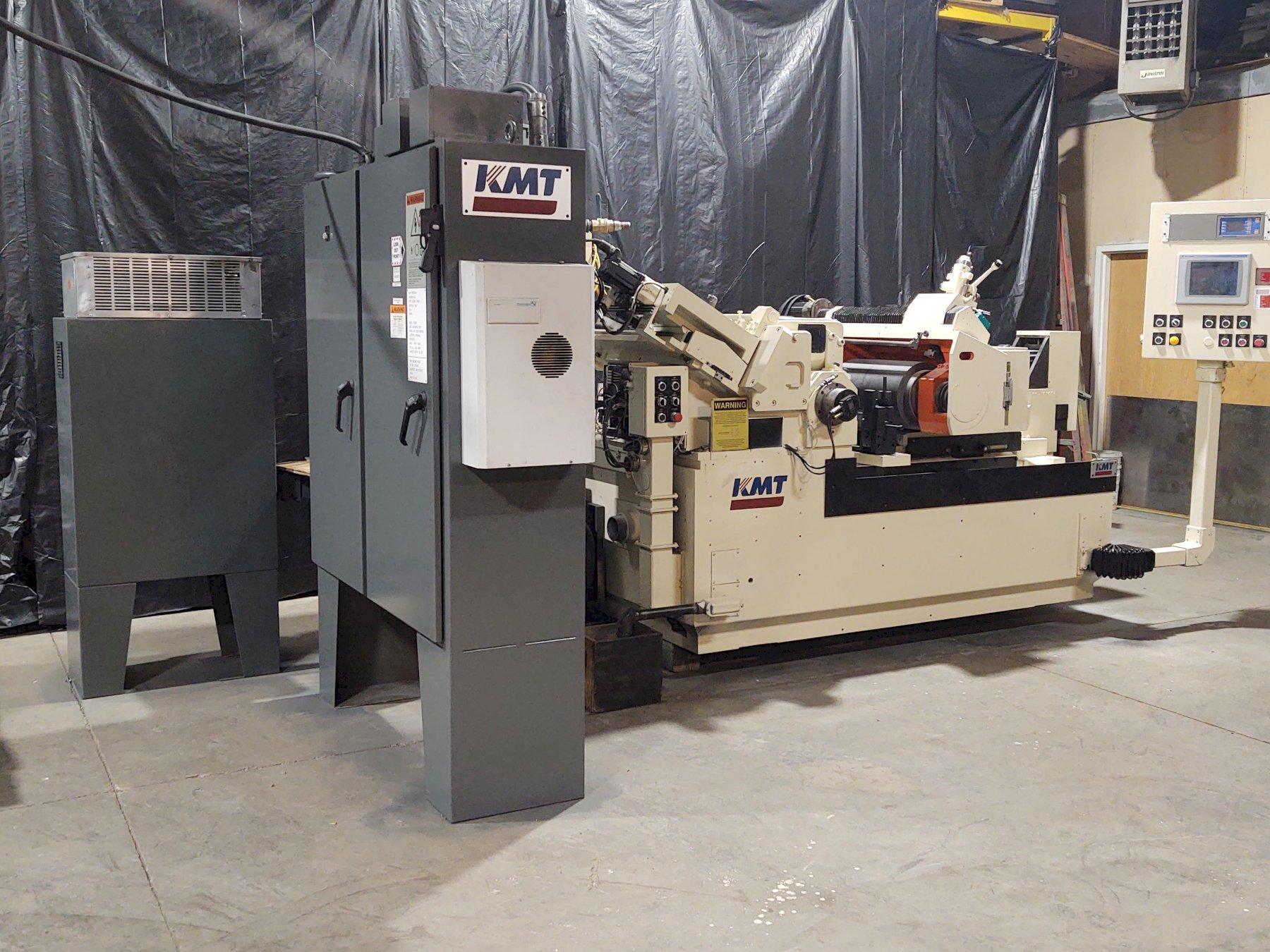

Stock #: Q10718
Brand: KMT
Model: CL500
Type: Grinders, Centerless
Condition: Excellent
Year: 2008
Allen Bradley Control Logix PLC with Panel View 1000 Touch Screen Control, SBS SB-4500 Balancing System, Single Point Servo Driven Profile Dresser on the grinding wheel with compensation. Available with Either Infeed or Thrufeed Work Rest at no additional Charge.
Specifications: |
|
|---|---|
| Max Work Diameter Capacity | 10" (more is available on request) |
| Min Work Diameter Capacity | 1/2" (smaller upon request) |
| Max Grinding Wheel Diameter | 24" |
| Min Grinding Wheel Diameter | 17-1/2" |
| Max Grinding Wheel Width | 20" |
| Grinding Wheel Hole Diameter | 12" |
| Max Regulating Wheel Diameter | 14" |
| Min Regulating Wheel Diameter | 10-1/4" |
| Max Regulating Wheel Width | 20" |
| Min Regulating Wheel Width | 1" |
| Regulating Wheel Hole Diameter | 8" |
| Regulating Wheel Speeds Range | 11 - 300 RPM |
| Grinding Wheel Horsepower | 100 HP |
| Regulating Wheel Horsepower | 12.7 KW = 17 HP Allen Bradley |

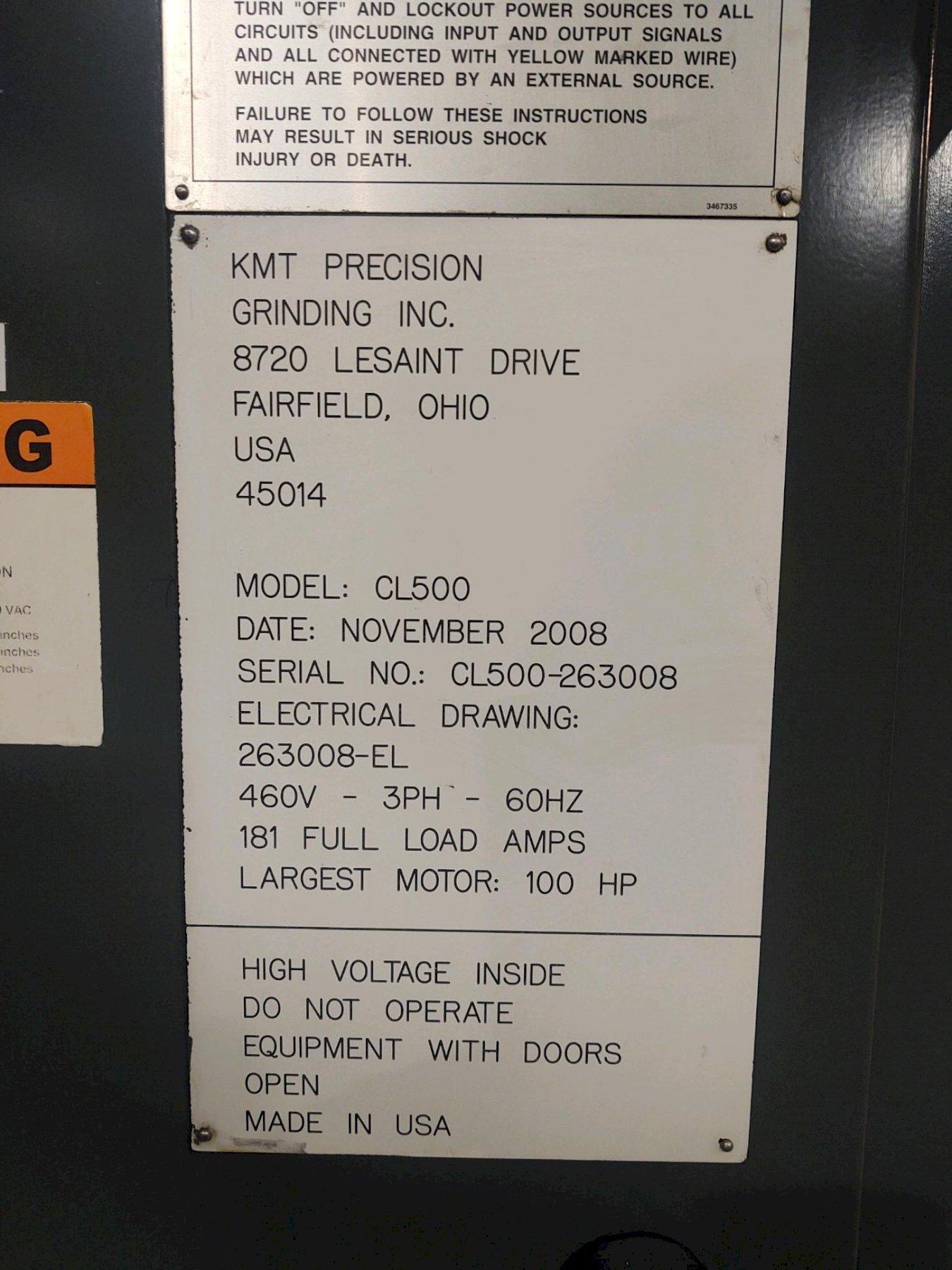

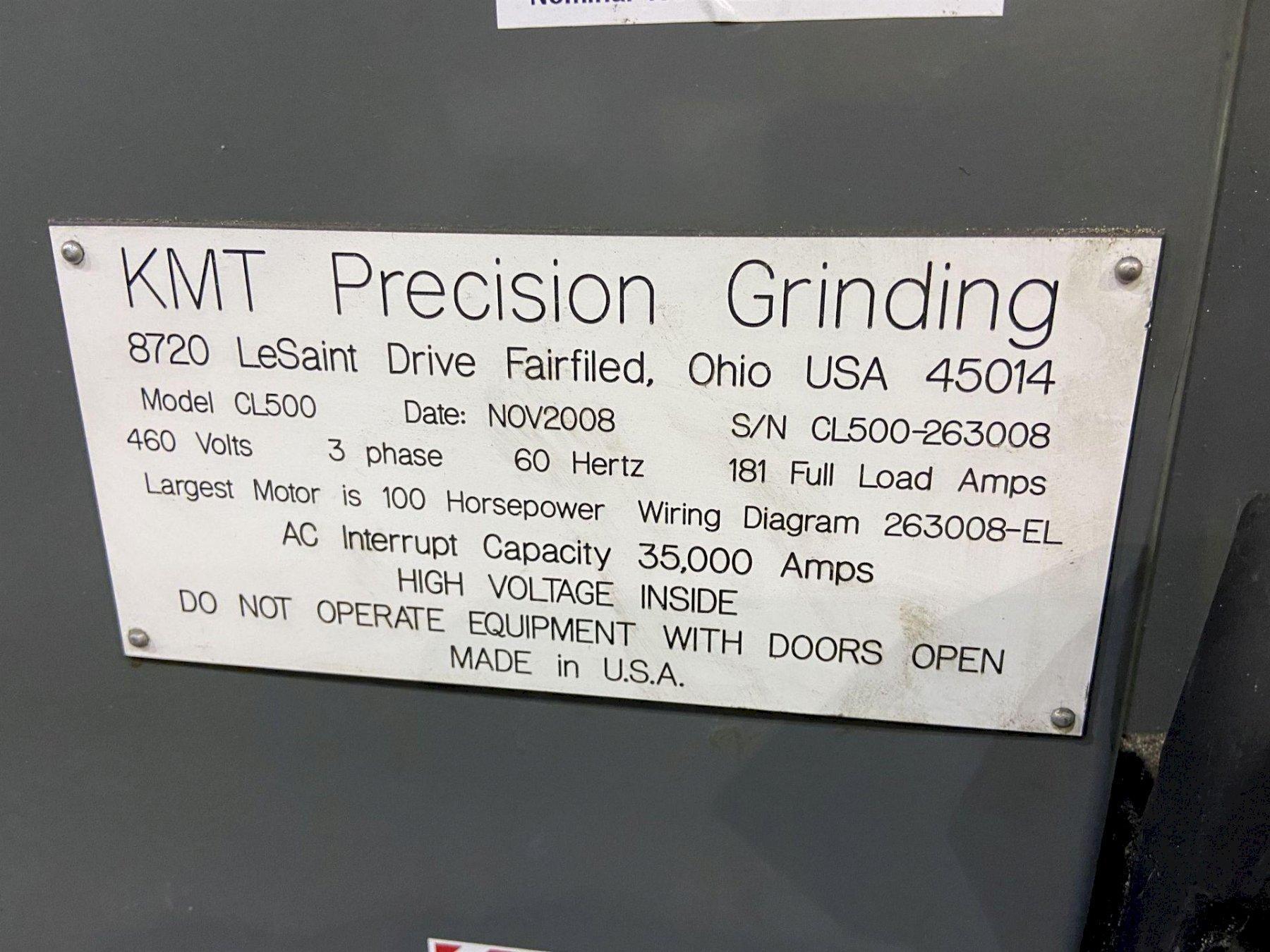

| Electrics | 460/3/60 |
| Approximate Machine Dimensions | 132" x 72" |
| Approximate Machine Height | 96" |
| Approximate Machine Weight | 25,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Allen Bradley Control Logix PLC with Panel View 1000 Touch Screen Control, SBS SB-4500 Balancing System, Single Point Servo Driven Profile Dresser on the grinding wheel with compensation. Available with Either Infeed or Thrufeed Work Rest at no additional Charge.
|
Specifications |
|
|---|---|
| Max Work Diameter Capacity | 10" (more is available on request) |
| Min Work Diameter Capacity | 1/2" (smaller upon request) |
| Max Grinding Wheel Diameter | 24" |
| Min Grinding Wheel Diameter | 17-1/2" |
| Max Grinding Wheel Width | 20" |
| Grinding Wheel Hole Diameter | 12" |
| Max Regulating Wheel Diameter | 14" |
| Min Regulating Wheel Diameter | 10-1/4" |
| Max Regulating Wheel Width | 20" |
| Min Regulating Wheel Width | 1" |
| Regulating Wheel Hole Diameter | 8" |
| Regulating Wheel Speeds Range | 11 - 300 RPM |
| Grinding Wheel Horsepower | 100 HP |
| Regulating Wheel Horsepower | 12.7 KW = 17 HP Allen Bradley |
| Electrics | 460/3/60 |
| Approximate Machine Dimensions | 132" x 72" |
| Approximate Machine Height | 96" |
| Approximate Machine Weight | 25,000 LBS |
| CONDITION: This Machine Appears to be in Excellent Condition. |
