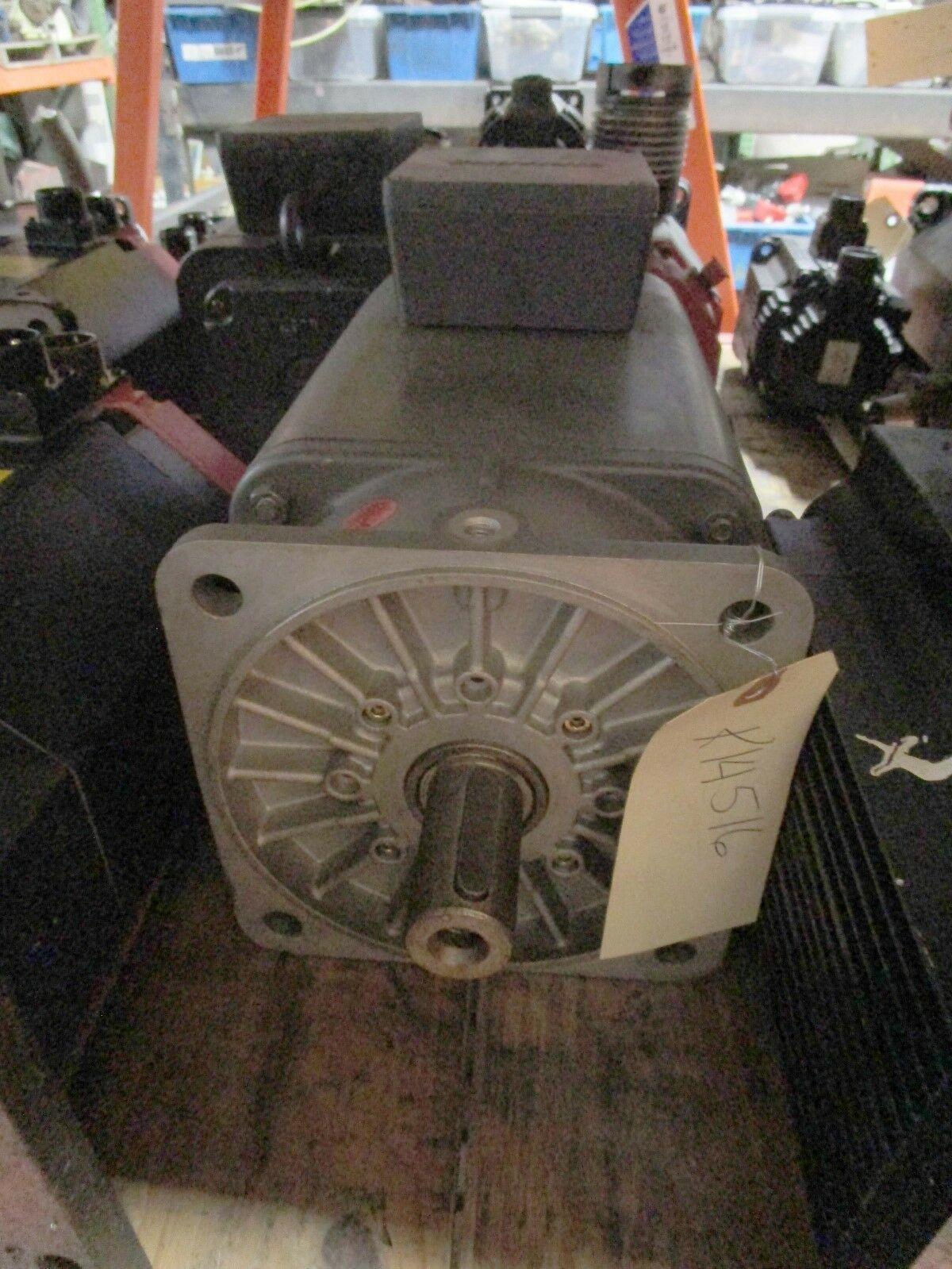

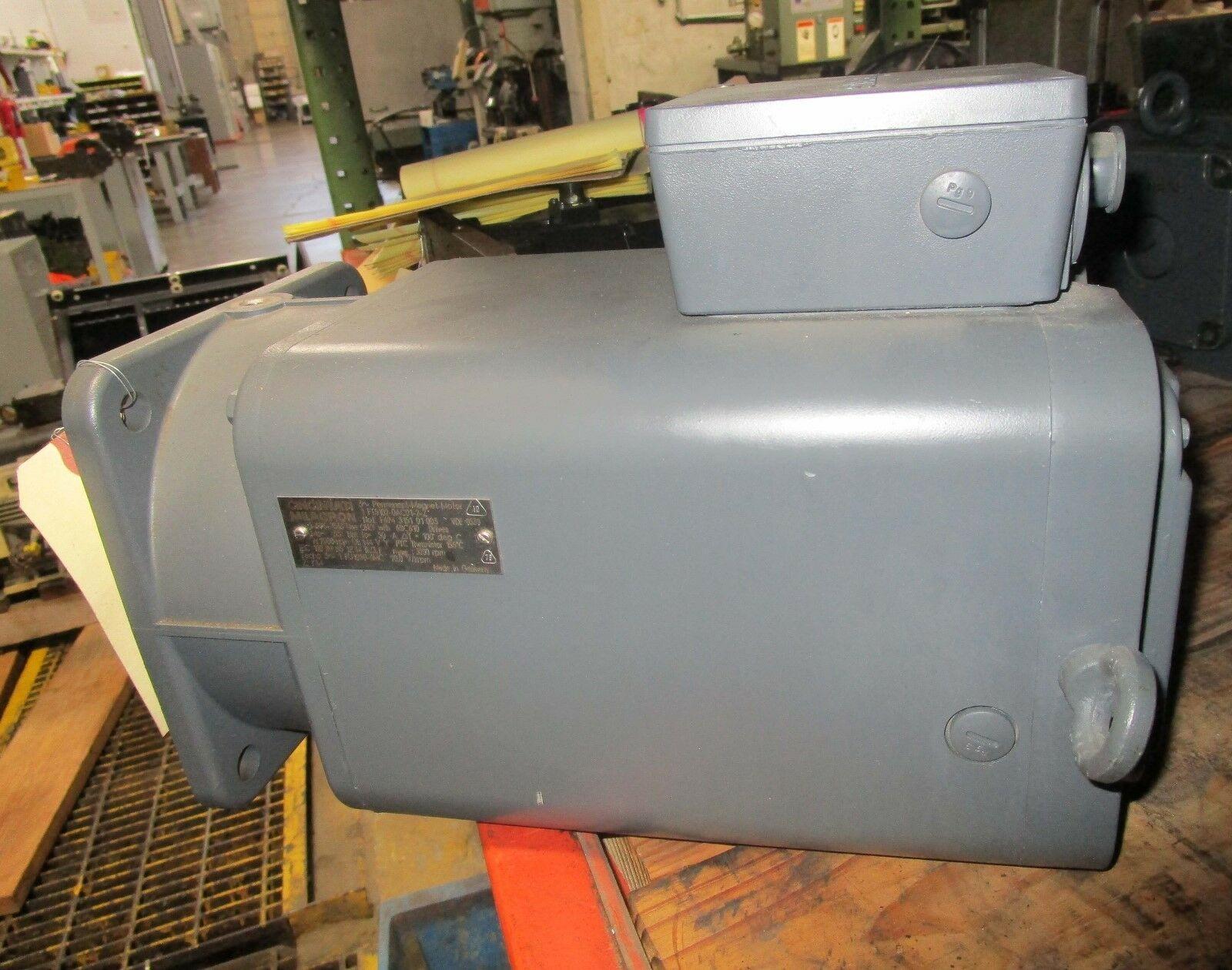

SIEMENS SERVO MOTOR 1FT5102-0AC01-2-Z MILACRON # 1-606-4563

Stock #: K14516b

Brand: SIEMENS
Model: CMI 1-606-4563 1FT5102-0AC01-2-Z
Type: Servo Motors
Condition: Used
Year: Not Specified

Equipped With:

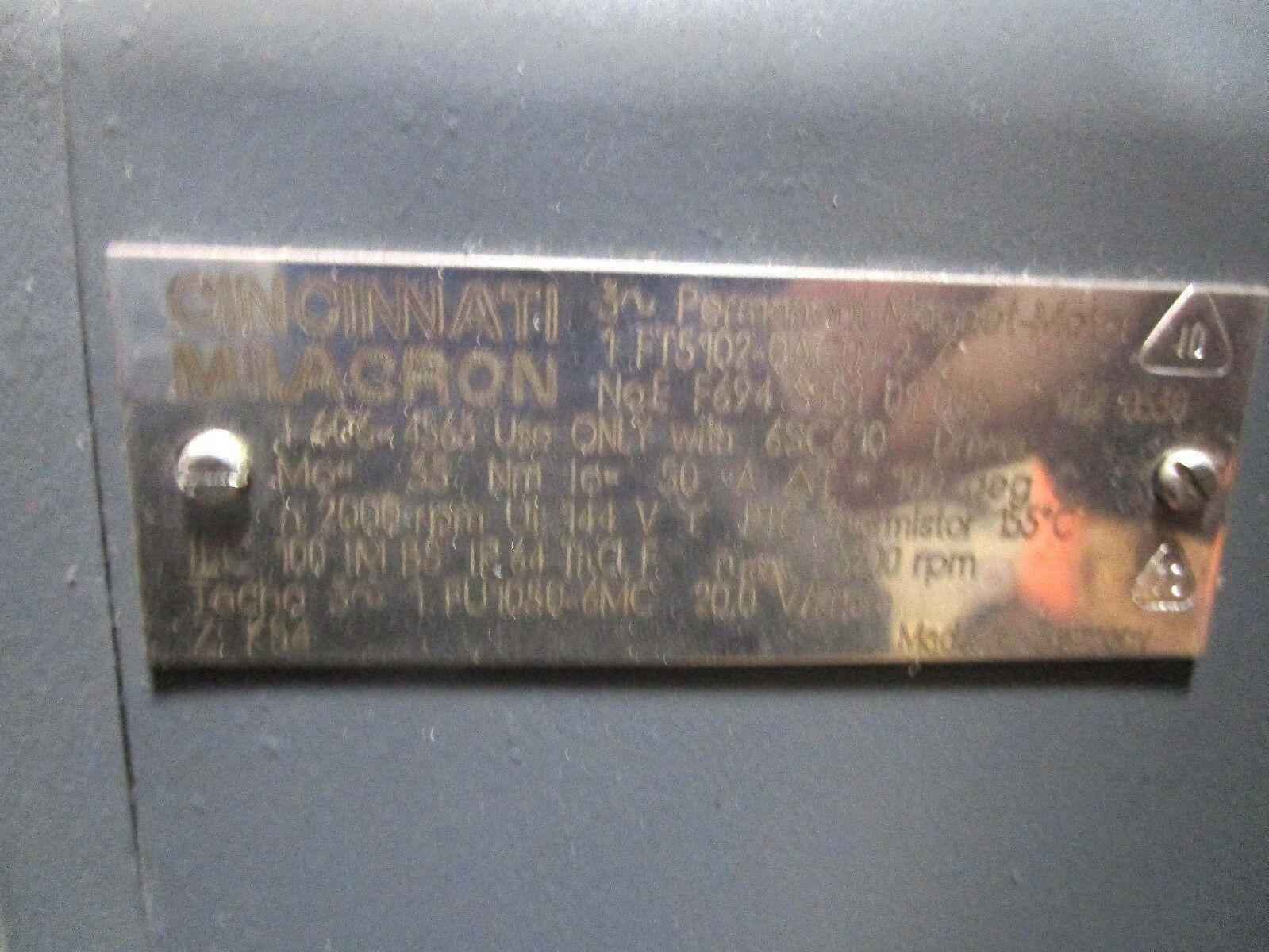

3-Phase Tacho, 1 FU1050-6AC, 20 mVmin Voltage constant phase-to-phase, VDE 0530, ΔT = 100° C, PTC Thermistor 155° C, Z: K84.

Use only with 6SC610 Drives

Specifications:

Current Type AC
Torque (Stall) 33 Nm
Amp (Stall) 50 A
Voltage 144 V wye
Max Speed 3,200 RPM
Efficiency IEC 100
Motor Phase 3-Phase
Insulation Class F (Max 155° C / 311° F)
Enclosure Rating IP 64
Motor Mounting Code IM B5
Approximate Dimensions 19" x 12"
Approximate Height 12"
Approximate Weight 70 LBS
