Stock #: Q10670
Brand: HAAS
Model: VM-6
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2013
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Haas CNC Control |
| # Axis | 3 |
| Table Size | 64" x 28" |
| Table Load Capacity | 4,000 LBS |
| X-Axis (Longitudinal Travel) | 64" |
| Y-Axis (Cross Travel) | 32" |
| Z-Axis (Vertical Travel) | 30" |
| Max Clearance Tabletop to Spindle Nose | 34" |
| Min Clearance Tabletop to Spindle Nose | 4" |
| X-Axis Feed Rate | 500 IPM |
| Rapid Traverse Rate, All Axes | 600 IPM |
| Spindle Horsepower | 30 HP |
| Spindle Speed Range | 12,000 RPM |
| Spindle Taper | Cat 40 |
| Torque, Up To | 90 FT-LBF at 2,000 RPM |
| Automatic Tool Changer Capacity (ATC) | 24 |
| Automatic Tool Changer Style | Side-Mount Double Arm |

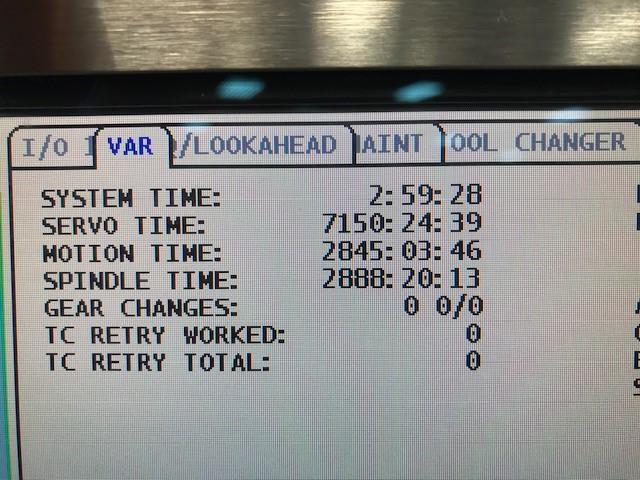

| Spindle Hours | 2,900 Cutting Hrs |
| Electrics | 195/260/3/60 |
| Approximate Machine Dimensions | 195" x 102" |
| Approximate Machine Height | 129" |
| Approximate Machine Weight | 25,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
|
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Haas CNC Control |
| # Axis | 3 |
| Table Size | 64" x 28" |
| Table Load Capacity | 4,000 LBS |
| X-Axis (Longitudinal Travel) | 64" |
| Y-Axis (Cross Travel) | 32" |
| Z-Axis (Vertical Travel) | 30" |
| Max Clearance Tabletop to Spindle Nose | 34" |
| Min Clearance Tabletop to Spindle Nose | 4" |
| X-Axis Feed Rate | 500 IPM |
| Rapid Traverse Rate, All Axes | 600 IPM |
| Spindle Horsepower | 30 HP |
| Spindle Speed Range | 12,000 RPM |
| Spindle Taper | Cat 40 |
| Torque, Up To | 90 FT-LBF at 2,000 RPM |
| Automatic Tool Changer Capacity (ATC) | 24 |
| Automatic Tool Changer Style | Side-Mount Double Arm |
| Spindle Hours | 2,900 Cutting Hrs |
| Electrics | 195/260/3/60 |
| Approximate Machine Dimensions | 195" x 102" |
| Approximate Machine Height | 129" |
| Approximate Machine Weight | 25,000 LBS |
| CONDITION: This Machine Appears to be in Excellent Condition ! |
