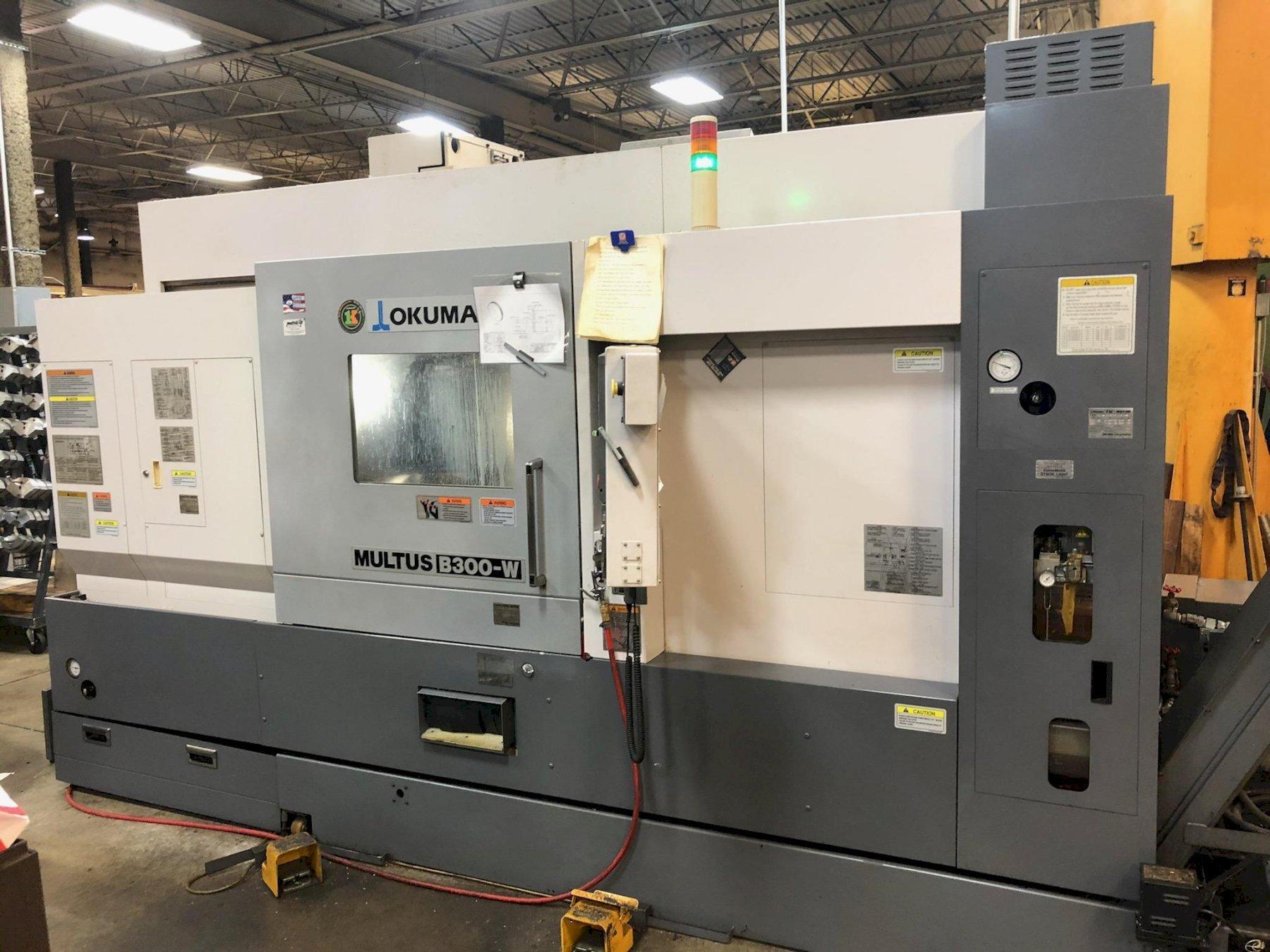

Stock #: Q10661
Brand: OKUMA
Model: MULTUS B300W
Type: Lathes, CNC (3-Axis or More)
Condition: Excellent
Year: 2008
Okuma OSP P200L CNC Control, Big Bore Option A2-8 nose (38-3800 RPM, 30/20HP), 10" 3-Jaw Chuck on Main, 8" Chuck on Sub Spindle, 40 Station Automatic Tool Changer, CAPTO C6 Spindle Taper, Tool Presetter, Parts Catcher, Thru Spindle Coolant, Hi-G Control, Lathe Tool Indexing, Plane Conversion, Profile Generation, Rigid Tap, Helical Cutting, Bar Feed Interface, Tool Management System, Chip Conveyor & Coolant System.
* Includes Capto Tooling Package !

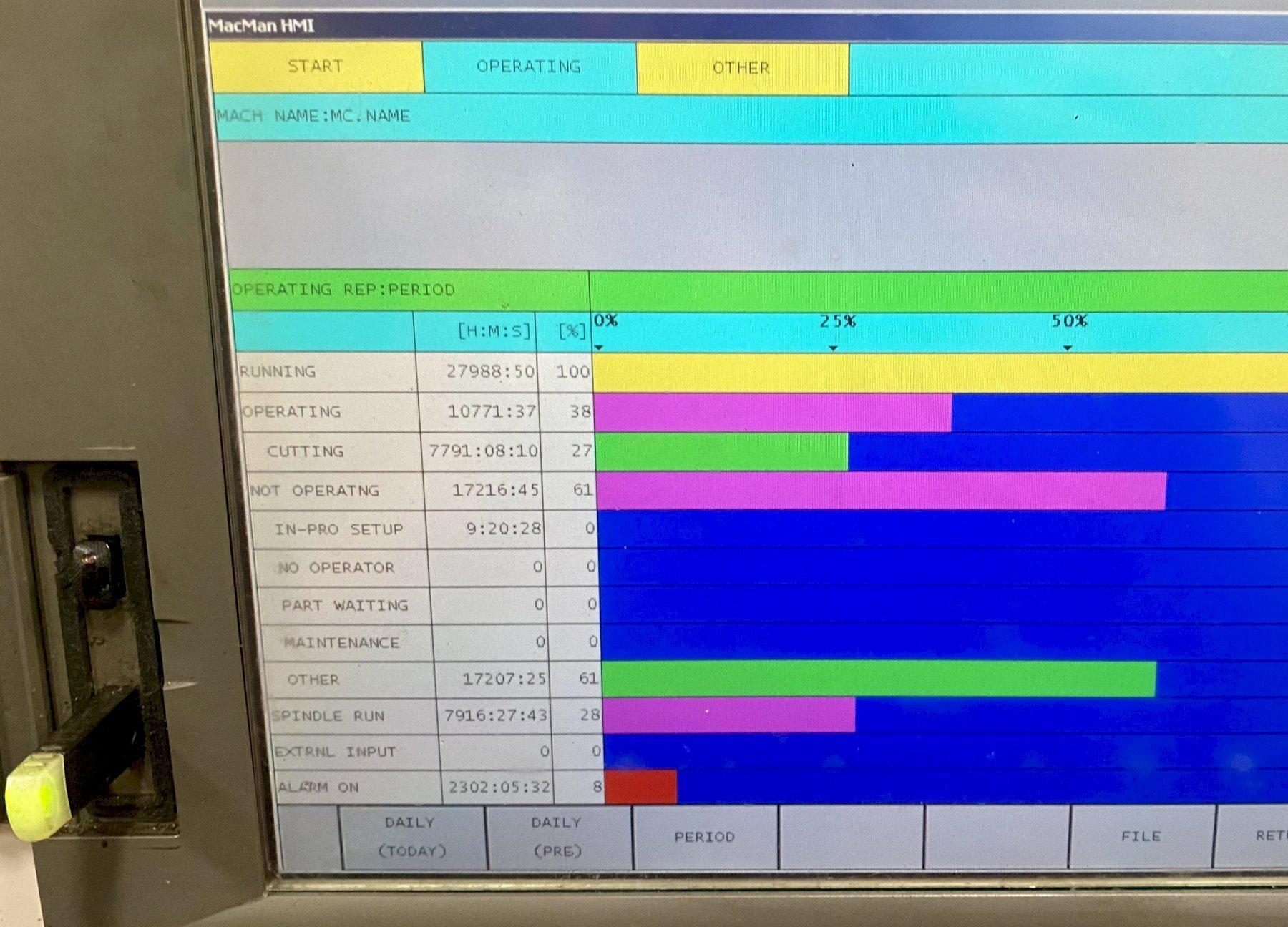

* Only 7,700 Cutting Hours !
Specifications: |
|
|---|---|
| CNC Control | yes |

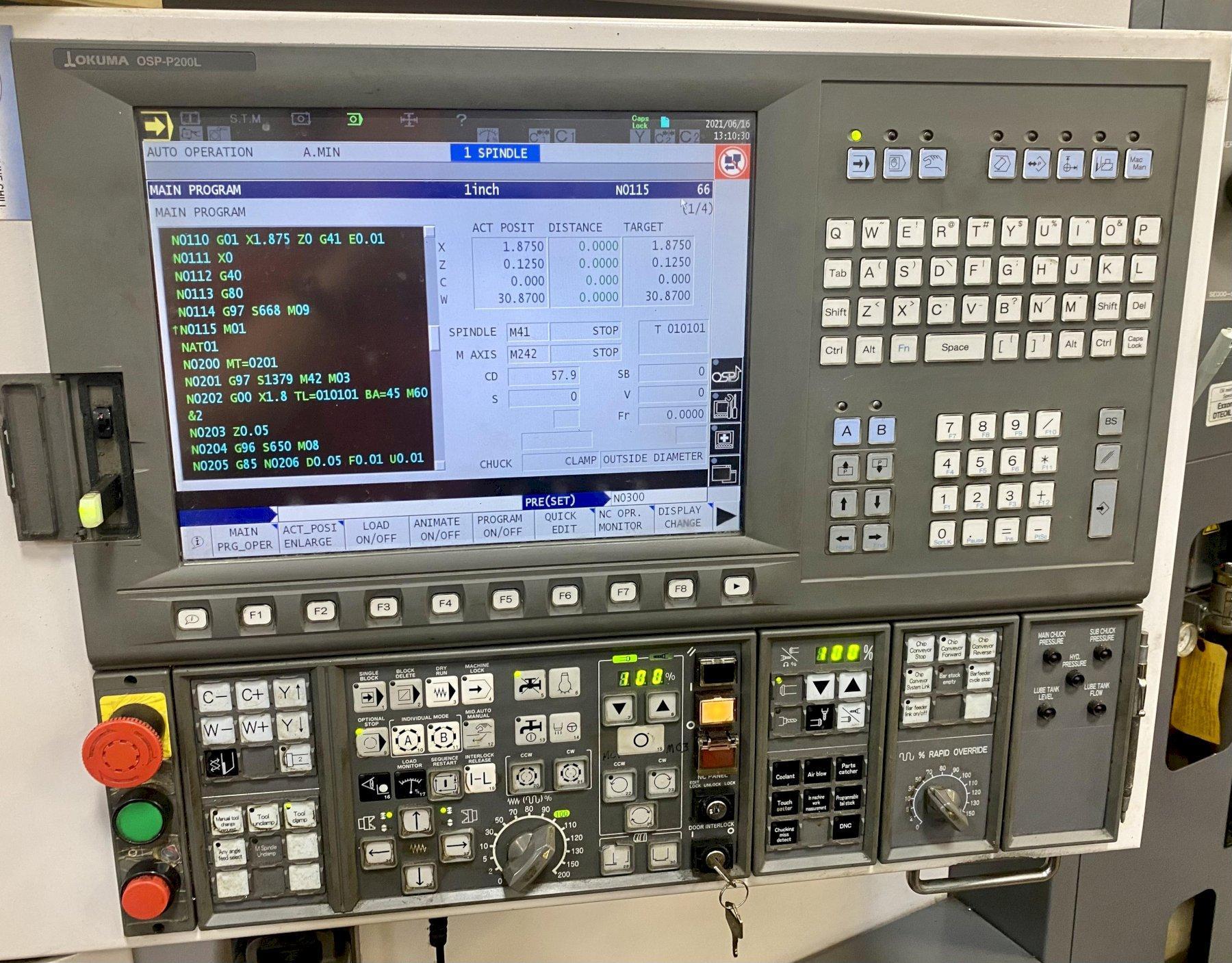

| Type of CNC Control | Okuma OSP P200L CNC Control |
| Max Machining Diameter | 17.72" |
| Max Working Distance Between Spindles | 35.43" |
| Main Spindle Chuck Size | 10" |
| X-Axis (Cross Travel of Universal Head) | 22.83" |
| Z-Axis (Longitudinal Travel of Universal Head) | 36.80" |
| Y-Axis (Travel of Universal Head) | 6.299" |
| B-Axis (Rotation of Universal Head) | 225° |
| W-Axis (Sub-Spindle Slide) | 33.46" |
| C-Axis (Indexing Positions of Main Spindle) | .001° |
| C2-Axis (Indexing Positions of Sub-Spindle) | .001° |
| Main Spindle Bore | 3.1" |
| Main Spindle Nose | A2-8 |
| Main Spindle Horsepower | 20 HP |
| Main Spindle Speed Range | 50 - 3,800 RPM |
| Sub-Spindle Horsepower | 20 HP |
| Sub-Spindle Speed Range | 38 - 5,000 RPM |
| Automatic Tool Changer Capacity (ATC) | 40 Total |
| Live Tooling Horsepower | 15 HP |
| Live Tooling Speed Range | 90 - 6,000 RPM |
| Machine Cutting Hours | 7,700 |
| Approximate Machine Dimensions | 166" x 90" |
| Approximate Machine Height | 102" |
| Approximate Machine Weight | 24,000 LBS |
CONDITION: Machine Appears to be in Excellent Condition! Only 7,700 Cutting Hours!!
