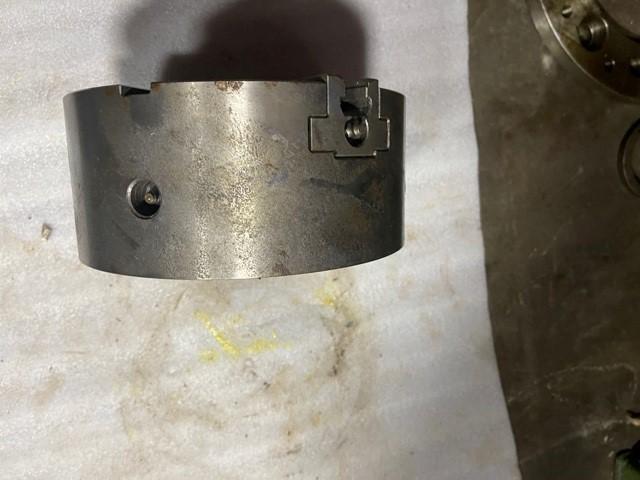

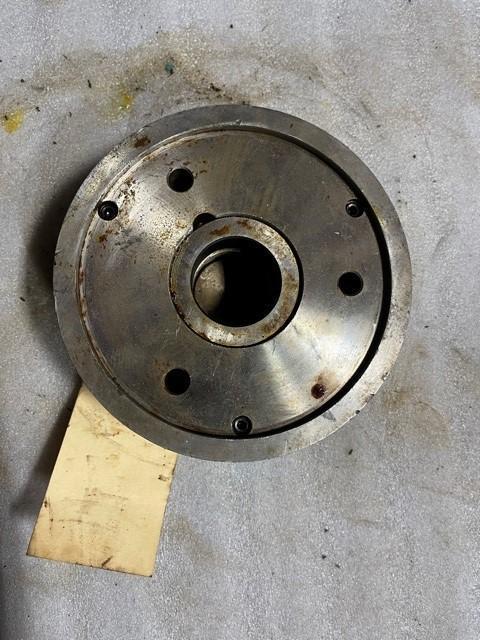

8-1/4" SMW AUTOBLOK 210BB 3-JAW HYDRAULIC CHUCK

Stock #: Q10648

Brand: SMW AUTOBLOK
Model: 210BB
Type: Chucks
Condition: Used
Year: Not Specified

Equipped With:



ID: 2 3/4"

See attached file

Specifications:

# Jaws 3
Body Diameter 8.25"
Through Hole yes
Through Hole Diameter 66mm ( 2.6" )
Spindle Mount Type A6
Jaw Stroke 4mm ( .16" )
Max Speed 5,000 RPM
Max Pull Force 38 kN
Max Grip Force 108 kN
Approximate Dimensions 8.25" x 8.25"
Approximate Height 3.5"
Approximate Weight 19.5 KG / 43 LBS

8-1/4" SMW AUTOBLOK 210BB 3-JAW HYDRAULIC CHUCK
