Stock #: Q10634
Brand: DOALL
Model: 3613-20
Type: Saws, Band, Vertical
Condition: Excellent
Year: 1984

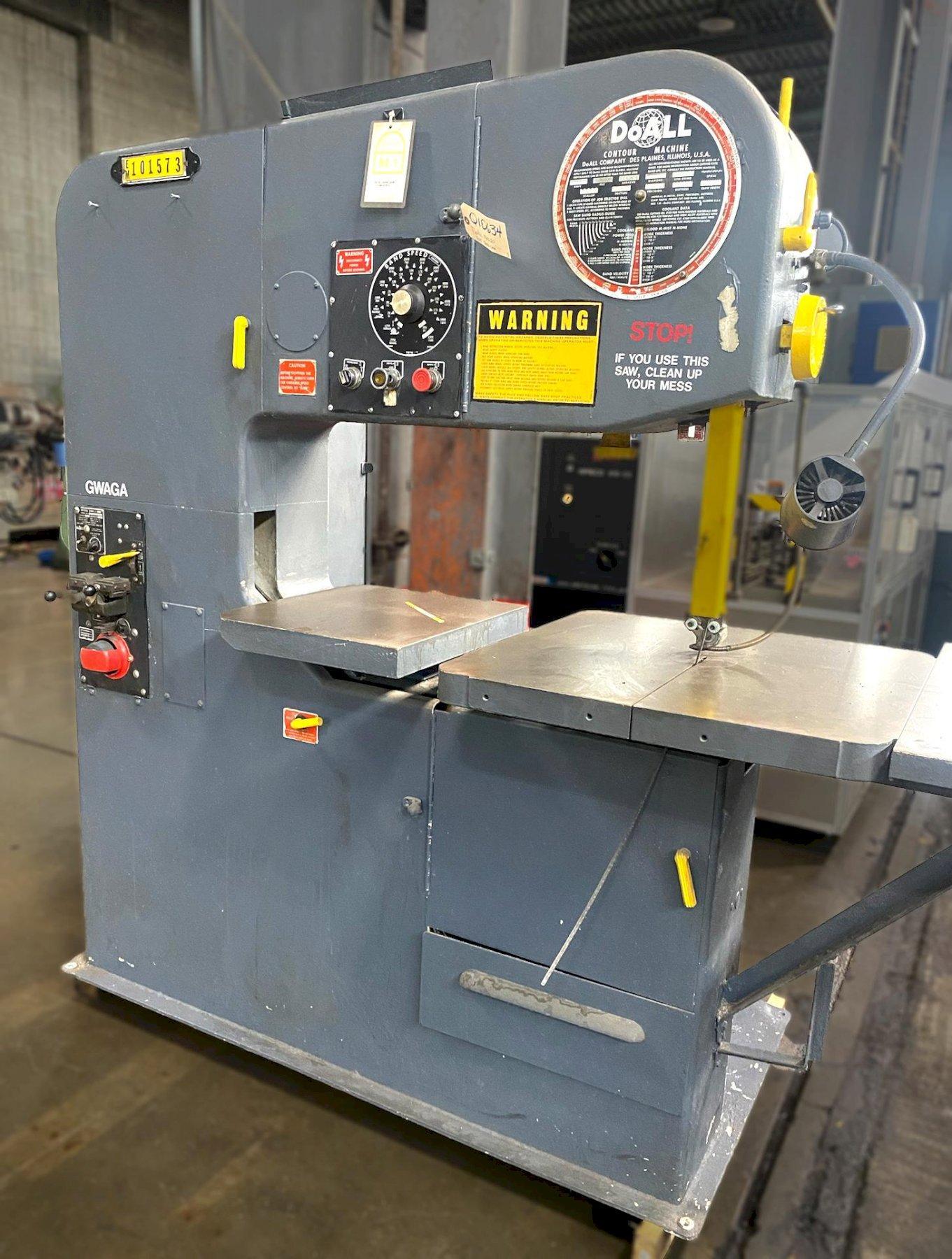

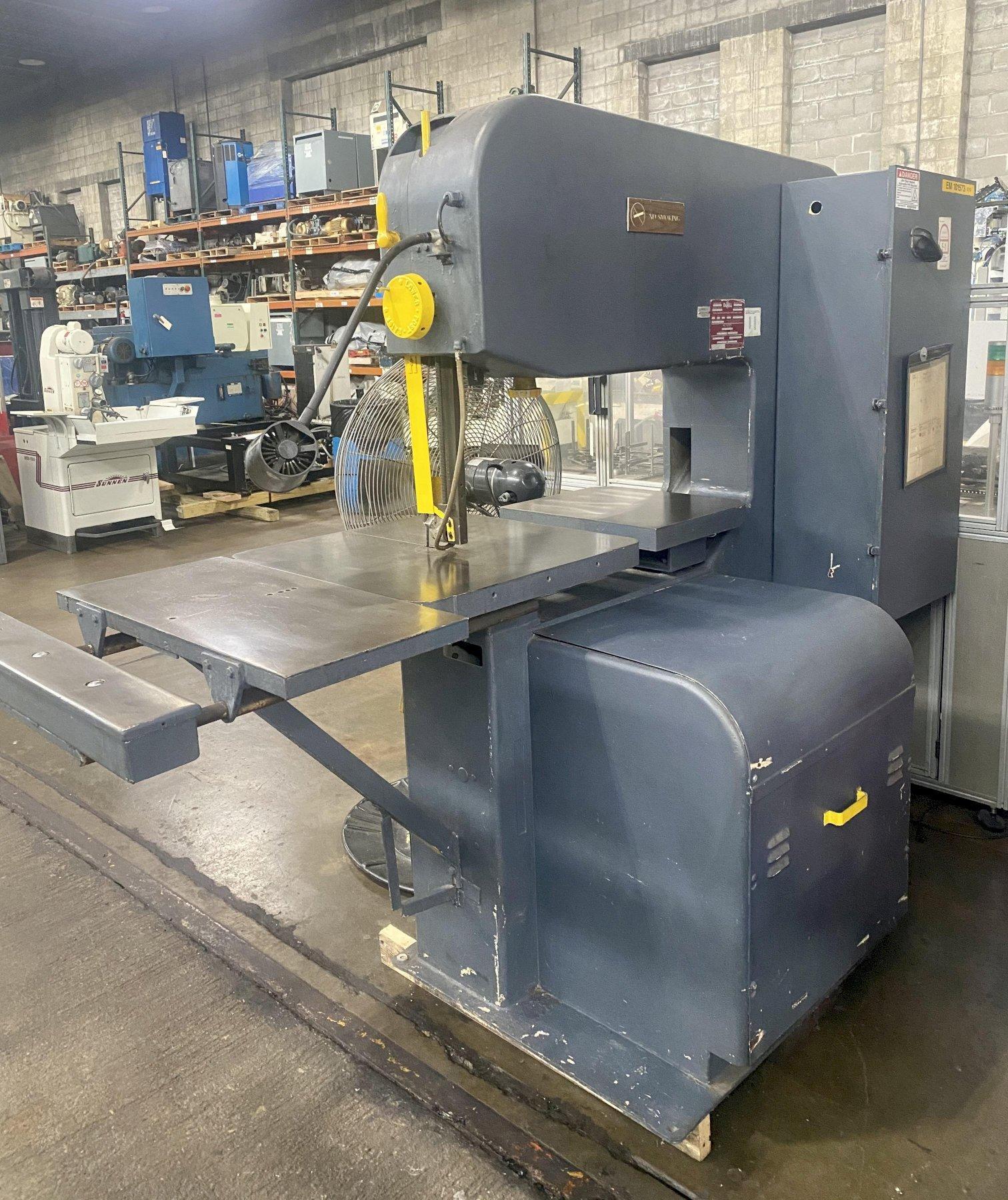

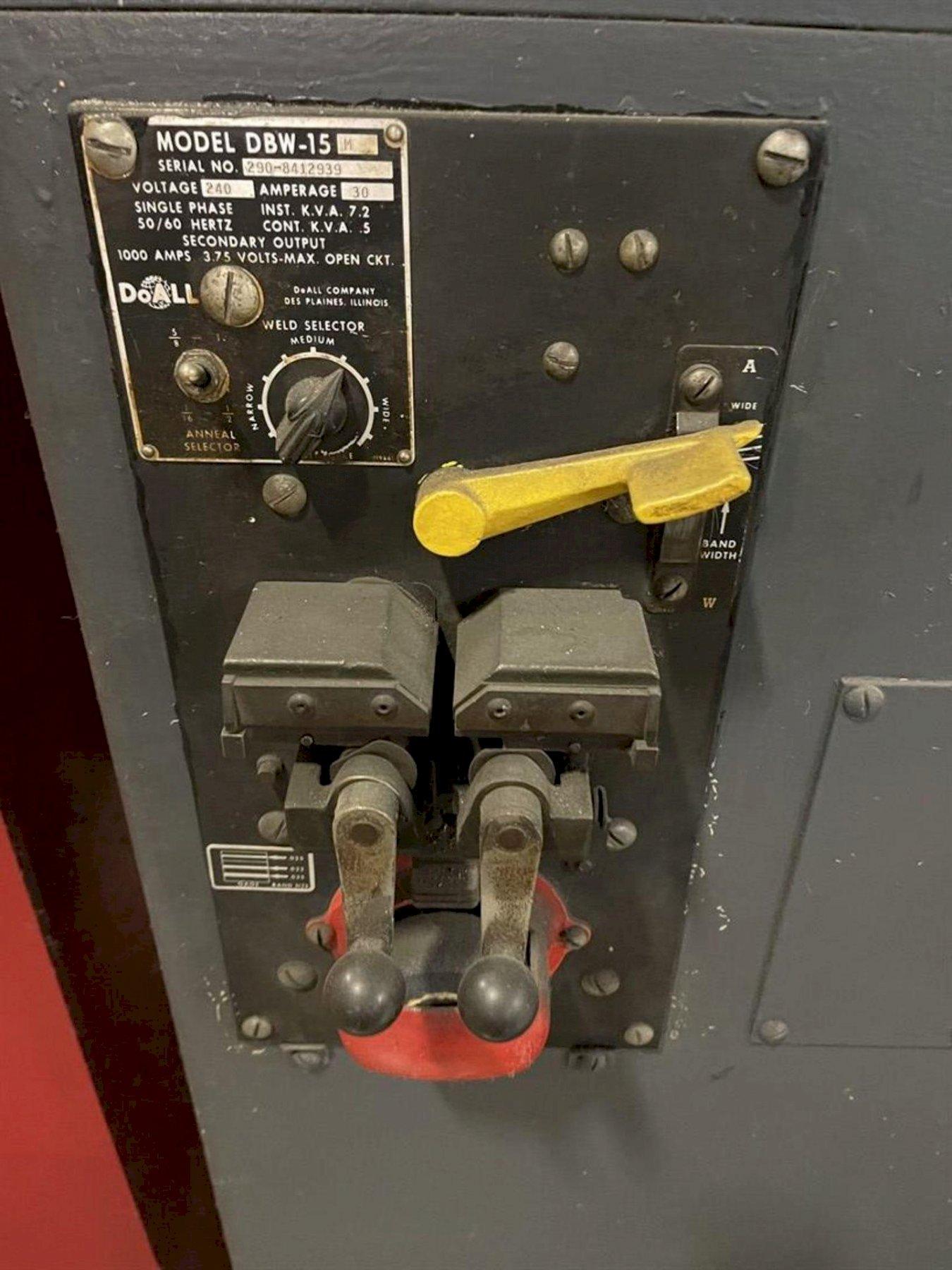

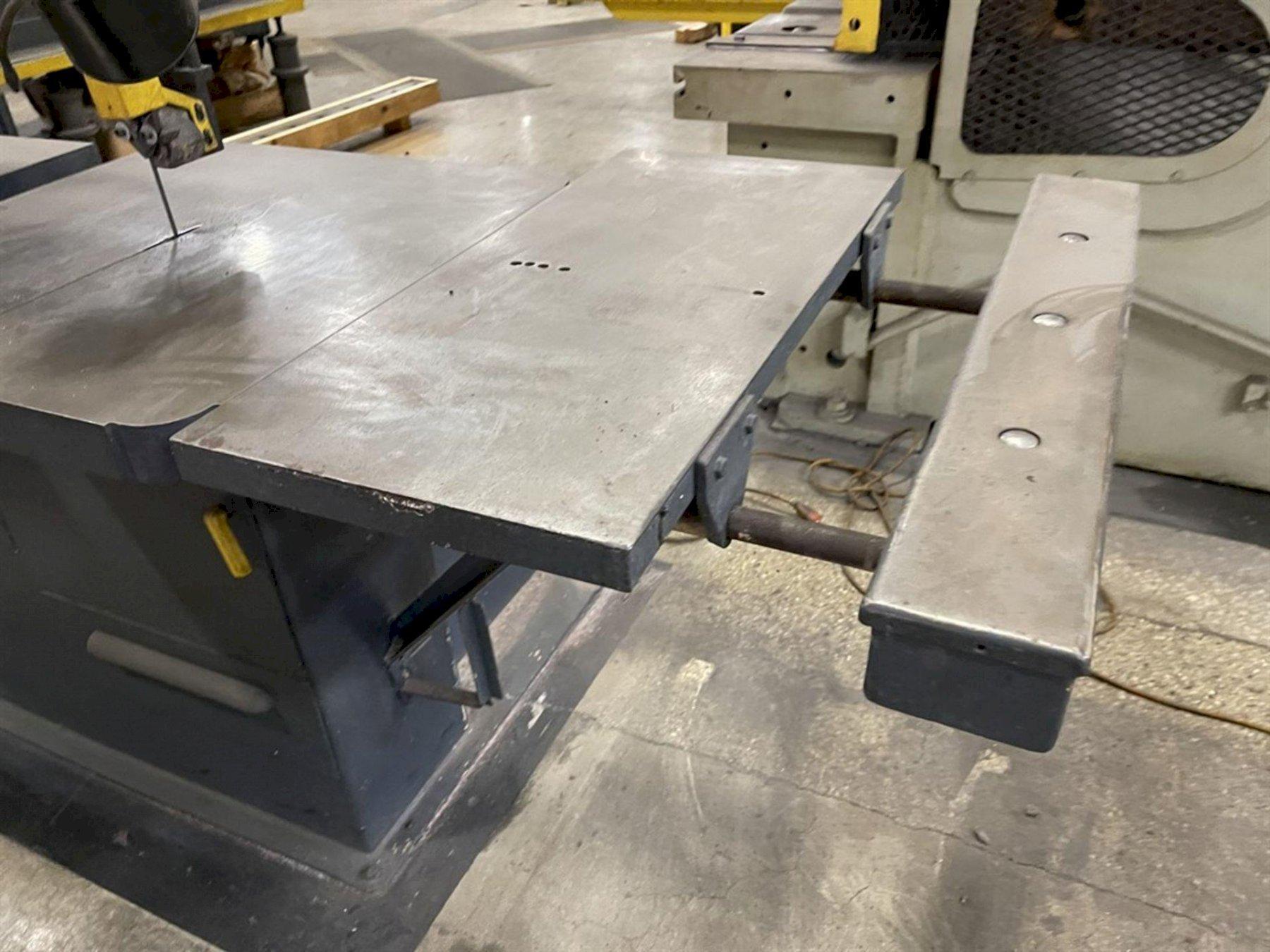

30" x 30" 2-Way Tilting Table, DoAll DBW-15 Blade Welder & Shear, Cast Iron Blade Wheels, Infinitely Variable Speed Control, Work Light.
Specifications: |
|
---|---|
Throat Depth | 36" |
Max Work Height Capacity | 13" |
Worktable Dimensions (Overall) W x L | 30" x 30" |
Worktable Tilt (L/R) | 10°/45° |
Blade Length | 125" |
Blade Width | 1/16 - 1" |

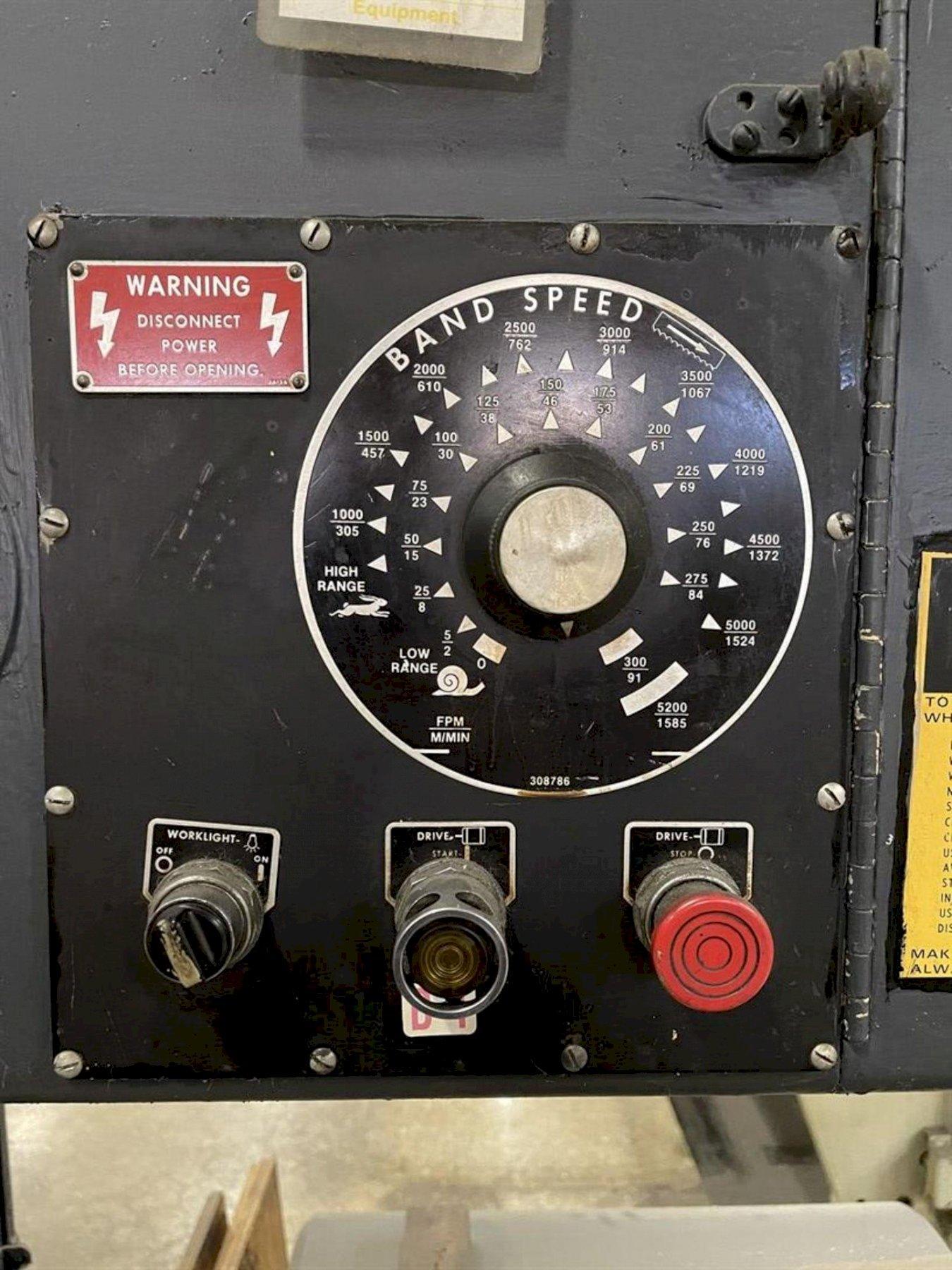

Blade Speeds, Infinitely Variable | 5 - 300 FPM (Low) / 850 - 5200 FPM (High) |
Motor Horsepower | 3 HP |
Electrics | 460/3/60 |
Approximate Machine Dimensions | 76" x 39" |
Approximate Machine Height | 79" |
Approximate Machine Weight | 2,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
---|
30" x 30" 2-Way Tilting Table, DoAll DBW-15 Blade Welder & Shear, Cast Iron Blade Wheels, Infinitely Variable Speed Control, Work Light.
|
Specifications |
|
---|---|
Throat Depth | 36" |
Max Work Height Capacity | 13" |
Worktable Dimensions (Overall) W x L | 30" x 30" |
Worktable Tilt (L/R) | 10°/45° |
Blade Length | 125" |
Blade Width | 1/16 - 1" |
Blade Speeds, Infinitely Variable | 5 - 300 FPM (Low) / 850 - 5200 FPM (High) |
Motor Horsepower | 3 HP |
Electrics | 460/3/60 |
Approximate Machine Dimensions | 76" x 39" |
Approximate Machine Height | 79" |
Approximate Machine Weight | 2,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition. |
